About Mechanical Equipment
Mechanical powder presses are designed to press or compress powder into a solid form. Mechanical powder presses are designed to fill a container that is usually made of metal with a certain volume of powder. The mechanical powder press then indexes the container filled with powder underneath the press where a tooling head designed for the application compresses the powder within the container to form a solid piece of product. The force necessary to compress the powder in a mechanical powder press can be generated mechanically or hydraulically. Mechanical powder presses are most often used in the cosmetics industry to create press powder make-up products.
Mechanical Equipment In Stock
- Manufacturer: Kemwall
- Model Number:
- Frain Number: 5E9480
Automatic, hydraulic, cosmetic powder press rated up to 20 compacts per minute – depending on materials and application. Size range: up to 76 mm. Pressure: 600 to 6,500 kg. Equipped with a 40" long x 4" wide infeed conveyor with adjustable guide rails, 8 station rotary indexing system, compression head, pneumatic loading station with jam detection, and a 36" long x 3" wide discharge conveyor. Additionally features an A/B panel view, PLC, and Lexan safety guarding. Mounted on height adjustable legs.
OAD: 78" L x 72" W x 68" HGet a Free Quote Call: 630-629-9900

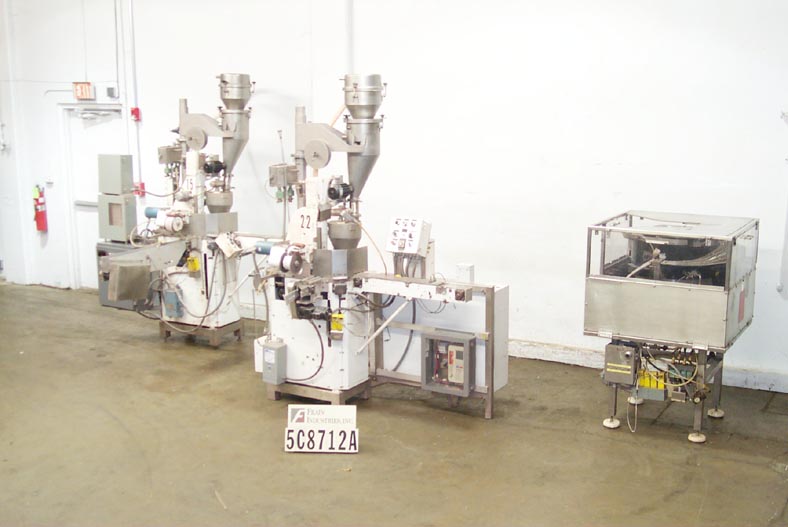

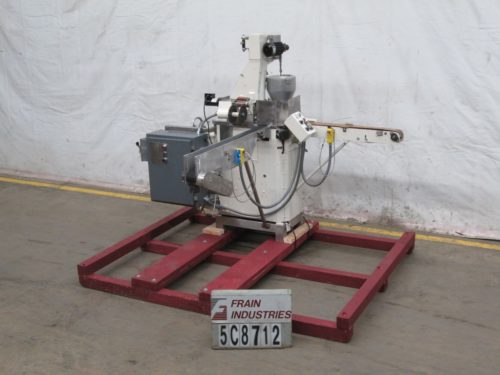

- Manufacturer: Kemwall
- Model Number: MARK IV
- Frain Number: 5C8712
Automatic hydraulic single color powder press is capable of up to 30 compacts per min. on a single tooling set up and up to 60 compacts per min. on a double. The godet size range is from 20 mm to 89mm with a maximum depth of 8mm. Unit is equipped with 36" long infeed conveyor, powder hopper with auger stirrer (for free flowing products), cloth feed (filters out air and prevents powder from sticking to punch), and automatic discharge. Hydraulic PSI can be adjusted from 200 – 2,000 PSI. Overall dimensions: 67"H x 33"W x 75"L.Get a Free Quote Call: 630-629-9900
- Manufacturer: Herman Schwabe Inc
- Model Number: LYS 1660
- Frain Number: 5E5021
16 x 60 die cut press
60" width accross machine
16" depth inline with machine feed.
Pinch roller style material feed.
Electric motor driven hydraulic power pack.
Foot pedal operator actuated.
- Manufacturer: Carver
- Model Number: MCP
- Frain Number: 5E0244
Automatic, single color powder press capable of speeds up to 50 cycles per minute (depending on dwell times, and powder formulation). 22" diameter dial plate has 8 interchangeable insert godet stations, 14" diameter x 14" deep stainless steel product hopper with Lesson 1/4 hp product stirrer. 2 ton self contained hydraulic press head and cylinder, adjustable cloth feed ribbon system, mechanical cam ejection, Currently set for a 2" x 1 1/4" rectangle godet. Last running in a cosmetic operation.
OAD: 48" L x 40" W x 67" HGet a Free Quote Call: 630-629-9900
