Home » Capping » 8 Head or More (Eight Head)
Automatic, 8-head, rotary capper with a 5-1/2" pitch, capable of speeds from 90 to 240 containers per minute – speeds depending on materials and application. Caps size range: up to 89mm (requires proper change parts). Equipped with a 108" long by 3" wide conveyor, star wheel in feed, bottle gripper finger, trans-grip cap transfer, 15" diameter transfer wheel to container and star wheel discharge. Mounted on height adjustable legs.
OAD: 113"L x 48"W x 90"H

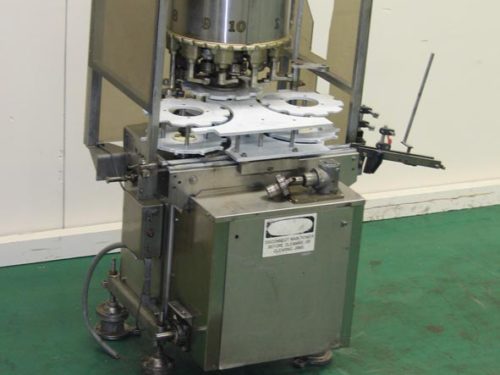

Automatic, 10-head rotary, chuck-style, capper capable of speeds from150 to 375 containers per minute – speeds depending on materials and application. Containers: up to 4 1/2" dia x up to 14"H. Caps: up to 70mm. Has 6" pitch, wormscrew, starwheel infeed / discharge, trans-grip arms for cap transfer and bottle gripping, 38mm cap transfer, quick changeover torkopen chucks, and no container / no cap. Mounted on a stainless steel frame with vibration isolation, height adjustable feet. OAD: 62"L x 46"W x 90"H
PART OF COMPLETE LINE
12 Head rotary chuck capper rated from 160 to 450 containers per minute – speeds depending on materials and application. Containers size range: up to 4-1/2" in Diameter; up to 6" Oval; up to 14-1/2" in Height. Cap size range: 13mm to 89mm in Diameter. Equipped with 3-1/4" wide by 144" long conveyor, screw to star wheel in feed, container body clamps, integrated rotary disc cap feeder, cap shoot, cap button transfer arm, air chuck heads set on 6-1/2" centers, turret guarding, no bottle / no cap and star wheel discharge. Mounted on B style frame with enamel coating. Change parts required to accommodate size range of container and cap.
OAD: 150"L x 75"W x 95"H

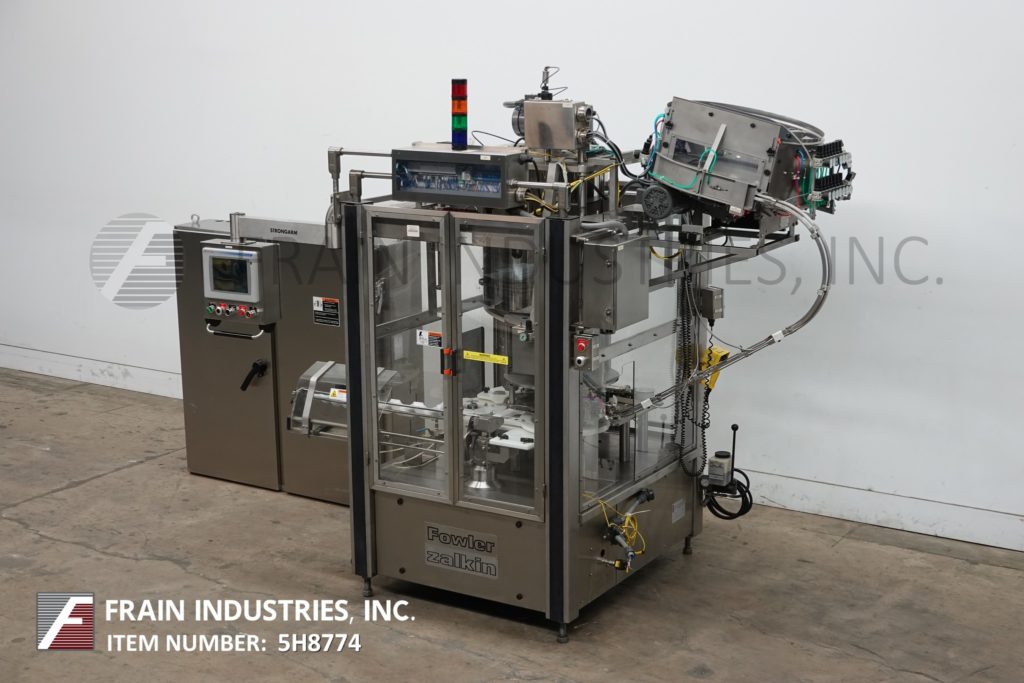

Fowler / Zalkin, Model CA (S) 12/480, Automatic, 12 head, rotary, stainless steel, servo driven, ROPP capper, with number of containers and caps per minute – depending on materials and application. Cap and container sizes per application. Equipped with 36" diameter x 12" deep sorting bowl, 84" long x 3½" wide plastic Delrin container belt conveyor with 29" infeed and discharge height. (12) screw capping heads, set on 5½" centers with missing cap and container detection with start, stop and e-stop push button controls. Mounted on a stainless steel frame with interlock safety guarding.
OAD: 96" L x 69" W x 118" H
Consolidated, Model D-8-P, 8-head rotary, chuck capper with number of containers per minute – depending on materials and application Capable of handling cap and containers of different sizes and shapes both with proper change parts. Cap size up to 120mm or 4.72". Equipped with 60" long x 3¼" wide product conveyor, has star wheel in feed and discharge, integrated 32" ID sorting wheel with feed chute, 16" OD turret with (8) capping heads set on 6 centers, has no container / no cap, control power on / off switch. Mounted on heavy duty frame.
OAD: 60" L x 44" W x 88" H
Zalkin, stainless steel, 8 head rotary chuck capper and feeder. Rated from 24 to 240 containers per minute – depending on materials, application and machine configuration. Equipped with 28" diameter bowl sorter and feeder, 3½" wide plastic delrin belt conveyor, worm screw to star wheel in feed, (8) head chucks set on 5½" centers and star wheel discharge. Control panel has A/B controller and A/B touch screen HMI. Mounted on heavy duty frames.
OAD: 105"L x 60"W x 90"H

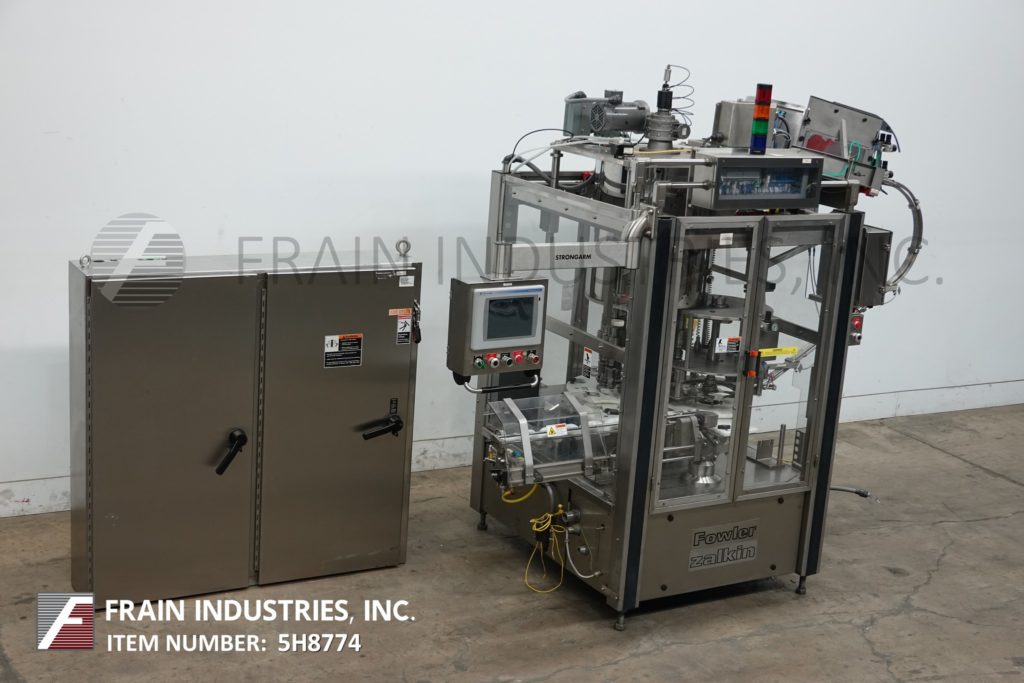

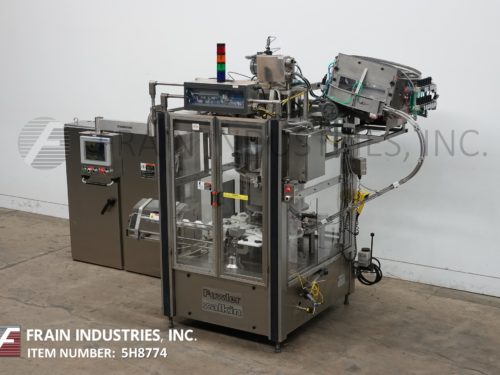

Zalkin / Fowler Model CASF, automatic, stainless steel, 12 head rotary chuck capper with number of containers per minute – depending on materials and application. Cap and container sizes: per application with proper change parts. Equipped with 140" long x 3-1/2" wide plastic interlock container belt conveyor, has 48" long worm screw to star wheel container indexing with U-Shaped container transfer conveyor to cap chute currently set for 100mm caps, no container / no cap and has (12) frictionless, magnetic clutch chuck cap heads with quick release gripper jaws set on 11" centers to star wheel discharge with 84" long x 3-1/2" wide discharge conveyor. Control panel has strongarm swing arm controller and A/B panelview controller with control power on / off, cycle start, stop, reset cap starter, jog and e-stop push button controls. Mounted on stainless steel base frame with safety guarding doors and statis light bar.
OAD: 140" L x 84" W x 103" H
Fowler Model CAPDF-9/360, automatic, right to left, (9) head rotary, stainless steel, push-on capper designed to run insert and push-on style closures rated from 9 to 325 containers per minute – depending on materials and application. Cap and Container sizes per application with proper change parts. Equipped with 177" long x 4-1/2" wide plastic interlock container belt conveyor with 32" long worm screw to star wheel container in feed and discharge, cap chute currently set for 63mm caps with no container / no cap, (9) push on capping heads with quick release gripper jaws set on 5" centers, with container sampling and rejection section has 4-1/2" wide secondary cross over conveyor. Remote control panel has A/B CPU controller with on board Strongarm swing arm and A/B touch pad controller with panel view and has control power on / off and cycle start, stop, reset and e-stop push bottons controls with A/B powerflex vari-speed controllers and interlock safety guarding with statis light bar. Mounted on stainless steel base frame with (4) height adjustable legs. Used for lids, fitments, plugs, overcaps, flip tops and roller ball applications and can handle glass, metal or plastic containers.
OAD: 187" L x 64" W x 101" H
Fowler Model CAPDF-9/360, automatic, left to right, (9) head rotary, stainless steel, push-on capper designed to run insert and push-on style closures rated from 9 to 325 containers per minute – depending on materials and application. Cap and Container sizes per application with proper change parts. Equipped with 177" long x 4-1/2" wide plastic interlock container belt conveyor with 32" long worm screw to star wheel container in feed and discharge, cap chute currently set for 63mm caps with no container / no cap, (9) push on capping heads with quick release gripper jaws set on 5" centers, with container sampling and rejection section has 4-1/2" wide secondary cross over conveyor. Remote control panel has A/B CPU controller with on board Strongarm swing arm and A/B touch pad controller with panel view and has control power on / off and cycle start, stop, reset and e-stop push bottons controls with A/B powerflex vari-speed controllers and interlock safety guarding with statis light bar. Mounted on stainless steel base frame with (4) height adjustable legs. Used for lids, fitments, plugs, overcaps, flip tops and roller ball applications and can handle glass, metal or plastic containers.

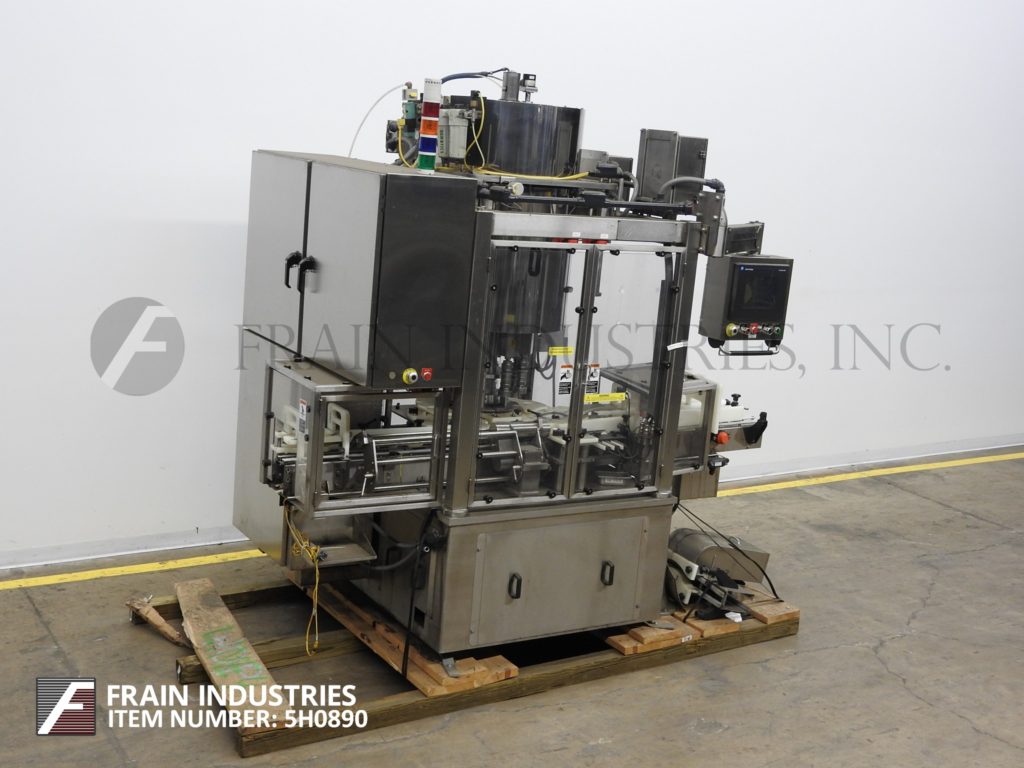

Pneumatic Scale, Model TC450-8, automatic, 8 head rotary chuck capper rated from 24 to 240 containers per minute – depending on materials, application and machine configuration. Cap size: up to 100mm. Container Size: up to 6.25" in Diameter and 4.81x 4.81 square with proper change parts. Equipped with 98" long x 3-1/2" wide container conveyor with 30" long worm screw to star wheel container in feed and cleated cap feeder with 36" x 32" x 20" cap hopper, 100" long x 8" wide belt has 2" high cleats set on 6" centers, cap feed chute,cap pick off, no container / no cap, (8) 100mm friction chucks caps set on 7-1/2" centers to star wheel discharge and 44" long x 3-1/2" wide discharge belt conveyor. Remote control panel has A/B CPU controller with A/B touch pad controls and panelview with set-up, run switch with e-stop. Mounted on heavy duty base frame with interlock safety door guarding and statis light bar.
OAD: 142" L x 68" W x 90" H Capper 56" L x 48" W x 125" H Cap Feeder 58" L x 16" W x 73" H Control Panel

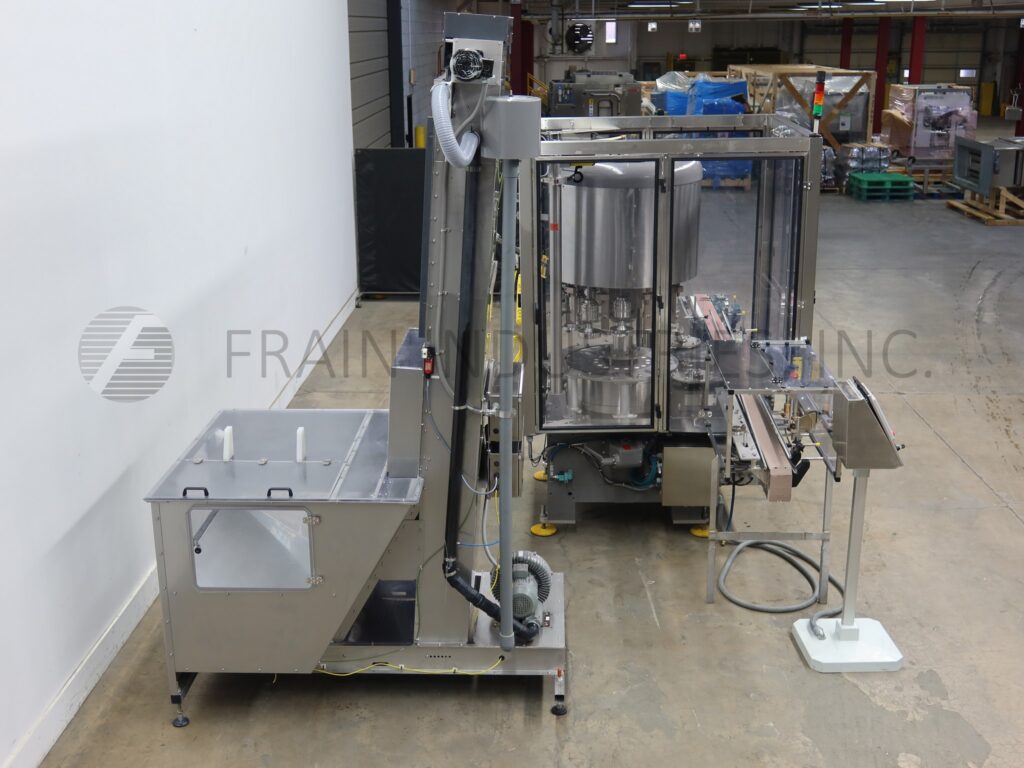

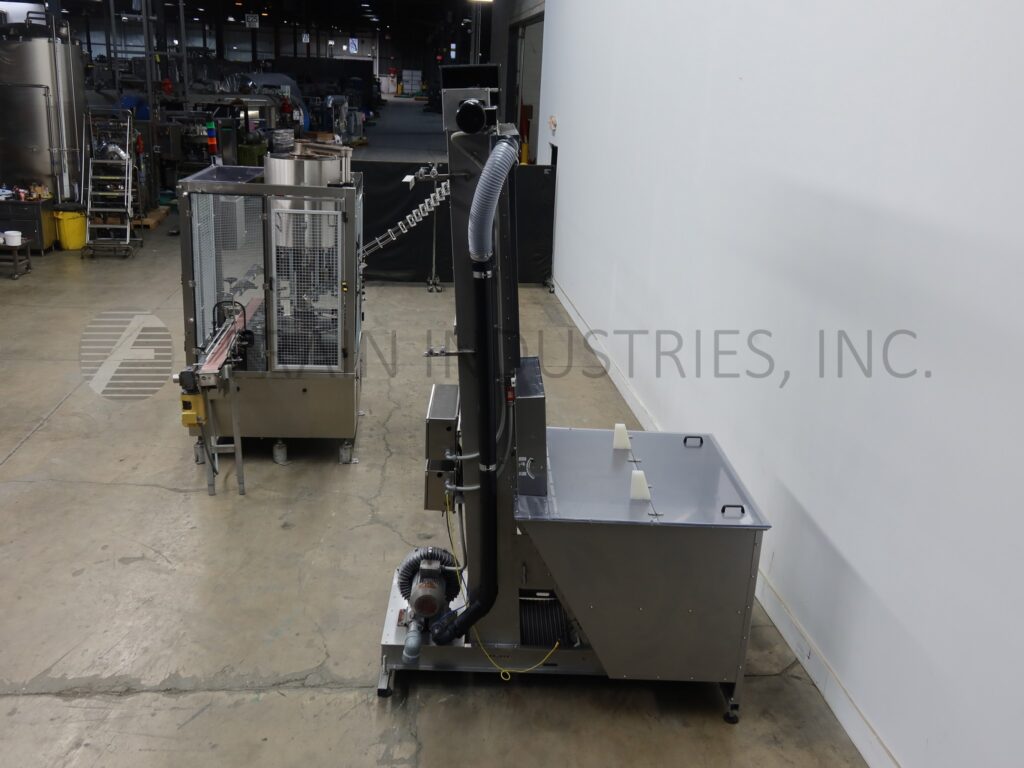

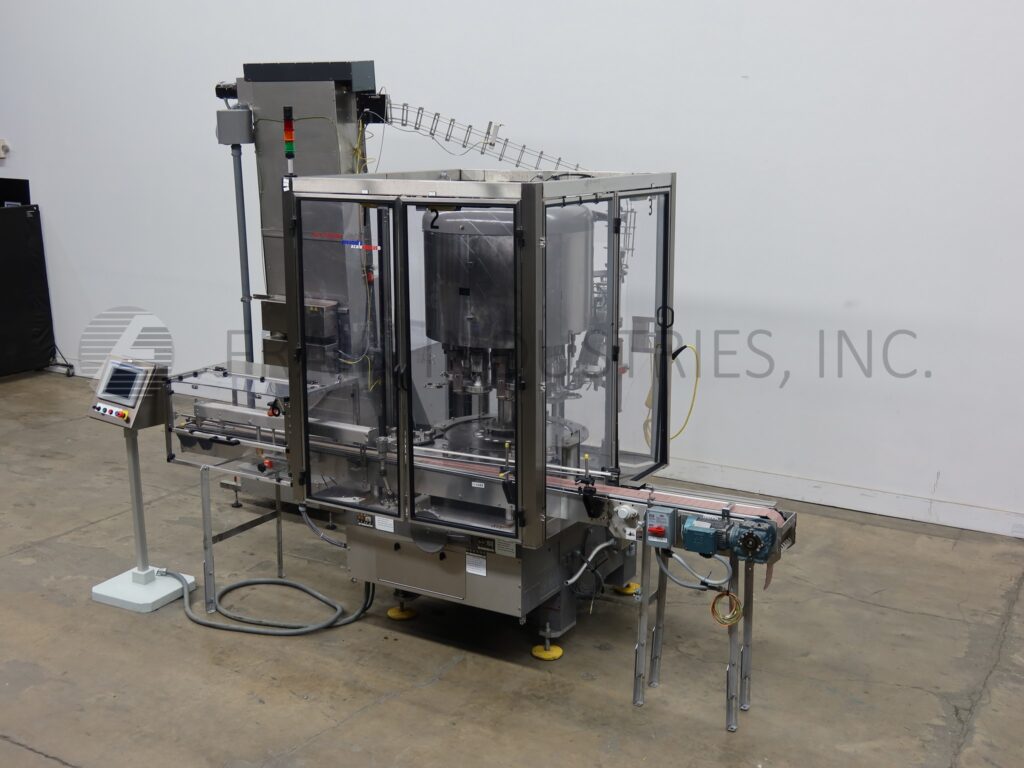

Fowler Model CAPDF-9/360, automatic, left to right, (9) head rotary, stainless steel, push-on capper and feed system designed to run insert and push-on style closures rated from 9 to 325 containers per minute – depending on materials and application. Cap and Container sizes per application with proper change parts. Equipped with 185" long x 4-1/2" wide plastic interlock container belt conveyor with 32" long worm screw to star wheel container in feed and discharge, Fowler Model WISD-600/40, stainless steel incline cleated belt feeder with 42" long bottom in feed section to 140" long product inverted feed section with 20" wide conveyor belt has 1" high cleats set on 4-1/2" centers with plastic interlock safety guarding and 190" discharge height and cap chute currently set for 63mm caps with no container / no cap, (9) push on capping heads with quick release gripper jaws set on 5" centers, with container sampling and rejection section has 4-1/2" wide secondary cross over conveyor. Remote control panel has A/B CPU controller with on board Strongarm swing arm and A/B touch pad controller with panel view and has control power on / off and cycle start, stop, reset and e-stop push bottons controls with A/B powerflex vari-speed controllers and interlock safety guarding with statis light bar. Both mounted stainless steel base frames. Used for lids, fitments, plugs, overcaps, flip tops and roller ball applications and can handle glass, metal or plastic containers.
OAD: 185" L x 60" W x 95" H Capper 70" L x 72" W x 200" H Cap Feeder
Fowler Model CAPDF-9/360, automatic, right to left, (9) head rotary, stainless steel, push-on capper designed to run insert and push-on style closures at rates from 9 to 325 containers per minute – depending on materials and application. Cap and Container sizes per application with proper change parts. Equipped with 180" long x 4" wide plastic interlock container belt conveyor with 32" long worm screw to star wheel container in feed and discharge, currently set for 63mm caps with no container / no cap, (9) push on capping heads with quick release gripper jaws set on 6" centers, with container sampling and rejection section. Strongarm swing arm and A/B touch pad controller with panel view and has control power on / off and cycle start, stop, reset and e-stop push bottons controls with A/B powerflex vari-speed controllers and interlock safety guarding. Mounted on stainless steel base frame with (4) height adjustable legs. Used for lids, fitments, plugs, overcaps, flip tops and roller ball applications and can handle glass, metal or plastic containers.
OAD: 180" L x 55" W x 91" H
