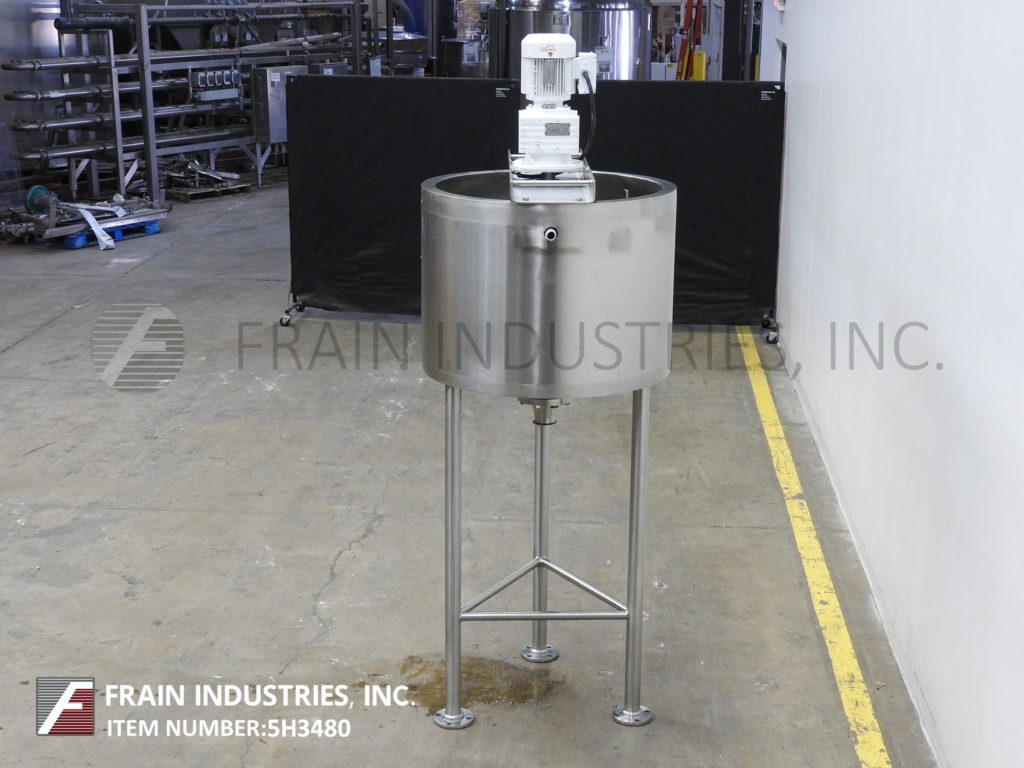

Single motion kettles are designed with a single motion agitator to mix the product. The type of agitator designed into a single motion kettle varies based on the application. Single motion kettle can be designed with side scrape or side sweep agitation.
Side scrape agitation has paddles or scrapers attached to a form shaped like an anchor that matches the size and shape of the kettle. The scrapers contact the inside of the kettle and will scrape the product off from the inner surface of the kettle. Side scrape agitation prevents product from seizing to the inside of the kettle and allows for more uniform cooking and processing of the entire batch. Paddles for side scrape agitation are normally made from plastic or brass.

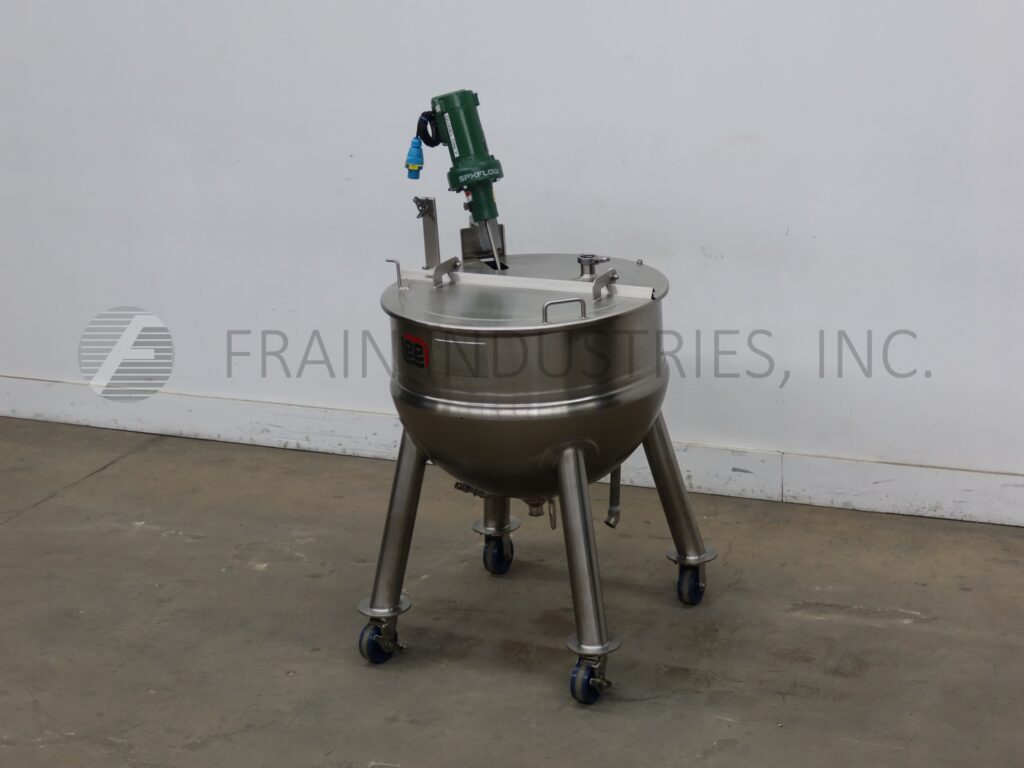

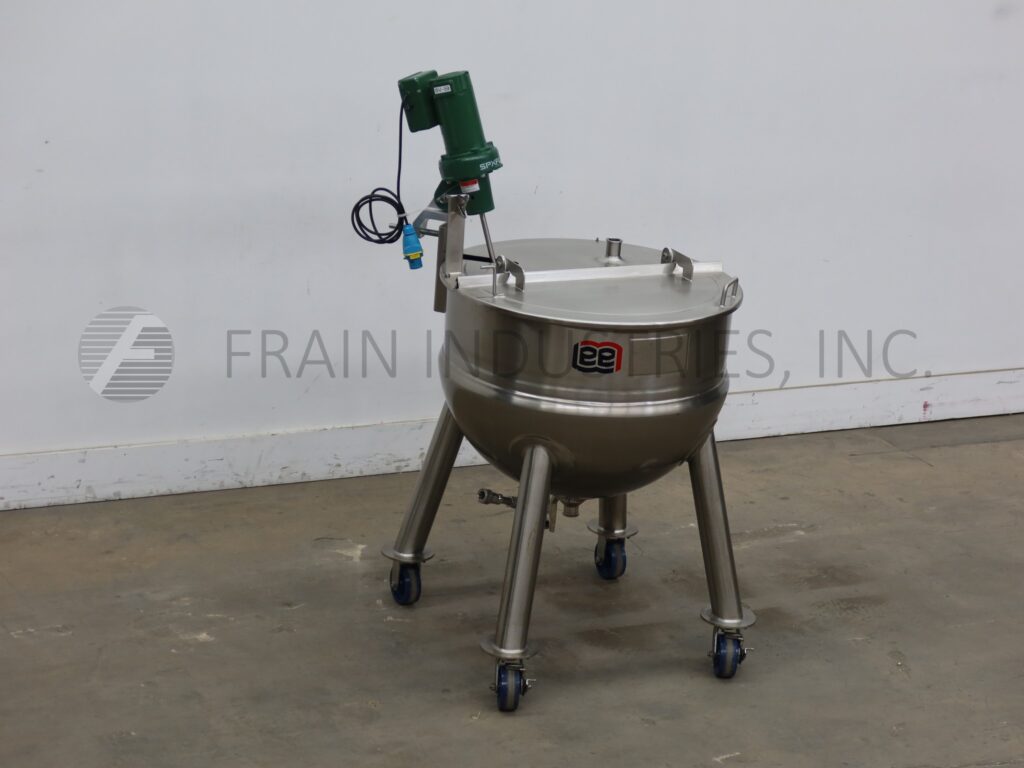

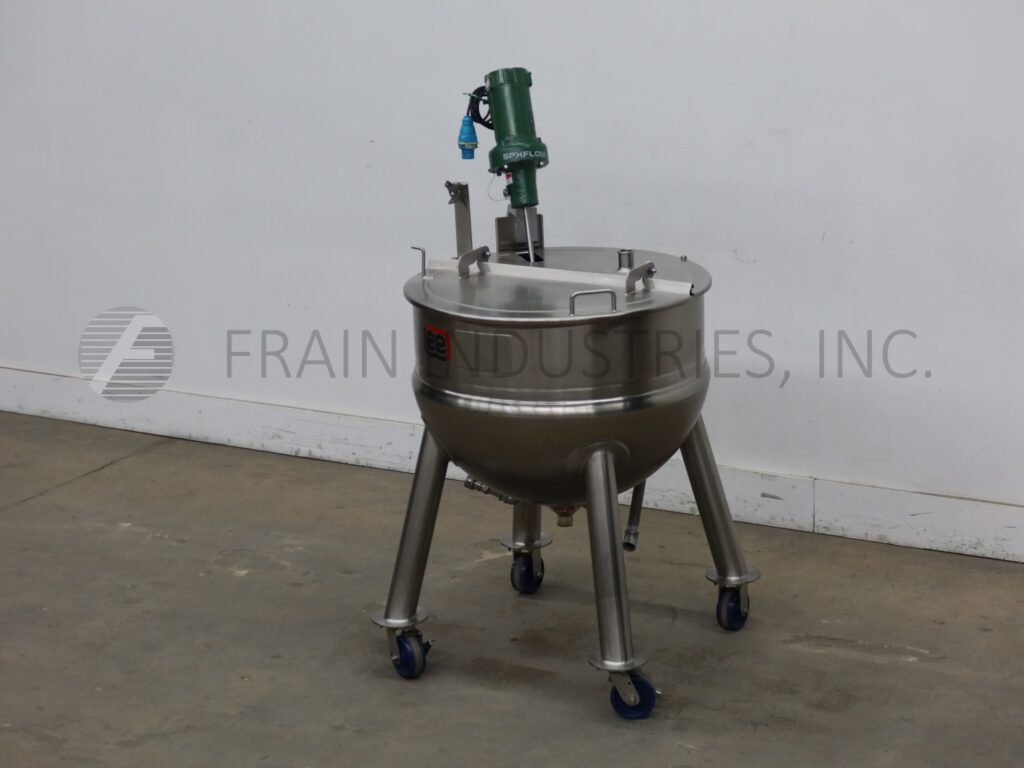

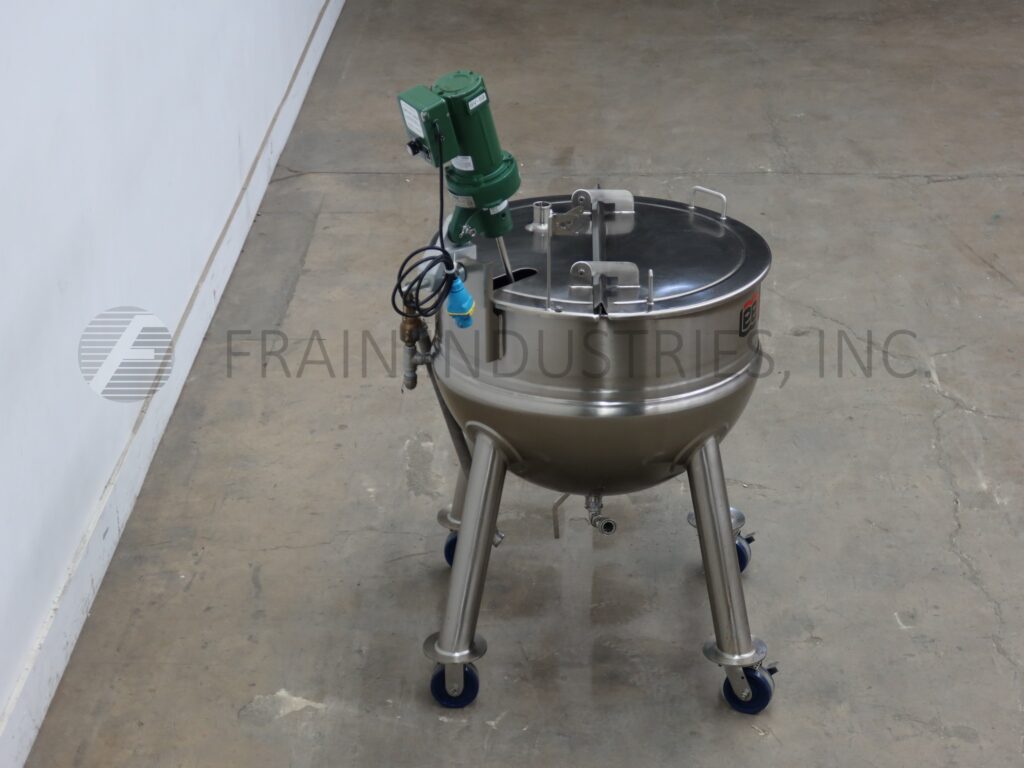

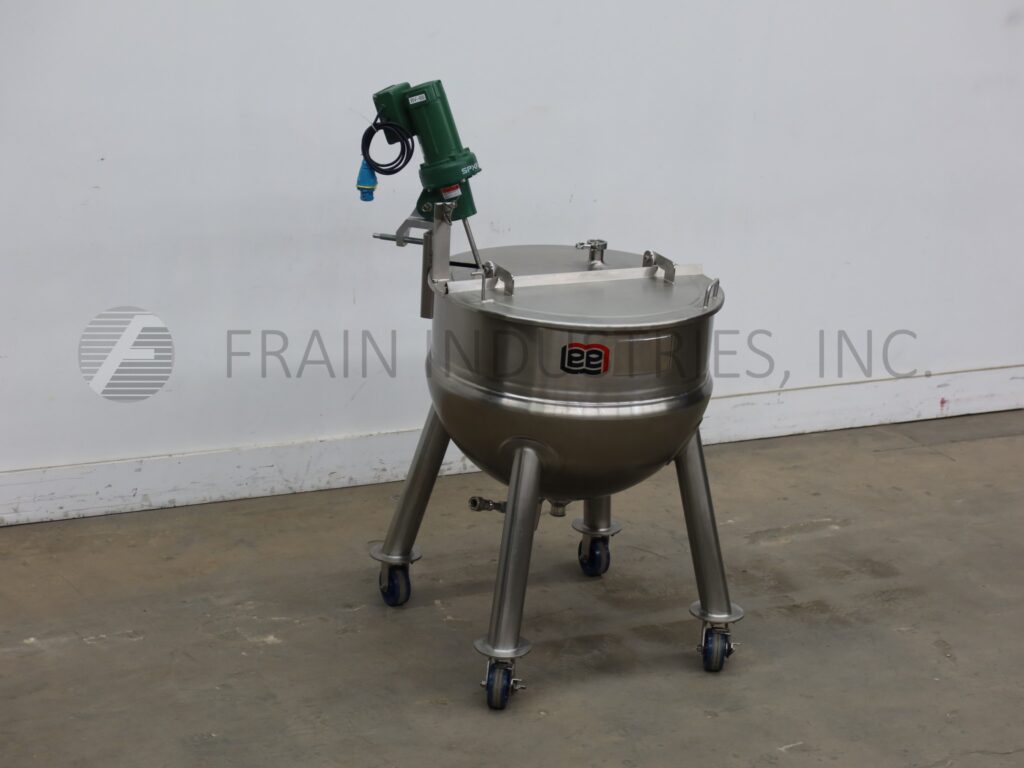

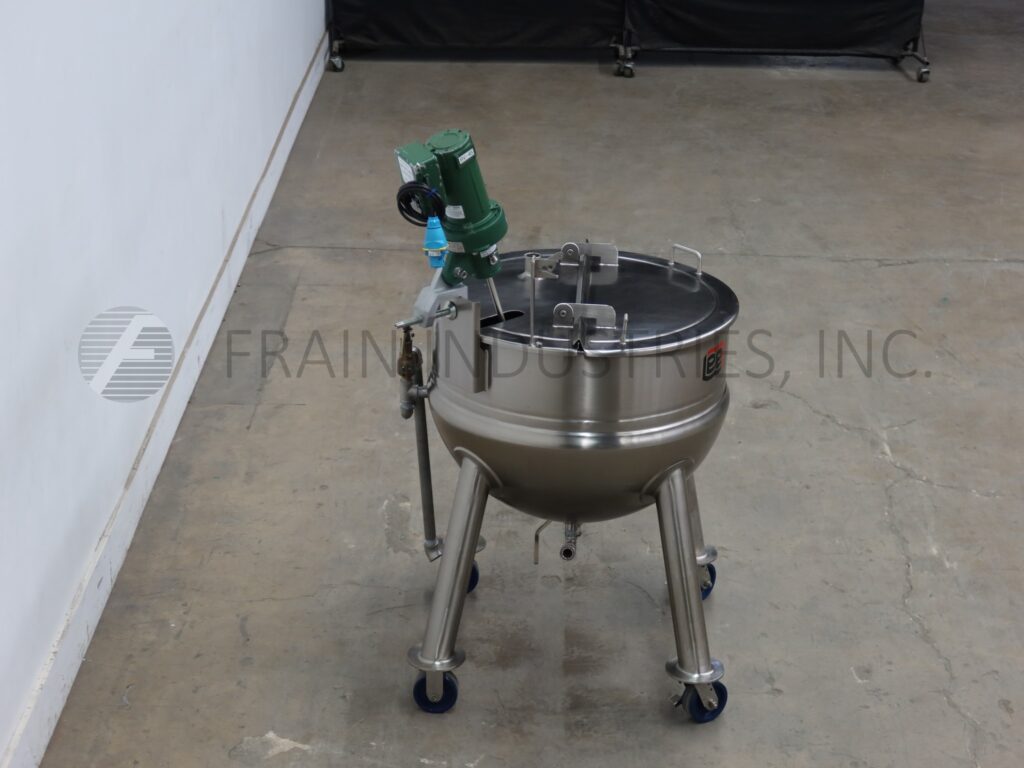

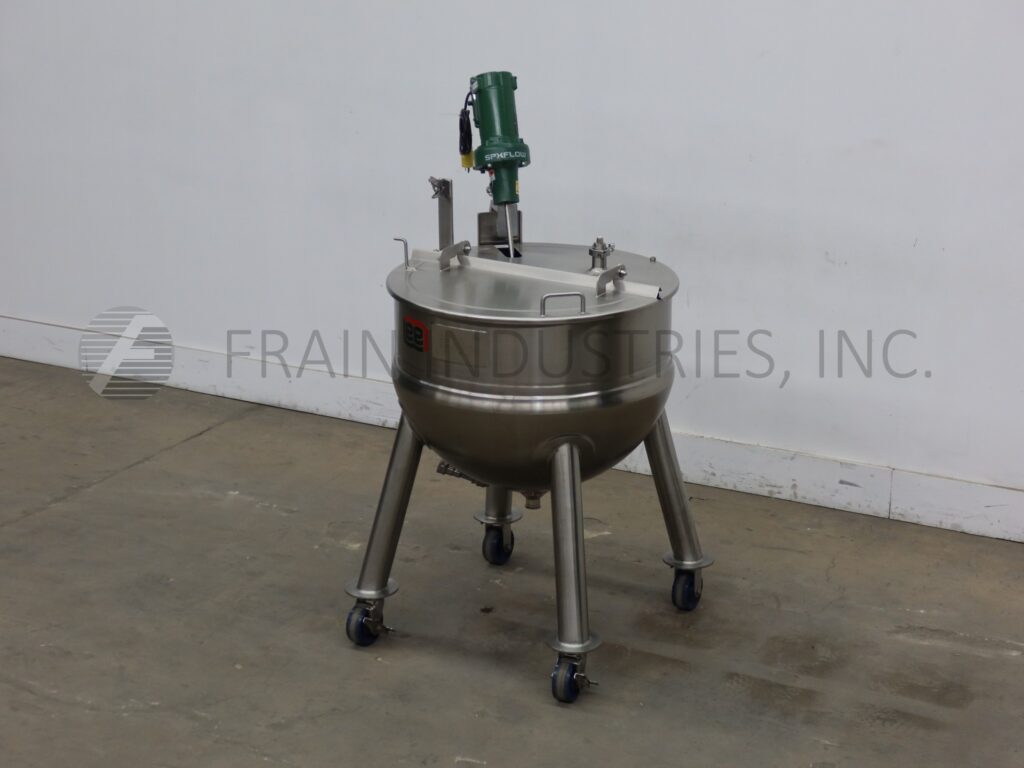

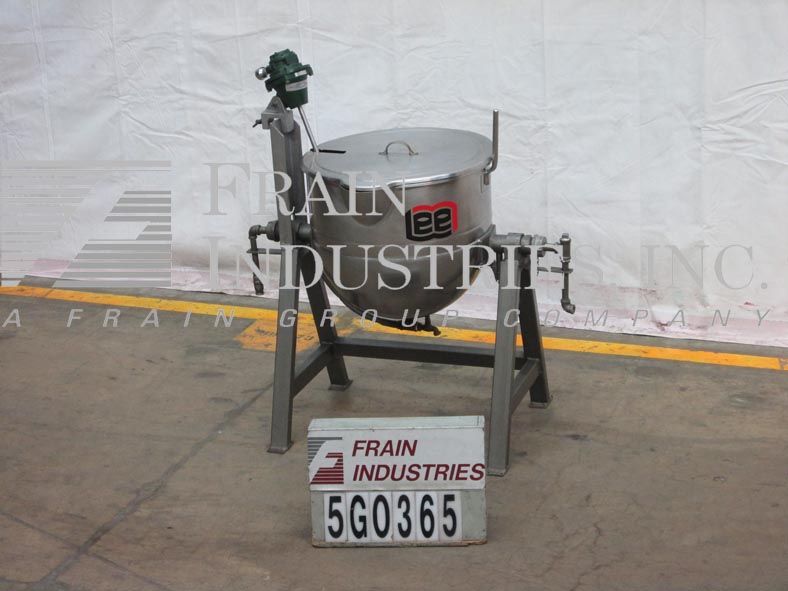

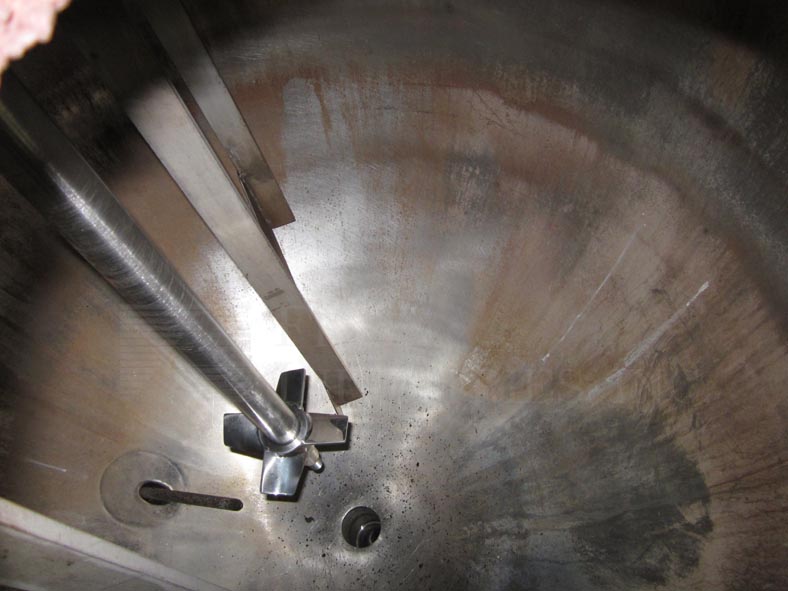

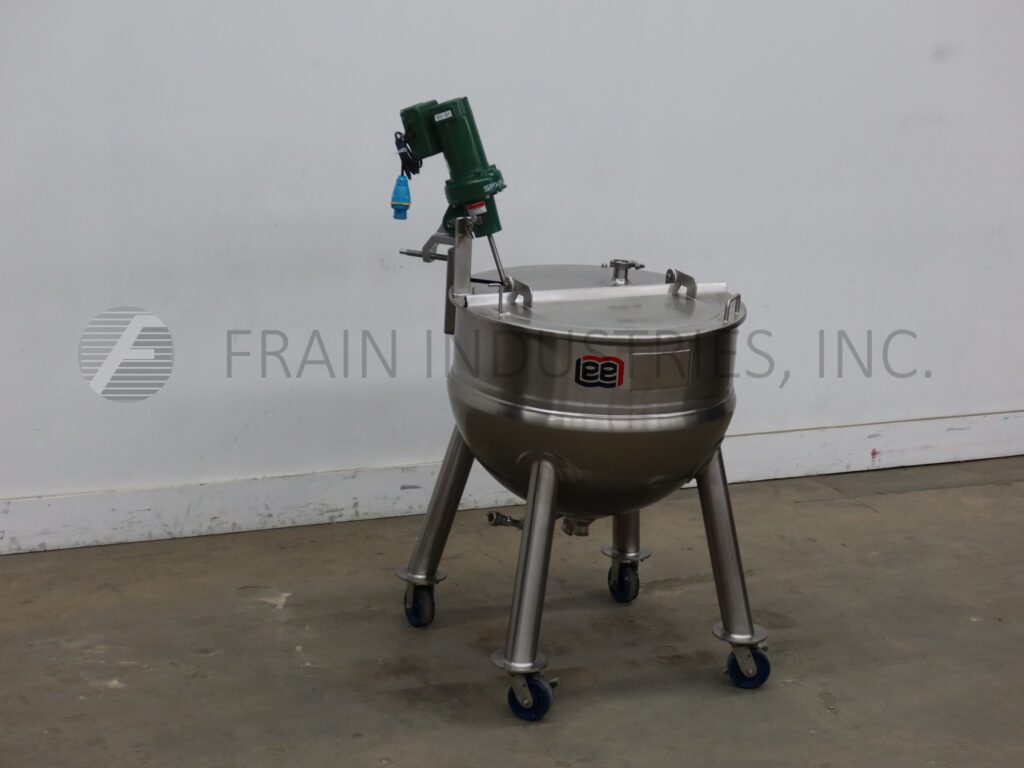

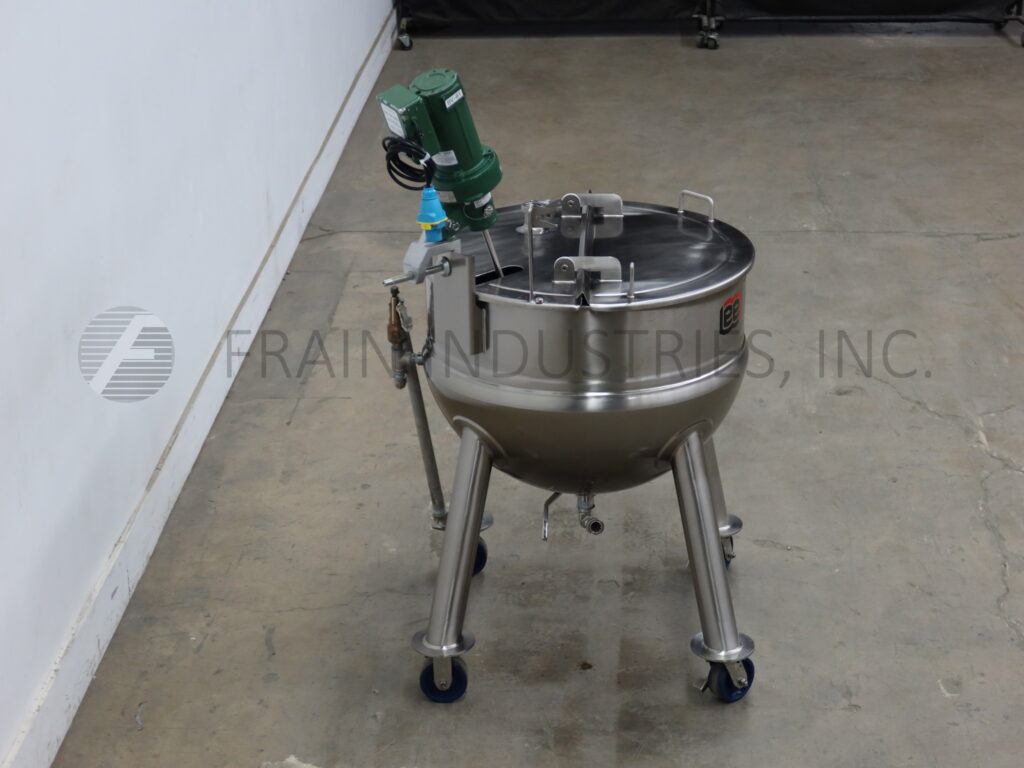

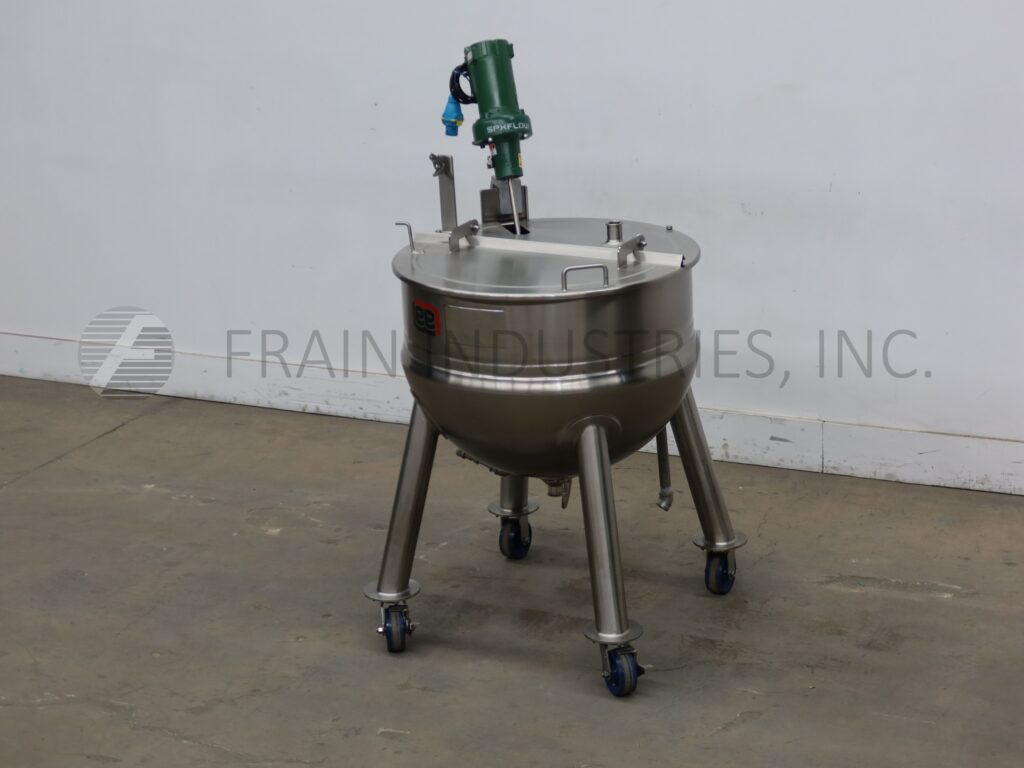

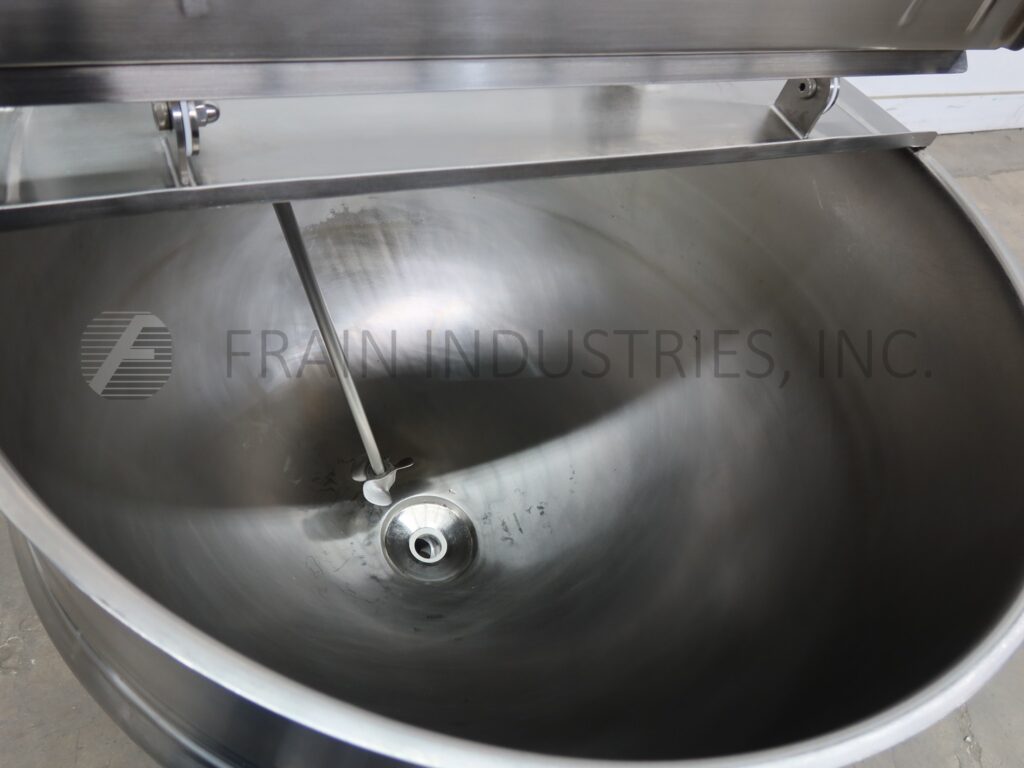

30 Gallon, 316 stainless steel, steam jacketed mixing kettle. Vessel dimensions: 16" inside diameter x 24" in depth product bowl, with top side mounted prop air mixer, jacket rated at MAWP of 90 psi @ 330°F, 1" OD threaded jacket ports and tilting discharge. Mounted on "A" frame base.
OAD: 48" L x 29" W x 53" H

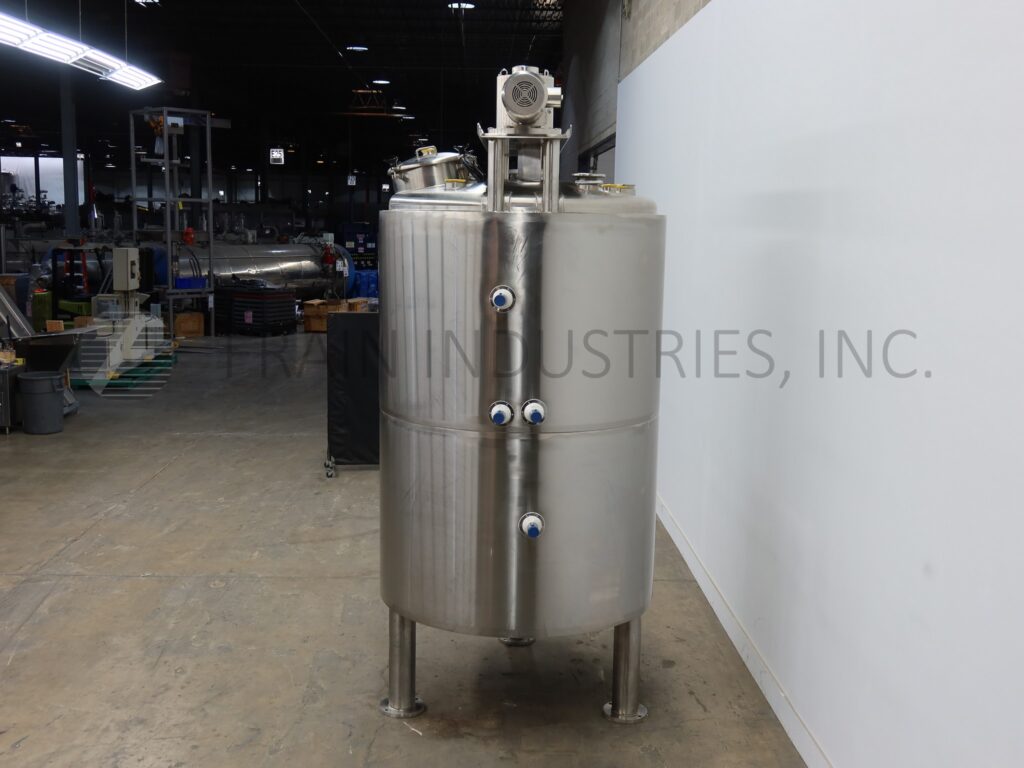

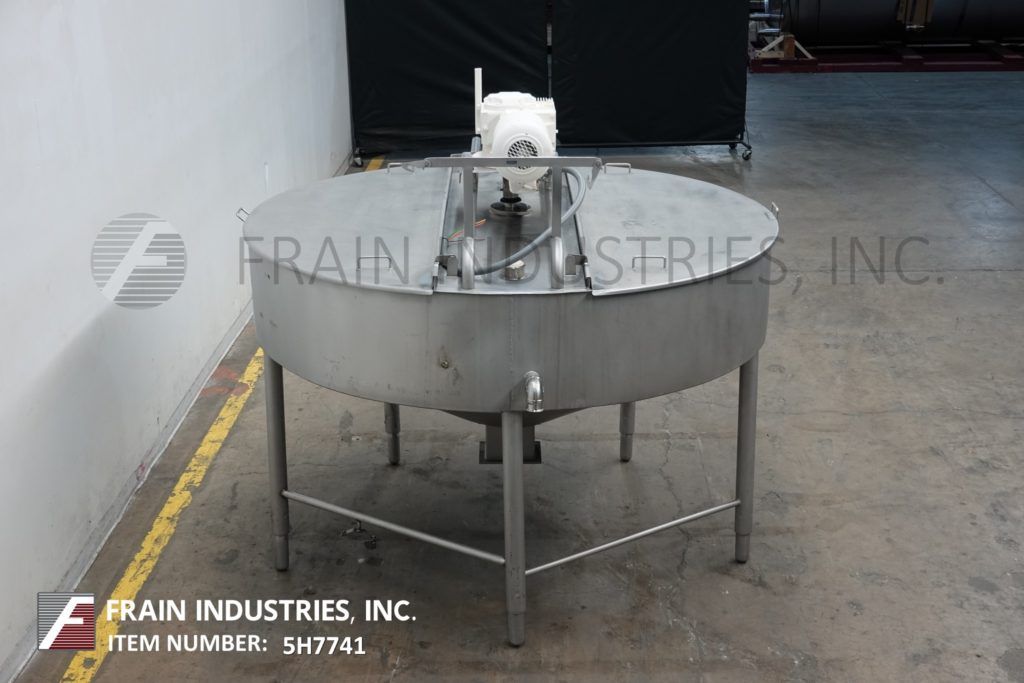

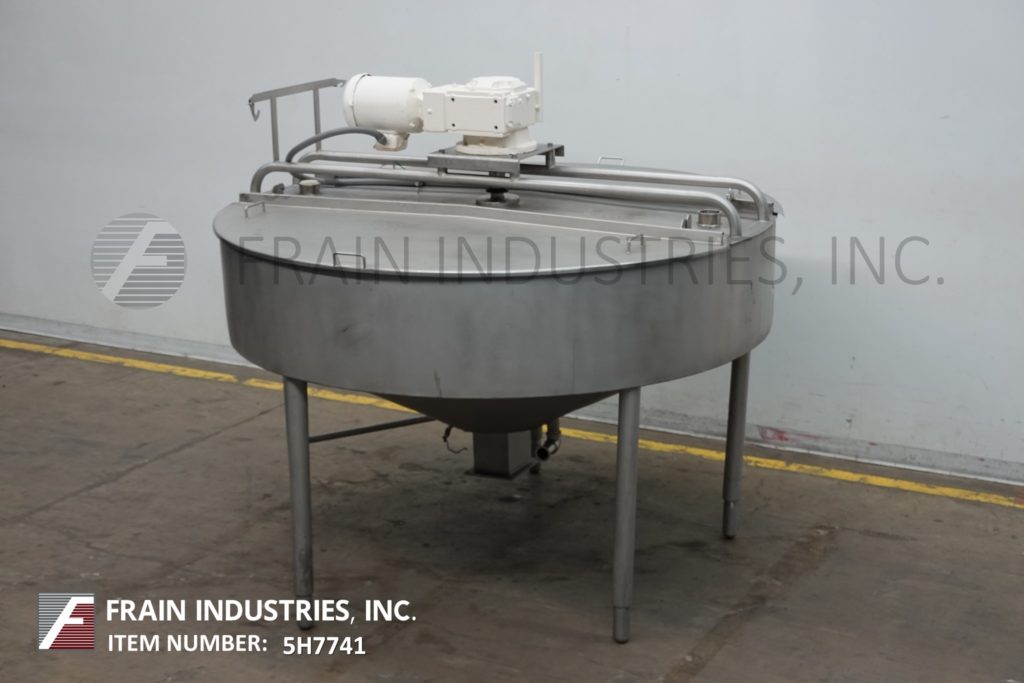

Chester Jensen, 350 gallon capacity, 304 stainless steel kettle. Vessel dimensions: 72" diameter x 28" deep with a cone style bottom and 15" straightwall. Equipped with lift up covers and interrior baffle. 5 Hp bridge mounted scrape agitator. Unit mounted on (4) legs with a 2½" OD / 2" ID Tri-clamp style bottom discharge with butterfly valve and 28" ground clearance.
Top Ports:(1) 5" diameter open vent(2) 2"OD / 1½"ID Seated Bevel(1) 3"OD / 2½"ID Seated Bevel
Jacket Ports:(2) 2" NPT
National Board: 109MAWP: 94 PSI @ 300°F (water)MAWP: 50 PSI @ 300°F (steam)
OAD: 80"L x 75"W x 92"H

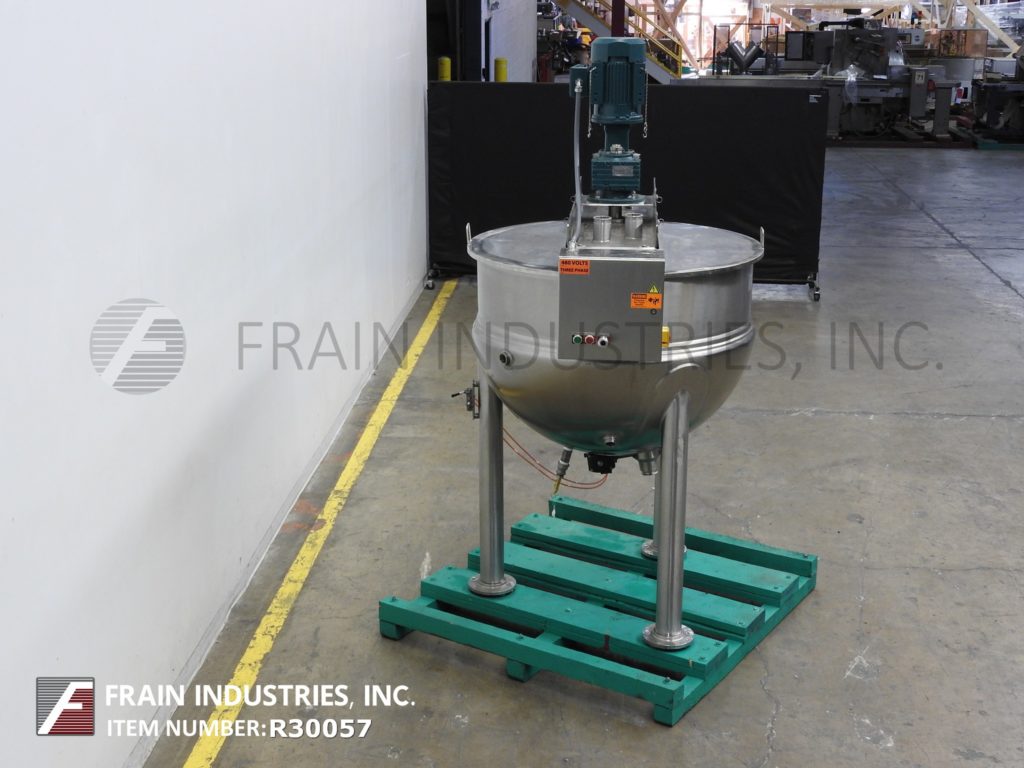

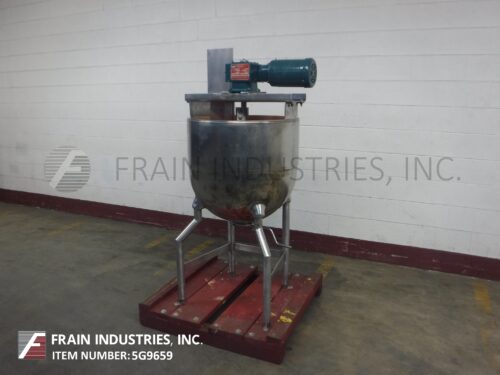

60 gallon, stainless steel, jacketed kettle. 31" diameter x 24" deep bowl, bridge mounted, flat bar shaped, sweep agitator, with flip top covers. Jacket, rated to 40psi @ 300°F, with (2) 1-1/2" jacket in/outlets. 3" center bottom discharge at 9" floor clearence. Mounted on (3) hip socket mild steel legs, with (2) 1-1/2" in/outlets National Board #28218.
OAD: 46" L x 46" W x 62" H

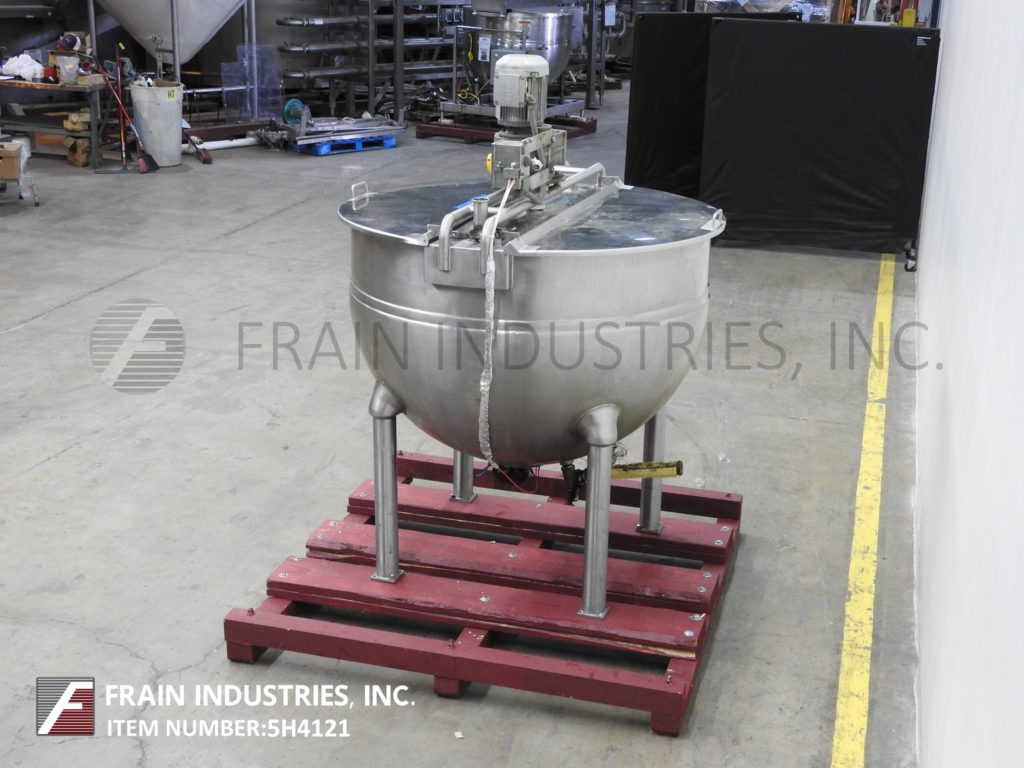

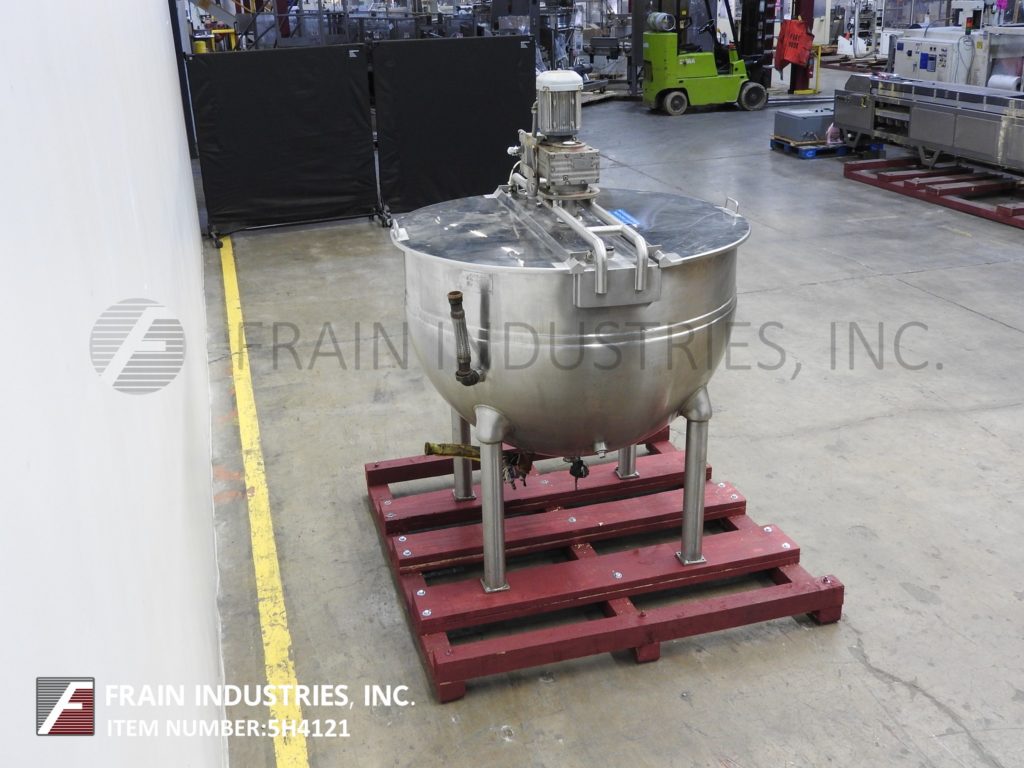

Groen, 40 gallon capacity, Copper Interior , 304 stainless steel jacketed kettle. Vessel dimensions: 26" diameter x 25" deep with a 12" straight wall. Equipped with lift off covers, bridge mounted sweep agitator, 6" wide stationary baffle and 4" diameter bottom discharge with slide gate valve at 21" ground clearance.
Jacket Ports:(3) ¾" NPT
MAWP: 125 PSI @ 353°F
OAD: 30"L x 30"W x 67"H

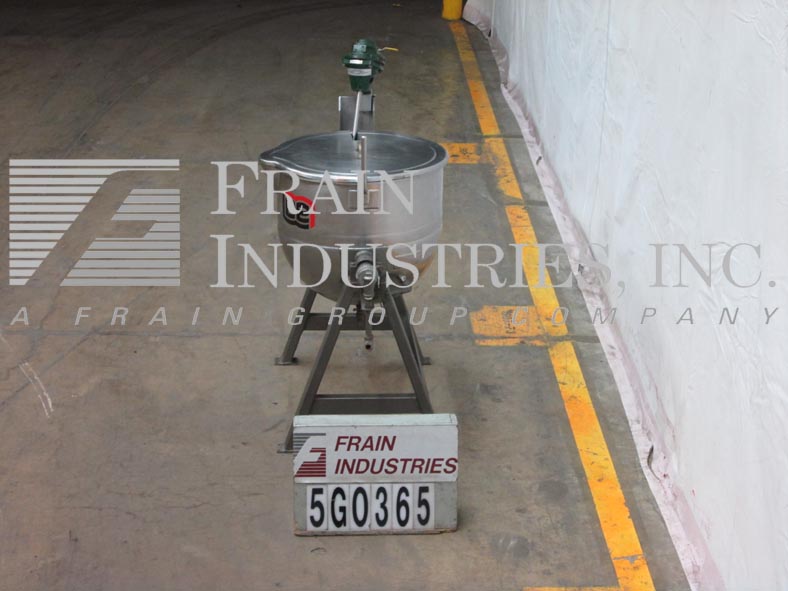

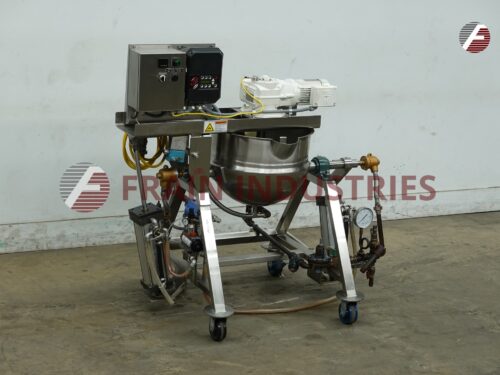

Lee, 20 gallon, 316 stainless steel jacketed kettle. Vessel Dimensions: 22" diameter x 16" deep with a 6" straight wall. Equipped with a tilt out bridge mounted, scrape agitator powered by a 1 Hp drive with variable speed control and tilting discharge with 20" ground clearance. Mounted on stainless steel frame with manual kettle tilting discharge.
Jacket Fittings:(2) 1" NPT
MAWP: 40 PSI @ 287° FMDMT: -20°F @ 40 PSI
OAD: 66"L x 44"W x 60"H

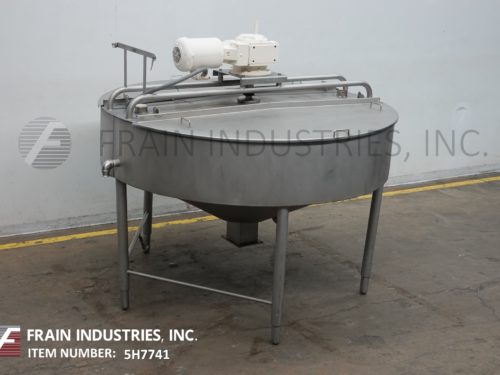

400 gallon capacity, 304 stainless steel low pressure jacketed process tank. Vessel dimensions: 82" diameter x 32" deep with a 12" straight wall and cone bottom. Equipped with lift up covers, 2 Hp top mounted scrape agitator and 8" x 6" flanged bottom discharge with 14½" ground clearance.
Top Ports:(2) 3½"OD / 3"ID Tri-clamp
Jacket Ports: (2) 1½" NPT
OAD: 86"L x 84"W x 77"H

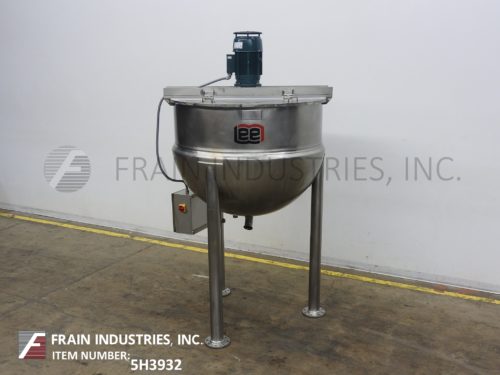

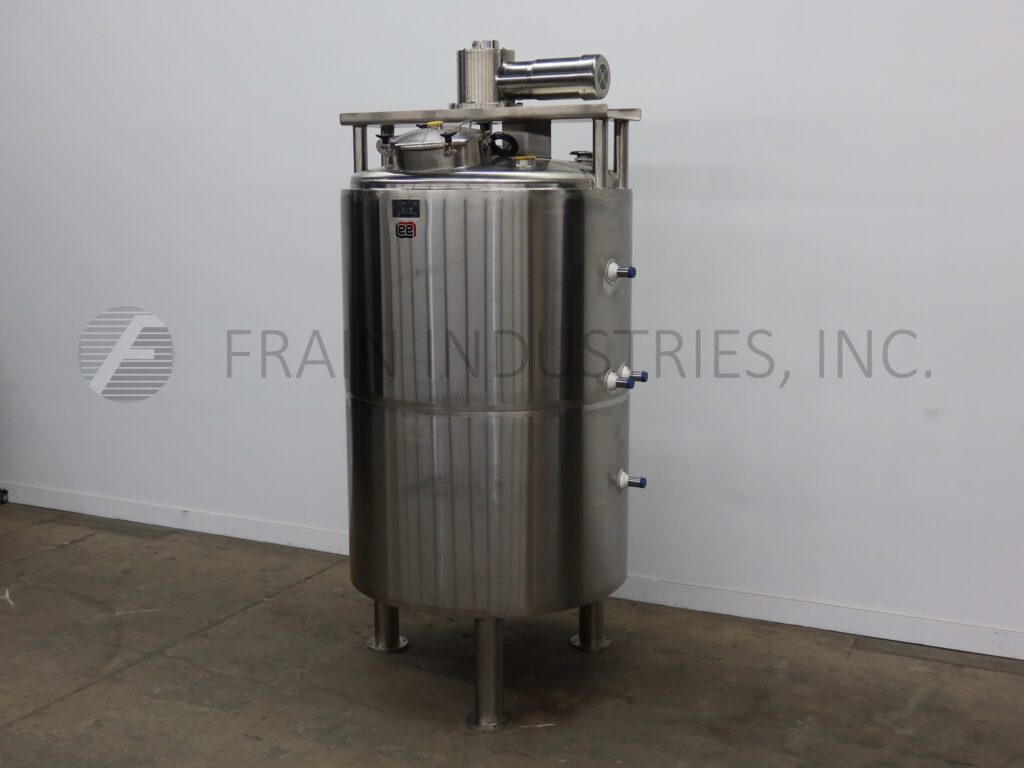

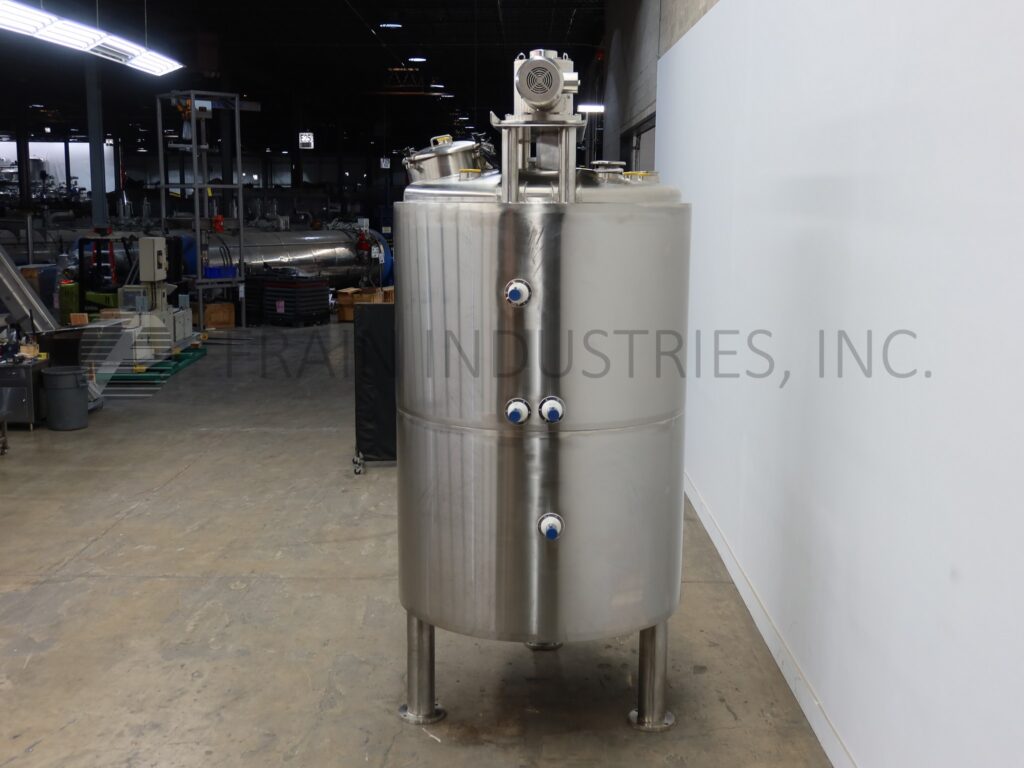

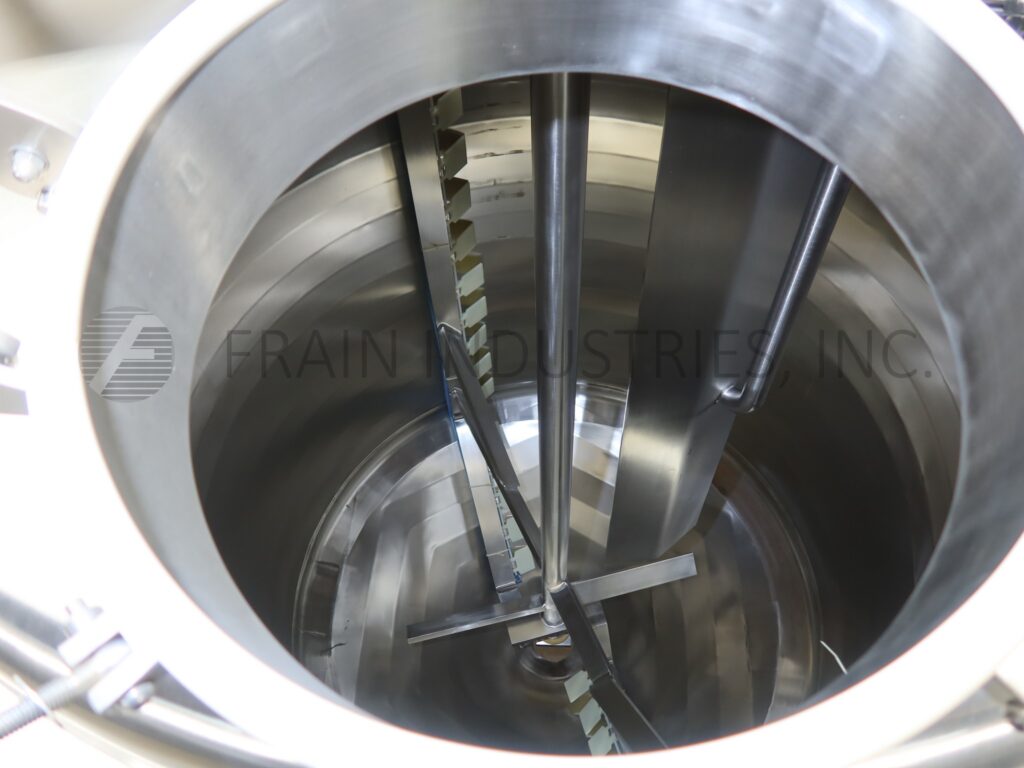

Lee, Model 200RA, 316 stainless steel jacketed kettle. Vessel Dimensions: 48" diameter x 35" deep with a 12" straight wall. Equipped with a bridge mounted scrape agitator and dual stationary baffles. Dish bottom with 2½" OD / 2"ID tri-clamp style center bottom discharge. Mounted on (3) tubular leg frame.
Top Access:(2) 3"OD / 2½"ID Tri-Clamp(1) 2"OD / 1½"ID Tri-Clamp
Jacket Fittings:(4) 1¼" NPT
MAWP: 60 PSI @ 307° FMDMT: -20°F @ 60 PSINat’l Brd: 11037
OAD: 53"L x 50"W x 100"H

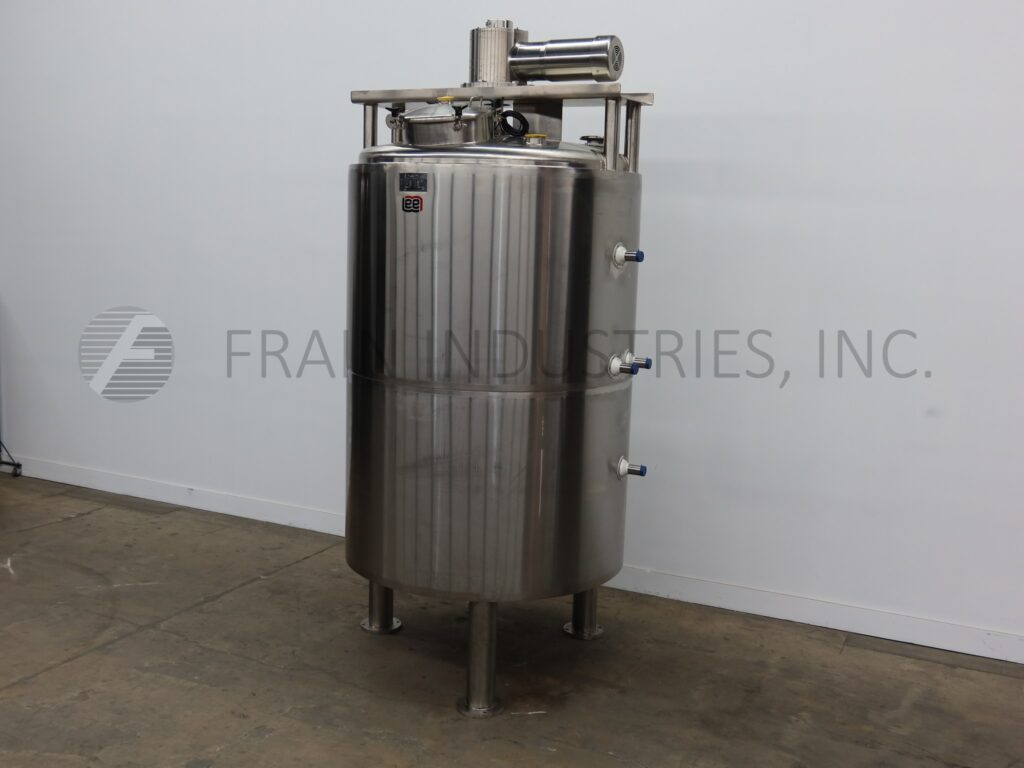

Lee, Model 200RA, 316 stainless steel jacketed kettle. Vessel Dimensions: 48" diameter x 35" deep with a 12" straight wall. Equipped with a bridge mounted anchor style scrape agitator and dual stationary baffles. Spherical bottom with 2½" OD / 2"ID tri-clamp style center bottom discharge. Mounted on (3) tubular leg frame.
MAWP: 60 PSI @ 307° FMDMT: -20°F @ 60 PSINat’l Brd: 11038

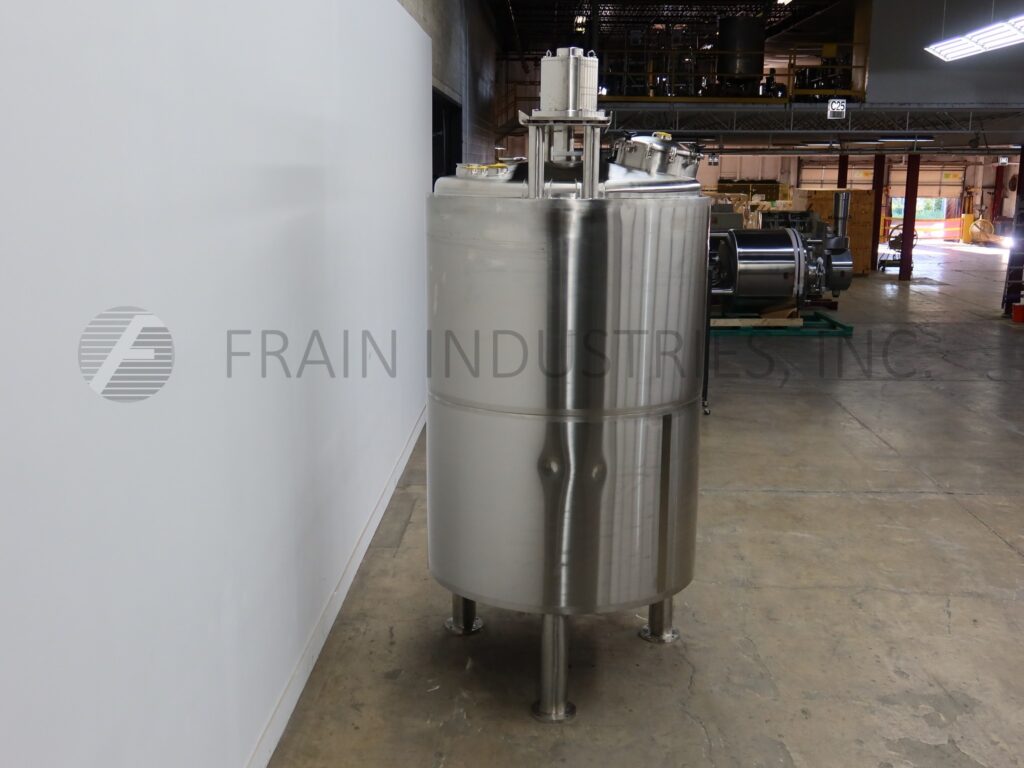

Lee, Model 200CHD7T, 200 gallon, 316 stainless steel jacketed single motion kettle. Vessel Dimensions: 48" diameter x 45" deep with a 22" straight wall. Equipped with tilt out angled mount scrape agitation powered by a 5 hp drive, Mounted on (3) stainless steel legs.
MAWP: 100 psi @ 338°FMDMT: -20°F @ 100 PSINat’l Brd: 5747
Jacket Ports:(2) 1" NPT(1) ¾" NPT
OAD: 80"L x 76"W x 126"H
Groen, Model ERA-250, 304 stainless steel 250 gallon jacketed kettle. Vessel Dimensions: 54" diameter x 35" deep with a 10" straight wall. Equipped with scrape surface agitator, 5½" wide fixed baffle and flip up covers. Dish bottom with 2½" OD / 2"ID Tri-Clamp center bottom discharge with 13" ground clearance. Mounted on (4) tubular leg frame.
Top Access:(1) 2½" OD / 2" ID Tri-Clamp(1) 1¼" NPT
Jacket Fittings:(2) 2" NPT(1) 1½" NPT(1) 1" NPT
MAWP: 100 PSI @ 338° FMDMT: -20°F @ 100 PSINat’l Brd: 140073
OAD: 60"L x 58"w x 82"H

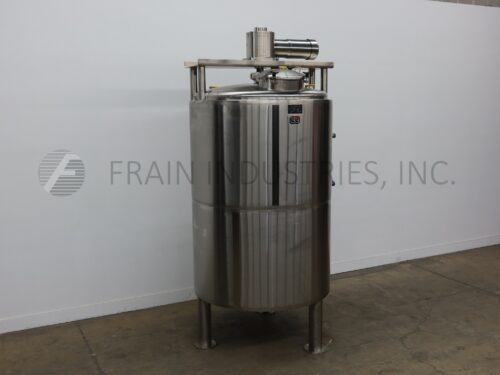

BH Hubbert 350 gallon, 304 stainless steel jacketed kettle. Vessel Dimensions: 54" diameter x 38" deep with 11" straight wall. Equipped with a bridge mounted scrape agitator. Spherical bottom with 3½" OD / 3"ID tri-clamp style center bottom discharge with 11" ground clearance. Mounted on (4) leg base frame.
Jacket Fittings:(4) 2" NPT(2) 1½" NPT(1) 1" NPT
MAWP: 100 PSI @ 337° FNat’l Brd: 5567
OAD: 70" L x 52" W x 107" H

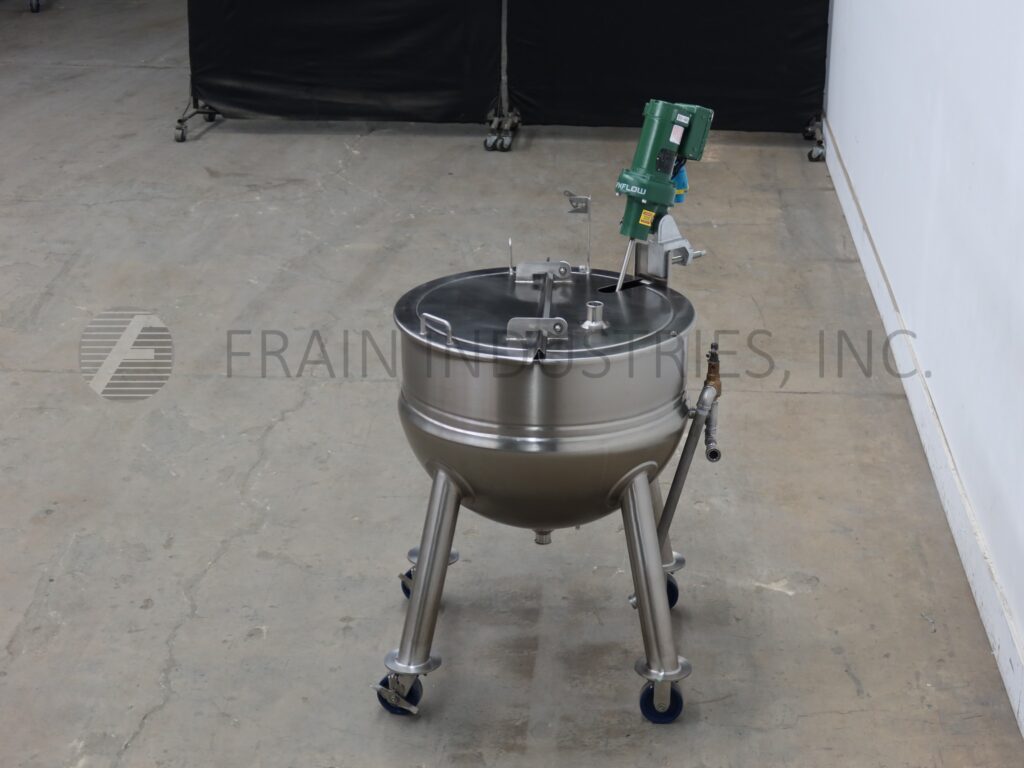

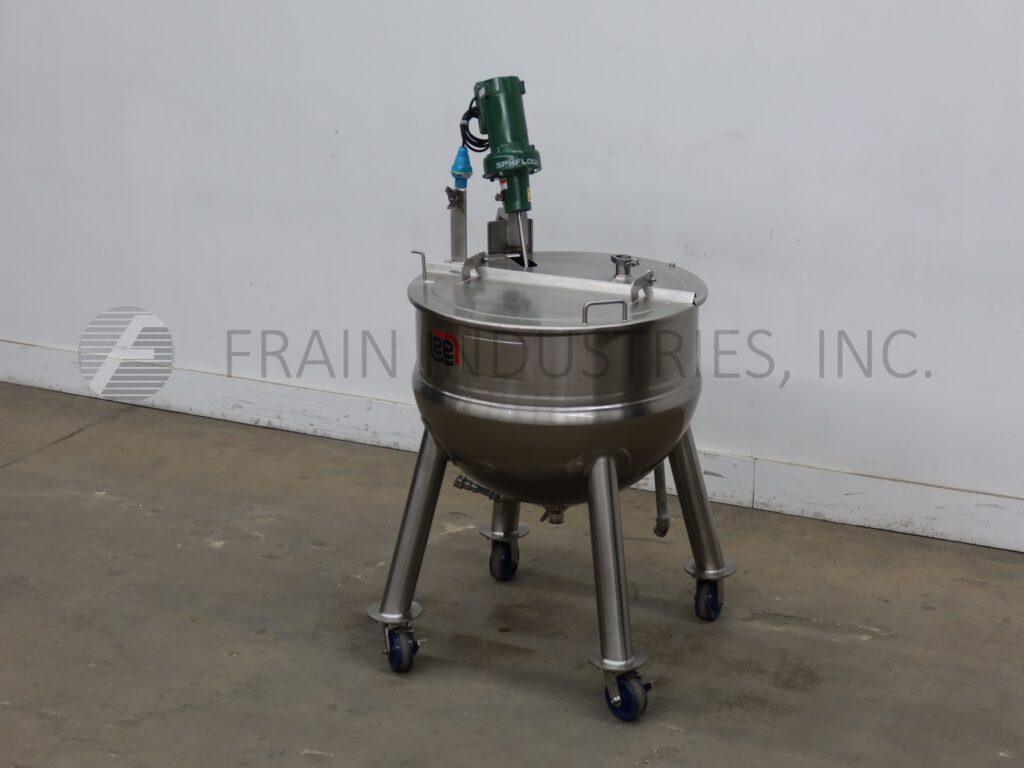

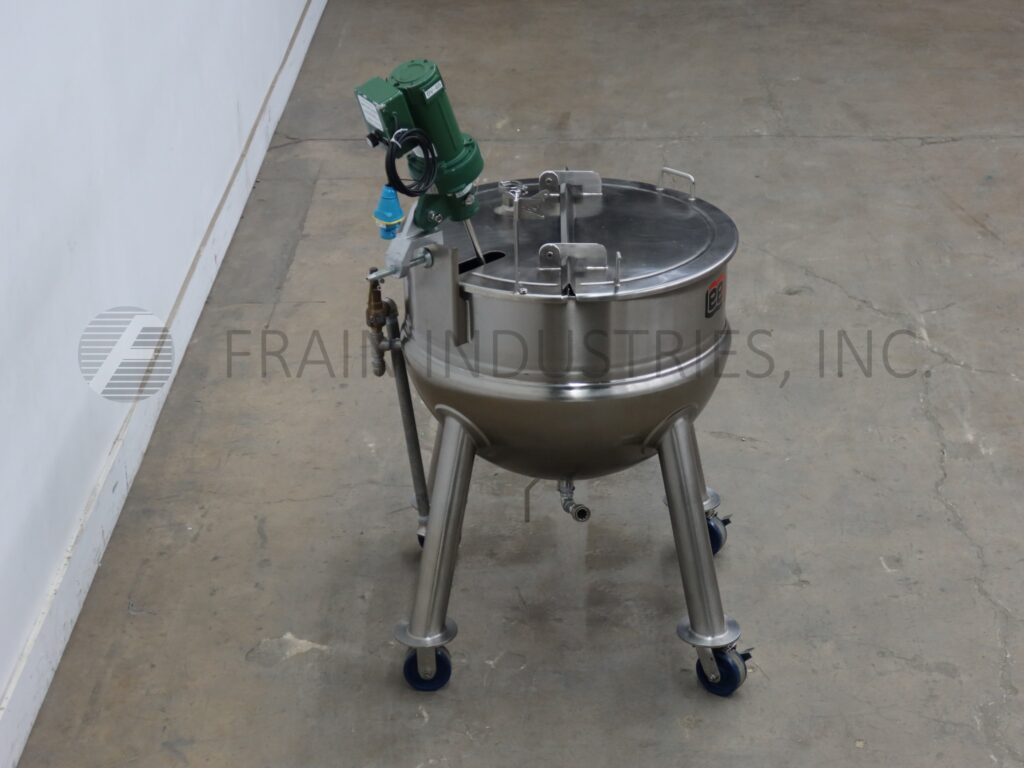

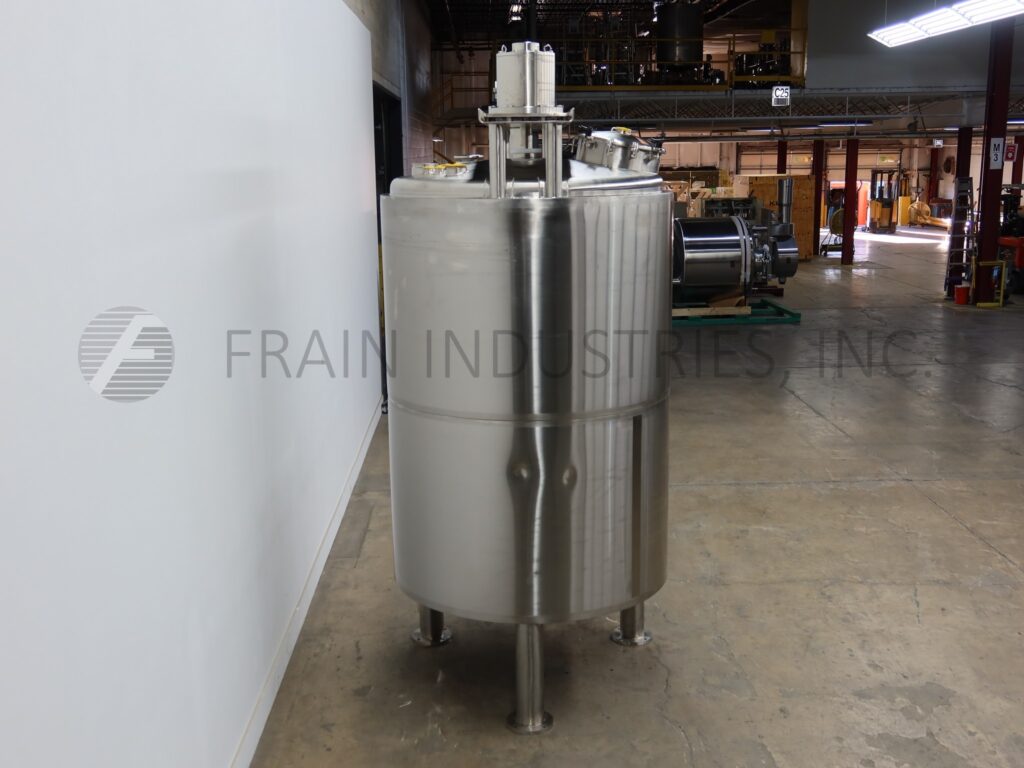

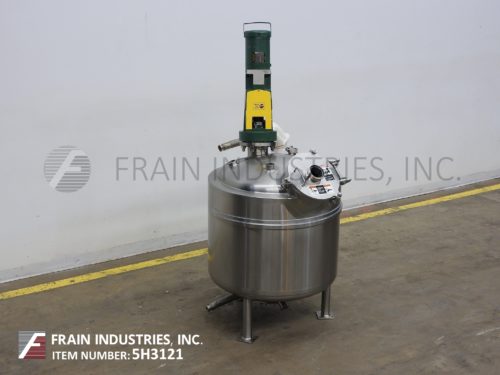

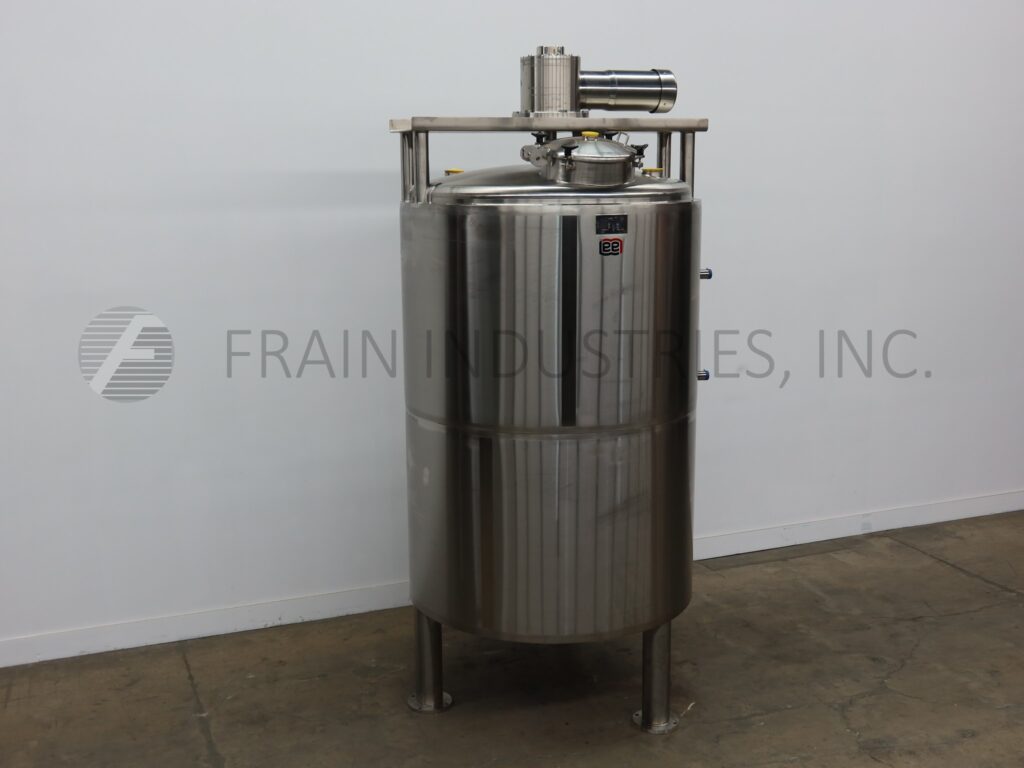

Lee, Model 300D, 316 stainless steel jacketed kettle. Vessel Dimensions: 54" diameter x 36" deep with a 15" straight wall. Equipped with prop agitation, flip up cover with a 15" flip up manway. Spherical bottom with 3¼" NPT style center bottom discharge and 41" ground clearance. Mounted on (3) tubular leg frame.
Top Access:(1) 3"OD / 2½"ID Tri-Clamp
Jacket Fittings:(2) 2" NPT
MAWP: 90 PSI @ 332° FMDMT: -20°F @ 90 PSINat’l Brd: 7880
OAD: 57"L x 55"W x 105"H
