Home » Mixers - Liquid Mixing » Triblender
Tri-blenders are used to mix dry powders with a liquid on a continuous basis. Tri-blenders use a centrifugal pump as the primary drive for the mixing and the infeed of both the liquid and the dry powder. The centrifugal pump is mounted so that the impeller rotates horizontally. Liquid is pumped into the tri-blender into the outer portion of a tube within a tube above the normal intake of the centrifugal pump. The liquid then flows to the pump where the impeller accelerates the liquid with a minimum of splashing. Dry product is usually contained within a hopper above the tri-blender. The motion of the centrifugal pump draws the product from the hopper and inside the tube within a tube. The product and the liquid initially mix near the center point of the rotating impeller. The physical forces affecting the liquid at the location within the tri-blender result in a vacuum being created within the liquid which leads to the product very quickly dissolving into the liquid. Once the product and the liquid have been properly mixed, the liquid mixture is accelerated out the discharge of the centrifugal pump.
Tri-blenders are often used to mix a dry powder or product into a batch tank of liquid. A discharge pump for the tank draws liquid out of the tank and into the tri-blender. Dry product is then mixed with the process liquid in the tri-blender, and the mixture of dry product and process liquid is then sent back into the tank using the tri-blender’s discharge capacity. With this configuration, a tri-blender can be used to dissolve a given amount of dry product into a given amount of liquid more efficiently than by agitating the entire tank mixture.
Waukesha, Model WP3218MD, stainless steel tri-blender with absorption rates from 10 to 120 gallons liquid and 1 to 100 pounds dry product per minute – depending on materials, application and machine configuration. Equipped with 32" diameter x 25" deep hopper with 3" funnel product inlet, 2" OD / 1½" ID liquid feed, 15 Hp mix head and 2½"OD / 2" ID discharge. Control panel has push button start / stop controls. Mounted on stainless steel cart with casters
OAD: 48" L x 32" W x 52" H

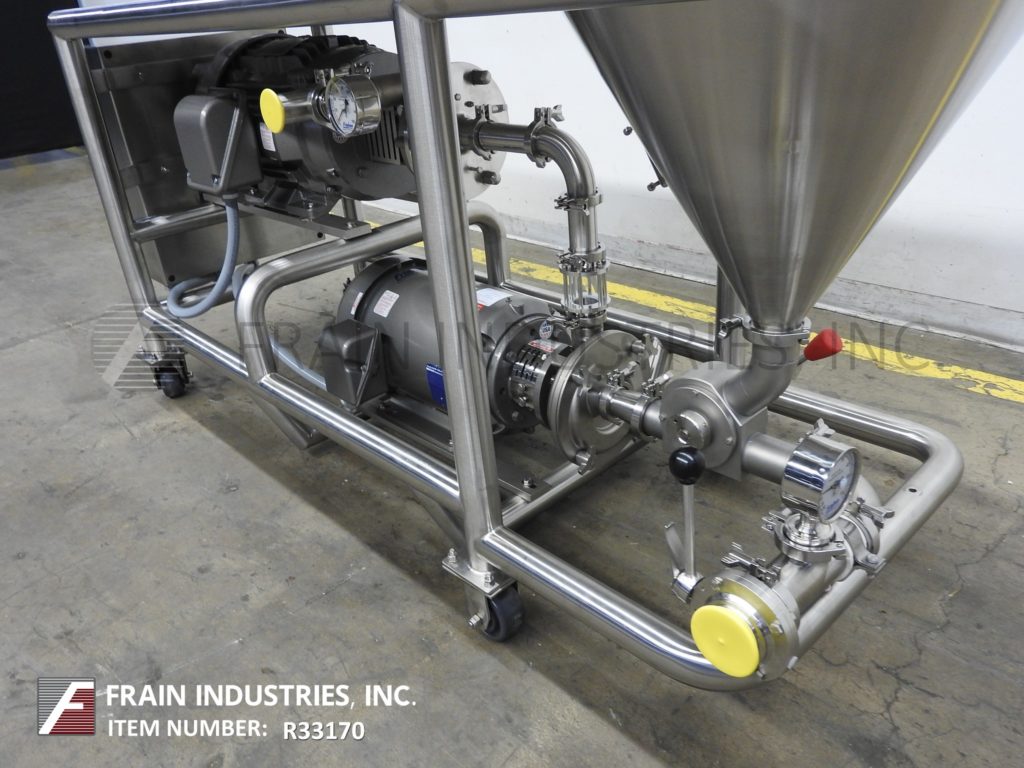

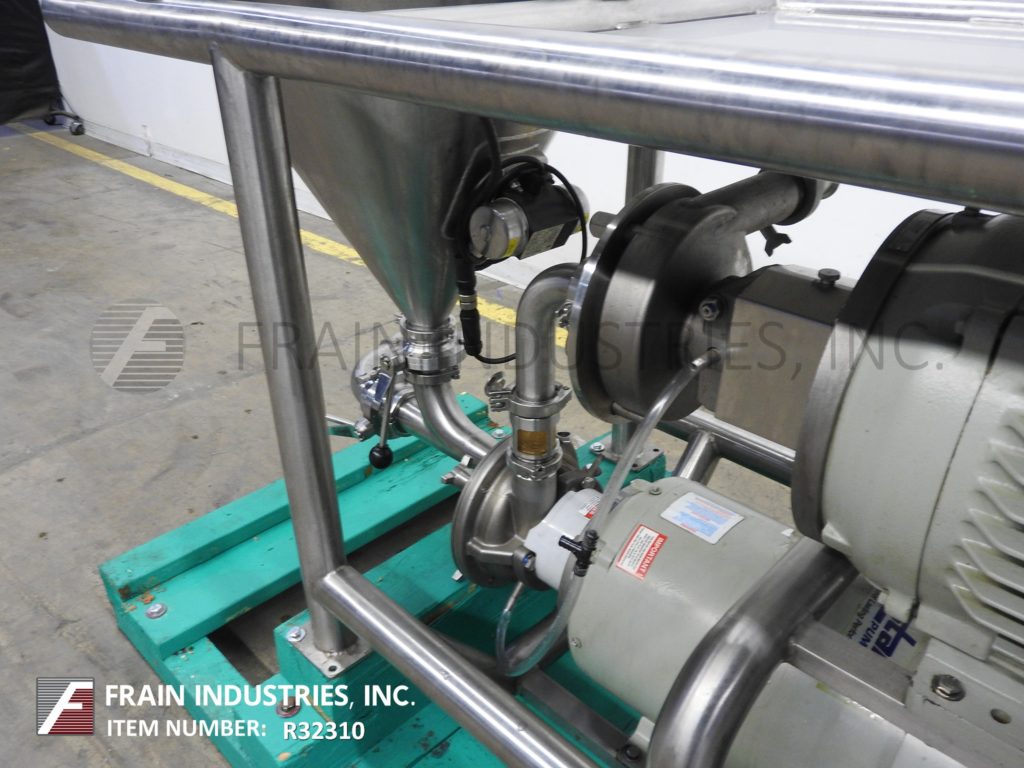

Admix, Model FF-425, 316 Stainless steel, in-line, integrated mixing system, incorporates SPX Model 2065LR pump with Model Dynashear DS-425 high shear mixer / emulsifier – rated to 65 gallons per mnute – depending on materials and application. Equipped with 25" OD x 26" deep (25 gallon) stainless steel conical dry product hopper with safety grid. SPX 2065LR liquid ring pump with 2½" OD / 2" ID front ports, 6½" impeller and 7½ Hp drive. Model DS-425 high shear mixer with 2½" OD / 2" ID sanitary ports, 2" OD rotor / stator mixing head and 7½ Hp motor drive. Control panel has pump and blender start / stop and e-stop. Mounted on stainless steel frame with casters.
Examples:Granulated (sugar / salt) up to 200 lbs. / minuteXanthan up to 15 lbs. / minute
OAD: 60" L x 36" W x 37" H
Admix, Model FF-425, 316 Stainless steel, in-line, integrated mixing system, incorporates SPX Model 2065LR pump with Model Dynashear DS-425 high shear mixer and emulsifier, with pounds and gallons of product per minute – depending on materials and application. Equipped with 25" OD x 26" deep (25 gallon) stainless steel conical dry product hopper with safety grid.SPX 2065LR liquid ring pump with 2½" OD / 2" ID front ports, 6½" impeller and 7½ Hp drive. Model DS-425 high shear mixer with 2½" OD / 2" ID sanitary ports, 2" OD rotor / stator mixing head and 7½ Hp motor drive. Control panel has pump and blender start / stop and e-stop. Mounted on stainless steel frame with casters.
Examples:Granulated (sugar / salt) up to 200 lbs. per minuteand Xanthan up to 15 lbs. per minute
Tri-Clover, 316 stainless steel tri-blender with absorption rates from 10 to 120 gallons liquid and 1 to 100 pounds dry product per minute – depending on materials, application and machine configuration. Equipped with 28" diameter x 24" deep hopper, 3½"OD / 3"ID dry product inlet, 2"OD / 1.5"ID liquid feed, 20 Hp mix head and 2½"OD / 2"ID discharge. Control panel has push button start / stop controls. Mounted on stainless steel cart with casters
OAD: 55"L x 48"W x 57"H
Tri-Clover, 316 stainless steel tri-blender with absorption rates from 10 to 120 gallons liquid and 1 to 100 pounds dry product per minute – depending on materials, application and machine configuration. Equipped with 28" diameter x 24" deep hopper, 3½"OD / 3"ID dry product inlet, 2"OD / 1.5"ID liquid feed, 15 Hp mix head and 2½"OD / 2"ID discharge. Control panel has push button start / stop controls. Mounted on stainless steel cart with casters
Tri-Clover, 316 stainless steel tri-blender with absorption rates from 10 to 120 gallons liquid and 1 to 100 pounds dry product per minute – depending on materials, application and machine configuration. Equipped with 28" diameter x 24" deep hopper, 3½"OD / 3"ID dry product inlet, 2"OD / 1.5"ID liquid feed, 10 Hp mix head and 2½"OD / 2"ID discharge. Control panel has push button start / stop controls. Mounted on stainless steel cart with casters

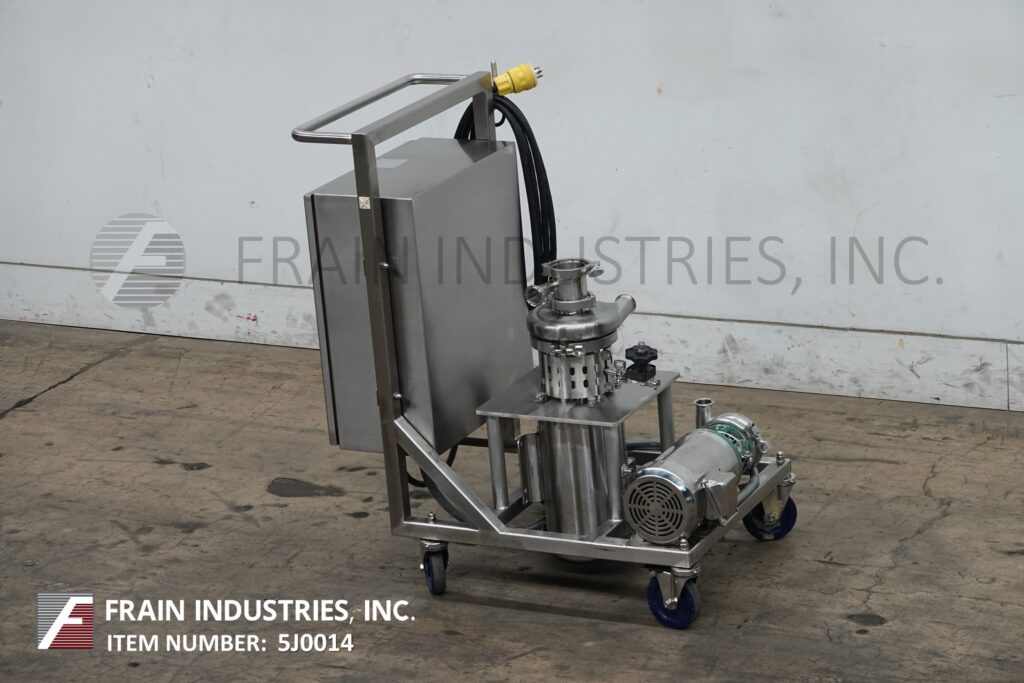

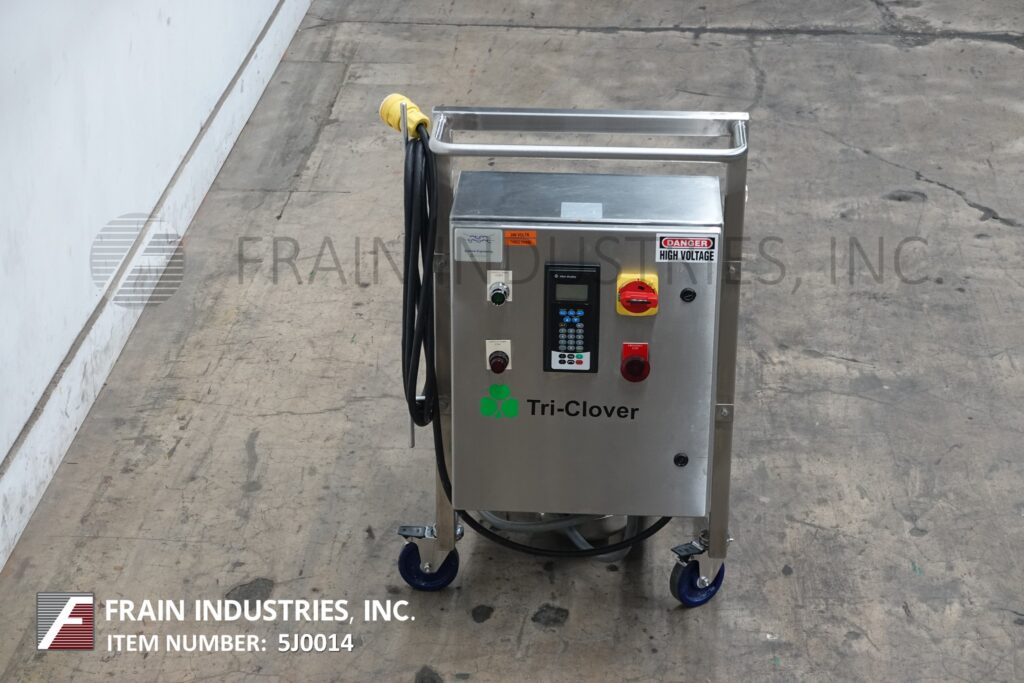

Tri-Clover, Model F2116, Stainless steel tri-blender with production rates of 45 gallons and 50 lbs of dry product per minute – depending on materials and application. Equipped with 3½"OD / 3"ID feed throat, 1 Hp centrifugal liquid supply pump with 2½" OD / 2" ID tri-clover charge and 5 Hp mixer pump with 2"OD / 1½"ID discharge. Control panel has A/B touch pad controller with readout and start / stop and e-stop push buttons. Mounted on stainless steel cart with casters.
OAD: 40"L x 26"W x 43"H
Fristam, 316 stainless steel, in-line, integrated mixing system, incorporates Model FZX-2100 liquid ring pump with Model FS-3522 high shear mixer / emulsifier. Rated from 34 to 52 liquid gallons and 10 to 100 pounds of dry product per minute – depending on materials and application Equipped with 23-1/2" OD x 20" deep stainless steel conical dry product hopper with safety grid and lift off cover. Fristam Model FZX-2100 liquid ring pump has front 2½" OD liquid product in feed port with 5 Hp motor drive. Model FS-3522 high shear mixer has 15 Hp motor drive and 2½" OD / 2" ID discharge port. Control panel has FZX / FS pump and blender start, stop, e-stop push buttons. Mounted on (4) leg stainless steel push cart frame.
Operation: Fristams powder mixer system provides a quick blending of wet and dry ingredients into single fluid stream with operating temperatures and cps ratings per application.
OAD: 80"L x 30"W x 44"H
Fristam Model 20-53, 316 stainless steel, in-line, integrated mixing system, incorporates Model FZX-2200 liquid ring pump with Model FS-3532 high shear mixer / emulsifier. Rated from 55 to 120 liquid gallons and 23 to 225 pounds of dry product per minute – depending on materials and application Equipped with 23-1/2" OD x 24" long stainless steel conical dry product hopper with safety grid and lift off cover. Fristam Model FZX-2200 liquid ring pump has 10" OD / 8" ID front plate with 8" OD impeller and front 2-1/2" OD liquid product in feed port with 15 Hp motor drive. Model FS-3532 high shear mixer has 7" OD rotor / stator mixing head with 25 Hp motor drive, both and sanitary 2-1/2" OD sanitary ports. Control panel has FZX / FS pump and blender start, stop, e-stop push buttons, main machine / vibrator on / off switches. Mounted on (4) leg stainless steel frame. Operation: Fristams powder mixer system provides a quick blending of wet and dry ingredients into single fluid stream with operating temperatures and cps ratings per application.
OAD: 96" L x 31" W x 42" H

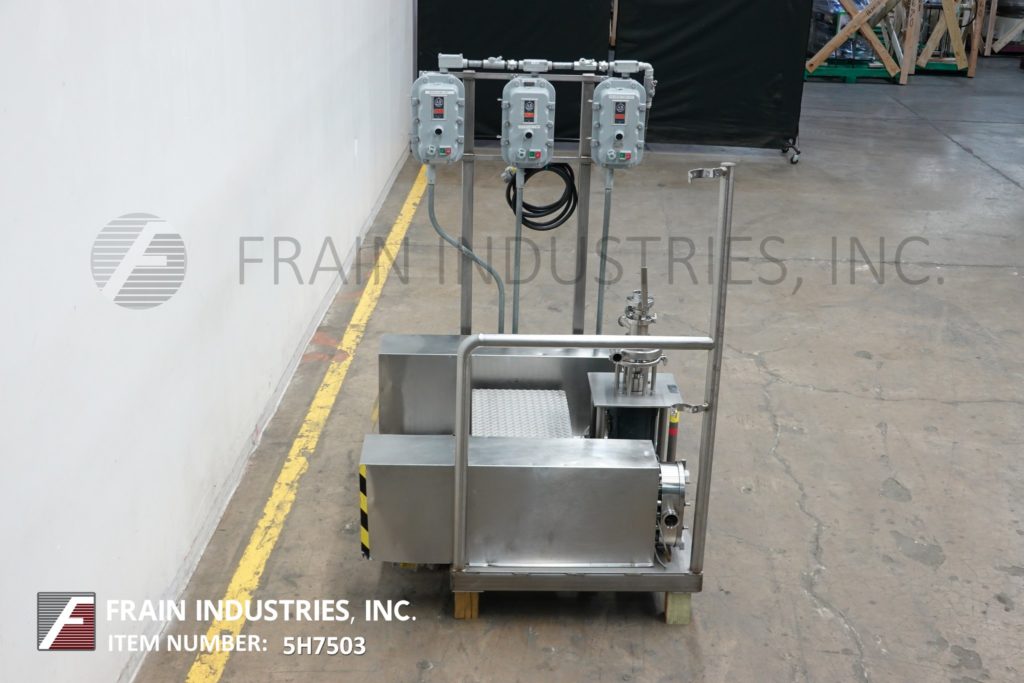

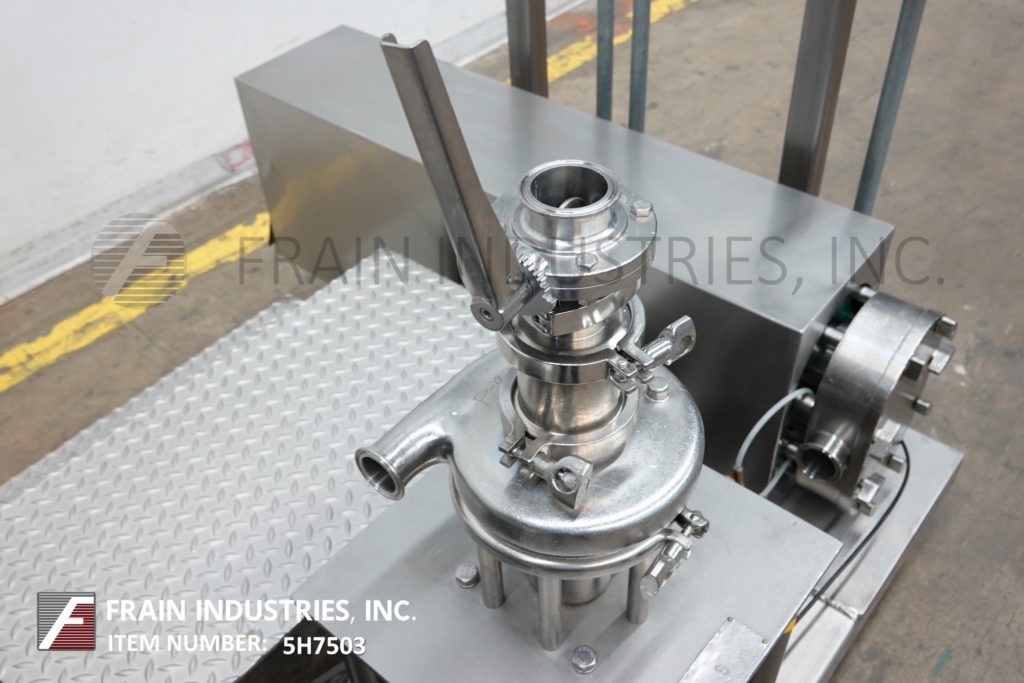

Tri-Clover, Model F2116MDG, 316 stainless steel tri-blender with production rates of 45 gallons and 50 lbs of product per minute – depending on materials and application.materials and application. Equipped with a 5 HP centrifugal mixing pump with 2½"OD / 2"ID solids inlet, 2"OD / 1½"ID liquid inlet, 2"OD / 1½" ID Discharge and (2) 3 hp positive displacement feed and discharge pumps. Mounted on a stainless steel platform.
OAD: 62"L x 48"W x 72"H

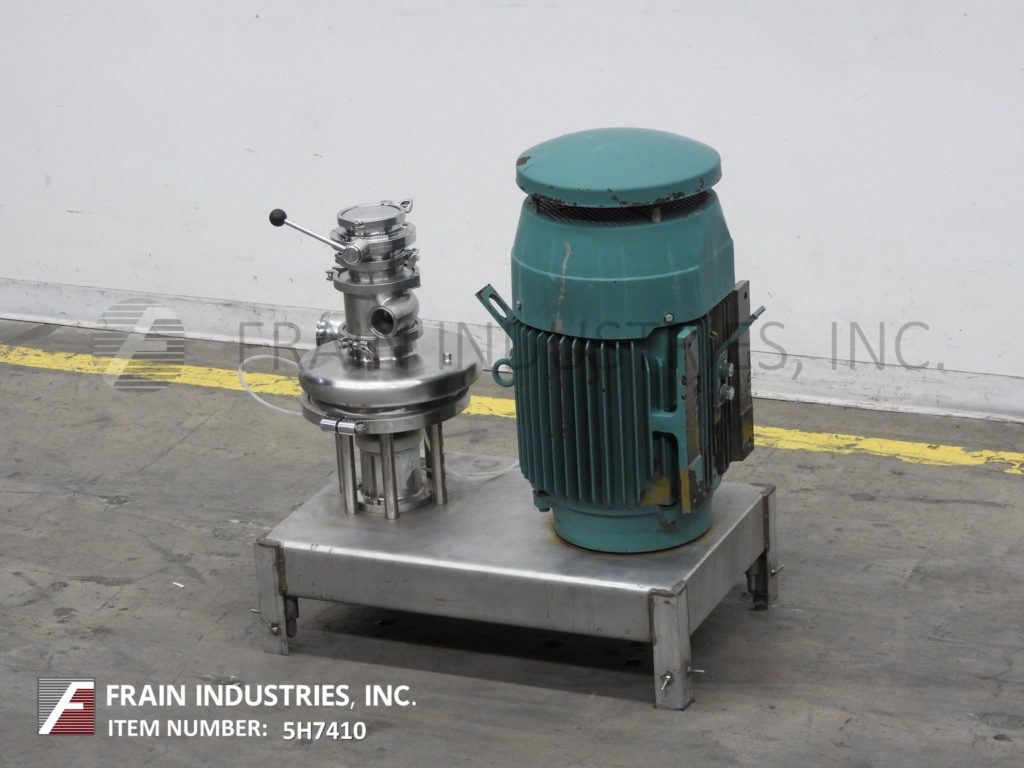

Alfa Laval, stainless steel tri-blender. Equipped with 4½" OD / 4" ID dry product inlet, 2½" OD / 2" ID liquid feed, 3½" OD / 3" ID discharge and 30 hp drive. Mounted on stainless steel base. Rates depending on materials, application and machine configuration.
OAD: 36"L x 25"W x 38"H
Fristam Model 20-53, 316 stainless steel, in-line, integrated mixing system, incorporates Model FZX-2200 liquid ring pump with Model FS-3532 high shear mixer / emulsifier. Equipped with 23-1/2" OD x 24" long stainless steel conical dry product hopper with safety grid and lift off cover. Fristam Model FZX-2200 liquid ring pump has 10" OD / 8" ID front plate with 8" OD impeller and front 2-1/2" OD liquid product in feed port with 15 Hp motor drive. Model FS-3532 high shear mixer has 7" OD rotor / stator mixing head with 25 Hp motor drive, both and sanitary 2-1/2" OD sanitary ports. Control panel has FZX / FS pump and blender start, stop, e-stop push buttons, main machine / vibrator on / off switches. Mounted on (4) leg stainless steel frame. Rated from 55 to 120 liquid gallons and 23 to 225 pounds of dry product per minute – depending on materials and application
OAD: 78" L x 31" W x 46" H
