Home » Sterilizer » Double Door
ETC RM4000410, Double door, stainless steel, Hi-vacuum, air over pressure steam sterilizer, with amount of product per hour – depending on materials and application. 316L stainless steel contact parts, with internal chamber dimensions of: 96" in Length x 48" in Width x 54" in Height and has double, flow thru pneumatic powered, swing open locking chamber doors and capable of handling multiple product carts. 304 stainless steel outer shell and jacket rated to maximum 40psi @ 300 Deg F and minimum of -20 Deg F @ 82.5 psi and compressed air of 15scfm @ 100 psi internal steam and 15 gpm water used at 30 – 50 psi and steam at 850 lbs / hour @ 50 – 80 psi. Control panel has A/B PLC controller with touch pad controls and readout with push button controls. Mounted on heavy duty (4) leg frame.
OAD: 123" L x 88" W x 124" H

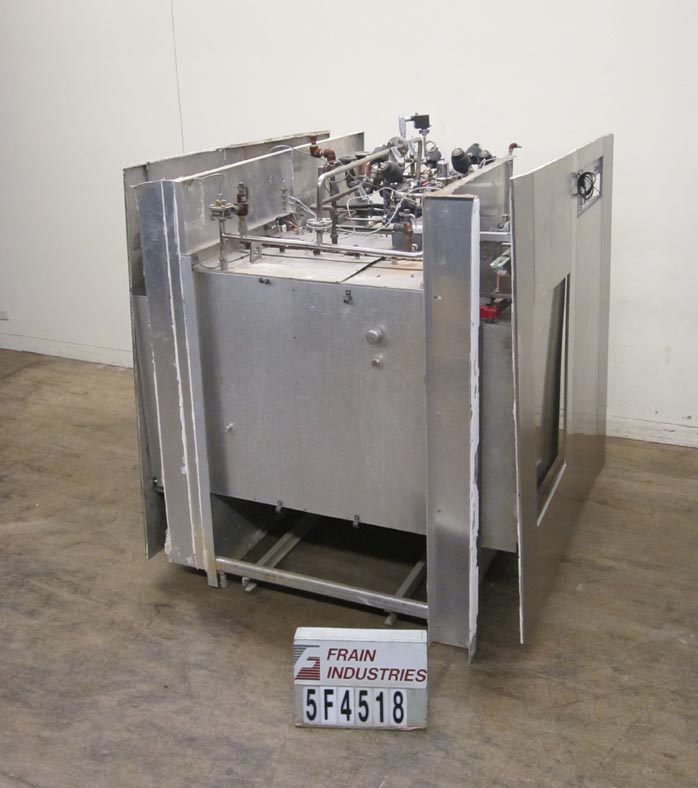

Getinge 484150101, Stainless steel double door steam sterilizer with chamber dimensions of 56"L x 35"W x 58"H and a 65 cu. ft. sterilizing area. Chamber is rated for 45psi at 350F, steam clean: 275 lb/hr @ 60 – 80 psig, water: 15 gpm @ 40 – 60 psig, and compressed air 2 scfm @ 80 – 100 psig. Features two horizontal powered sliding chamber doors (flow through style), sterilizer timer controls, drying timer controls, chamber temperature controls, and chart recorder. Equipped with GE 91415 plc. National Board # 396.
OAD: 93"L x 72"W x 84"H
