Scott Mixer Powder Paddle S.S. TURBULIZER

• Manufacturer: Scott
• Model Number: TURBULIZER
• Frain Number: 5G0592

Scott Model Turbulizer, continuous, high shear paddle mixer. Equipped with 14" diameter x 42" long 304 stainless steel mixing chamber, 5" long x 2" wide tip mild steel paddles with 2-1/2" diameter shaft, 6-½" diameter top charging port, 6-3/8" wide x 7" deep rectangular flanged discharge, 54" high discharge height. Belt driven 30 hp drive. Mounted on a 75" long x 48" wide x 50" base. For processing dry powder mixing, hydrating hard to wet powders, slurry mixing, coating, sterilization, crystallization, agglomerating / granulating, homogenizing, de-lumping and more.

OAD: 79"L x 48"W x 75"H

Scott Mixer Powder Paddle Carbon RD25

• Manufacturer: Scott
• Model Number: RD25
• Frain Number: 5G5961

Scott Equipment Co, Model RD25, 25 cu ft, rotary drum batch mixer with number of lbs of product per hour – depending on materials and application. Vessel dimensions: 45" diameter x 73" long and has 4" high internal stationary mixing baffles with 15" OD product in feed and can be run both in forward or reverse with pneumatic clamp down, swing open access door, with 8" OD top product port and feed chute, 16" x 8" discharge port with 10" ground clearance. Mounted on heavy duty base frame with front trunnion wheel guarding. Powered by 5 Hp chain to motor drive.

OAD: 125" L x 62" W x 53" H

Scott Mixer Powder Paddle Carbon 45 FT³

• Manufacturer: Scott
• Model Number: 45 FT³
• Frain Number: 5G7440

Scott, 50 ft³ ( 45 ft³ workable), dimple jacketed paddle mixer with carbon steel contact parts, with pounds of product per hour – depending on marterials and application. Inner mixing chamber dimensions: 48" in Length; 44" in Width; 49" in Depth. Equipped with a 2½" diameter motor shaft, 5" diameter mixing shaft with 20" x 6" carbon steel paddles powered by a 10 Hp drive, 12" x 12" OD / 8" x 8" ID rectangular flange style center bottom discharge with pneumatic slide gate valve and 30" ground clearance. Mounted on (4) leg base frame.

Top Access:
(1) 20" x 20" Grated Manway
(1) 12" OD / 8" ID 8-bolt Flange
(1) 1½" Diameter Open Vent

Jacket Access:
(4) 1" NPT

MAWP: 40 psi @ 300°F

OAD: 86" L x 52" W x 90" H

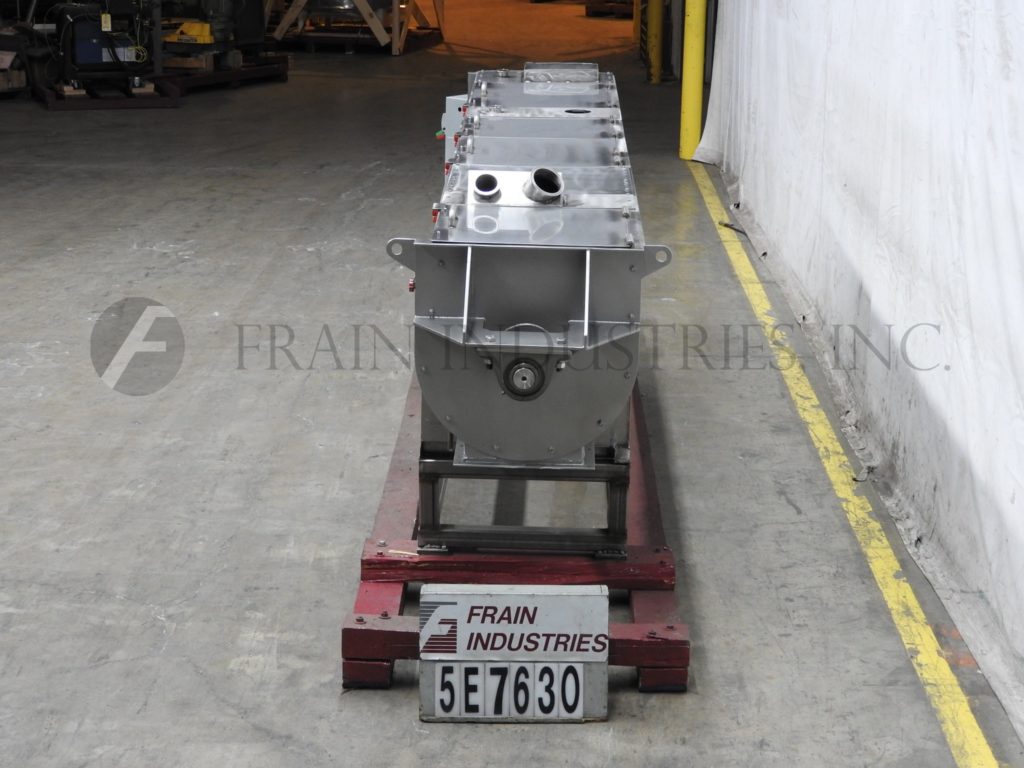

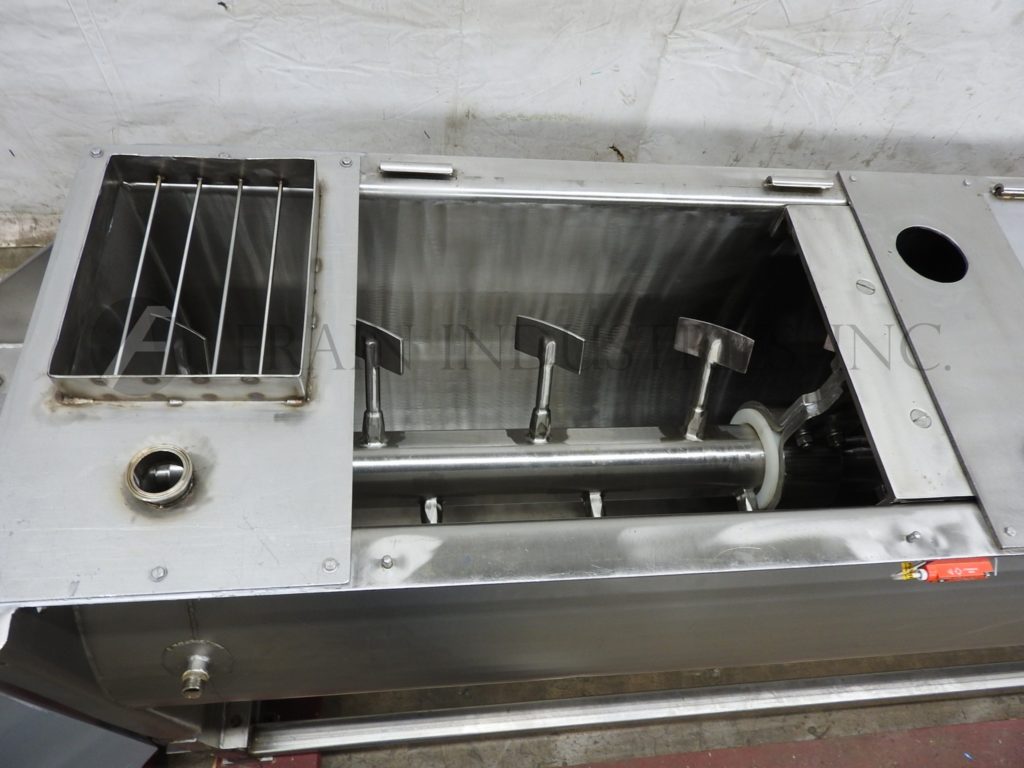

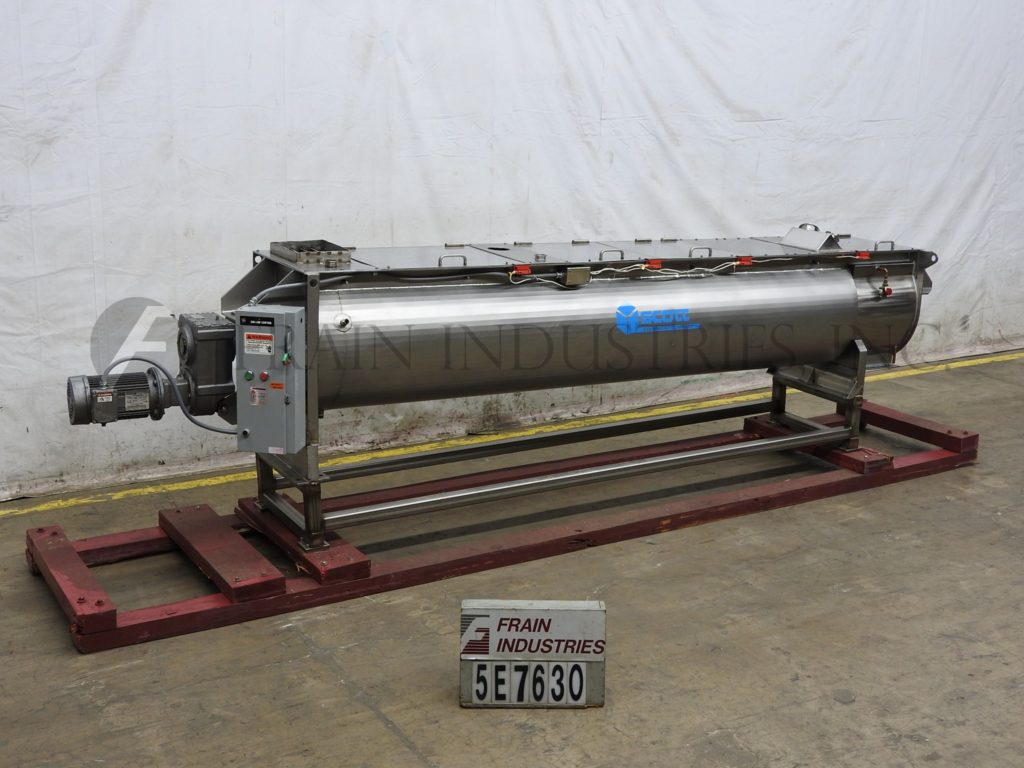

Scott Mixer Powder Paddle S.S. 26 CU FT

• Manufacturer: Scott
• Model Number: 26 CU FT
• Frain Number: 5E7630

26 cu ft, 304 S/S, jacketed continuous paddle mixer. Chamber dimensions: 144" L x 19" W x 24" in Depth. Full jacket rated at 50psi @ 250°F can be used for heating or cooling. Equipped with a 10" long x 13" wide top feed port, adjustable paddles 5" diameter shaft and a 14" long x 12" wide end bottom discharge.

OAD: 191" L x 36" W x 40" H
