Kliklock Machines


Kliklock Machines In Stock

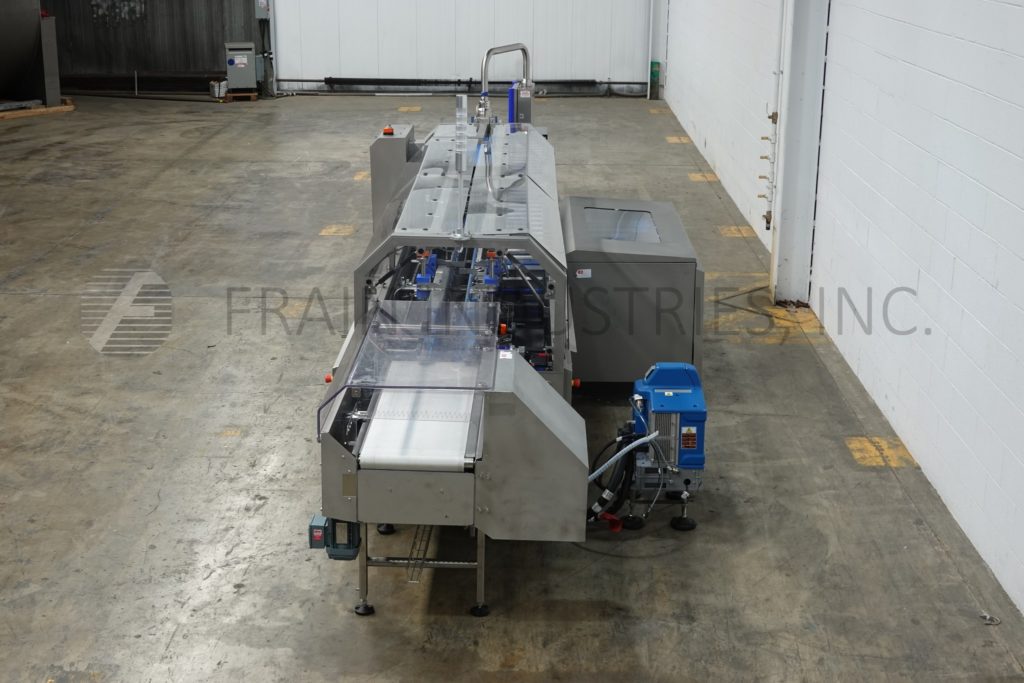

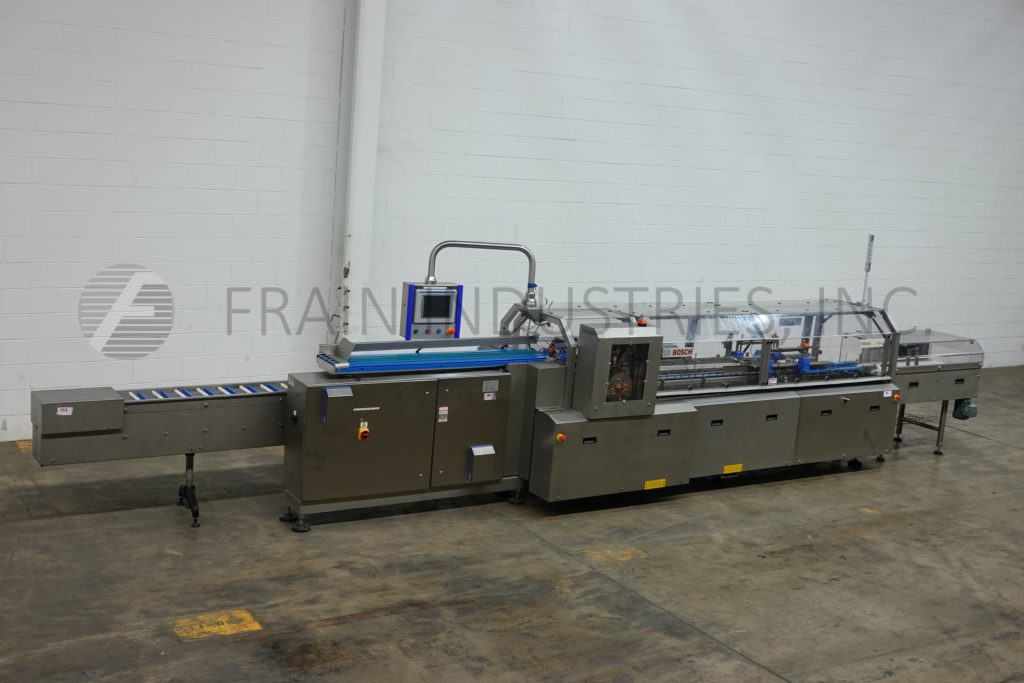

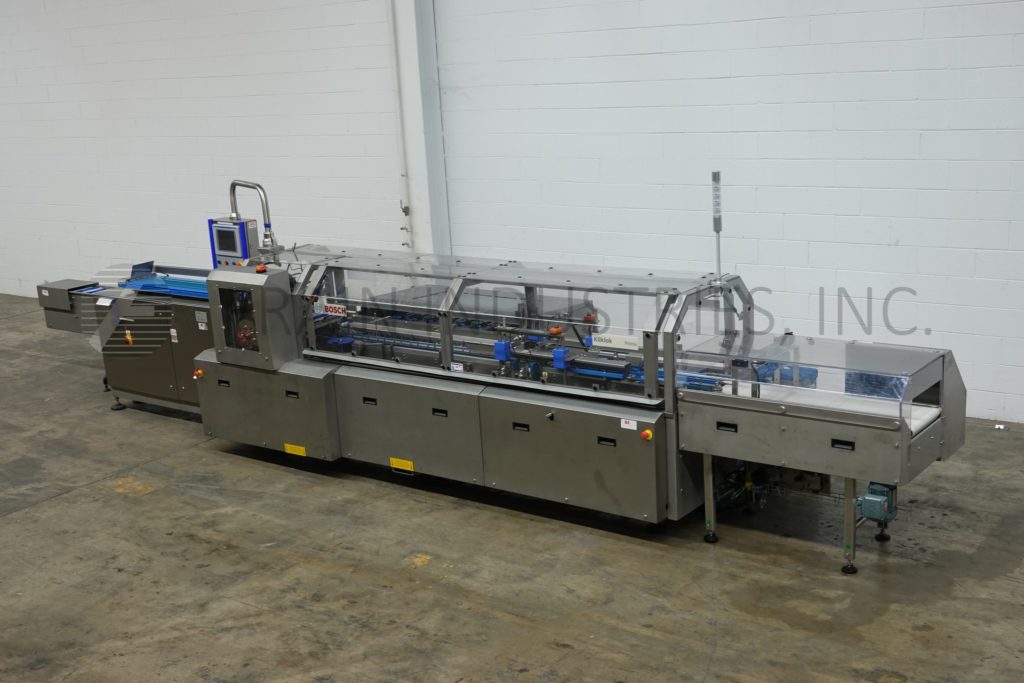

Kliklok Cartoner Auto Horiz. Glue (Auto) PRIMA

  • Manufacturer: Kliklock
  • Model Number: PRIMA
  • Frain Number: 5J0898

Kliklok, Model PRIMA, automatic, stainless steel, continuous motion, servo driven, horizontal, hot melt glue cartoner. Rated from 40 to 360 cartons per minute – depending on materials and application. Carton size range: 1.56" to 4.75" in Length; 0.50" to 2.38" in Width; 2.19" to 9.81" in Depth. Equipped with (4) chains adjustable unit set on 6" centers, 120" long infeed, 64" long powered blank carton magazine with 3 head rotary pick and place, barrel cam product loader, Nordson ProBlue hot melt glue system, powered compression discharge belts and 16" wide x 48" long discharge conveyor. Control panel has A/B controller with touch screen HMI. Mounted on heavy duty stainless steel frame with safety door guarding.

OAD: 327"L x 84"W x 75"H

Get a Free Quote Call: 630-629-9900

Kliklok Cartoner Semi Triseal VARI-RIGHT LTR

  • Manufacturer: Kliklock
  • Model Number: VARI-RIGHT LTR
  • Frain Number: R36640

Kliklock Model Vari-Right, Inline, Tri-Seal top load carton closer rated from 30 to 120 cartons per minute – depending on materials and application. Stainless-steel construction. Carton size range: 4" to 12" in Length x 3½" to 12" in Width x 1½" to 5" in Depth. Equipped with variable pitch technology and flight centers to provide a controlled carton turn without a change in direction and turning section pop-up turning bars that capture the cartons and guide them through 90-deg turn with variable pitch carton transport, easy 3-D carton size changeover and closing section with Nordson Pro Blue hot melt glue system. A/B controller with A/B Panel View Plus 1000 swing arm touchscreen HMI controls has servo drives and machine controls. Mounted on welded, tubular steel frame with Gull Wing safety door guarding and leveling legs.

OAD: 180" L x 76" W x 78" H

Get a Free Quote Call: 630-629-9900

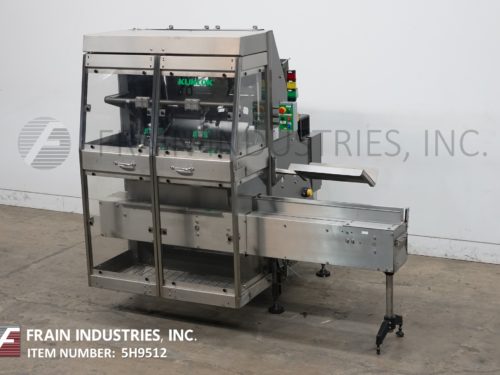

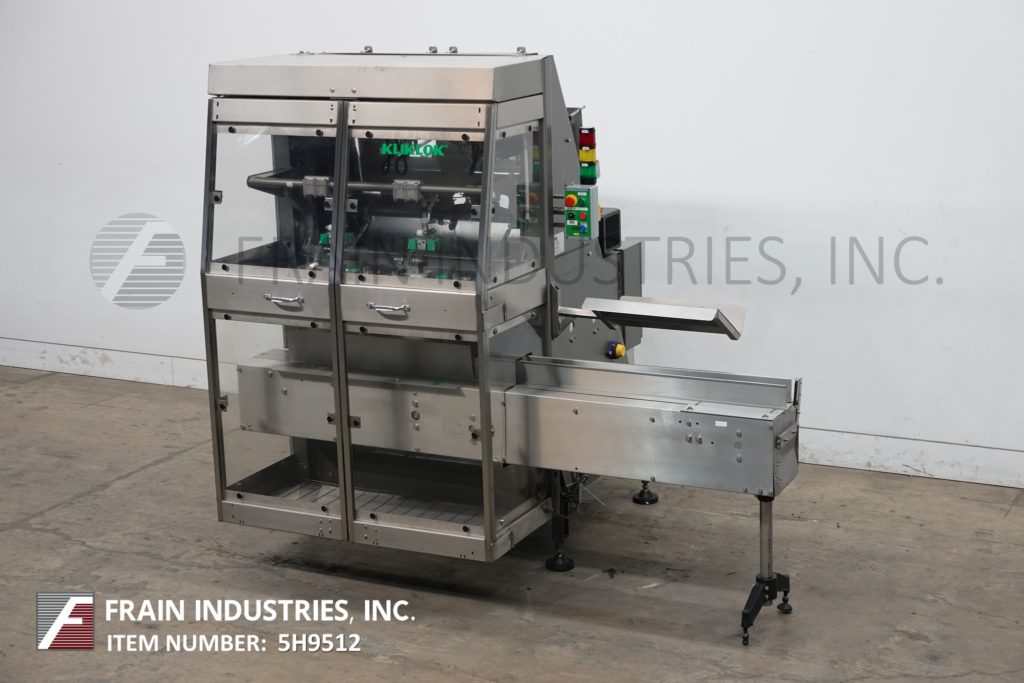

Kliklock Case Set-Up, Tray Tray Tuck SRWD

  • Manufacturer: Kliklock
  • Model Number: SRWD
  • Frain Number: 5H9512

Kliklock, Model SRWD, Automatic, stainless steel, dual head, tray former. Rated from 20 to 60 strokes per minute each head with number of trays – depending on materials and application. Tray size range: 5" to 16¾" in Length; 4" to 10" in Width; 7/8" to 4" in Depth with proper change parts. Equipped with dual 16" long blank tray magazines, suction cup reciprocating pic n place, dual head ram with minor flap and major flap folding plows, Lexon hooded seal area with lift-up access door, 96" long lugged chain tray transfer conveyor set on 17" centers thru machine. Control panel has start, stop and e-stop push button controls. Mounted on heavy duty stainless steel base frame with casters and height adjustable legs.

OAD: 101"L x 70"W x 88"H

Get a Free Quote Call: 630-629-9900

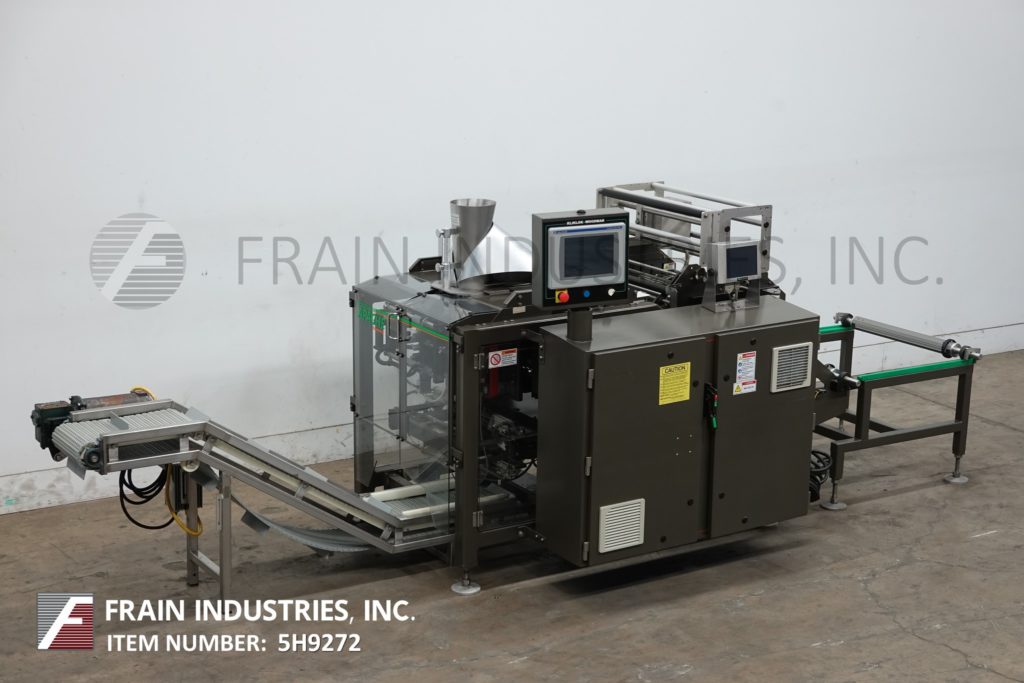

Kliklock Form & Fill No Filling Head APACHE

  • Manufacturer: Kliklock
  • Model Number: APACHE
  • Frain Number: 5H9272

Kliklock, Woodman Model APACHE, continuous motion, open design, vertical form, fill, seal machine rated from 10 to 120 bags per minute – depending on materials, application and machine configuration. Stainless steel contact parts. Bag size range: 3" to 22" long x 2.50" to 13.75" wide. Bag Types: pillow pouch, gusseted and flat bottom (with proper change parts). Equipped with 8" forming tube, 12" long x 1-1/2" wide dual side belt film assist, 16" wide x 1-1/2" thick hot impulse seal jaws with 20" long lap seal bar, film rolls 25" long with 3" ID core and has a maximum roll weight of 300lbs, powered film unwind, film regitration and product discharge incline cleated conveyor. Control panel has A/B controller with A/B HMI color graphic touch screen panelview controls and machine stop, run, alarm only with stop switches and e-stop push button with A/B powerflex vari-speed controller. Mounted on Flex-Mount low profile frame, designed to support volumetric fillers, weighers and auger fillers reducing the need for mezzanines with height adjustable leveling legs and interlock safety door guarding.
Applications include candy, nuts, crackers and cookies, cereals, powders and more.

Optional: Video Jet Data Flex Thermal Transfer Printer and Controller – Available at Additional Cost

OAD: 64" L x 72" W x 60" H

Get a Free Quote Call: 630-629-9900

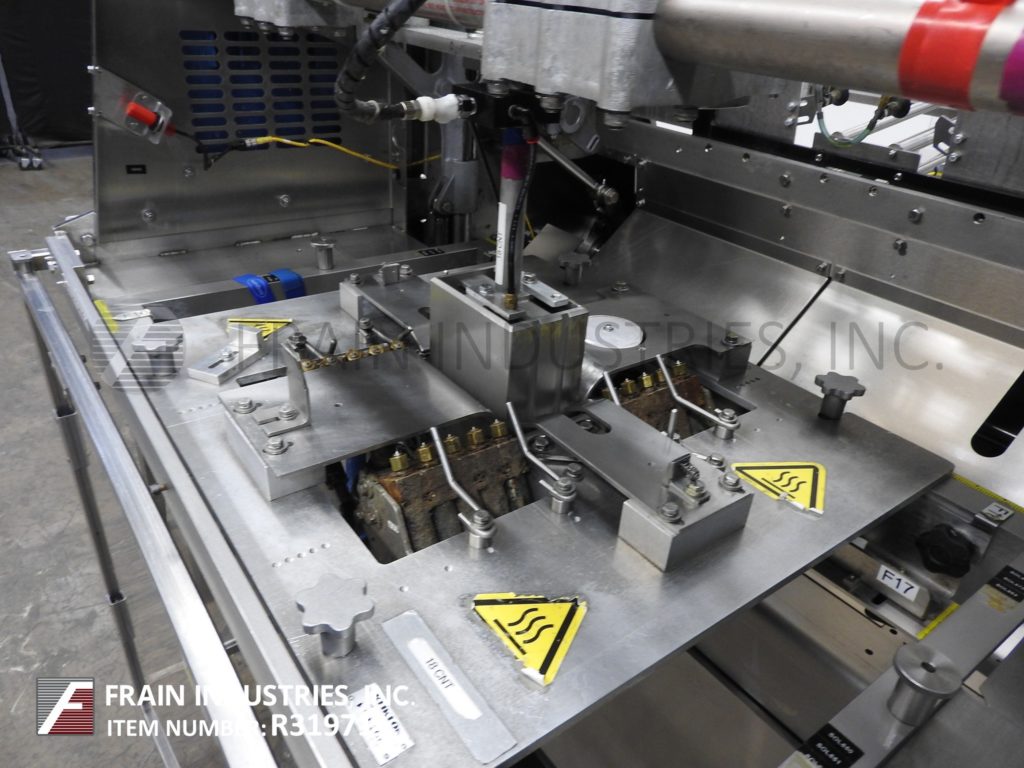

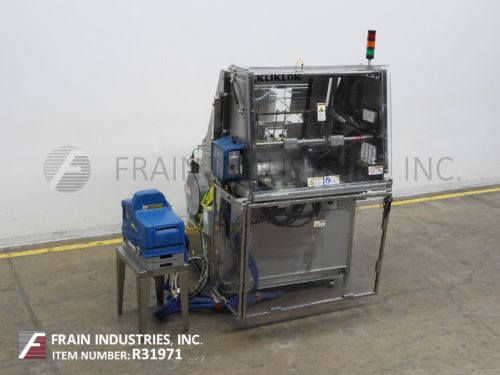

Kliklock Case Set-Up, Tray Tray Glue ASU4WS

  • Manufacturer: Kliklock
  • Model Number: ASU4WS
  • Frain Number: R31971

Kliklock, Model ASU4WS, automatic, stainless steel, single head, tray forming hot melt glue sealing machine. Rated from 20 to 60 strokes per minute – depending on materials and application. Tray size range: 5" to 16" in Length; 4" to 10" in Width; 1" to 4" in Depth. Equipped with 18" long blank tray magazine, suction cup reciprocating pic n place, single head ram with Norden hot melt gue system, minor flap and major flap folding plows and hooded seal area with lift-up access door. Control panel has start / stop / e-stop push button controls. Mounted on heavy duty base frame.

OAD: 80"L x 60"W x 96"H

Get a Free Quote Call: 630-629-9900

Kliklock Cartoner Semi Triseal RIGHT TRAC

  • Manufacturer: Kliklock
  • Model Number: RIGHT TRAC
  • Frain Number: 5H6280

Kliklok, Model Right Trac, continuous motion, lugged, tri seal, carton closer and hot melt glue sealer. Rated from 20 to 120 cartons per minute – depending on materials, application and machine configuration. Carton size Range: 5" to 15" in Length; 3½" to 12" in Width: 1½" to 5" in Depth. Equipped with 80" long dual lugged chain feed conveyor set on 19½" centers with 90-degree tray transfer section, to 60" long dual lugged chain conveyor set on 20" centers for closing and sealing side flaps with Nordson hot melt glue system. Mounted on base frames with leveling legs.

OAD: 156"L x 86"W x 92"H

Get a Free Quote Call: 630-629-9900

Kliklock Case Set-Up, Tray Tray Tuck SW4W

  • Manufacturer: Kliklock
  • Model Number: SW4W
  • Frain Number: 5H5694

Kliklok, Model SW4WS, automatic, single head tab lock tray former. Rated from 10 to 60 cycles per minute – depending on materials, application and machine configuration. Tray size range: 5" to 28" in Length; 4" to 12" in Width; 1" to 5½" in Height. Equipped with an 18" long powered blank tray magazine, (3) suction cup vacuum reciprocating pick-in-place, single mechanical tray forming head and hooded seal area with Lexan lift-up access safety door. Control panel with push button start / stop.

OAD: 75"L x 60"W x 82"H

Get a Free Quote Call: 630-629-9900

Kliklock Case Set-Up, Tray Tray Tuck SW4W

  • Manufacturer: Kliklock
  • Model Number: SW4W
  • Frain Number: 5H5693

Kliklok, Model SW4WS, automatic, single head tab lock tray former. Rated from 10 to 60 cycles per minute – depending on materials, application and machine configuration. Tray size range: 5" to 28" in Length; 4" to 12" in Width; 1" to 5½" in Height. Equipped with an 18" long powered blank tray magazine, (3) suction cup vacuum reciprocating pick-in-place, single mechanical tray forming head and hooded seal area with Lexan lift-up access safety door. Control panel with push button start / stop.

OAD: 75"L x 60"W x 82"H

Get a Free Quote Call: 630-629-9900

Kliklock Case Set-Up, Tray Tray Glue AKUXWT Common, 3-hd, to 225cpm, H/M

  • Manufacturer: Kliklock
  • Model Number: AKUXWT
  • Frain Number: 5E0442

Automatic, 3 head, tray former capable of 75 cycles per minute each head (3 trays per cycle). (3) 24" L blank tray magazines, 2-vacuum, suction cup, reciprocating blank tray pick offs each head, 55" L x 8" W lugged takeaway conveyor set on 12" centers with 2" H lugs. Nordson Control box with carton vacuum, conveyor, on / off switches, hand /run / jog controls, start / stop with e-stop, and interlock guarding.

OAD: 60" L x 56" W x 77" H

Get a Free Quote Call: 630-629-9900

Kliklock Case Set-Up, Tray Tray Glue ECT625HS

  • Manufacturer: Kliklock
  • Model Number: ECT625HS
  • Frain Number: R30680

Woodman, Model ECT625-HS, automatic, intermittent motion, single head tray former hot melt glue sealer. Rated from 10 to 75 trays per minute – depending on materials, application and machine configuration. Tray size range: 4" to 17¾" in length; 2¾" to 12" in Width; 1½" to 5" in Depth. Equipped with 28” long blank tray magazine, (4) station rotary vacuum pick and place tray former, Nordson hot melt glue and self contained vacuum systems with 12" wide x 60" long Dorner discharge conveyor. Control panel with A/B controller with A/B touch screen HMI and start / stop / e-stop push buttons with interlock safety guarding and statis light bar. Mounted on base frame with multi height adjustable legs.

OAD: 105" L x 74" W x 90" H

Get a Free Quote Call: 630-629-9900

Kliklock Cartoner Semi Triseal GENESIS GLC

  • Manufacturer: Kliklock
  • Model Number: GENESIS GLC
  • Frain Number: R29560

Kliklock Model Genesis GLC, in-line, stainless steel, high speed, lug-less, carton closer and hot melt tri-sealer rated from 30 to 200 cartons per minute – depending on materials and application. All stainless steel construction. Carton size range: 4" to 15" in Length; 3-1/4" to 12" in Width; 1-1/2" to 5" in Depth. Equipped with continuous motion, lug-less carton transfer design has 1-1/2" wide twin urethane belts on both the in feed and discharge sections. 90-degree positive in line carton turning section with jam sensors both at turning point and in feed section with overhead assembly, hot melt glue system and roller compression section and Seko gauges. Control panel has touchpad controls with panel view. Mounted on stainless steel base frame with interlocked flip-up safety guarding.

OAD: 228" L x 66" W x 78" H

Get a Free Quote Call: 630-629-9900

Kliklock Cartoner Semi Triseal 3FK

  • Manufacturer: Kliklock
  • Model Number: 3FK
  • Frain Number: 5H2973

Kliklok, Model 3FK, in-line, stainless steel, top carton closer, hot melt tri-sealer. Rated from 10 to 70 cartons per minute – depending on materials, application and machine configuration. All stainless steel construction. Carton size range: 5" to 10" in Length; 1" to 8" in Width; 1.38" to 3" in Depth. Equipped with continuous motion lugged carton transfer design with overhead assembly, hot melt glue system and roller compression section with Seko gauges. Control panel has and A/B controller with push button start / stop / jog operation. Mounted on stainless steel base frame with interlocked flip-up barrier guarding.

OAD: 230"L x 52"W x 62"H

Get a Free Quote Call: 630-629-9900
