Moen Machines


Moen Machines In Stock

Moen Case Erector Bliss PF106HI

  • Manufacturer: Moen
  • Model Number: PF106HI
  • Frain Number: 5E3697

Moen Model PF106HL, automatic, vertical, corrugated "H" style partition inserter capable of speeds from 10 to 45 inserts cases per minute – speeds depending on material and application. Can run in conjunction with standard "RSC" case or "H" style bliss box formers with cases from min / max range of: 10" – 24" L x 10" – 16" W x 7" – 15" D. Equipped with a 36" x 48" blank insert magazine, (3) wheel feed system, pneumatic pusher arm and a die compression section with ram arm, and 4 sided forming insertion station. Moen M3-A (2) gun H/M glue system, control panel, with on / off feed wheel, "H" feed, and die compress controls.

OAD: 107" L x 65" W x 99" H

Get a Free Quote Call: 630-629-9900

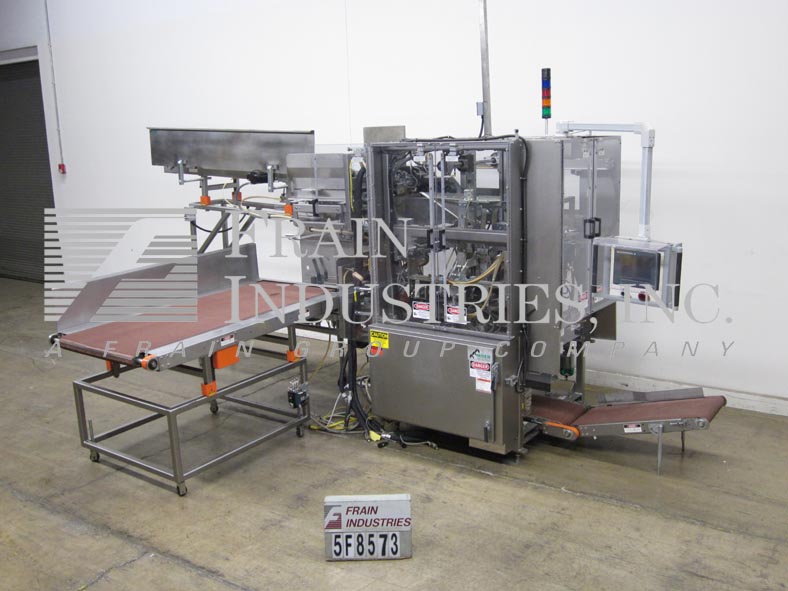

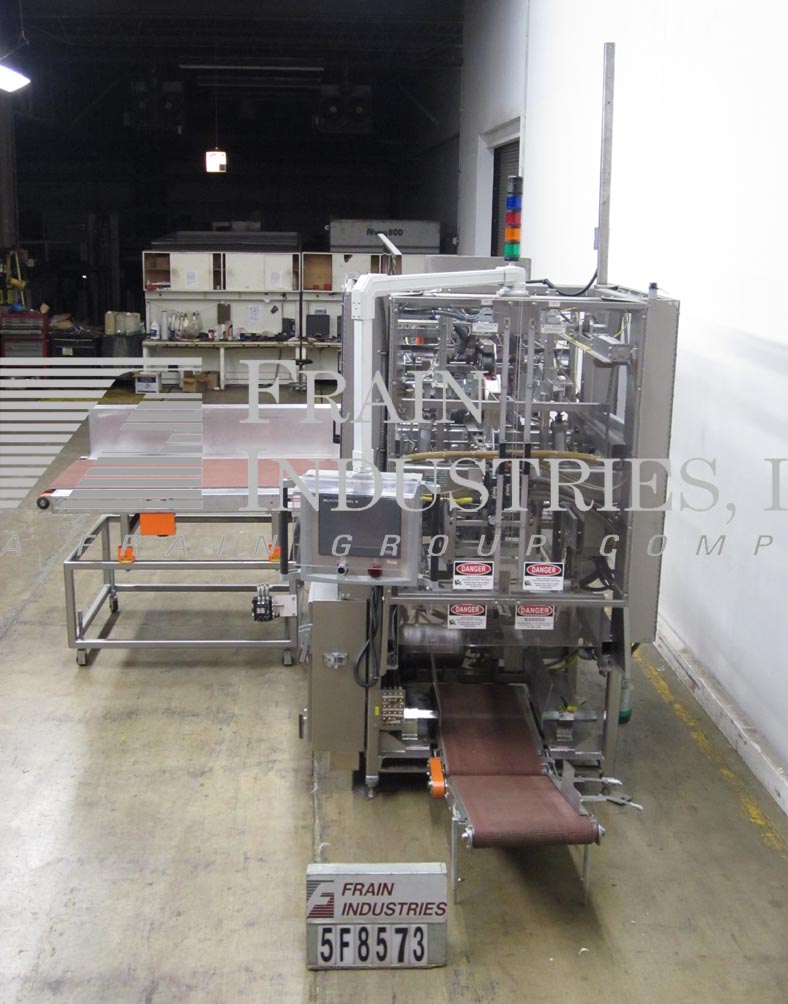

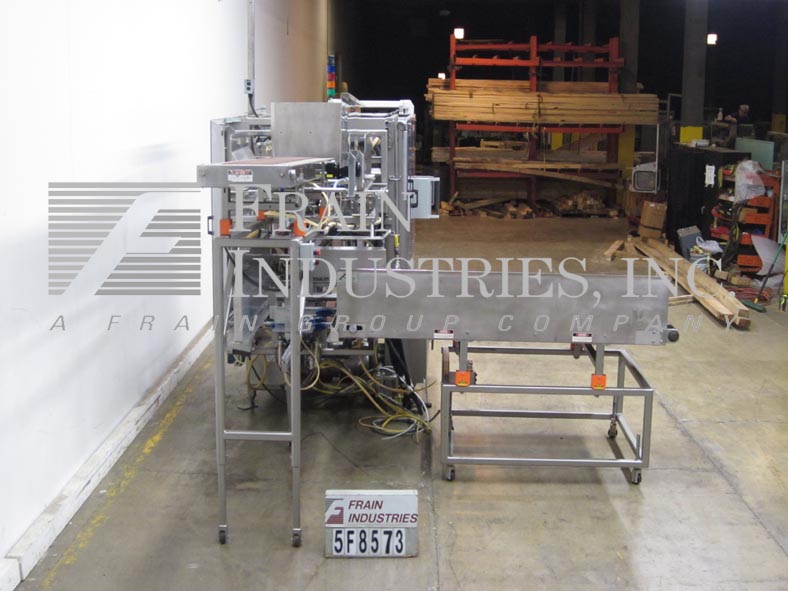

Moen Case Erector Bliss PF106HLV

  • Manufacturer: Moen
  • Model Number: PF106HLV
  • Frain Number: 5F8573

Moen Model PF106HLV, automatic, vertical, "H" style bliss former rated from 10 to 23 cases per minute – depending on material and application. Can run in conjunction with standard "RSC" case or "H" style bliss box formers. Case size range: 9" to 25" in Length; 8" to 25" in Width; 4" to 16" in Depth. Equipped with 48" long x 24" wide blank body wrap magazine with (6) suction cup pic n place, 72" long x 24" wide blank insert magazine, with (3) wheel feed system, die compression section, (4) sided forming station, pneumatic single ram arm, Nordson hot melt glue system with 42" long case discharge conveyor. Control panel has A/B controller and touch pad controls with start, stop, e-stop, safety guarding and statis light bar.

OAD: 180" L x 60" W x 102" H

Get a Free Quote Call: 630-629-9900
