Bartelt Form & Fill Auger IM714

  Back to All Equipment
  • Manufacturer: Bartelt
  • Model: IM714
  • Frain Number: 5E7740
  • Category: Form Fill Seal
  • Subcategory: Auger
  • Condition: Used, in excellent condition
  • Availability: In Stock

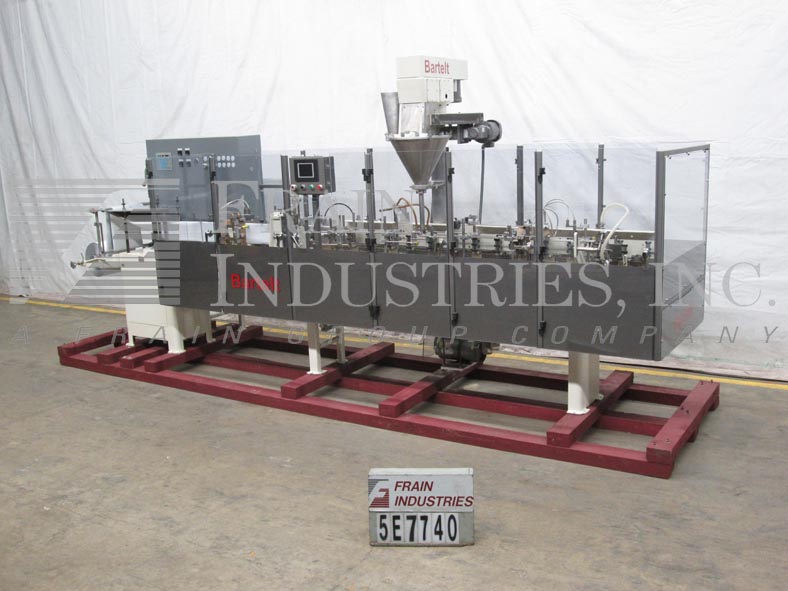

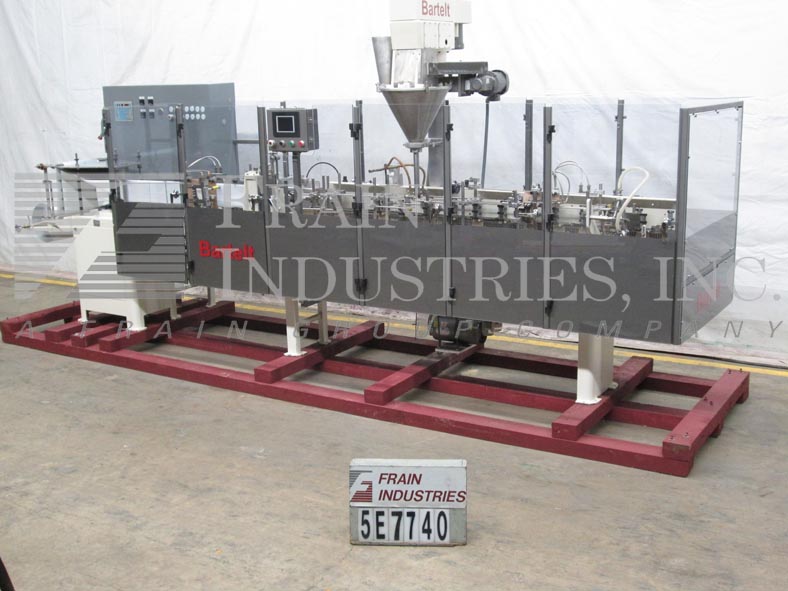

Automatic, intermittent motion, horizontial, f/f/s machine capable of speeds to 100 ppm depending on application Has a chain pouch feed conveyor with 14 stations set on 7" centers and a pouch size range of: 2" – 5 3/4" W x 2" – 9 1/2" L, forming plow, 9 1/2" H film tension rollers, side seal, and cut-off station, no pouch detection suction cup style pouch opener, Bartelt auger filler, with top seal cleaning, heat sealing bar, and pouch pick-off station, can handle a 18" OD max film roll, with 21" max web width, on 3" OD core, mechanical drive, with touch pad controller, digital readout, and Omron heat seal controllers.

FMC vibratory filler available @ additional cost.

OAD: 225" L x 46" W x 89" H
