Gold Cup Filler Cup Rotary GFC-6

  Back to All Equipment

PART OF COMPLETE LINE

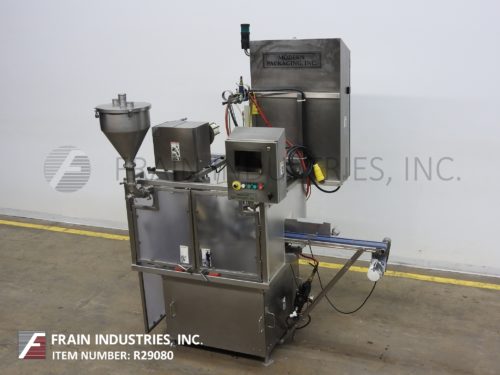

Gold Cup, Model GFC-6, automatic, intermittent motion, rotary cup filler, heat sealer rated from 5 to 30 cups per minute – depending on materials and application. Fill range: Fill range: 1/2 oz to 8 oz. with proper change parts. Cup size up to: 4" diameter x 4-1/2" high. Equipped with 5 gallon hopper, 16" OD rotary turn table, cup denester with 36" high cup magazine, positive displacement filler, pre-cut foil lid magazine with pic n place, pneumatic heat sealing head and sweep arm reject station. Control panel with start, stop, fill, vacuum and heat on / off switches on, off and jog / run controls with e-stop and mounted on stainless steel base with locking casters.

OAD: 45"L x 36"W x 80"H
