PSG Lee / PPI Inc Form & Fill Liquid/Paste RP-8TW-14

  Back to All Equipment

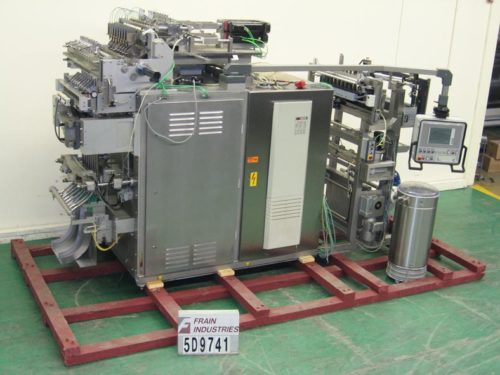

PSG Lee Model RP 8TW 14WD, 8 Duplex, rotary, automatic, intermittent motion, monobloc, pre-made liquid pouch filler and sealer capable of handling 2 pouches at a time and rated up to 80 pouches per minute – depending on materials and application. 304 stainless steel contact parts. Pouch size range: 80mm to 120mm in Width; 100mm to 320mm in Length. Pouch material: Laminated film and capable of handling a variety of pouch styles flat and stand-up with proper change parts. Fill range up to 200ml with accuracies of + / – 0.5% of 1%. Equipped with 45" long pre-made pouch magazine, reciprocating suction cup pic-n-place, 8 stations for pouch loading, date coding, opening, product and gas filling, heat sealing and cooling with (16) sets of easy adjust pouch grippers set on 6" centers piston fill station with 50 litre product tank and no pouch / no opening / no fill / no seal, (2) top constant heat sealing bars with temperature range of 32 to 520 Deg F and (1) top cooling bar with 36" long x 10" wide neophreme discharge belt conveyor and top mounted Rencor liquid cooling system. Remote control panel has A/B PLC controller with PSG touch screen interface and readout with statis light bar. Mounted on welded frame poly urethane coated with interlock safety guarding.

OAD: 160" L x 84" W x 84" H Pouch Machine
40" L x 15" W x 74" H Control Panel
