Sandiacre Form & Fill No Filling Head TG320LDQZ

  Back to All Equipment

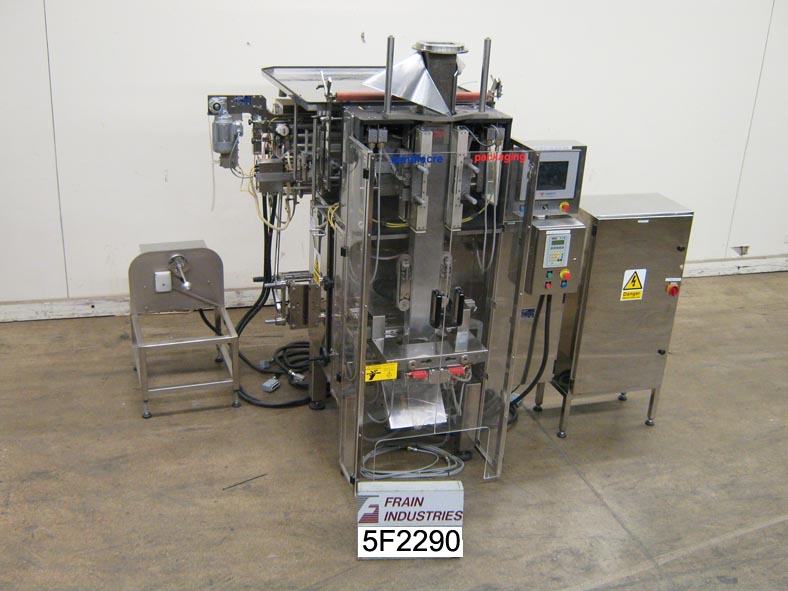

Sandiacre Model TG320LDQZ, automatic, intermittent motion, form / fill / seal machine rated from 20 to 100 bags per minute – depending on materials and application. Bag size range: 3.1” – 12.6" in Width; up to 19.7” in Length. Equipped with film splice station, servo controlled film tracking, registration, transverse zipper attachment, Quad Pack rectangle forming system for four side creasing to form square bag, 20" vertical seal assembly, dual side film assist belts, flat bottom forming system, 13" x 2" serrated hot knife seal jaw, e-stop and interlocking safety guarding. Servo drive and AB PLC with panel view. Film Specification: up to 36" diameter; up to 32" wide. Mounted on heavy duty base frame.
Markem smart date coder available at addition cost.

OAD: 96" L x 60" W x 96" H
