Cornell Machines

Cornell Mixer Paste Horizontal D26

• Manufacturer: Cornell
• Model Number: D26
• Frain Number: 5G6921

Cornell Model D26, "Versator", deaerator, with vacuum system rated from 5 to 125 gallons and 1000 to 3200 rpm per minute – depending on materials, application and machine configuration. Equipped with a 26" diameter product rotating disc, (2) 2" NPT side chamber product charge and discharge ports, (1) 1½" NPT top vacuum port, pressure gauge and 2" NPT bottom drain. Swing open bolt down door has (2) 7¼" OD / 3½" ID front flanged sight ports, 15 Hp (4) belt to motor main drive with safety guarding and Stokes Model 148H-9 2 hp vacuum system with (2) 1¾" NPT fittings. Mounted on a 62" long x 49" wide base platform frame.

Operation: Product flows thru film forming ring out and then over the surface of rotating disc where the dispersion and deaeration action occurs, used in food, cosmetic, pharmaceutical and chemical applications.

OAD: 62"L x 50"W x 72"H

Cornell Mixer Paste Horizontal D26

• Manufacturer: Cornell
• Model Number: D26
• Frain Number: 5G6860

Cornell Model D26, "Versator", deaerator, with vacuum system rated from 5 to 125 gallons and 1000 to 3200 rpm per minute – depending on materials and application. Equipped with 26" OD product rotating disc, (2) 2" NPT side chamber product charge and discharge ports, (1) 1½" NPT top vacuum port, pressure gauge, flow rate gage and 2" NPT bottom drain. Swing open bolt down door has (2) 7¼" OD / 4" ID front flanged sight ports, 15 Hp (4) belt to motor main drive with safety guarding and Stokes Model 48H10 vacuum system with (2) 1½" NPT fittings. Mounted on 72" long x 49" wide base platform frame.

Operation: Product flows thru film forming ring out and then over the surface of rotating disc where the dispersion and deaeration action occurs, used in food, cosmetic, pharmaceutical and chemical applications.

OAD: 76"L x 69"W x 73"H

Cornell Mixer Paste Horizontal D26

• Manufacturer: Cornell
• Model Number: D26
• Frain Number: R25920

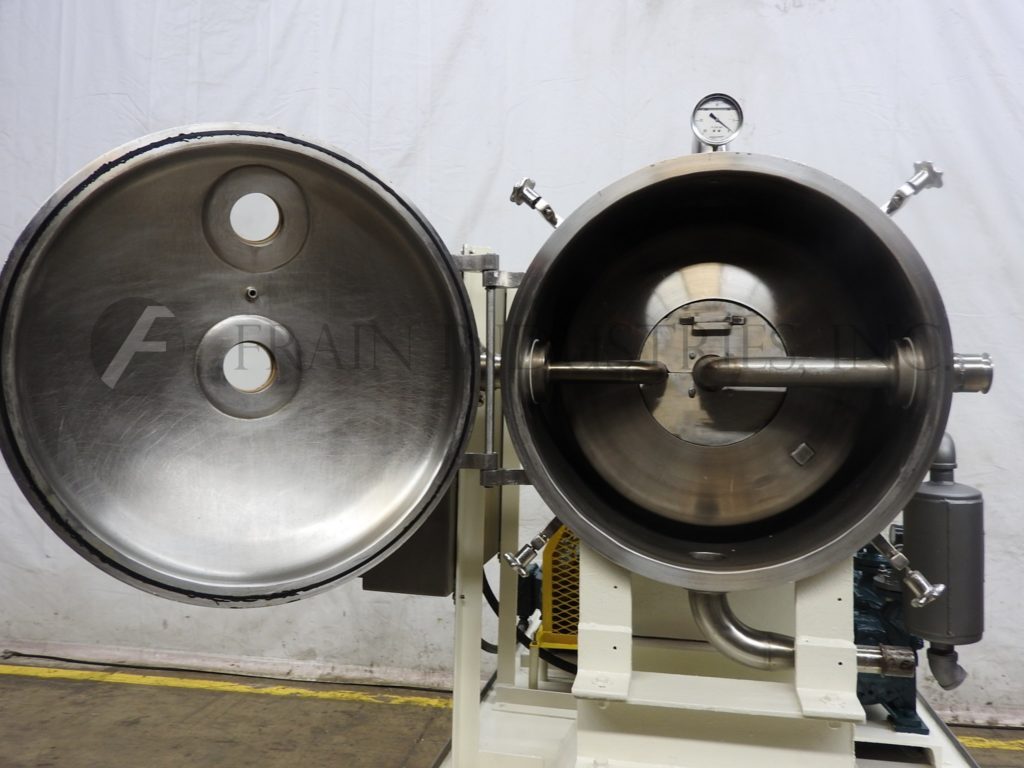

Cornell Model D26, "Versator", deaerator, with vacuum system rated from 5 to 125 gallons per minute – depending on materials, application and machine configuration. Equipped with all 316 stainless steel contact parts, 26" ID product rotating disc, with (2) 3"OD / 2¼"ID Tri-Clamp side chamber in feed and discharge product ports with 61" ground clearance, (1) 3-1/2" OD threaded top vacuum port, with pressure gauge and 4" OD threaded bottom drain. Swing open, bolt down door has (2) 7" OD, 3-1/2" ID front flanged sight ports with drip pan, 25 Hp (4) belt to motor main drive with safety guarding and SIHI Model LPHD liquid ring vacuum system has (4) 5" OD, 2" ID flanged ports and 10 Hp motor drive. Mounted on 78" long x 48" wide painted base platform frame.
Operation: Product flows thru film forming ring out and then over the surface of rotating disc where the dispersion and deaeration action occurs, used in food, cosmetic, pharmaceutical and chemical applications.

OAD: 78" L x 52" W x 87" H

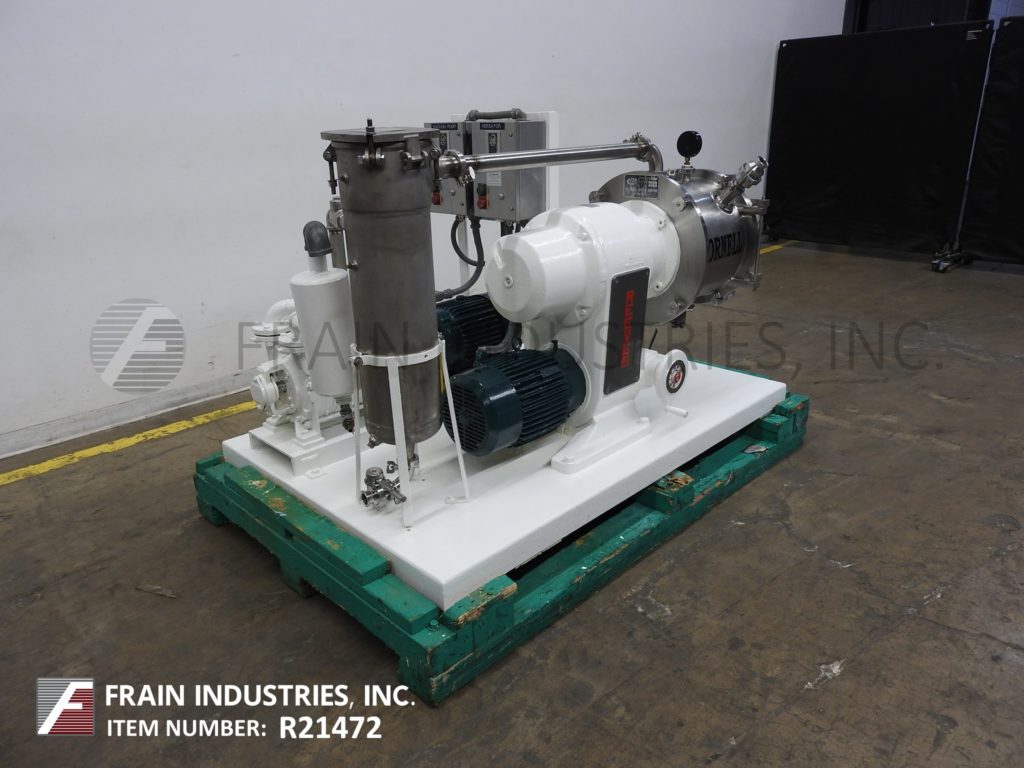

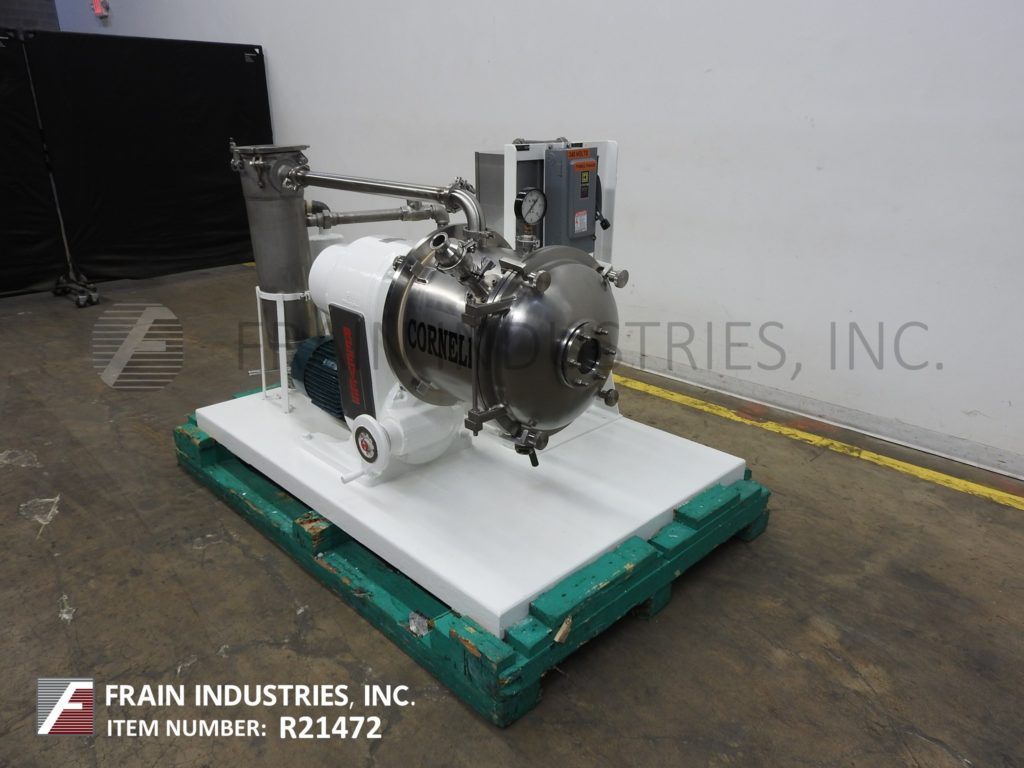

Cornell Mixer Paste Horizontal D16 Cornell D16 Versator

• Manufacturer: Cornell
• Model Number: D16
• Frain Number: R21472

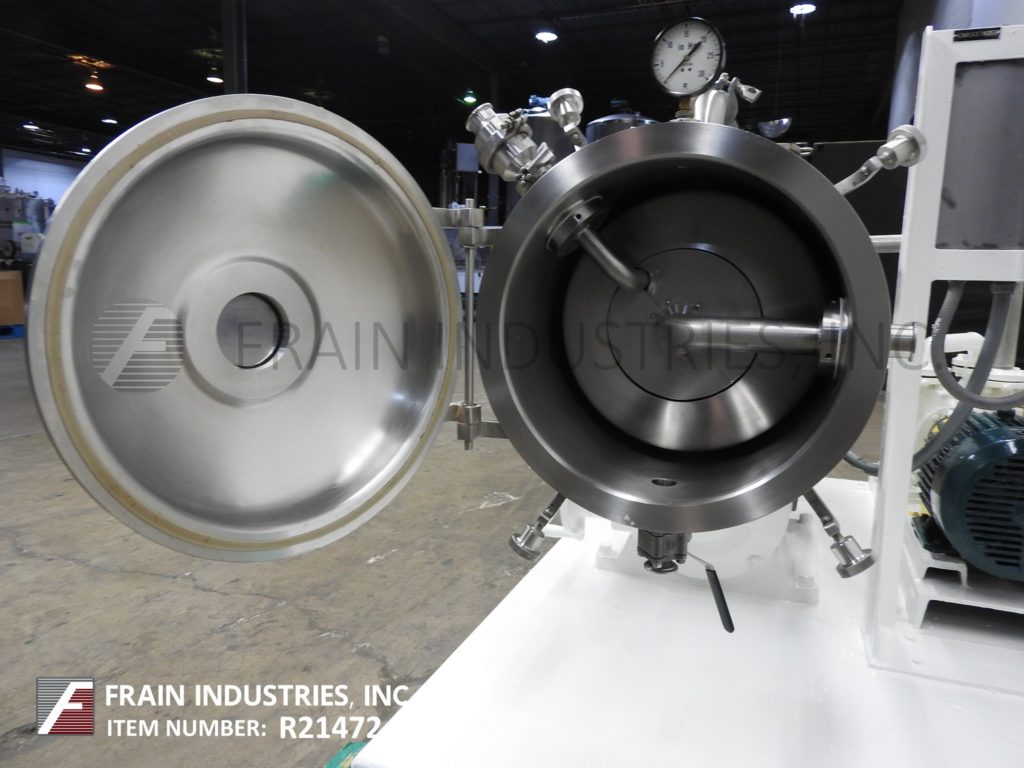

S/S "Sanitary Versator" with vacuum system. Equipped with 7.5HP variable speed drive with speed range from 1200rpm to 4000rpm and a flow rate up to 20 gallons per minute depending on product. Product flows through a film-forming ring out and over the surface of the rotating disc at which time the dispersion/de-aeration action occurs. Includes quick release cover with site glass.
OAD:57"H 48"W 72"L

Optional: Cornel D8 to run your lab/R&D testing before running your full batch, borrow short term. Item number R20671 Cornel D8, self contained vacuum pump, filter, controls.

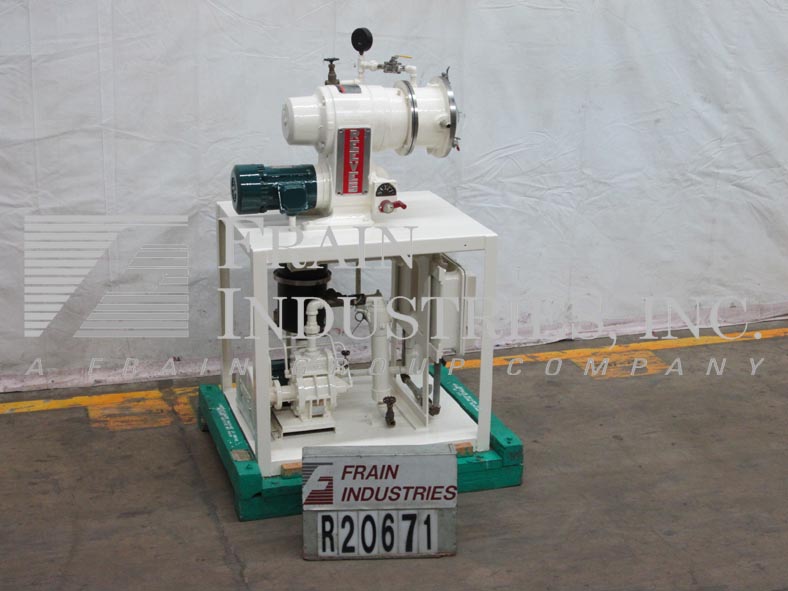

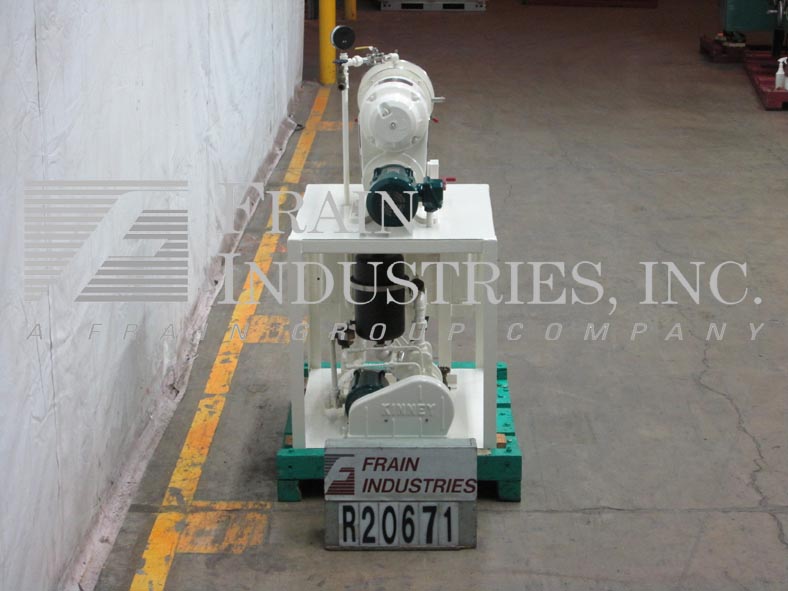

Cornell Mixer Paste Horizontal D8 Cornell Horizontal Versator

• Manufacturer: Cornell
• Model Number: D8
• Frain Number: R20671

Cornell Model D-8 variable speed "Versator" with vacuum pump, rated to 2 gpm, depending on product and viscosity. Unit has a 8" diameter disc, a 1/2" product inlet, 1/2" product discharge, a 1/2" top vacuum port, with gauge and a 1/2" bottom drain. Product flows through a film-forming ring out and over the surface of the rotating disc at which time the dispersion/deaeration action occurs. Disc rotation rated from 2000 – 6000 rpm. Commonly used for despersion, and deaeration for food, cosmetic, pharmaceutical and chemical applications. Includes 316 S/S contact parts, quick release glass cover and AB starter boxes. Mounted on a painted steel base. Kinney 3/4 hp vacuum pump. Last running in a pharmaceutical operation.
OAD:47"L x 37"W x 68" H
