Ixapack Global Machines

Ixapack Global Robot Robotics REMOVAL STRAW>

• Manufacturer: Ixapack Global
• Model Number: REMOVAL STRAW>
• Frain Number: 5H9464

Ixapack Global servo driven straw applicator. Equipped with 32" diameter dual roll stand, servo driven cutting cylinder, (2) 38" long vacuum board accumulators, (8) head glue applicator, (8) head robotic pic and place and touch screen HMI.

OAD: 115"L x 80"W x 105"H

Get a Free Quote Call: 630-629-9900

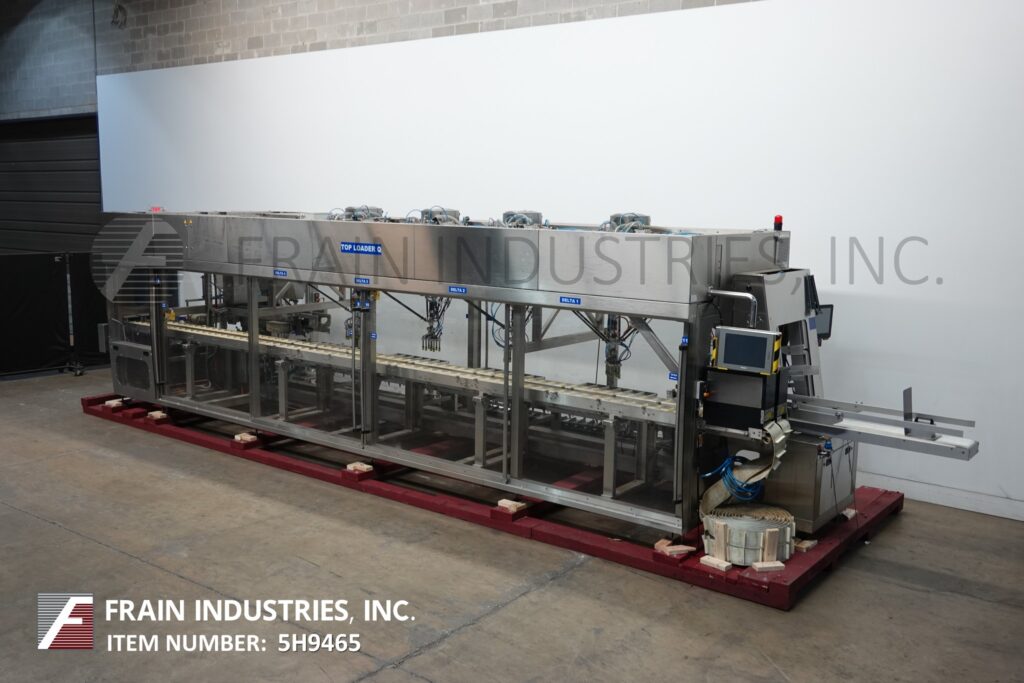

Ixapack Global Cartoner Auto Horiz. Glue (Auto) TOPLOAD L2

• Manufacturer: Ixapack Global
• Model Number: TOPLOAD L2
• Frain Number: 5H9465

IXAPACK, Model D4000, TOPLOAD L2, Automatic, stainless steel, 4-head robotic, top pick n place, carton loader, turner and sealer rated up to 70 cartons per minute – depending on materials, application and pack pattern. Blank size range: 8" to 28" in width x 12" to 12" in height. Erected carton size range: 2,4" to 12" in width x 4.8" to 16" in height. Equipped with 354" long x 6" wide dual fixed product in feed conveyors set on 12" centers and 1-1/2" high cleats, with 354" long x 12" wide empty case (2) chain fixed empty case conveyor set on 12" centers with 1-1/4" wide x 1-1/2" height lugs, (4) Delta (8) suction cup, servo driven, robotic pick and place heads which pick the product from the conveyors to the empty cartons with (15) load stations and carton gluing section with 60" long x 5" wide discharge belt. Control panel has PLC controller with 19" PC HMI and machine start, reset and e-stop push buttons. Mounted on heavy duty frame with interlock safety door guarding and protection roof for dust control with statis light bar.
Capable of handling wrap around, (4) glued corners, cartons, joint shoulder tray and self ready packaging containers with proper change parts.

OAD: 354" L x 90" W x 102" H

Get a Free Quote Call: 630-629-9900
