Mueller Tank SS Single Wall OH

• Manufacturer: Mueller
• Model Number: OH
• Frain Number: 5J4481

Mueller, 3,000 gallon capacity, horizontal, 304 stainless steel insulated process tank. Vessel dimensions: 65" x 85" oval diameter, 172" straight wall. Equipped with lift up 18" manway, top mounted 1 HP prop agitation and (2) CIP spray balls supplied by a 2" Tri-Clamp fitting. 2" Tri-Clamp bottom discharge with 5" ground clearence.

OAD: 176" L x 90" W x 84" H

Mueller Tank SS JKT OH

• Manufacturer: Mueller
• Model Number: OH
• Frain Number: 5J4480

Mueller, 3,000 gallon capacity, horizontal, 304 stainless steel jacketed and insulated process tank. Vessel dimensions: 65" x 85" oval diameter, 172" straight wall. Equipped with lift up 18" manway, top mounted 1 HP prop agitation and (2) CIP spray balls supplied by a 2" Tri-Clamp fitting. 2" Tri-Clamp bottom discharge with 5" ground clearence.

Jacket Ports:
(3) 1" NPT
(3) ¾" NPT

OAD: 176" L x 90" W x 84" H

Mueller Tank SS Single Wall 4000 GAL

• Manufacturer: Mueller
• Model Number: 4000 GAL
• Frain Number: 5J1661

Mueller, 4,000 Gallon, 304 stainless steel, single wall tank. Vessel Dimensions: 92" diameter x 160" deep with a 128" straight wall. Equipped with dome top, sight glass, 3½"OD / 3"ID Tri-Clamp infeed, 16" x 20" side bolt down manway with 1"OD / ½"ID Tri-Clamp opening on door and 2½"OD / 2"ID Tri-clamp fitting discharge with 18" ground clearance.

Top Access:
(1) 7"OD / 4"ID Flanged
(1) 3½"OD / 3"ID Tri-Clamp
(2) 2"OD / 1½"ID Tri-Clamp

OAD: 105"L x 110"W x 178"H

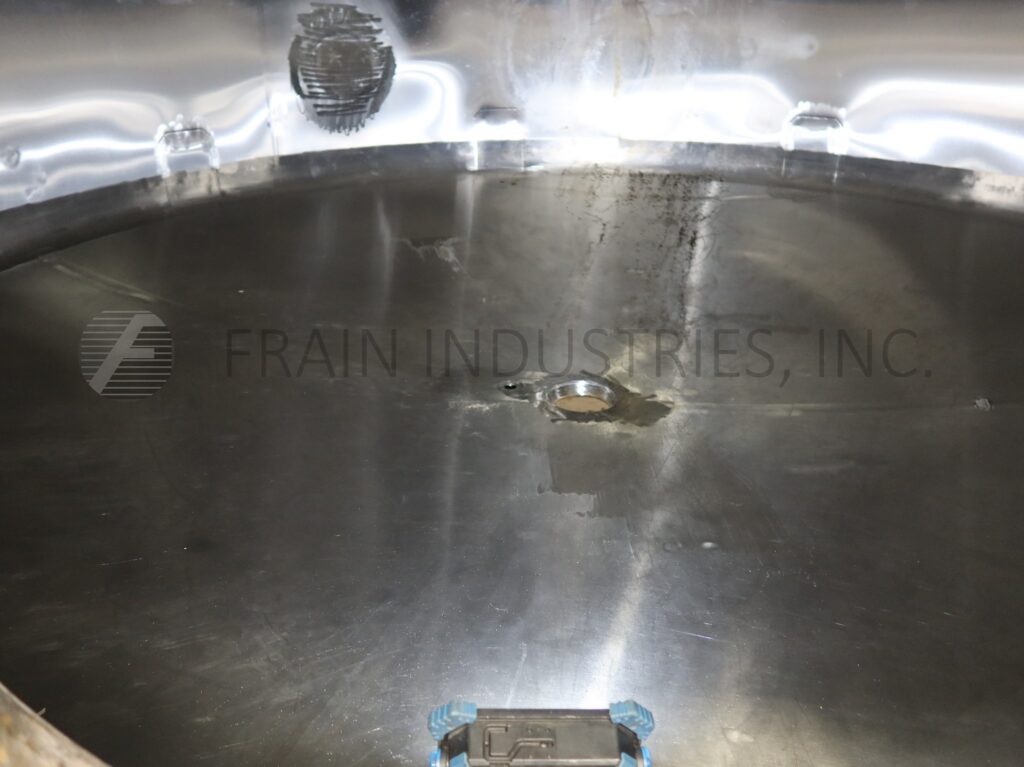

Mueller Tank SS Single Wall 4500 GAL

• Manufacturer: Mueller
• Model Number: 4500 GAL

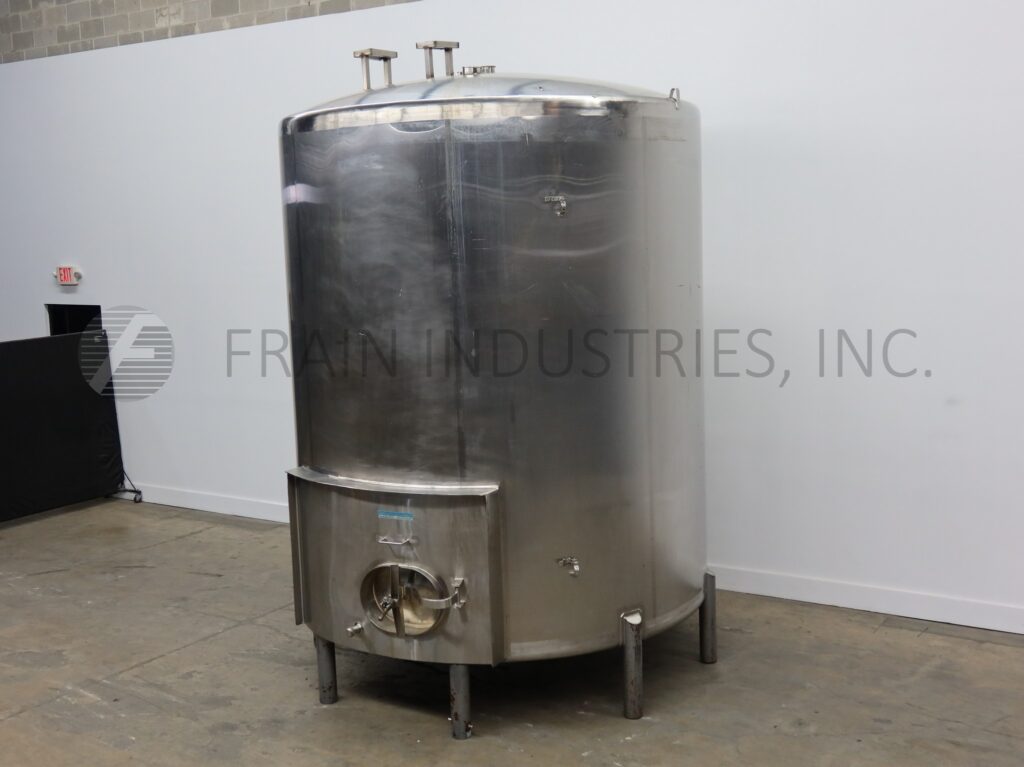

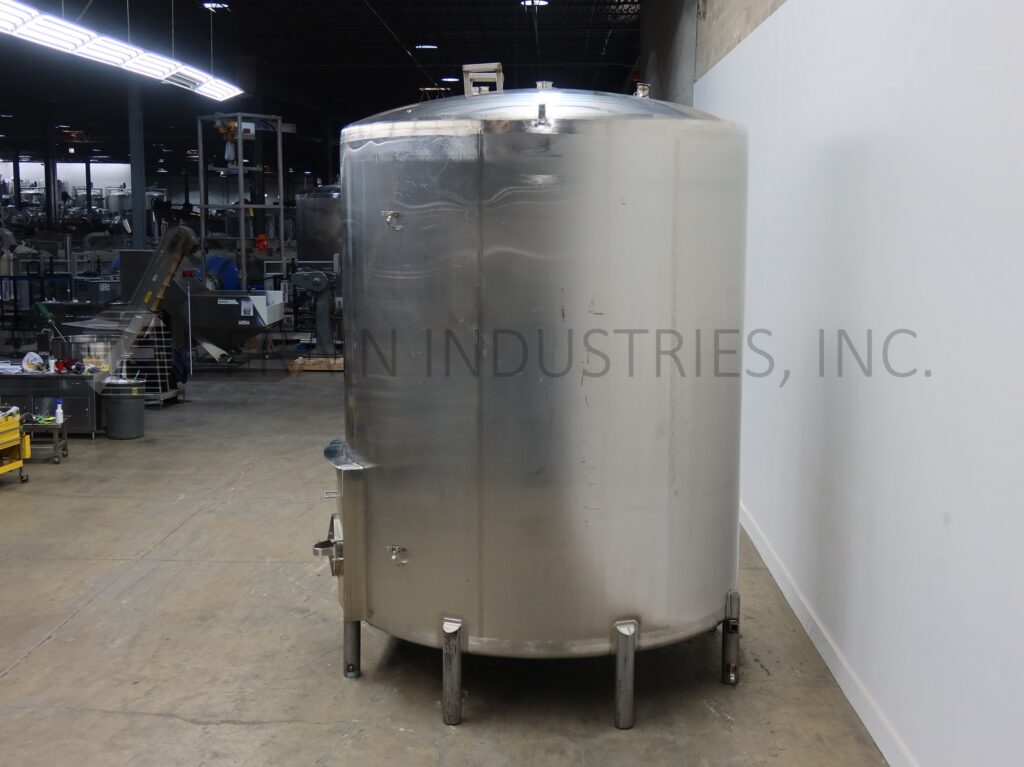

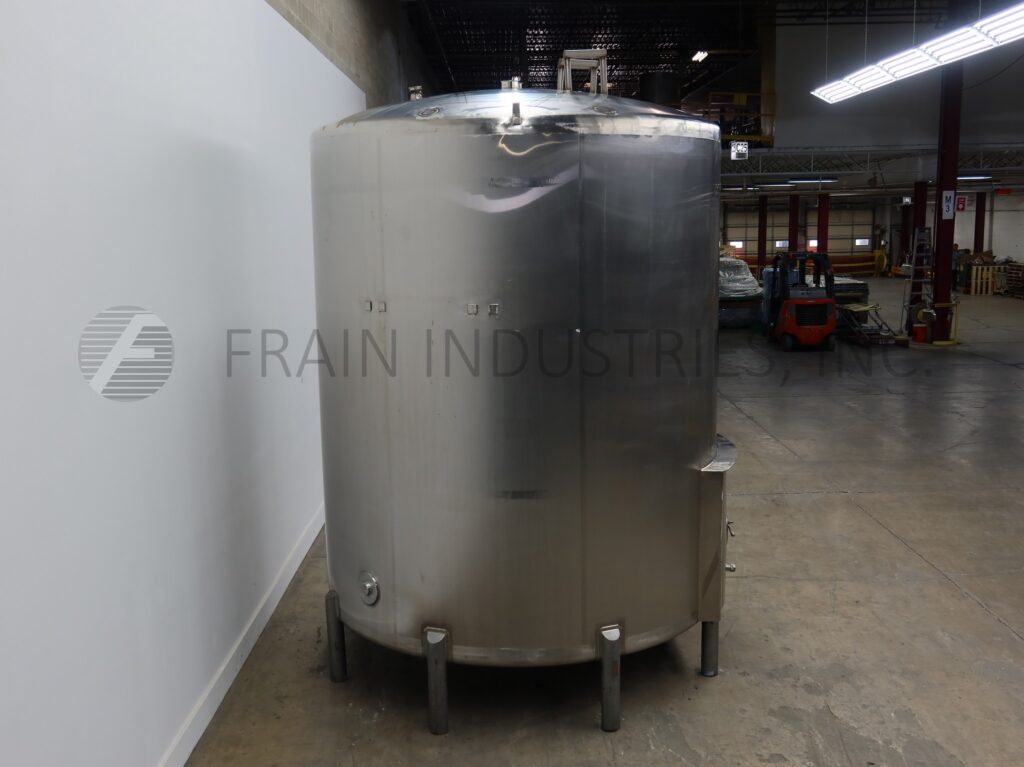

• Frain Number: R38005

Mueller, 4,500 Gallon, 304 stainless steel tank. Vessel Dimensions: 108" diameter x 125" straight wall. Equipped with a dome top, dish bottom, 16" x 20" side manway with bolt down cover, 6½"OD / 6"ID Tri-clamp style bottom discharge with 50" ground clearance.

Bottom Access:
(1) 1-7/8" NPT

Top Ports:
(3) 4½" OD / 4" ID
(1) 3½" OD / 3" ID

OAD: 130"L x 120"W x 166"H

Mueller Tank SS Single Wall 4500 GAL

• Manufacturer: Mueller
• Model Number: 4500 GAL
• Frain Number: R38006

Mueller, 5,000 Gallon, 304 stainless steel tank. Vessel Dimensions: 108" diameter x 125" straight wall. Equipped with a dome top, dish bottom, 16" x 20" side manway with bolt down cover, 6½"OD / 6"ID Tri-clamp style bottom discharge with 50" ground clearance.

Bottom Access:
(1) 1-7/8" NPT

Top Ports:
(3) 4½" OD / 4" ID
(1) 3½" OD / 3" ID

OAD: 130"L x 120"W x 166"H

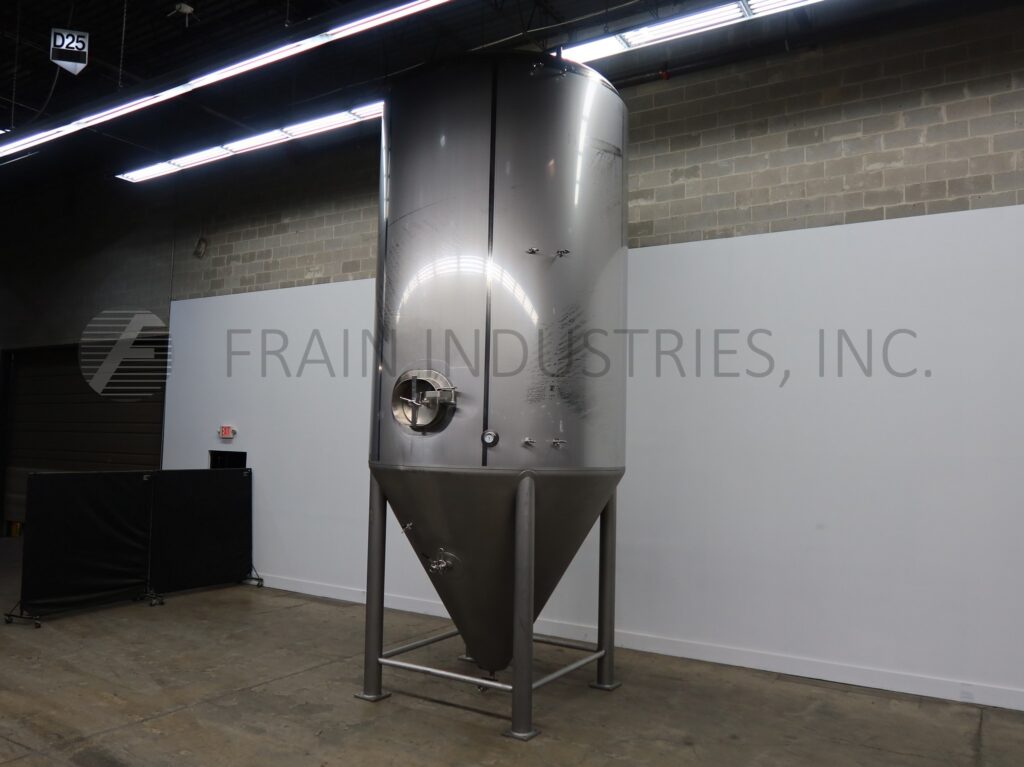

Mueller Tank SS JKT 5250 GAL

• Manufacturer: Mueller
• Model Number: 5250 GAL
• Frain Number: 5J3190

Mueller, 5,250 gallon, 304 stainless steel, jacketed and insulated tank. Vessel Dimensions: 96" diameter x 138" straight wall with a cone bottom. Equipped with 15½" x 20½" side manway with bolt down cover, (2) thermowells, top pressure releif valve and 2½"OD / 2"ID Tri-clamp style bottom fittings with 3" ground clearance.

Top Access:
(1) 3½"OD / 3"ID Tri-Clamp
(2) 2½"OD / 2"ID Tri-Clamp

Jacket Access:
(6) 1½" NPT

MAWP: 14.9 PSI @ 100°F (Vessel)
MAWP: 80 PSI @ 100°F (Jacket)
MDMT: 0°F @ 80 PSI (Jacket)

OAD: 110"L x 101"W x 245"H

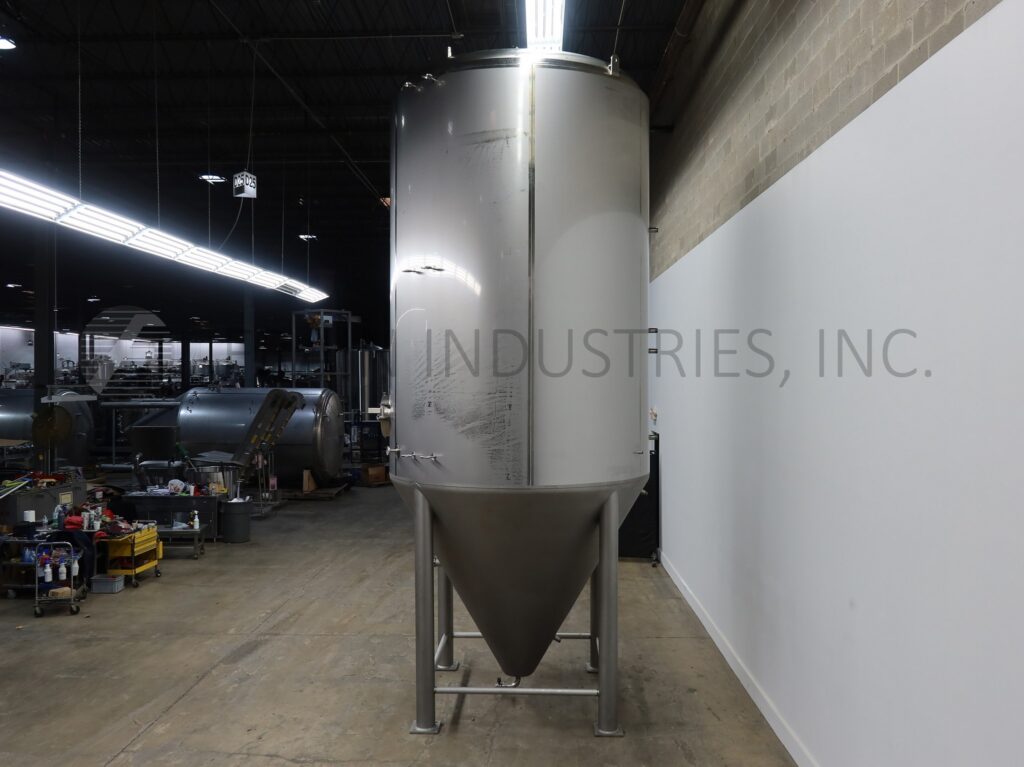

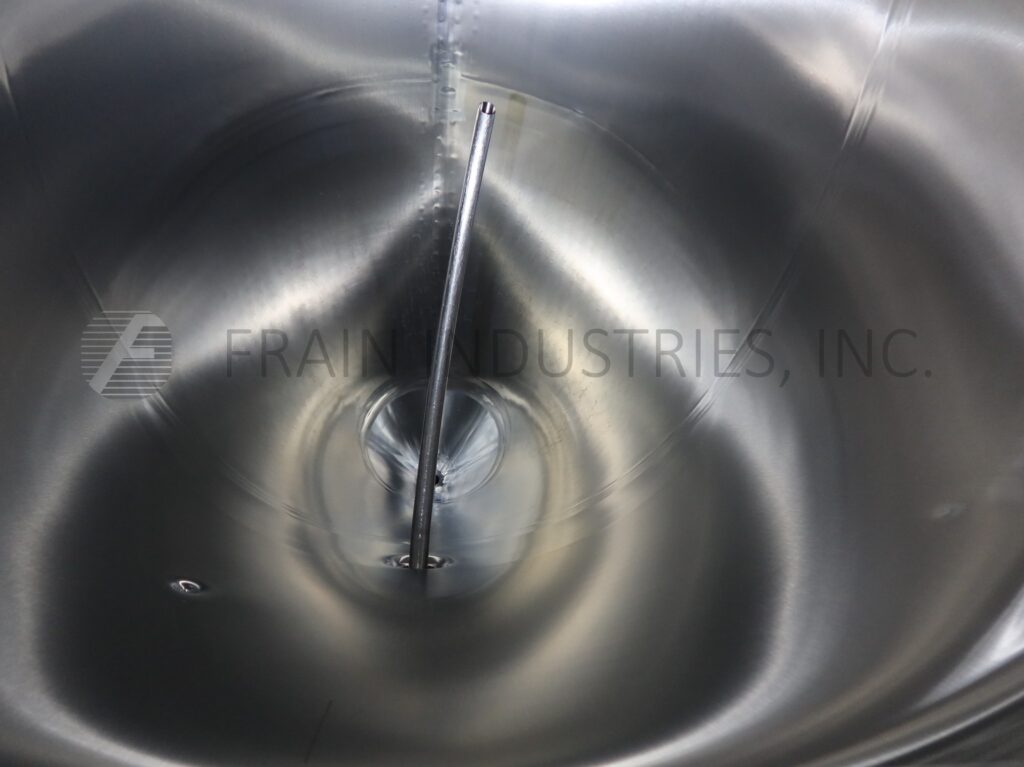

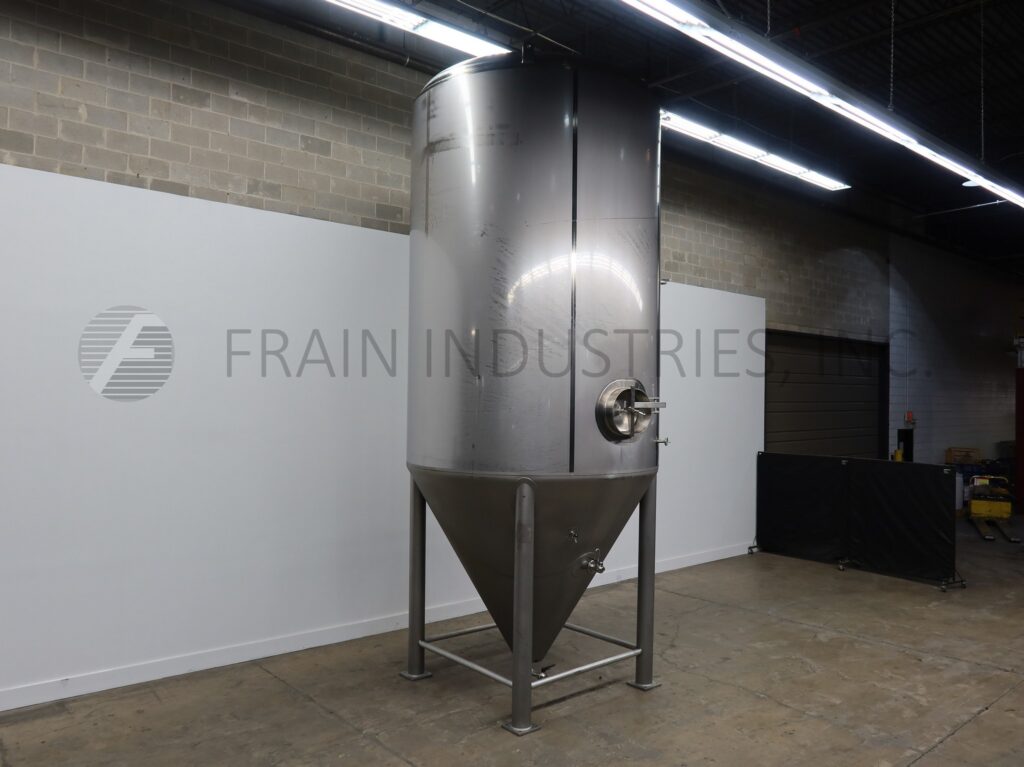

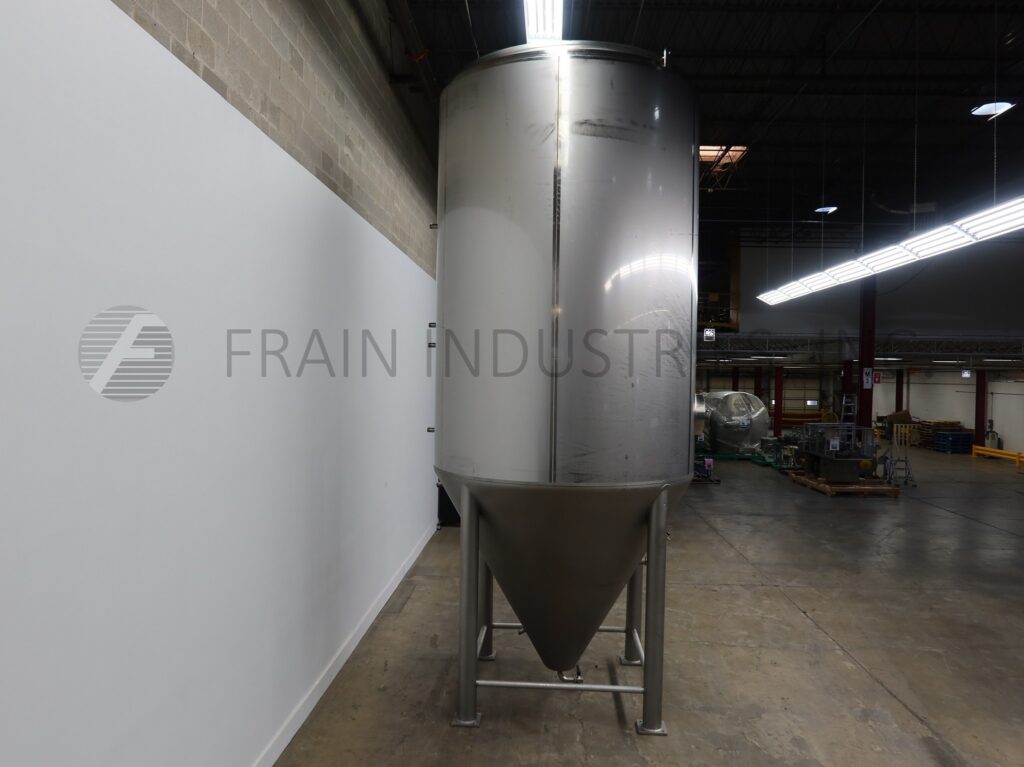

Mueller Tank SS JKT 5250 GAL

• Manufacturer: Mueller
• Model Number: 5250 GAL
• Frain Number: 5J3189

Mueller, 5,250 gallon, 304 stainless steel, jacketed and insulated tank. Vessel Dimensions: 96" diameter x 138" straight wall with a cone bottom. Equipped with 15½" x 20½" side manway with bolt down cover, (2) thermowells, top pressure releif valve and 2½"OD / 2"ID Tri-clamp style bottom fittings with 3" ground clearance.

Top Access:
(1) 3½"OD / 3"ID Tri-Clamp
(2) 2½"OD / 2"ID Tri-Clamp

Jacket Access:
(6) 1½" NPT

MAWP: 14.9 PSI @ 100°F (Vessel)
MAWP: 80 PSI @ 100°F (Jacket)
MDMT: 0°F @ 80 PSI (Jacket)

OAD: 110"L x 101"W x 245"H

Mueller Tank SS JKT 5250 GAL

• Manufacturer: Mueller
• Model Number: 5250 GAL
• Frain Number: 5J3188

Mueller, 5,250 gallon, 304 stainless steel, jacketed and insulated tank. Vessel Dimensions: 96" diameter x 138" straight wall with a cone bottom. Equipped with 15½" x 20½" side manway with bolt down cover, (2) thermowells, top pressure releif valve and 2½"OD / 2"ID Tri-clamp style bottom fittings with 3" ground clearance.

Top Access:
(1) 3½"OD / 3"ID Tri-Clamp
(2) 2½"OD / 2"ID Tri-Clamp

Jacket Access:
(6) 1½" NPT

MAWP: 14.9 PSI @ 100°F (Vessel)
MAWP: 80 PSI @ 100°F (Jacket)
MDMT: 0°F @ 80 PSI (Jacket)

OAD: 110"L x 101"W x 245"H

Mueller Tank SS JKT 5250 GAL

• Manufacturer: Mueller
• Model Number: 5250 GAL
• Frain Number: 5J3187

Mueller, 5,250 gallon, 304 stainless steel, jacketed and insulated tank. Vessel Dimensions: 96" diameter x 138" straight wall with a cone bottom. Equipped with 15½" x 20½" side manway with bolt down cover, (2) thermowells, top pressure releif valve and 2½"OD / 2"ID Tri-clamp style bottom fittings with 3" ground clearance.

Top Access:
(1) 3½"OD / 3"ID Tri-Clamp
(2) 2½"OD / 2"ID Tri-Clamp

Jacket Access:
(6) 1½" NPT

MAWP: 14.9 PSI @ 100°F (Vessel)
MAWP: 80 PSI @ 100°F (Jacket)
MDMT: 0°F @ 80 PSI (Jacket)

OAD: 110"L x 101"W x 245"H

Mueller Tank SS JKT 5250 GAL

• Manufacturer: Mueller
• Model Number: 5250 GAL
• Frain Number: 5J3186

Mueller, 5,250 gallon, 304 stainless steel, jacketed and insulated tank. Vessel Dimensions: 96" diameter x 138" straight wall with a cone bottom. Equipped with 15½" x 20½" side manway with bolt down cover, (2) thermowells, top pressure releif valve and 2½"OD / 2"ID Tri-clamp style bottom fittings with 3" ground clearance.

Top Access:
(1) 3½"OD / 3"ID Tri-Clamp
(2) 2½"OD / 2"ID Tri-Clamp

Jacket Access:
(6) 1½" NPT

MAWP: 14.9 PSI @ 100°F (Vessel)
MAWP: 80 PSI @ 100°F (Jacket)
MDMT: 0°F @ 80 PSI (Jacket)

OAD: 110"L x 101"W x 245"H

Mueller Tank SS JKT 180 BBL D

• Manufacturer: Mueller
• Model Number: 180 BBL D

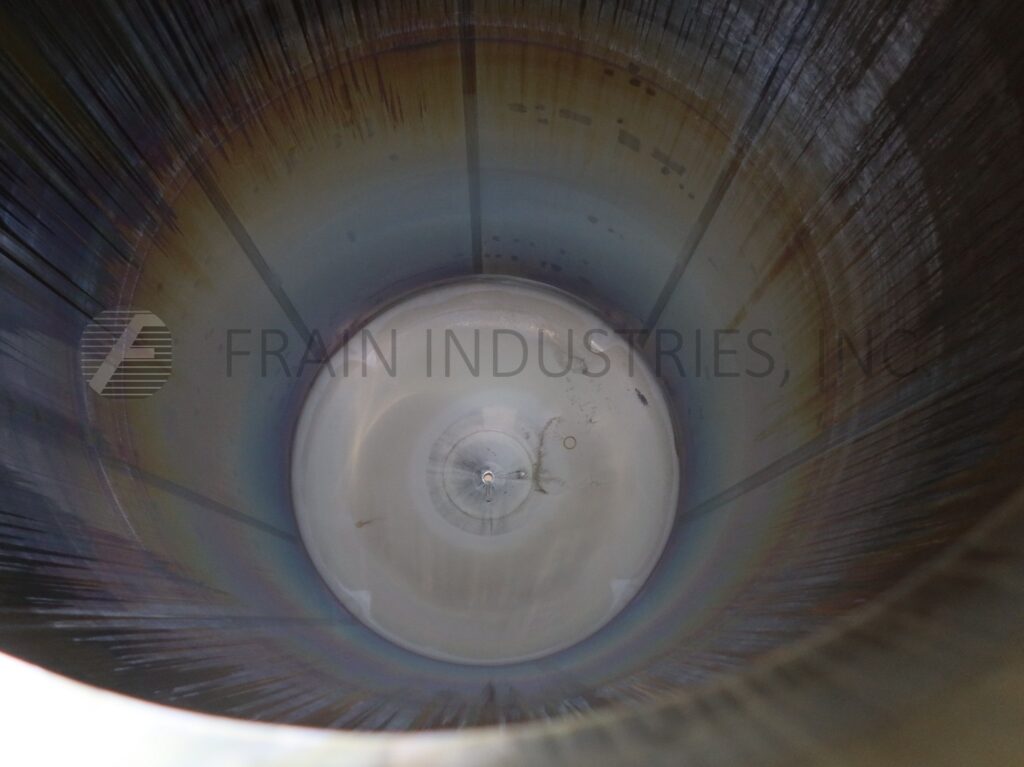

• Frain Number: 5J3183

Mueller, 180 BBL, 6,000 gallon 304 stainless steel insulated tank. Vessel Dimensions: 98" diameter x 177" straight wall with a cone bottom. Equipped with 18" top manway with bolt down cover, 4" diameter overflow and 3"OD / 2½"ID Tri-clamp style bottom fittings with 10" ground clearance.

Top Access:
(1) 3½"OD / 3"ID Tri-Clamp
(2) 2½"OD / 2"ID Seated Bevel
(1) 2"OD / 1½"ID Seated Bevel

MAWP: 0 PSI @ 250°F (Vessel)

OAD: 116"L x 106"W x 245"H

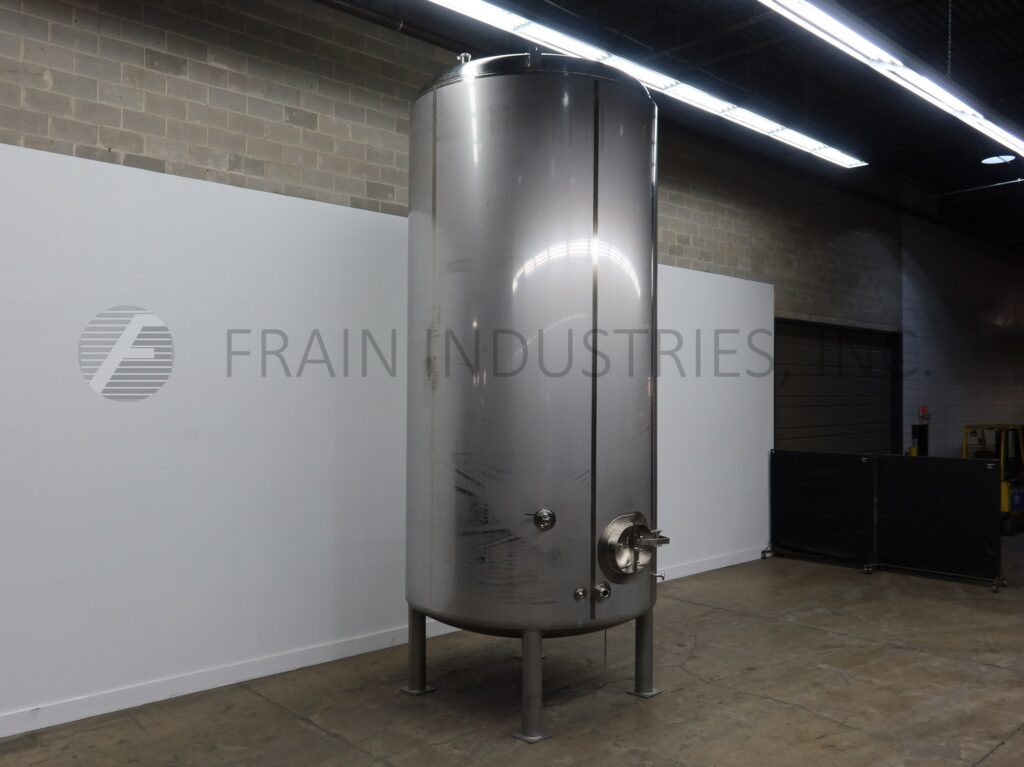

Mueller Tank SS JKT 5000 GAL

• Manufacturer: Mueller
• Model Number: 5000 GAL

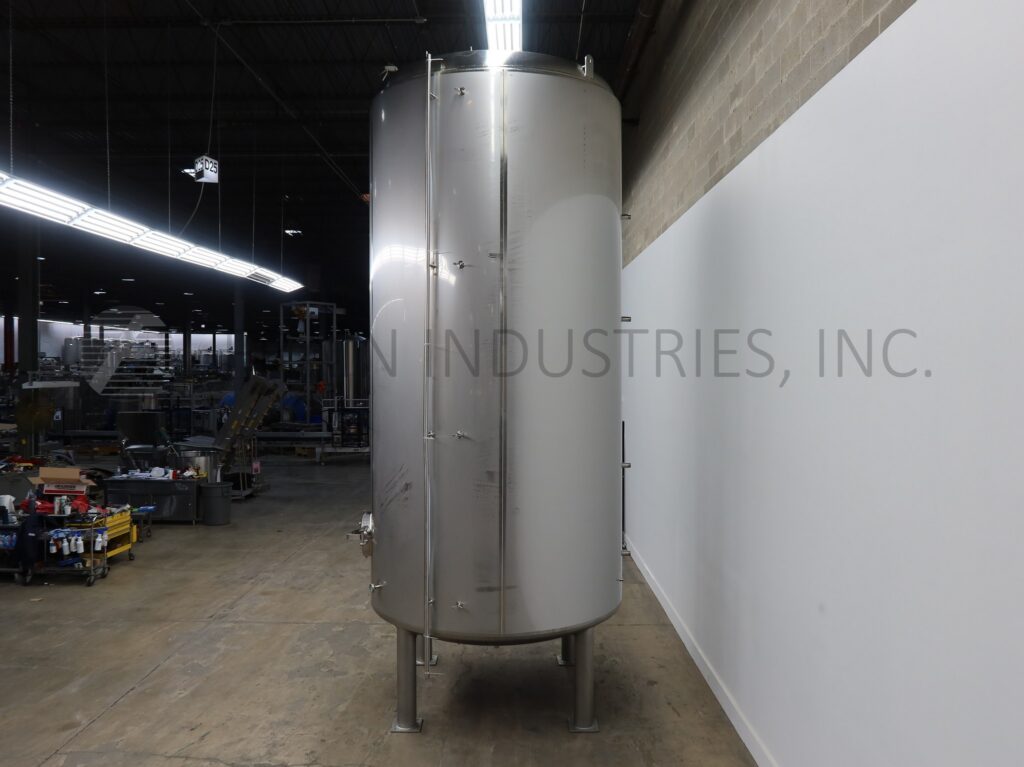

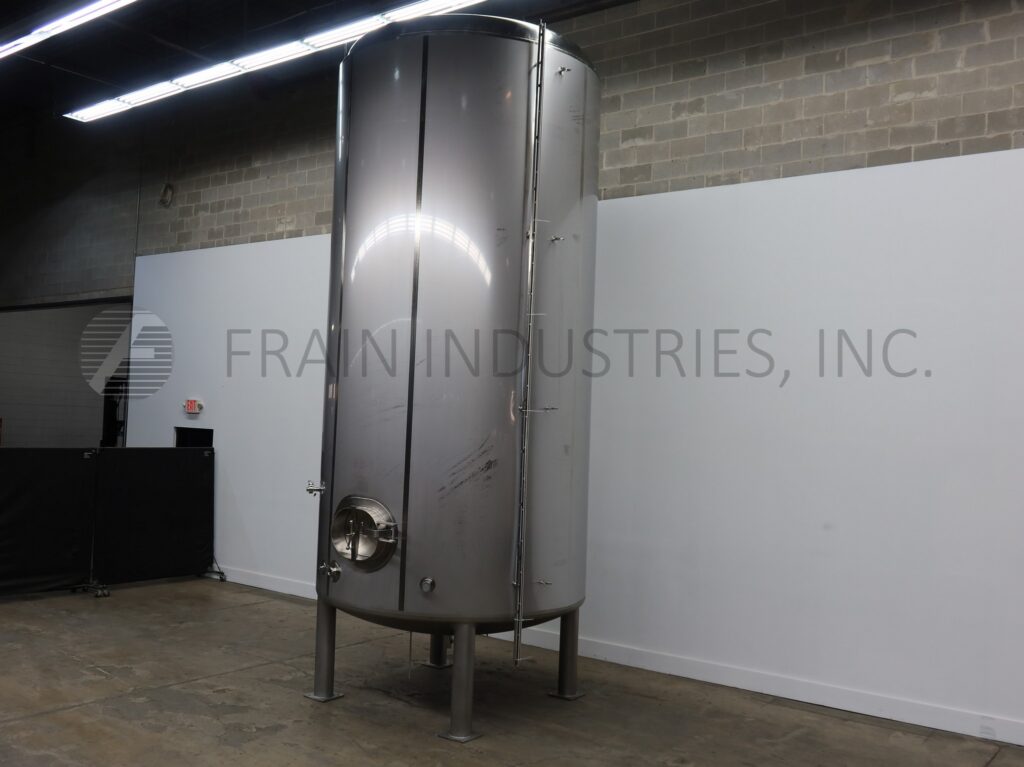

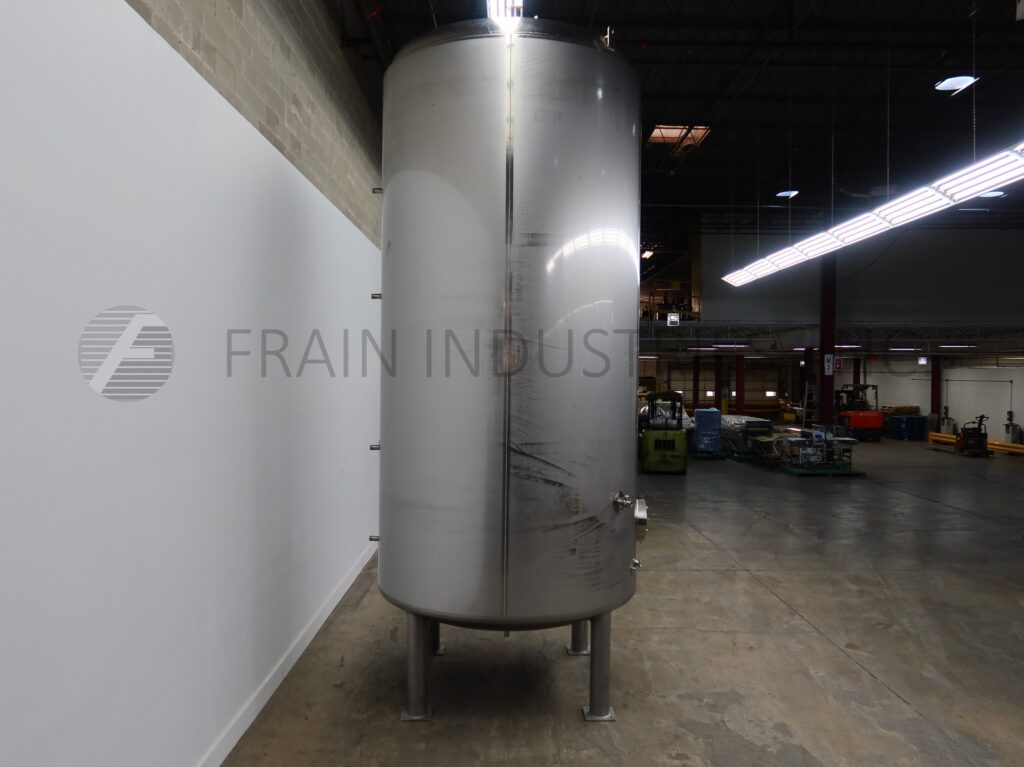

• Frain Number: 5J3181

Mueller, 5000 gallon, 304 stainless steel, jacketed and insulated tank. Vessel Dimensions: 90" diameter x 177" straight wall with a dish bottom. Equipped with 15½" x 20½" side manway with bolt down cover, (2) thermowells, top pressure releif valve and 2½"OD / 2"ID Tri-clamp style bottom fittings with 13" ground clearance.

Side Access:
(1) 2½"OD / 2"ID Tri-Clamp
(1) 2"OD / 1½"ID Tri-Clamp
(1) 1"OD / ½"ID Tri-Clamp

Top Access:
(2) 3½"OD / 3"ID Tri-Clamp
(1) 2½"OD / 2"ID Tri-Clamp

Jacket Access:
(6) 1½" NPT

Nat’l Brd: 48017
MAWP: 14.9 PSI @ 100°F (Vessel)
MAWP: 80 PSI @ 100°F (Jacket)

OAD: 105"L x 95"W x 244"H
