Northland Stainless Inc Machines

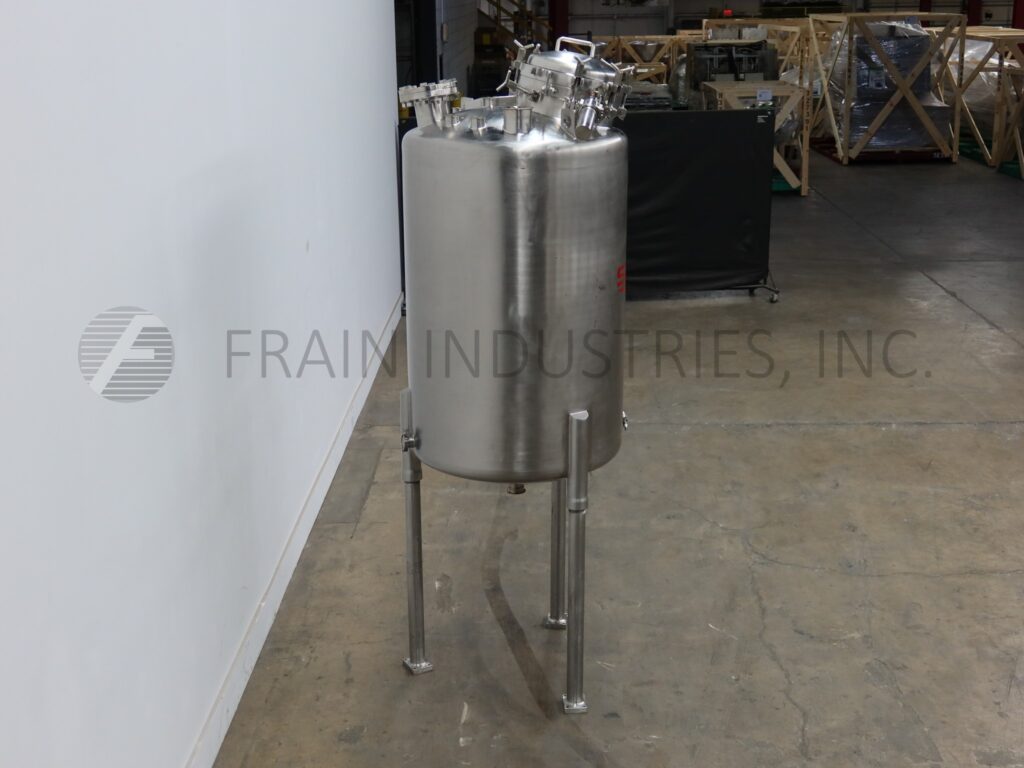

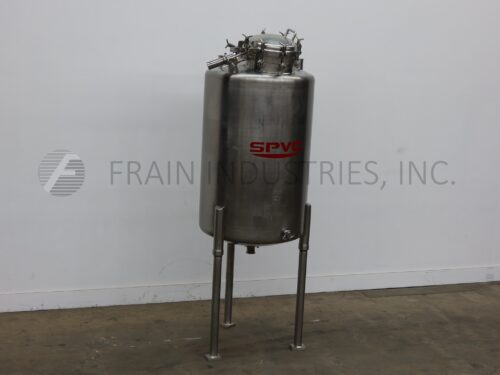

Northland Stainless Inc Tank SS Single Wall 250 GAL

• Manufacturer: Northland Stainless Inc
• Model Number: 250 GAL
• Frain Number: 5G1979

Northland Stainless Steel, 1000 Liter, 250 gallon, 316 stainless steel, single wall vacuum rated mixing tank. Vessel dimensions: 34" ID; 48" straight wall. Vacuum rating: 50 psi @ 350°F and MDMT of -20°F @ 50 psi. Equipped with dome top, 16" ID bolt down man way, (3) 2-1/2" OD, (1) 2" OD, (1) 3" OD and (2) 5" sanitary top ports, CIP spray balls and (1) 2-1/2" OD side sanitary side port. Dish bottom has 2-1/2" OD sanitary discharge on 7" OD, flange with 36" floor clearance. National Board # 829

OAD: 40" Diameter; 112" High

Northland Stainless Inc Tank Reactor SS 300 GAL

• Manufacturer: Northland Stainless Inc
• Model Number: 300 GAL
• Frain Number: 5J3125

Northland Stainless, 300 Gallon capacity, 316 stainless steel, internal vacuum / pressure tank. Vessel dimensions: 46" diameter x 51" deep with a 42" straight wall. Equipped with 16"diameter bolt down cover and 2½"OD / 2"ID Tri-Clamp style discharge with 8" ground clearance. Mounted on (4) stainless steel legs with casters

Top Ports:
(2) 3½"OD / 3"ID Tri-Clamp

MAWP: FV / 50PSI @ 300°F (Vessel)
MDMT: -20°F @ FV/50 PSI

Nat’l Brd: 1609

OAD: 55"L x 48"W x 70"H

Northland Stainless Inc Tank SS Single Wall 528 GAL

• Manufacturer: Northland Stainless Inc
• Model Number: 528 GAL
• Frain Number: 5G1976

Northland Stainless Steel Inc, 2000 Liter, 528 gallon, 316 stainless steel, single wall, with full vacuum and 50 psi internal pressure mixing tank. Vessel dimensions: 48" ID x 66" straight wall. Equipped with dome top, 16" ID bolt down man way, top flange mounted prop style mixer has 9" OD flange with (8) 3/4" bolt holes on 3-1/2" centers, also (3) 2-1/2", (1) 2", (1) 3" and (2) 5" OD sanitary top ports with CIP spray balls. Full side and bottom full Internal pressure rating of: MAWP 50 psi @ 300 Deg F and MDMT of -20 Deg F @ 50 psi. Dish bottom has 2" OD staintary center bottom discharge valve with 24" floor clearance without valve 30" floor clearence and mounted on (3) stainless steel legs. UL Rated and National Board # 821

OAD: 54" Diameter x 138" High

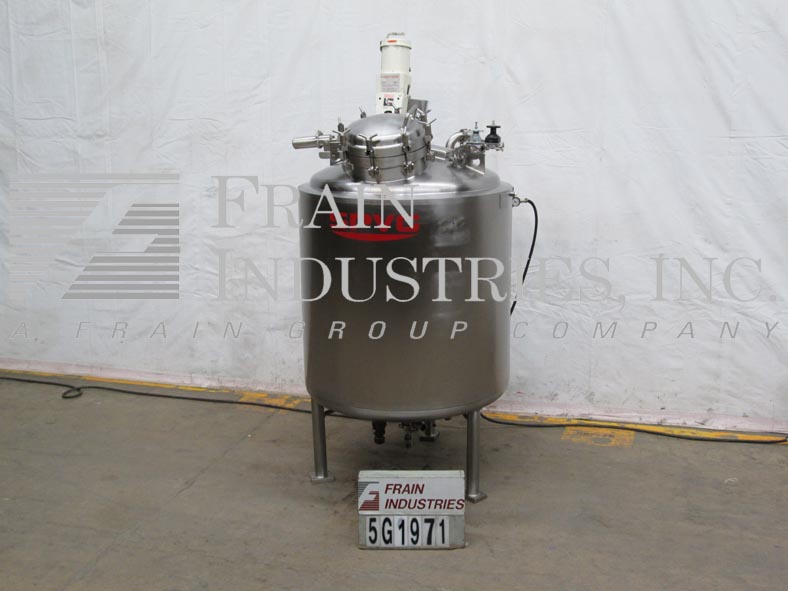

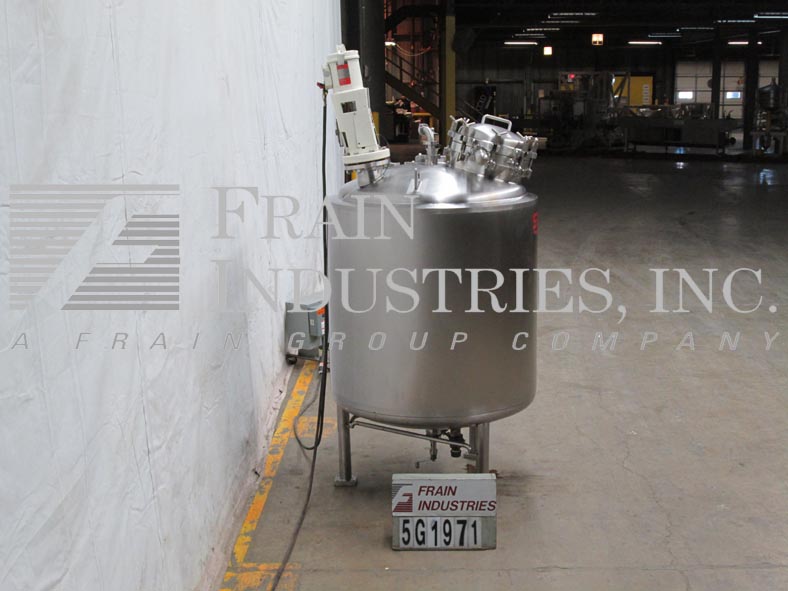

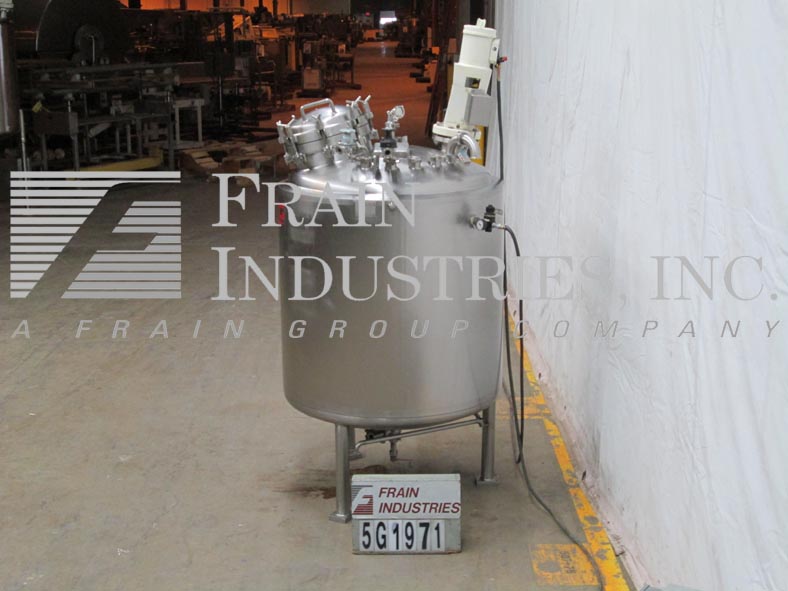

Northland Stainless Inc Tank Processors 265 GALLON

• Manufacturer: Northland Stainless Inc
• Model Number: 265 GALLON
• Frain Number: 5G1971

Northland 1,000 Liter (264 gallon), 316 stainless steel, jacketed (side & bottom), internal vacuum rated and internal pressure rated mix vessel. Equipped with dome top (various ports), 16" manway, prop style agitator, CIP spray balls and dish bottom with center bottom discharge.

OAD: 50" Diameter x 101" High

National Board # 837.

Vessel dimensions: 38" ID ; 44" straight wall.

Jacket:
MAWP 150 psi @ 365° F
MDMT -20° F @ 150 psi

Vessel:
MAWP 50 psi @ 365° F
MDMT -20° F @ 50 psi
Vessel: Full vacuum

Northland Stainless Inc Tank SS Single Wall 50 GALLON

• Manufacturer: Northland Stainless Inc
• Model Number: 50 GALLON
• Frain Number: 5F7742

Northland, 50 gallon, 316L stainless steel, mix vessel. Dimensions: 24" OD; 29" Straight Wall. Internal rating of MAWP of 50 psi @ 365 Deg F. MDMT of -20 Deg F @ 50 psi. Equipped with dome top, flip top / bolt down 12" ID manway, Lightnin prop style agitator, A/B variable speed drive, (3) 2-1/2" OD, (3) 2" OD and (1) 3" OD sanitary top port. Dish bottom with 2-1/2" OD center bottom sanitary discharge with flush mount valve at 9" floor clearance. Mounted on (4) stainless steel legs with casters.

OAD: 48" L x 36" W x 82" H
