The Frain Group can help you design a bag dumper into your packaging and processing solution. Bag Dumper equipment is used to introduce bagged materials to be dumped into a common point. Once a bag dumper has done its job, products can be added into a mixer or transport material handling system. Bag dumper systems can be manual to fully automated, depending on your specific needs. Bag dumper systems can even be used to include the large bulk sack handling ingredients into a process system. A bag dumper station is commonly integrated with receiving hoppers and dust collectors in order to help make your packaging or processing solution dust-free.

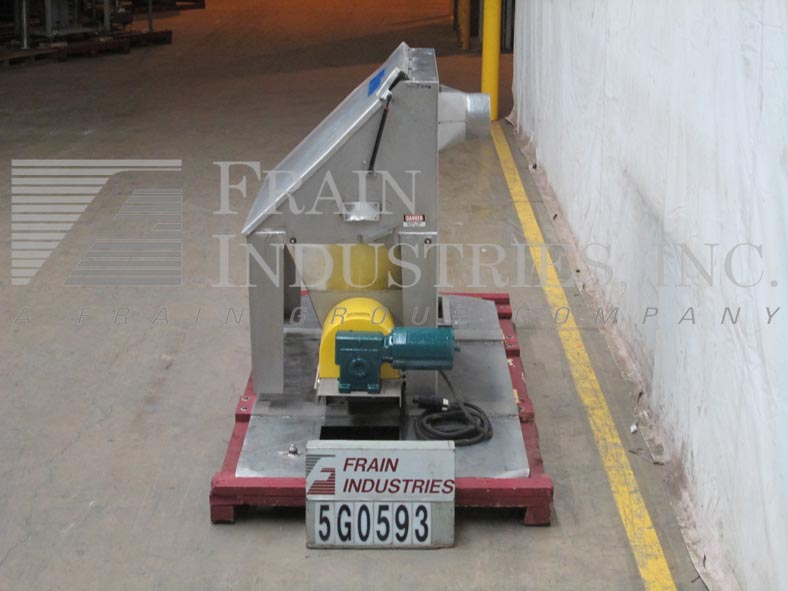

Young, stainless steel, bag dump station, with 44" L x 24" W x 22" D pyramid shaped product hopper and has stainless steel saftey grate with 3" x 3" gaps, product fed out by 44" L x 10" OD (4) paddle rotary discharge thru Reduction screen with 3/16" OD product holes approx (15) per square inch to 40" L x 16" W discharge port has 2 hp Baldor motor drive and is mounted on stainless steel base frame.
OAD: 42" L x 100" W x 58" H

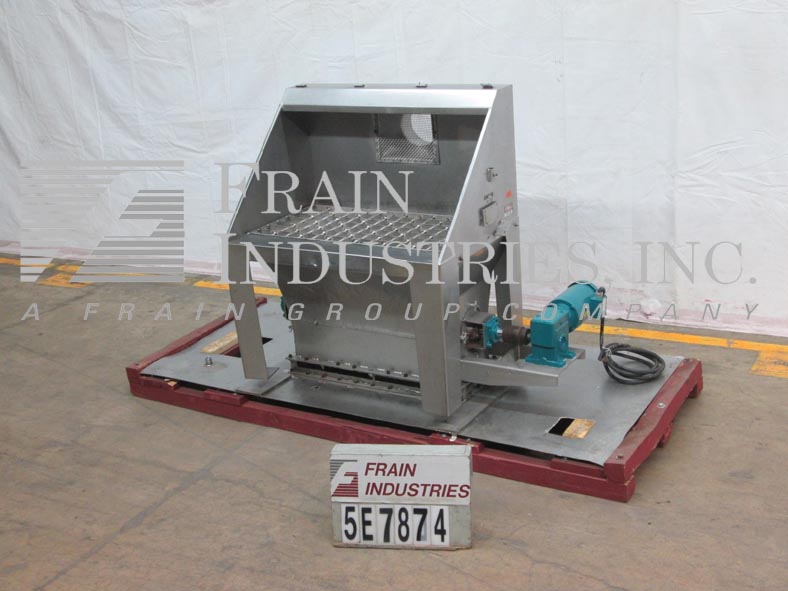

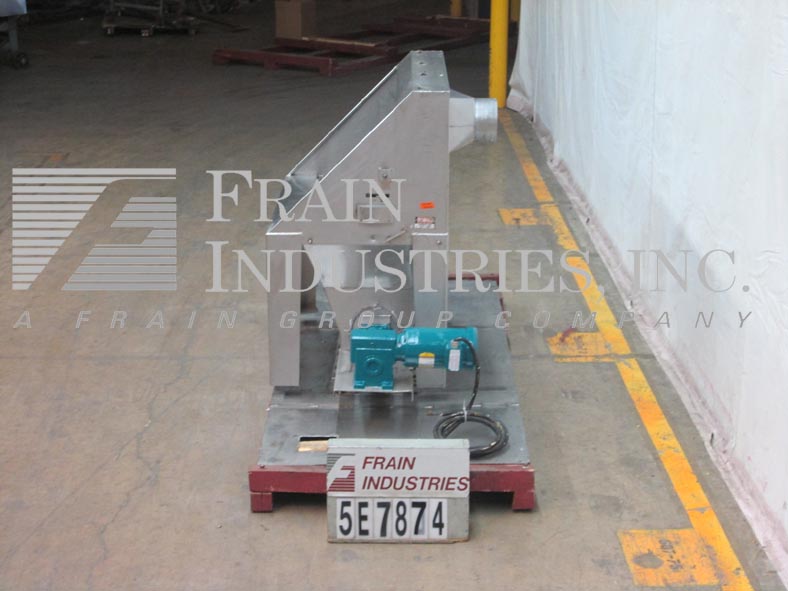

Young Stainless steel bag dump and 45" long x 24" wide x 22" deep unloading hopper. Equipped with 5 Hp 4-paddle continuous scrape agitator, 10" OD x 36" long, perforated screen with 3/16" holes. 36" long x 12" wide bottom outlet. 46" long x 36" wide front access door, with 44" wide x 21" deep stainless steel grid. Mounted on 100" long x 43-1/2" wide stainless steel base.
OAD: 100"L x 44"W x 55"H

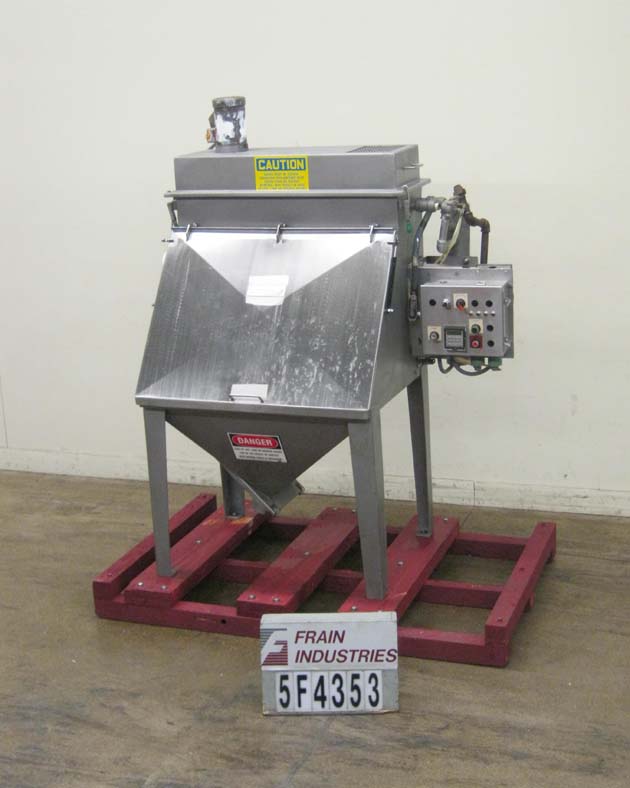

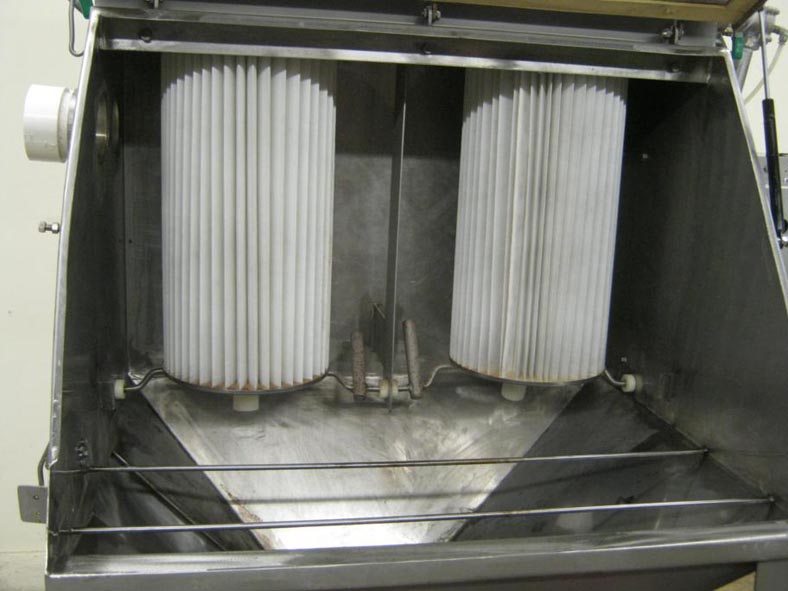

American Process, stainless steel, bag dump station with dual cartridge dust collection hood. Equipped with (2) 4.5" OD inlets, 1.5 hp top mounted blower, and flip open stainless steel front cover, dust collection system with pulse clean feature, stainless steel breaker bars, and 5" OD discharge with 10" of ground clearance. Mounted on stainless steel frame.
OAD: 64" L x 38" W x 84" H

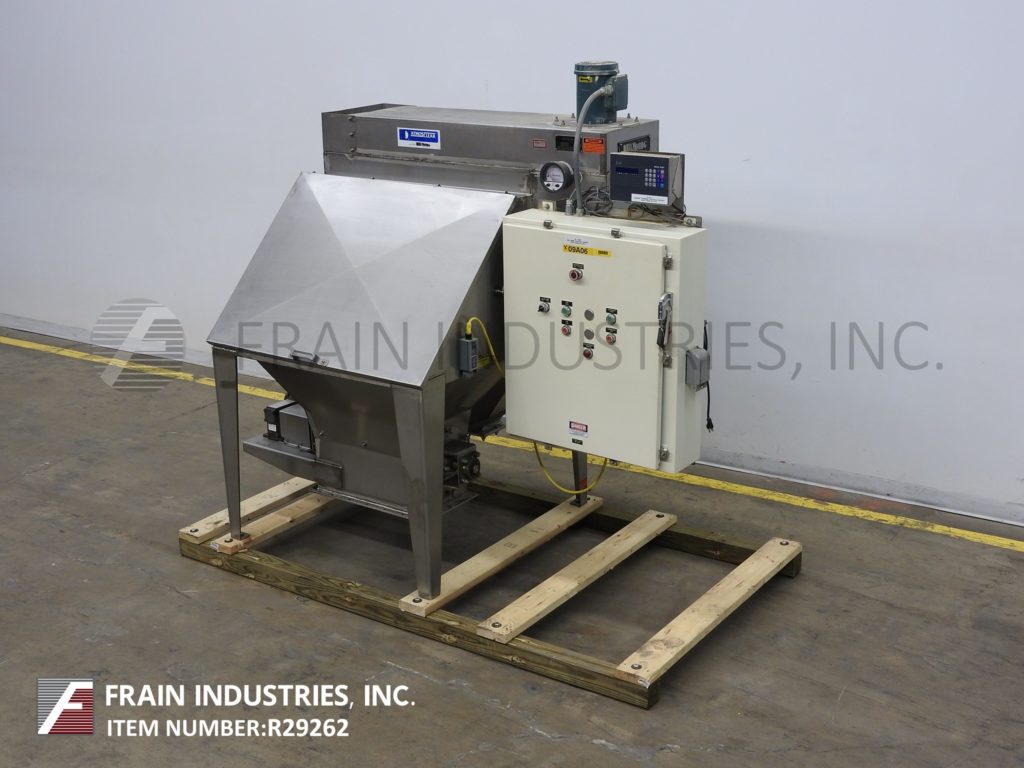

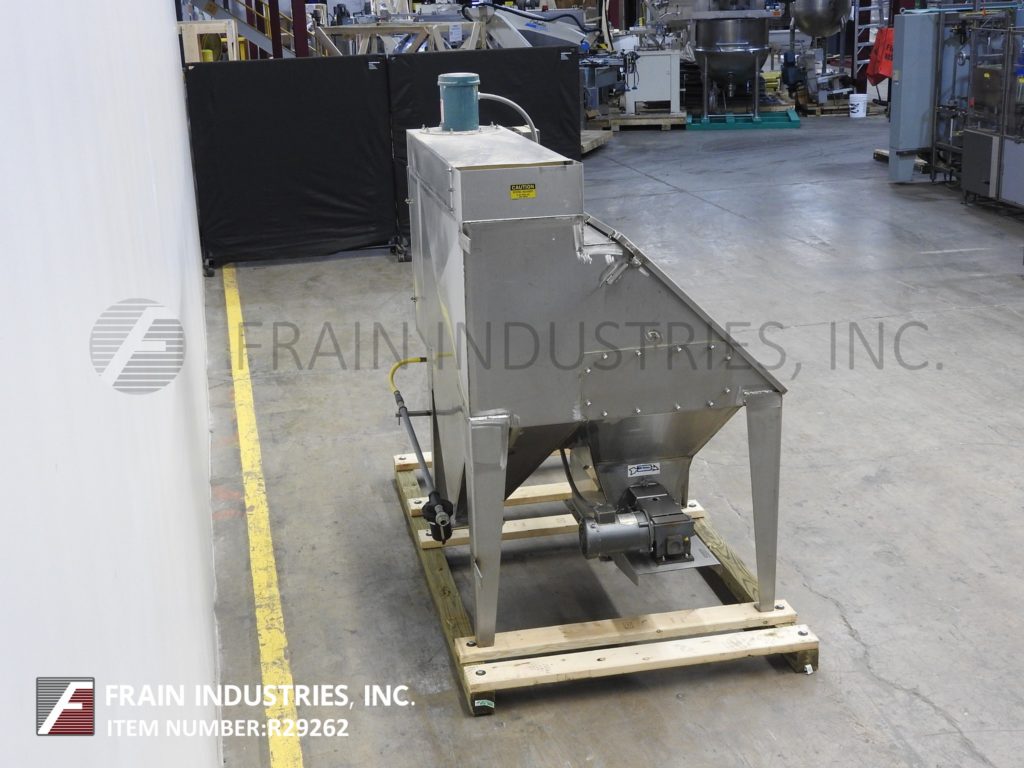

Young Industries Model MI-1010, stainless steel, self contained bag dump and dust collection system with pounds of product per hour – depending on materials and application. Equipped with 45" long x 36" wide product bag dump access port with flip-up cover x 30" deep pyramid shaped hopper with magnetic safety grid and bottom 7" OD product screw discharge with 3/4 Hp motor drive and onboard 8-bag dust collector with top mounted 1.5 Hp fan motor drive. Control panel has cycle timer, fan and delumper start / stop, discharge open / close switches, mixer start / stop and e-stop controls with Dayton photo helix guage. Mounted on (4) leg stainless steel base frame.
OAD: 100" L x 52" W x 70" H
Young Industries Model MI-1009, stainless steel, self contained bag dump, unloading and dust collection system with pounds of product per hour – depending on materials and application. Equipped with 45" long x 36" wide product bag dump access port with flip-up cover x 30" deep pyramid shaped hopper with magnetic safety grid and bottom 7" OD product screw discharge with 3/4 Hp motor drive and onboard 8-bag dust collector with top mounted 1.5 Hp fan motor drive. Control panel has cycle timer, fan and delumper start / stop, discharge open / close switches, mixer start / stop and e-stop controls with Dayton photo helix guage. Mounted on (4) leg stainless steel frame.
Vac-u-Max, Model Z65702/01, 14 ft³ bag dump station with integrated dust collection system. Volumes of product per hour – depending on materials and application. Equipped with flip open front product cover with safety grate and 1½ hp top mounted blower motor. Dust collection system with (12) bag filters and dual pulse filter cleaning feature. Cone bottom discharge with vibrator feeds to a pneumatic slide gate lock with 2½"OD / 2" ID Tri-clamp fitting for connection to in house vacuum transport system. Mounted on (4) leg base platform.
OAD: 55"L x 66"W x 89"H
Bag break station with pounds of product per hour – depending on materials and application. Equipped with 40" wide x 23" long flip open cover, (18) 6½" x 3" paddles, (1) 10" OD ribbon blender, top mounted 24" OD WAM cartridge dust collector with 3 Hp blower, 5"ID x 204" long auger feeder with 4½" OD auger with 4" centers and a discharge height of approximately 140" to 144". Mounted on (4) leg frame.

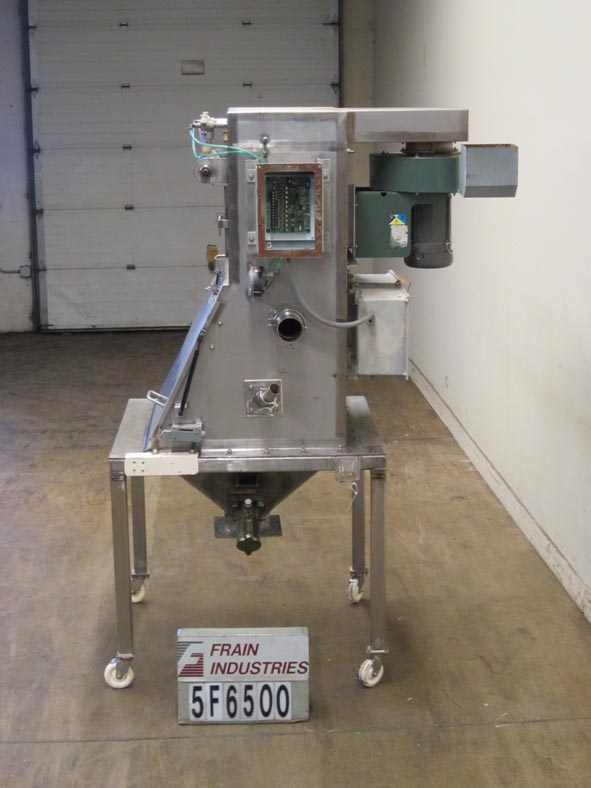

Automated Ingredients, stainless steel, bag break station with rates per hour – depending on materials and application. Equipped with 20" Wide x 40" long stainless steel flip open cover, 3.5 HP New York blower with air purge / fluidizer chamber eliminates bridging, with 4-1/2" OD sanitary and 2-1/2" OD sanitary side chamber ports. Air pressure gauge 0-100 psi and inches of water gauge to 15 psi. Cone bottom has 12" x 12" OD flanged and 5" ID center bottom discharge with 16" floor clearance and side mounted vibratory agitator. Mounted on stainless steel (4) leg base frame with casters.
OAD: 72" L x 55" W x 84" H
