Bivans Machines

Bivans Cartoner Semi Vertical Tuck 74

• Manufacturer: Bivans
• Model Number: 74
• Frain Number: R40750

Bivans, Model 74, semi-automatic, continuous motion, vartiable speed, vertical tuck cartoner. Rated from 20 to120 cpm – depending on materials, application, operator dexterity and machine configuration. Carton size range: (7/8)" – 5" in Length; ¾" – 3½" in width; 2¼" – 10" in Depth. Equipped with a 24" long magazine, vacuum pick & place, 6" centers, 44" long load area on each side, 3" wide x 36" long discharge belt conveyor and lexan guarding. Control panel with push button start / stop / jog, run / jog switch, vaccuum on / off switch and variable speed control dial. Mounted on heavy duty base frame with casters and leveling pads.

OAD: 148"L x 65"W x 87"H

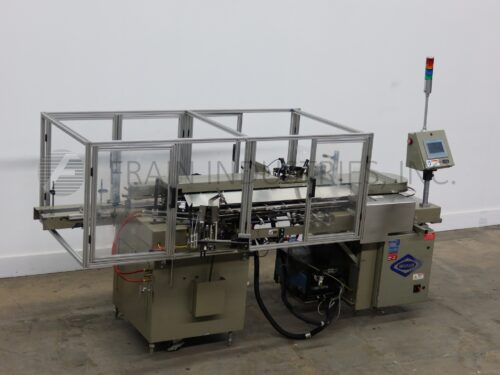

Bivans Cartoner Semi Vertical Glue VERTUCK

• Manufacturer: Bivans
• Model Number: VERTUCK
• Frain Number: 5J3430

Bivans, model Vertuck, semi-automatic, continuous motion, vertical, hot melt glue cartoner. Rated up to 120 cartons per minute – depending on materials application and operator dexterity. Equipped with (3) chains adjustable set on 6" centers, carton size: 7/8" to 5" in length x ¾" to 3½" in width x 2¼" to 10" in depth. Equipped with 24" long blank carton magazine with recipacting single arm vacuum pick and place, Nordson hot melt glue system, 24" long load area each side, 36" long x 3" wide discharge conveyor. Control panel with touch screen HMI.

OAD: 124"L x 65"W x 85"H

Bivans Cartoner Semi Horiz. Tuck (Semi) 60 Bivans Cartoner Semi Auto Horizontal Cartoner 15-60 cpm

• Manufacturer: Bivans
• Model Number: 60
• Frain Number: 5D5121

Bivans 60, Semi-automatic, intermittent motion, horizontal cartoner. Speeds 10 to 40 cartons per minute – depending on materials, application and machine configuration. Carton size range: 2" to 12" in Length; 1" to 5" in Width; 5" to 15" in Depth. Equipped with carton blnak magazine, vacuum pick & place, 4-chain drive set on 15" centers, 48" product load area and tucking mechanism.

OAD: 198" L x 42" W x 72" H

Bivans Cartoner Semi Vertical Glue 72

• Manufacturer: Bivans
• Model Number: 72
• Frain Number: 5H6370

Bivans Model 72SL, Semi automatic, vertical, continuous motion, hot melt glue cartoner rated from 20 to 120 cartons per minute – depending on materials, application and operator dexterity. Carton size range: 7/8" to 5" in Length; ¾" to 3½" in width; 2¼" to 10" in Depth. Equipped with (3) chains adjustable unit set on 6" centers. 30" long blank carton magazine with recipacting single arm vacuum cup pick and place, 48" operator load area, Nordson hot melt glue system, major and minor flap closers with 38" long x 3½" wide discharge conveyor. Control panel has start / stop buttons, on / off switches and speed dial controls. Mounted on painted steel frame with interlock safety guarding and screw style leveling legs.

Coder Available At Additional Cost

OAD: 124" L x 60" W x 64" H

Bivans Cartoner Semi Vertical Tuck 72T

• Manufacturer: Bivans
• Model Number: 72T
• Frain Number: R26190

Bivans Model 72T, semi-automatic continuous motion vertical tuck cartoner. Carton size range: 7/8" to 5" in Length; 3/4" to 3 1/2" in width; 2-1/4" to 10" in Depth. Set on 6" centers, vacuum pick and place, 30" load area each side, barrier guarding and E-stop. Speed dependent on materials, application and machine configuration.

OAD: 126" L x 60" W x 60" H

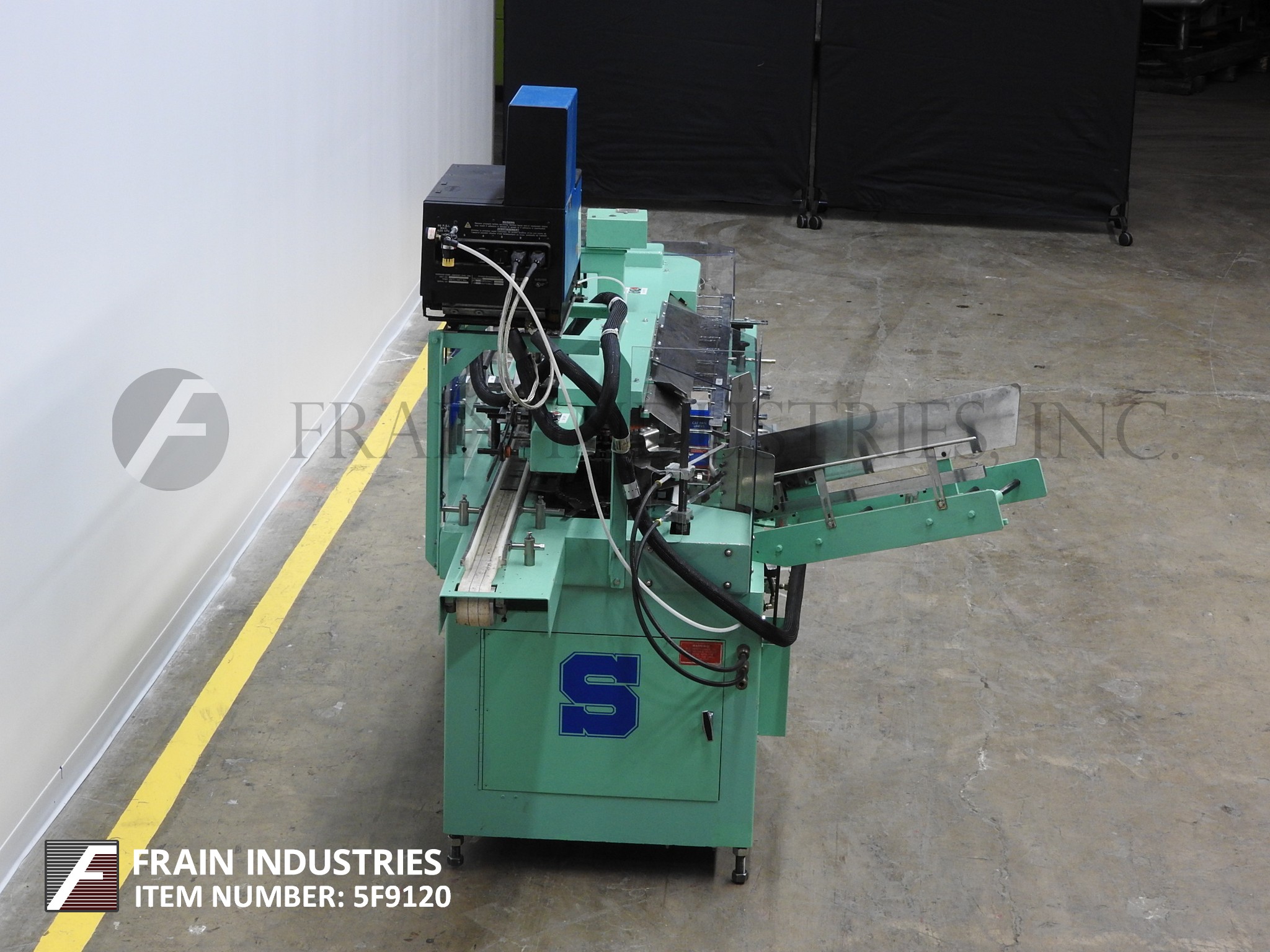

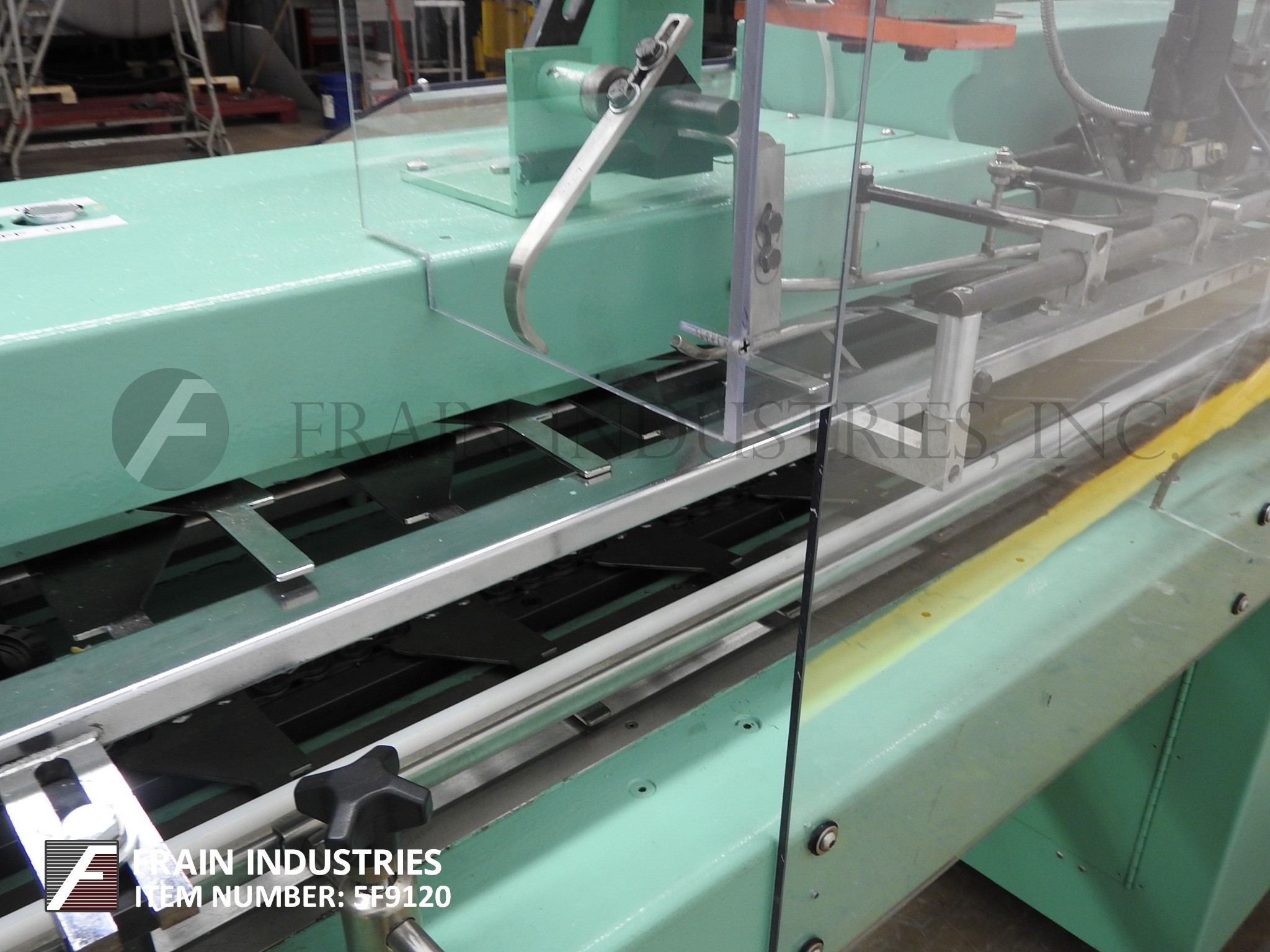

Bivans Cartoner Semi Vertical Glue 74

• Manufacturer: Bivans
• Model Number: 74
• Frain Number: 5F9120

Bivans Model 74, semi automatic, hand load hot melt glue cartoner rated from 15 to 100 cartons per minute – depending on materials and application Carton size range: 7/8" to 5" in Length; 3/4" to 3-1/2" in Width; 2-1/4" to 10" in Depth. Equipped with (3) chains adjustable currently set on 6" centers 32" long blank carton magazine with reciprocating pick n place, (2) 60" long load areas one each side, Nordson (2) gun hot melt glue system, 30" long discharge conveyor and mounted on height adjustable legs with casters.

OAD: 125" L x 57" W x 55" H
