CMI Equipment & Engineering Co Machines


CMI Equipment & Engineering Co Machines In Stock

CMI Equipment & Engineering Co Feeder Vibratory SGS

CMI Equipment, Model SG-S, stainless steel vibratory trough style de-watering and separator feed conveyor with product volumes per minute or hour – depending on materials and application. Equipped with 22" wide x 100" long conveying section with (2) 50" long removable, clamp down, dewatering / sorting screens. Conveyor has a 38" charge height. 35" discharge for overs and 30" discharge for unders. Powered by a ¾ hp drive.

OAD: 110"L x 38"W x 38"H

Get a Free Quote Call: 630-629-9900

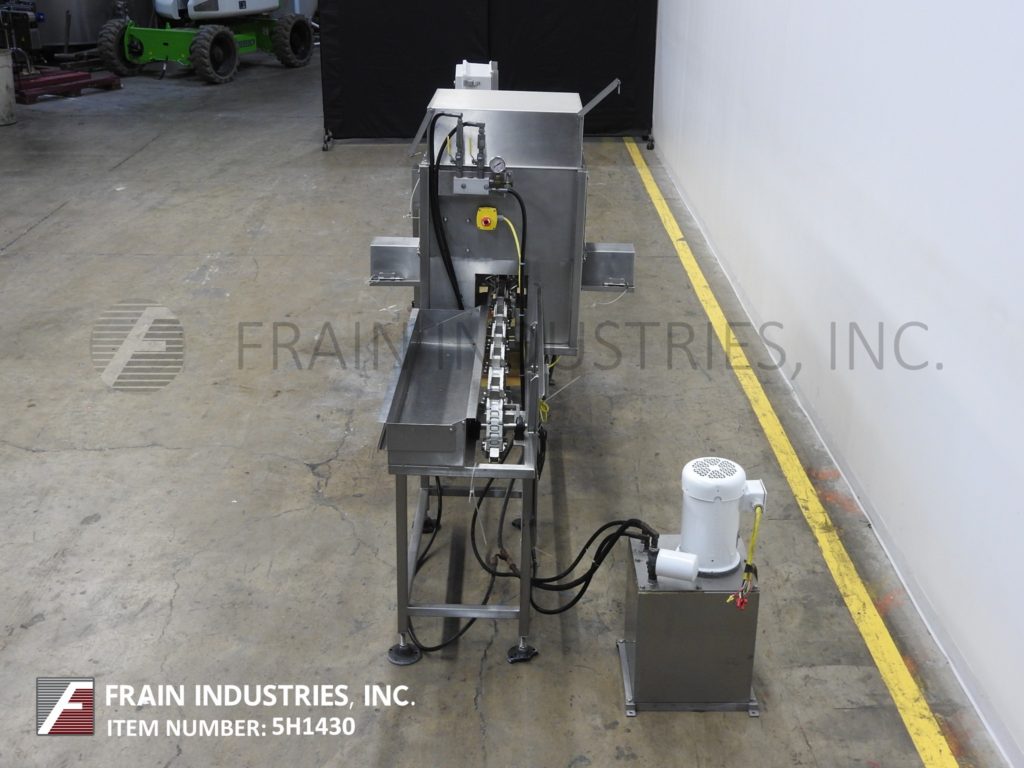

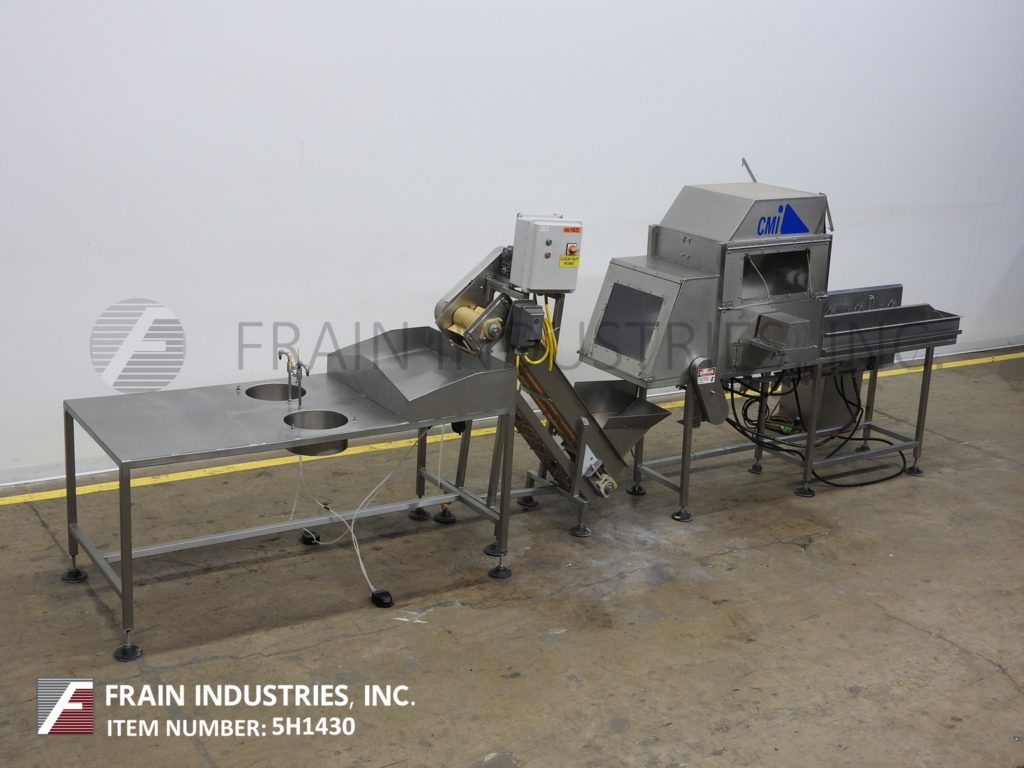

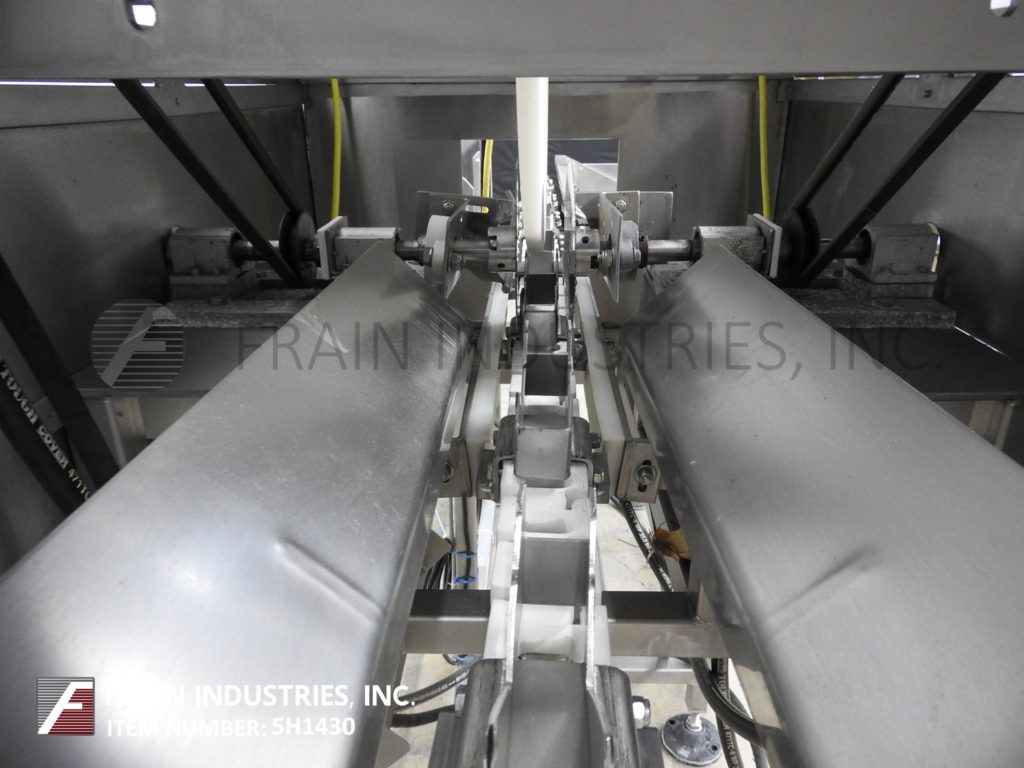

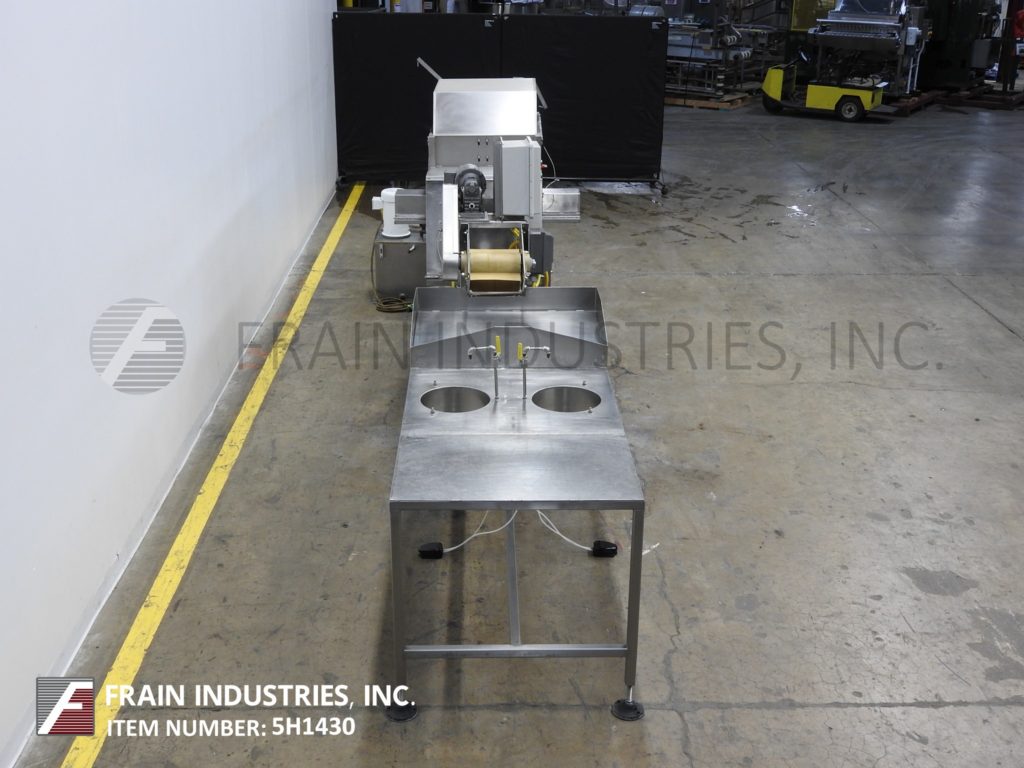

CMI Equipment & Engineering Co Cutter, Slicer Slicer CUTTER

CMI Equipment, precision trimmer for topping and tailing. Rated from 20 to 65 count per minute with capacity of over 3,000lbs per hour – depending on materials, application, machine configuration and operator dexterity. Equipped with a 48" long load area, product holders set on 10" centers, automatic adjusting blades, and top hold down wheel through cutting head powered by a 5 hp hydraulic pack. Cutter discharges into a 10" wide x 55" long cleated incline conveyor with 2" high cleats set on 8" centers powered by a ½ hp drive. Feeder discharges onto a 78" long x 36" wide stainless steel cleaning table with (2) operator stations each with a foot pedal operated air blase and 12" diameter waste port.

OAD: 100"L x 47"W x 75"H (Cutter)
60"L x 23"W x 72"H (Feeder)
78"L x 36"W x 43"H (Table)

Get a Free Quote Call: 630-629-9900

CMI Equipment & Engineering Co Cutter, Slicer Slicer MI05

CMI Equipment, Model MI05, segmentor and leaf cleaner. Equipped with a 19" wide x 91" long cleated cradle conveyor with 3" high cleats set on 6" centers powered by a ½ hp drive, (5) 12" diameter cutting blades set on 3" centers powered by a 3 hp drive and a discharge chute for trimmed ends. Segmentor discharges onto a 16" wide x 166" long cleated incline conveyor with 1¼" high cleats set on 8" centers powered by a 1 hp drive. Segmented product is droped across a perforated chute with a 2 hp blower to remove leaves and small pieces by blowing them up and into a collection chamber. Control panel with push button start / stop and variable speed controls for belt and blades.

OAD: 108"L x 43"W x 88"H (Segmentor)
170"L x 53"W x 97"H (Cleaner)

Get a Free Quote Call: 630-629-9900
