Precision Stainless Machines

Precision Stainless Tank SS JKT 300 LITERS

• Manufacturer: Precision Stainless
• Model Number: 300 LITERS
• Frain Number: 5J5167

Percision Stainless, 79 gallon capacity, 316L stainless steel, insulated and jacketed tank. Vessel dimensions: 30" diameter with a 23" straight wall. Eqipped with 9" Tri-Clamp manway, (1) thermowell, and 1½" Tri-Clamp discharge with 8¼" ground clearance. Mounted on (4) stainless steel tubular legs with castors.

Top Fittings:
(1) 5" ID flange
(1) 4" Tri-Clamp
(2) 2" glass view ports
(1) 2" Tri-Clamp
(3) 1½" Tri-Clamp
(1) 1" Tri-Clamp

Jacket Fittings:
(2) 1" NPT
(1) ½" NPT

Nat’l Brd: 4643

MAWP: 100 PSI @ 300°F (jacket)
MDMT: -20°F @ 100 PSI (Jacket)

MAWP: 45/FV PSI @ 300°F (Vessel)
MDMT: -20°F @ 45/FV PSI (Vessel)

OAD: 40" L x 35" W x 52" H

Precision Stainless Tank Reactor SS 132 GAL 500 Liter 316L S/S Full Jacket 45wp @ 350F

• Manufacturer: Precision Stainless
• Model Number: 132 GAL
• Frain Number: 5D2421

Precision Stainless, 500 Liter, 316L S/S, insulated, internal vacuum tank. Vessel dimensions: 36½" diameter x 48" deep with a 34" straight wall and 36" head dish radius. Equipped with bolt down cover, side mounted temp probe, 1" side mounted heat transfer inlet, 2"OD / 1½"ID Tri-Clamp style infeed, 3½"OD / 3"ID Tri-Clamp style CIP spray ball and 2"OD / 1½"ID Tri-Clamp style discharge with 22" ground clearance. Mounted on (4) stainless steel legs with casters.

Top Ports:
(2) 2"OD / 1½"ID Tri-Clamp
(1) 2½"OD / 2"ID Tri-Clamp
(1) 4½"OD / 4"ID Tri-Clamp

Side Ports:
(1) 1½" NPT
(1) 1½" NPT Splitting to (2) ¾"OD / ½"ID Tri-Clamp

MAWP: 45 PSI @ 350°F
MDMT: -20°F @ 45 PSI
Vac Design: 15 PSI

Nat’l Brd: 7107

OAD: 46"L x 46"W x 70"H

Precision Stainless Tank Processors 275 GAL

• Manufacturer: Precision Stainless
• Model Number: 275 GAL
• Frain Number: 5H9791

Precision Stainless, 275 gallon capacity, 316 stainless steel jacketed processing tank. Vessel dimensions: 32" diameter x 80" straight wall. Equipped with bolt down dome cover, 18" diameter bolt down manway, 1 HP bottom mounted prop agitation. Dish bottom has 2½" OD / 2" ID bottom discharge with 19" ground clearance.

Top Ports:
(2) 4½" / 4" Tri-Clamp
(3) 4" / 3½" Tri-Clamp
(1) 2½" / 2" Tri-Clamp
(6) 2" / 1½" Tri-Clamp

Jacket Ports:
(2) 5" / 1½" Flanged

Vessel:
MAWP: 40 PSI / FV @ 300°F
MDMT: -20°F @ 40 PSI / FV

Jacket:
MAWP: 90 PSI / FV @ 300°F
MDMT: -20°F @ 90 PSI / FV

Nat’l Brd: 4110

OAD: 42"L x 38"W x 120"H

Precision Stainless Tank Reactor SS 75 GAL

• Manufacturer: Precision Stainless
• Model Number: 75 GAL
• Frain Number: 5H9790

Precision Stainless, 75 gallon capacity, 316 stainless steel jacketed processing tank. Vessel dimensions: 26" diameter x 30" straight wall. Equipped with bolt down dome cover, CIP spray balls supplied by 2"OD / 1½"ID Tri-Clamp fittings, ½ HP top mounted prop agitation and thermowell. Dish bottom has 3½" OD / 3" ID bottom discharge with valve and 22" ground clearance.

Top Ports:
(1) 3½" / 3" Tri-Clamp
(2) 2½" / 2" Tri-Clamp
(6) 2" / 1½" Tri-Clamp

Jacket Ports:
(4) 1¼" NPT

Vessel:
MAWP: 100 PSI / FV @ 400°F
MDMT: -20°F @ 100 PSI / FV

Jacket:
MAWP: 150 PSI / FV @ 400°F
MDMT: -20°F @ 150 PSI / FV

Nat’l Brd: 7991

OAD: 54"L x 48"W x 99"H

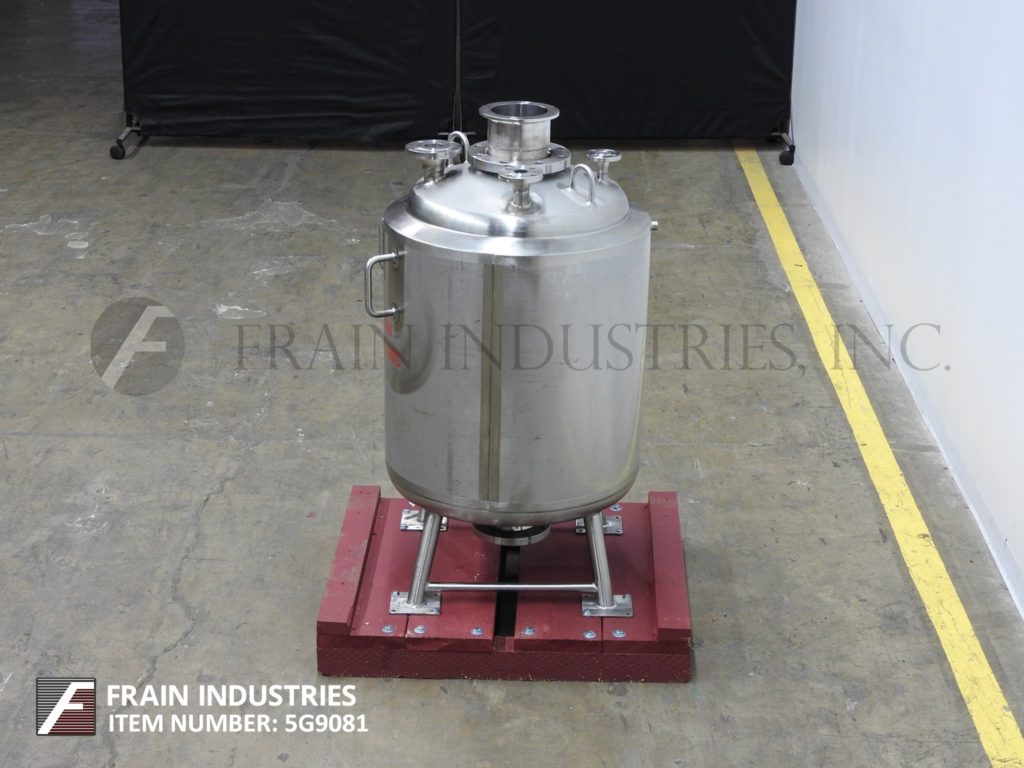

Precision Stainless Tank SS JKT 53 GAL

• Manufacturer: Precision Stainless
• Model Number: 53 GAL
• Frain Number: 5G9081

Precision Stainless, 50 gallon capacity, 316L stainless steel, jacketed, internal vacuum tank. Vessel dimensions: 24" diameter x 37" deep with dome top and dish style bottom. Equipped with a 11"OD / 6"ID flange charge port and (1) thermowell. Unit mounted on (4) tube legs with a 9" OD / 4" ID flange style bottom discharge with 4¼" ground clearance.

Top Ports:
(1) 6"OD / 2"ID Flange
(1) 4½"OD / 1¼" ID Flange
(2) 4"OD / ¾" ID Flange

Jacket Ports:
(2) ½" NPT

MAWP: 50 PSI @ 400°F
MDMT: -20°F @ 50 PSI
Vac: 15 PSI
Nat’l Brd: 4500

OAD: 34"L x 30"W x 53"H

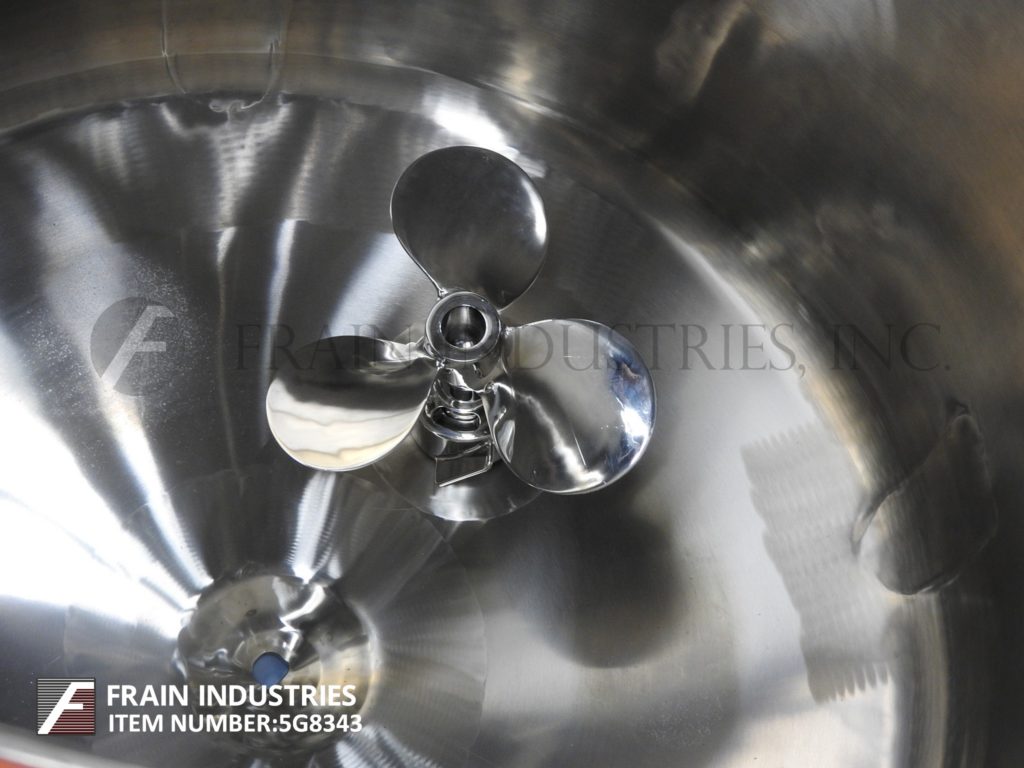

Precision Stainless Tank Reactor SS 350L

• Manufacturer: Precision Stainless
• Model Number: 350L
• Frain Number: 5G8343

Precision Stainless, 350 liter capacity, 316L stainless steel vacuum process tank. Vessel dimensions: 32" diameter x 32" straight wall. Equipped with bolt down dome top, dish bottom, bottom magnetic prop agitation powered by a ¾ hp drive and bottom center 2" OD / 1" ID Tri-clamp style discharge with 15" ground clearance. Mounted on (4) tubular legs with locking casters.

Top Ports:
(3) 4¾"OD / 3¾"ID Tri-Clamp
(1) 2½"OD / 2"ID Tri-Clamp
(3) 2"OD / 1½"ID Tri-Clamp
(1) 1"OD / (3/8)"ID Tri-Clamp

MAWP: 40 PSI @ 250°F (Vessel)
MDMT: -20°F @ 40 PSI (Vessel)
Vac: 15 PSI (Vessel)
Nat’l Brd: 6905

OAD: 40"L x 40"W x 65"H

Precision Stainless Tank Reactor SS 350L

• Manufacturer: Precision Stainless
• Model Number: 350L
• Frain Number: 5G8345

Precision Stainless, 350 liter capacity, 316L stainless steel vacuum process tank. Vessel dimensions: 32" diameter x 32" straight wall. Equipped with bolt down dome top, dish bottom, bottom magnetic prop agitation powered by a ¾ hp drive and bottom center 2" OD / 1" ID Tri-clamp style discharge with 15" ground clearance. Mounted on (4) tubular legs with locking casters.

Top Ports:
(3) 4¾"OD / 3¾"ID Tri-Clamp
(1) 2½"OD / 2"ID Tri-Clamp
(3) 2"OD / 1½"ID Tri-Clamp
(1) 1"OD / (3/8)"ID Tri-Clamp

MAWP: 40 PSI @ 250°F (Vessel)
MDMT: -20°F @ 40 PSI (Vessel)
Vac: 15 PSI (Vessel)
Nat’l Brd: 6897

OAD: 40"L x 40"W x 65"H

Precision Stainless Tank Reactor SS 350L

• Manufacturer: Precision Stainless
• Model Number: 350L
• Frain Number: 5G8346

Precision Stainless, 350 liter capacity, 316L stainless steel vacuum process tank. Vessel dimensions: 32" diameter x 32" straight wall. Equipped with bolt down dome top, dish bottom, bottom magnetic prop agitation powered by a ¾ hp drive and bottom center 2" OD / 1" ID Tri-clamp style discharge with 15" ground clearance. Mounted on (4) tubular legs with locking casters.

Top Ports:
(3) 4¾"OD / 3¾"ID Tri-Clamp
(1) 2½"OD / 2"ID Tri-Clamp
(3) 2"OD / 1½"ID Tri-Clamp
(1) 1"OD / (3/8)"ID Tri-Clamp

MAWP: 40 PSI @ 250°F (Vessel)
MDMT: -20°F @ 40 PSI (Vessel)
Vac: 15 PSI (Vessel)
Nat’l Brd: 6905

OAD: 40"L x 40"W x 65"H

Precision Stainless Tank Reactor SS 80L

• Manufacturer: Precision Stainless
• Model Number: 80L
• Frain Number: 5G8340

Precision Stainless, 80 liter capacity, 316L stainless steel jacketed and insulated vacuum process tank. Vessel dimensions: 18" diameter x 21" straight wall. Equipped with bolt down dome top, top mounted light and sight glass, 6" diameter manway with lift up lid, (1) thermo well, (1) CIP spray ball with 2"OD / ¾"ID Tri-clamp connection, dish bottom, bottom magnetic drive prop agitation and bottom center 2" OD / ¾" ID Tri-clamp style discharge with 18" ground clearance. Mounted on (3) tubular legs.

Jacket Ports:
(2) 3½"OD / ½"ID 4-bolt flange

Top Ports:
(1) 2½"OD / 2"ID Tri-clamp
(1) 2"OD / 1¼"ID Tri-clamp
(3) 2"OD / ¾"ID Tri-clamp
(1) 1"OD / (3/8)"ID Tri-clamp

Side Ports:
(1) 1"OD / (3/8)"ID Tri-clamp

MAWP: 65 PSI @ 266°F (HTS)
MDMT: -20°F @ 65 PSI (HTS)

MAWP: 50 PSI @ 266°F (Vessel)
MDMT: -20°F @ 50 PSI (Vessel)
Vac: 15 PSI (Vessel)

Nat’l Brd: 6158

OAD: 28"L x 30"W x 56"H

Precision Stainless Tank Reactor SS 200L

• Manufacturer: Precision Stainless
• Model Number: 200L
• Frain Number: 5G8341

Precision Stainless, 200 liter capacity, 316L stainless steel vacuum process tank. Vessel dimensions: 25" diameter x 30" straight wall. Equipped with bolt down dome top, dish bottom, bottom magnetic prop agitation and bottom center 2" OD / 1" ID Tri-clamp style discharge with 14" ground clearance. Mounted on (4) tubular legs with locking casters.

Top Ports:
(2) 4¾"OD / 3¾"ID Tri-Clamp
(1) 3½"OD / 3"ID Tri-Clamp
(1) 2½"OD / 2"ID Tri-Clamp
(3) 2"OD / 1½"ID Tri-Clamp
(1) 1"OD / (3/8)"ID Tri-Clamp

MAWP: 40 PSI @ 250°F (Vessel)
MDMT: -20°F @ 40 PSI (Vessel)
Vac: 15 PSI (Vessel)
Nat’l Brd: 6722

OAD: 32"L x 32"W x 58"H

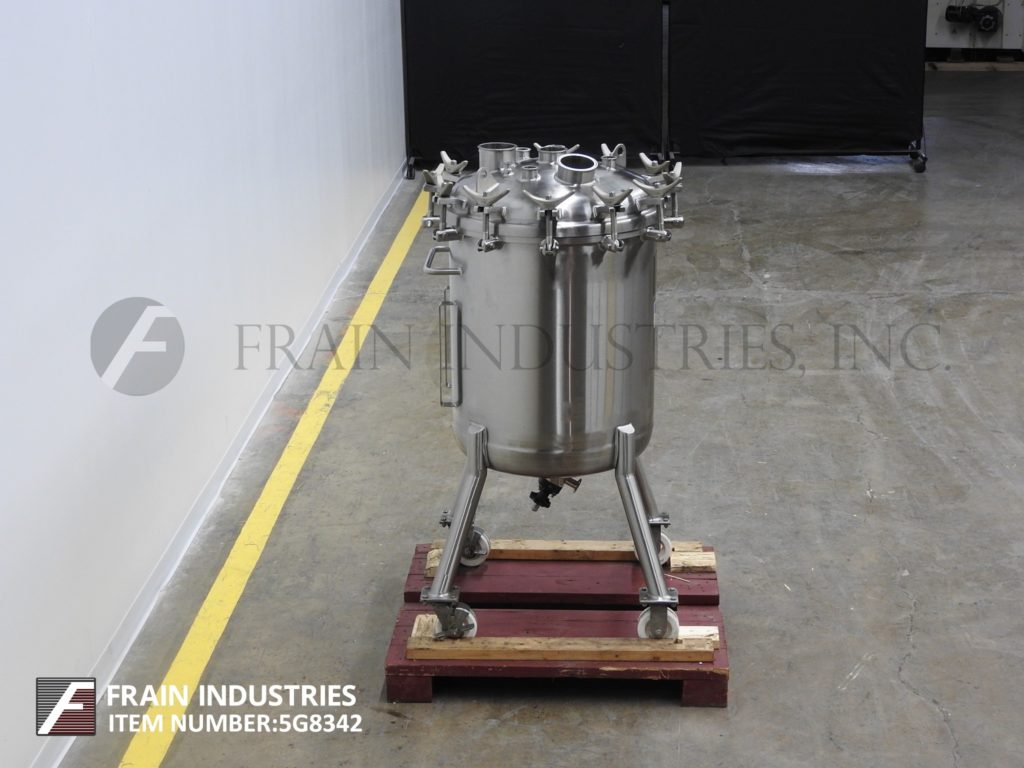

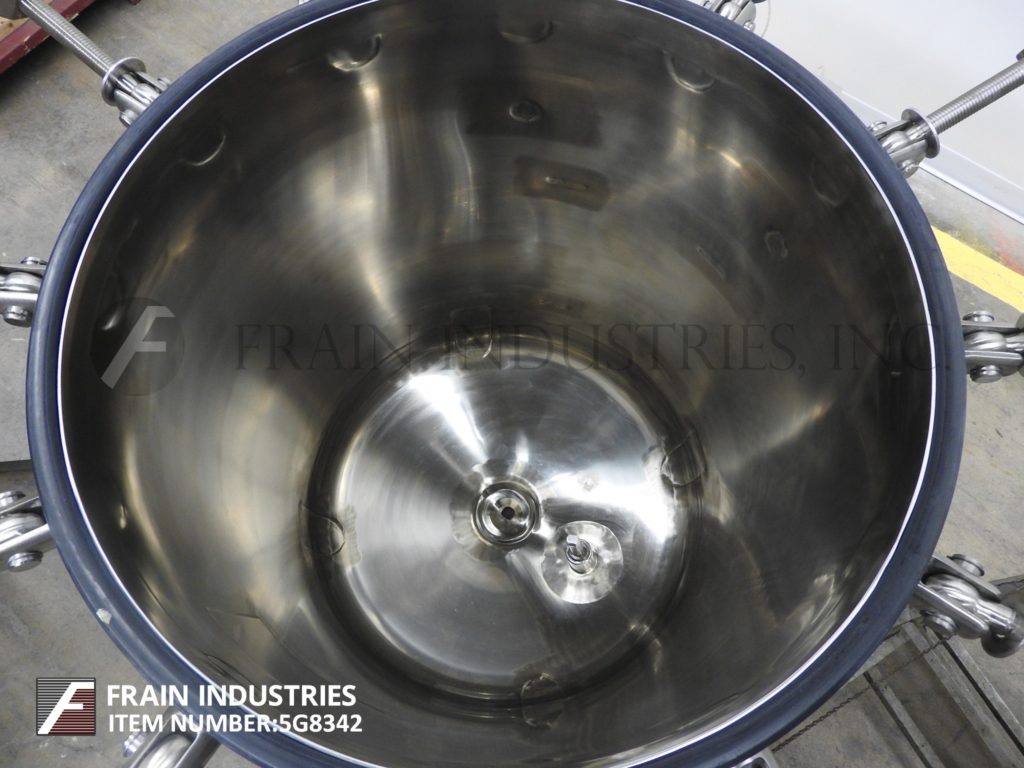

Precision Stainless Tank Reactor SS 200L

• Manufacturer: Precision Stainless
• Model Number: 200L
• Frain Number: 5G8342

Precision Stainless, 200 liter capacity, 316L stainless steel vacuum process tank. Vessel dimensions: 25" diameter x 30" straight wall. Equipped with bolt down dome top, dish bottom, bottom magnetic prop agitation and bottom center 2" OD / 1" ID Tri-clamp style discharge with 14" ground clearance. Mounted on (4) tubular legs with locking casters.

Top Ports:
(2) 4¾"OD / 3¾"ID Tri-Clamp
(1) 3½"OD / 3"ID Tri-Clamp
(1) 2½"OD / 2"ID Tri-Clamp
(3) 2"OD / 1½"ID Tri-Clamp
(1) 1"OD / (3/8)"ID Tri-Clamp

MAWP: 40 PSI @ 250°F (Vessel)
MDMT: -20°F @ 40 PSI (Vessel)
Vac: 15 PSI (Vessel)
Nat’l Brd: 6646

OAD: 32"L x 32"W x 58"H

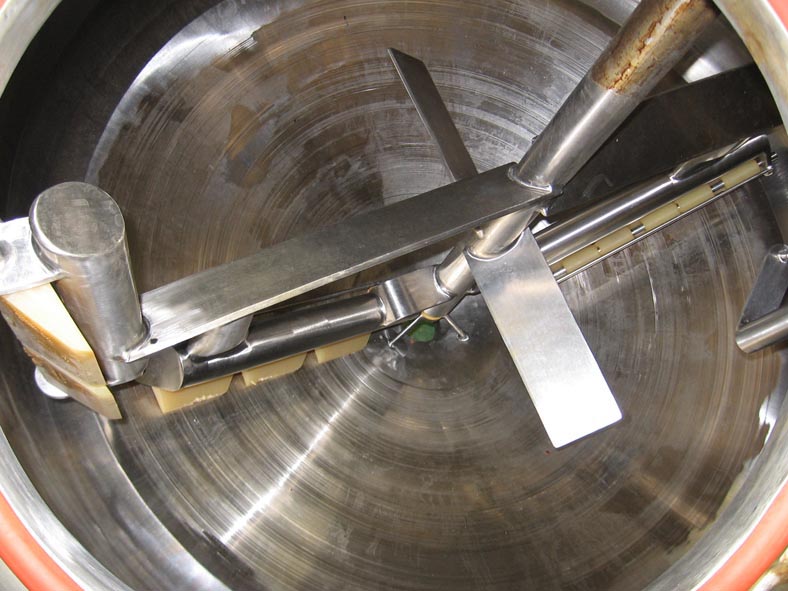

Precision Stainless Tank Processors 200 GAL 200 Gal, 304L S/S, Jkt, Scrape

• Manufacturer: Precision Stainless
• Model Number: 200 GAL
• Frain Number: R23361

Precision Stainless, 200 gallon, 304L S/S, jacketed mix tank. Vessel: 54" OD; 22" straight wall, Equipped with dome top, 18" man way with flip top, latch down cover, bridge mounted side and bottom scrape agitation. Additionally features one fixed inside baffle, two 3" and one 2 1/2" OD sanitary top ports. Full side / bottom jacketed rated MAWP of 90 psi @ 400°F and MDMT -20³F @ 90 psi. Cone bottom with 3" OD center bottom sanitary discharge at 16" floor clearance.

OAD: 50" W x 54" L x 84" H
