Bag in box machines are used in the packaging of products into a bag contained within a box or case. Bag in box packaging has been used for powder, liquids, and pastes. (Wine in a box is a bag in box package.) Machines for bag-in-box packaging are generally three types. Bag in box inserters insert a bag into a box. This bag can either be pre-former or can be created from a roll of tubular film stock by the machine. Bag in box fillers are used to fill the product into the bag. The type of product being filled into the bag in box will determine what kind of filler is necessary to fill that product. Bag in box uncuffers / sealers uncuff the top of the bag from around the top of the box or case and seal the bag. Bags can be sealed using many different methods, though tape is most used for filling powders and pastes. (see also Case Erector, Bag-in-Box)
Automatic, bag uncuffer and fan fold closure rated up to 15 cases per minute – depending on materials and application. Case size range: 9-1/2" to 28" in Length; 7-3/4" to 17" in Width; 5-1/4" to 18" in Depth; 10" to 24" in Open Depth. Equipped with a 18" wide x 96" long conveyor, uncuffing shoes, rising uncuffing carriage, major flap openers, bag folding station, A/B PLC, and Lexan safety guarding. Mounted on height adjustable legs.
OAD: 96" L x 66" W x 88" H

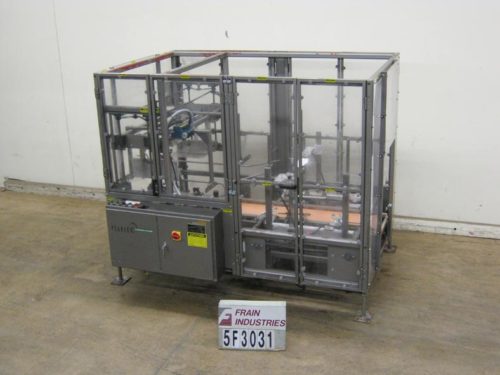

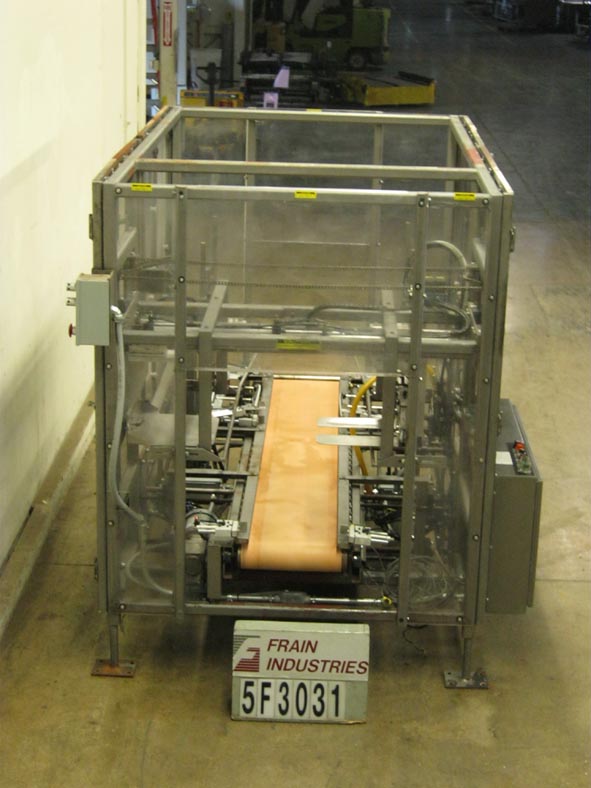

Bemis 157938, automatic, bag in box uncuffer, taper rated up to 12 cases per minute – depending on materials and application. Box size range: 7" to 18" in Length x 7" to 16" in Width x 7" to 17" in Height. Equipped with positive mechanical uncuffing 4 corner box contact, positive bag top control, box monitoring photoeyes, 30" H infeed, 92" L x 10" W box conveyor belt. Has A/B SLC 5/02 CPU, barrier guarding, status light bar, E-stop, hand crank height and width adjustable and thumbs screws for lenght adjustment. Uncuffs filled polyethlene bag from a corrugated case, gathers the bag top and applies tape around the neck of the bag.
OAD: 97"L x 50"W x 88"H

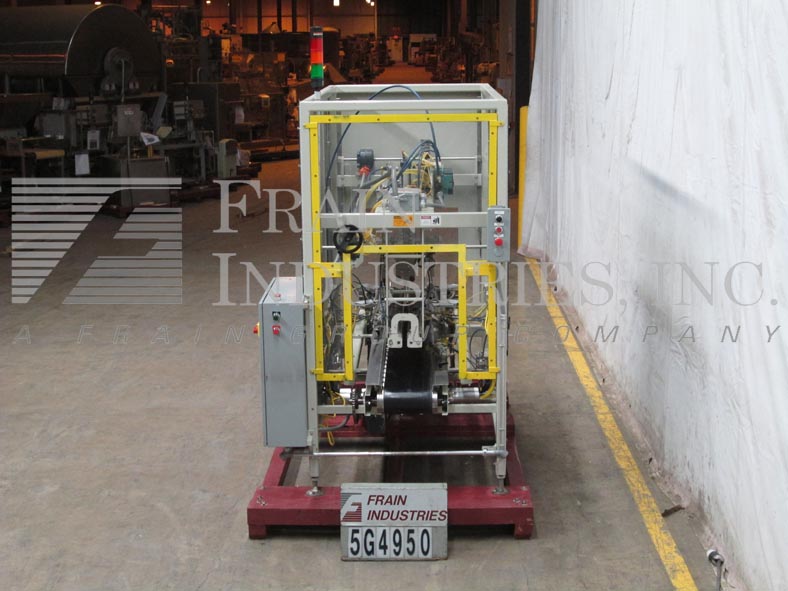

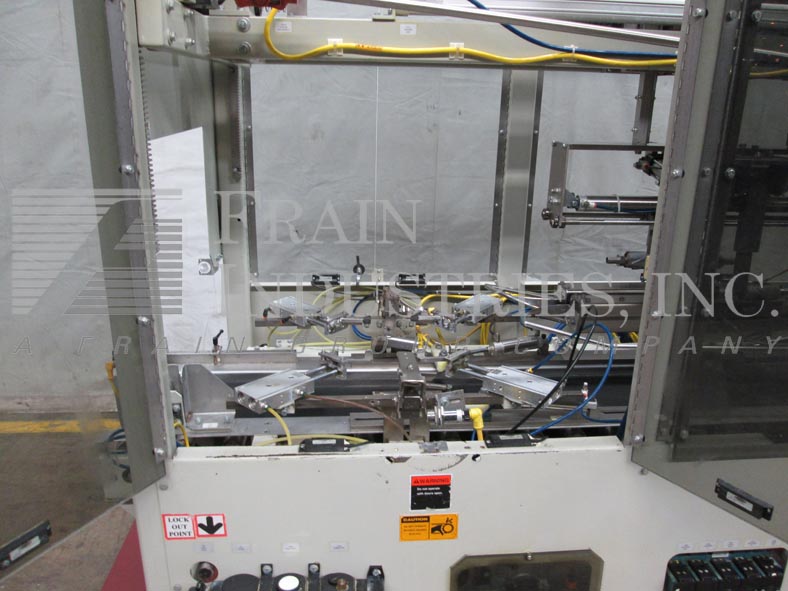

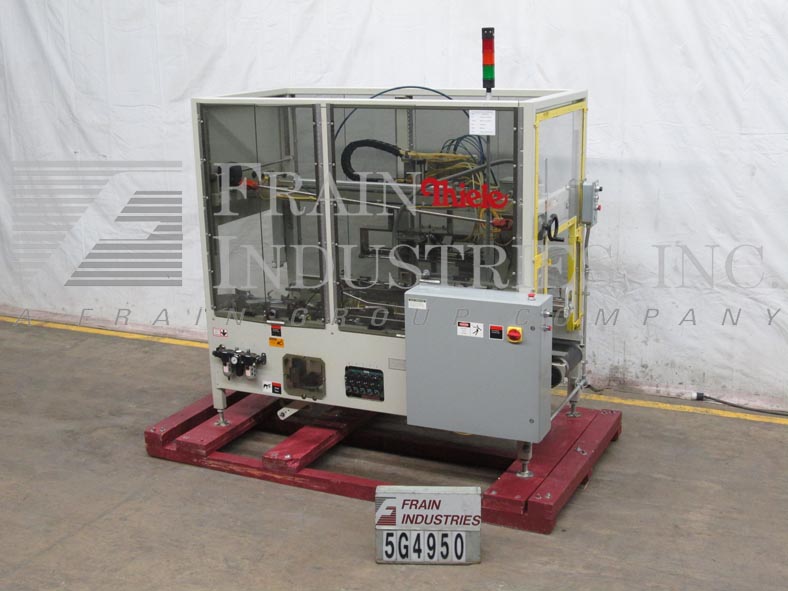

Thiele Model 1579C, automatic, bag uncuffer, tape sealer rated from 1 to 12 cases per minute – depending on materials and application. Box size range: 7" to 22" in Length; 9-1/2" to 15-1/2" in Width; up to 16" in Height. Equipped with positive top bag control and case monitoring with photoeyes, mechanical 4 corner case contact and uncuffing fingers, 96" long x 10" wide case belt conveyor hand crank height and width adjustable, forming head that comes down gathers, gussets and clamps the bag, then stops at the tape station, forming head releases bag and returns to uncuffing section, bag is then gathered between 2 sets of accumulating fingers case is released and goes thru 2" tape applicator. Control panel with A/B controller, e-stop, safety guarding and statis light bar. Mounted on 4 leg base frame.
OAD: 96" L x 50" W x 80" H
Scholle Model AF-21-S, semi-automatic, single head, uncapper, bag filler, capper with number of bags per minute – depending on materials, application and operator dexterity. Single operator machine has fill range from 1gallon to 6 gallon bags. Equipped with single uncapping, filling and capping head with 1" OD / 1/2" ID filling nozzle, and 22" long x 19-1/2" wide roller bag platform, has 1" OD rollers set on 1-1/2" centers with 3/4" gaps, with cap sensor, pump and CIP system. Control panel has A/B PLC controller with A/B Panel view and machine on, off, run switches with e-stop and flow / cycle on, off switches with stop button. Mounted on base frame with leveling legs.
OAD: 38" L x 27" W x 70" H
Alfa Laval Model Star-Asept, automatic, stainless steel, vertical aseptic bag in box filler rated up to 100 gallons per minute – depending on materials and application. Bag fill range: up to 370 gallons. Equipped with aseptic filling head with 2" OD tri-clamp product line, bag cap spout system, load cell weigh system. Control panel has touch pad controller with LED read outs for prefill, main fill, and product temperature. Mounted on heavy duty frame.
OAD: 80" L x 80" W x 116" H
