Home ยป Bemis

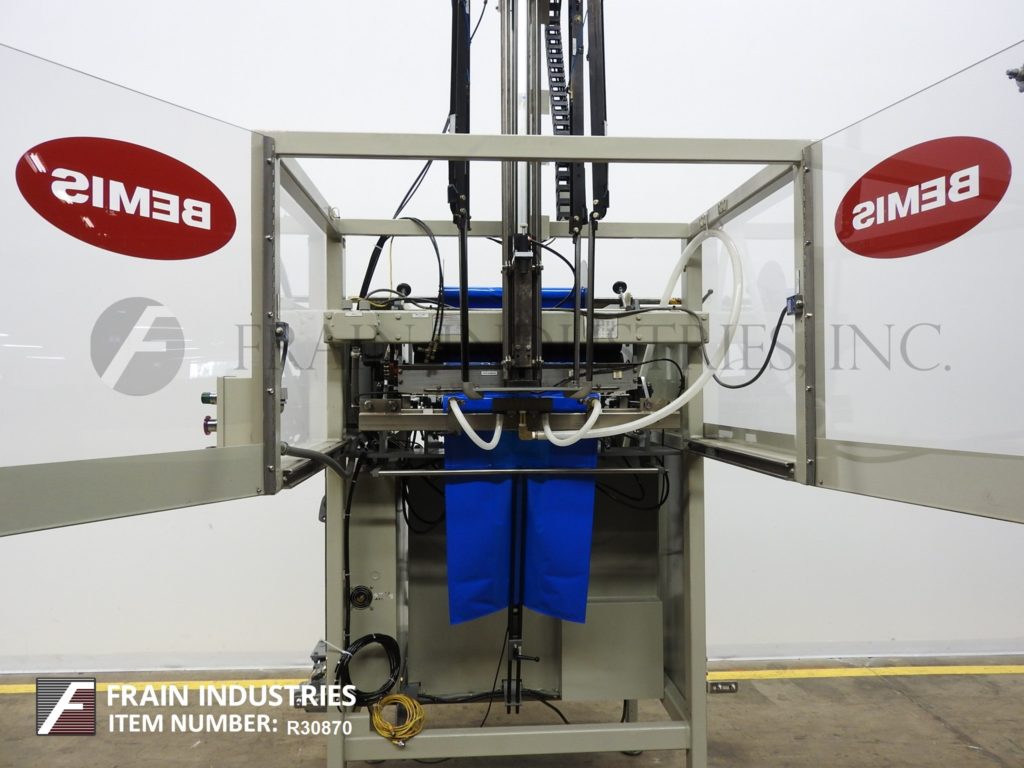

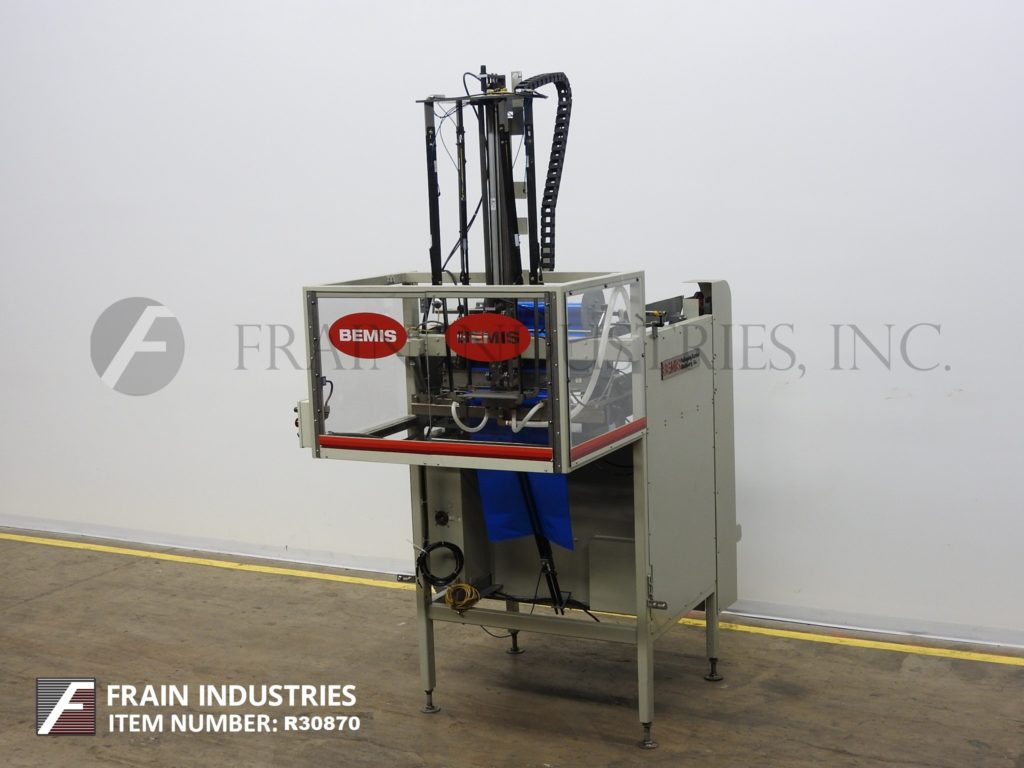

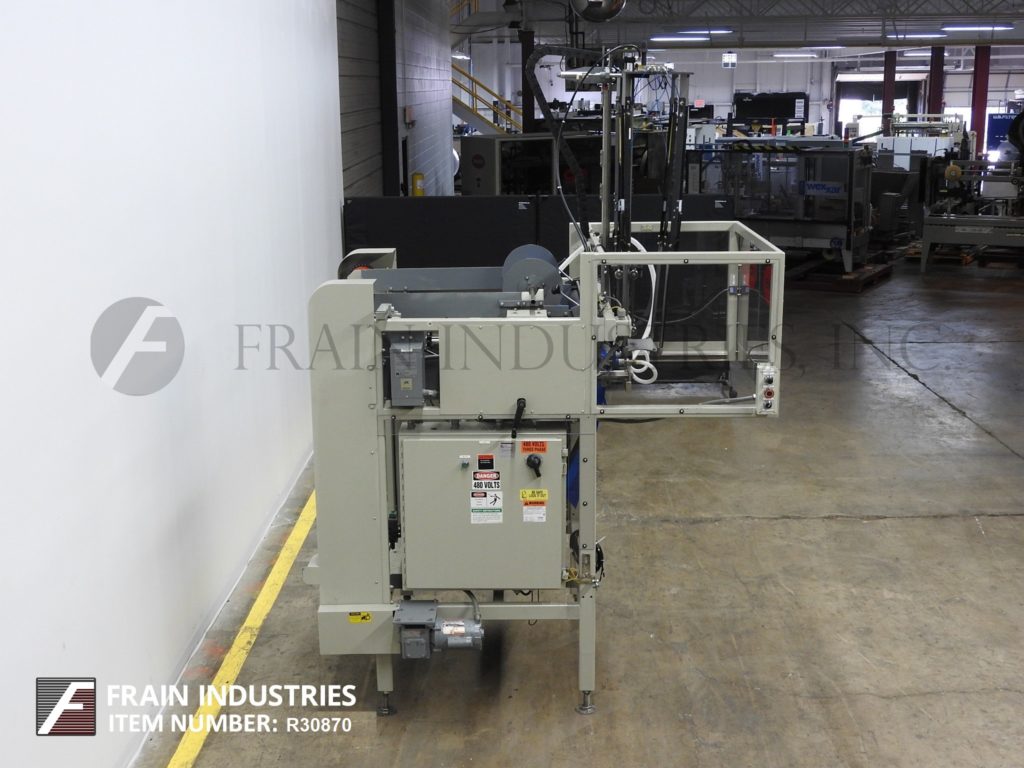

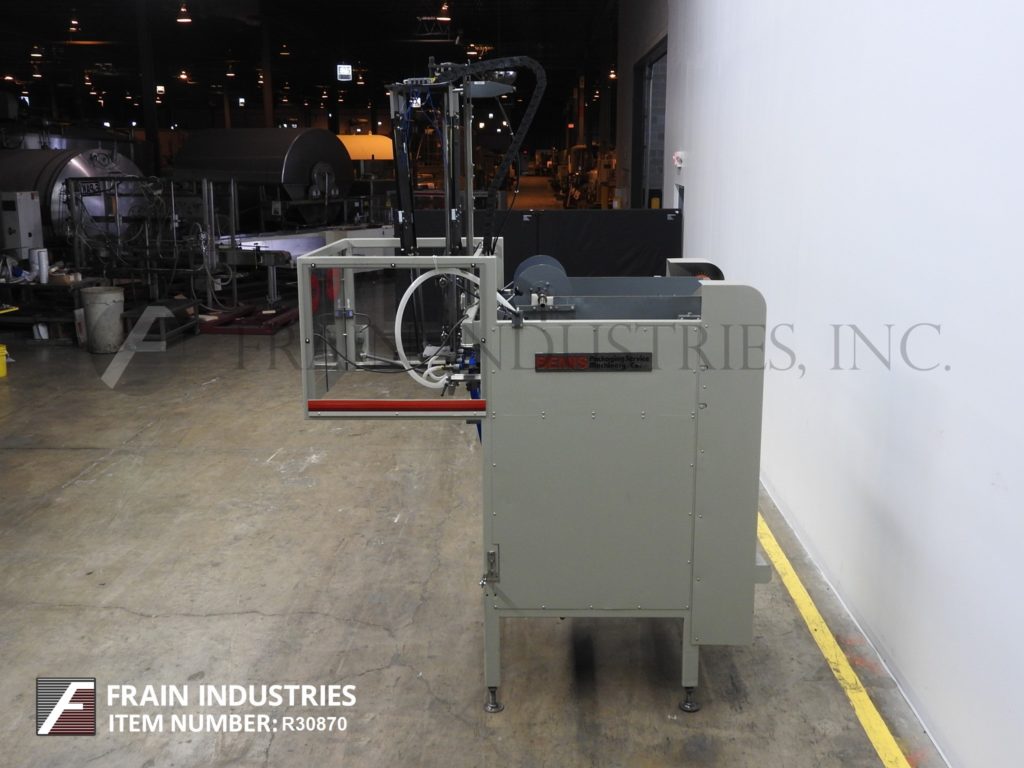

Bemis Model 1575H, automatic bag inserter capable of speeds from 5 to12 cpm – speeds depending on material and application. Case size range: 8" to 20" in Length x 4" to 16" in Width x 10" to 22" in depth with bag gauge of 1-1/2 to 3 mil low density, 10-3/4" max roll diameter, 27-1/2" max roll width. Length of bag cuff overlay-depth and width is 5" to 7". Unit equipped with an Allen Bradley plc controller. Automatically selects a gusseted or flat tube polyethylene bag from a roll of perforated stock and inserts the bag into an erected corrugated container. Roll stock support accommodates two rolls of poly bags and quick roll change.
OAD: 82" L x 56" W x 82" H
Automatic bag inserter rated from 5 to 12 cases per minute – depending on materials and application. Case size range: 8" to 20" in Length; 4" to 16" in Width; 10" to 22" in Depth. Length of bag cuff overlay/depth, and width is (+ 5" depth) x (+ 7" width). Equipped with case indexing system and AB Micrologix 1000 PLC. Unit is designed to receive an erected and bottom sealed case, insert a bag from a roll of performed stock into case and cuff the top over container flaps.
OAD: 86" L x 56" W x 90" H
Bemis automatic, bag in box uncuffer, taper rated from 1 to 10 cases per minute – depending on materials and application. Box size range: 7" to 18" in Length x 7" to 16" in Width x 7" to 17" in Height. Equipped with positive mechanical uncuffing (4) corner box contact, positive bag top control, box monitoring photo eyes, 30" High infeed, with 92" Long x 10" Wide box conveyor belt. A/B PLC, barrier guarding, status light bar, E-stop, Uncuffs filled polyethylene bag from a corrugated case, gathers the bag top and applies tape around the neck of the bag.
OAD: 97"L x 50"W x 88"H
Bemis Model 102344, Automatic, top flap case closer and hot melt glue sealer with number of cases per minute – depending on materials and application Case size range: 6" to 24" in Length; 5" to 18" in Width: 4-1/2" to 20" in Height. Equipped top flap closers and plows, 70" roller conveyor with case side belts and Nordson hot melt glue system. Mounted on (4) leg frame.
OAD: 120" L x 56" W x 58" H
Bemis Model 1575, automatic, poly bag inserter rated from 5 to 15 bags per minute – depending on materials and application. Case size range: 8" to 20" in Length; 4" to 16" in Width; 10" to 22" in Height (with top flap in vertical position). Bag size relative to case: length, width, depth +5" to +7". Equipped with vacuum pick and place, bag opener, single ram bag inserter and cuffer with self contained vacuum pump. Bag roll specifications: up to 14" in Diameter; up to 27-1/2" in Width; with 1-1/2" OD core. Control panel has A/B CPU controller with machine and bag feed on / off switches, start / e-stop push button controls. Mounted on height adjustable base frame with Lexan safety guarding.
OAD: 82" L x 54" W x 103" H
