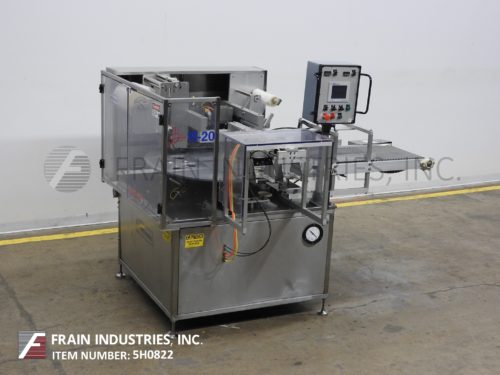

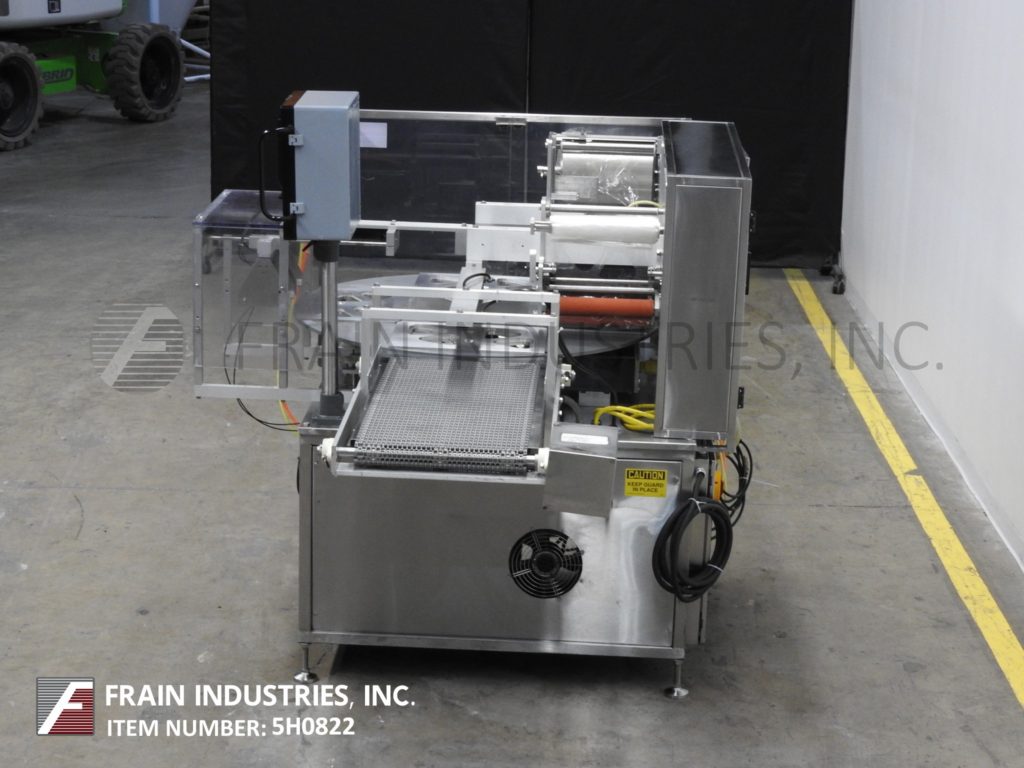

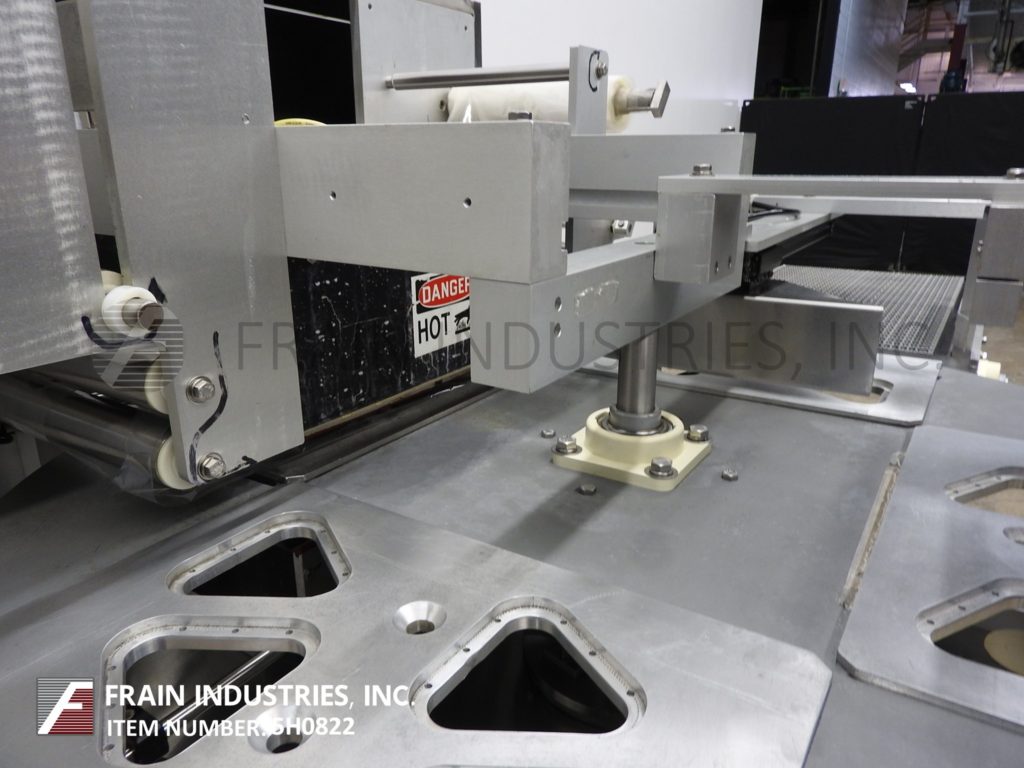

Orics, Model R-20, MAP, 4 station, rotary tray sealer. Equipped with 48" OD product turntable with an air operated, gripper tray in feed, (4) stations, with 10" long x 10" wide seal head, vacuum chamber assembly with gas flush, adjustable seal temperature and pressure with a 5 Hp vacuum pump, 12" film web width, auto film rewind and air operated ram discharge to 36" long x 18" wide plastic flexlink discharge conveyor. Control panel with a GE Panuc controller, Orics OI-1060 PLC touch pad display, push botton stop/start, conveyor and turntable speed controls, jog/run switch, and e-stop. Plexy glass guarding with interlock shut-off. Mounted on stainless steel base frame. Tooling require per applacation. Speeds dependant on materials, application and machine configuration.
OAD: 93" L x 60" W x 71" H

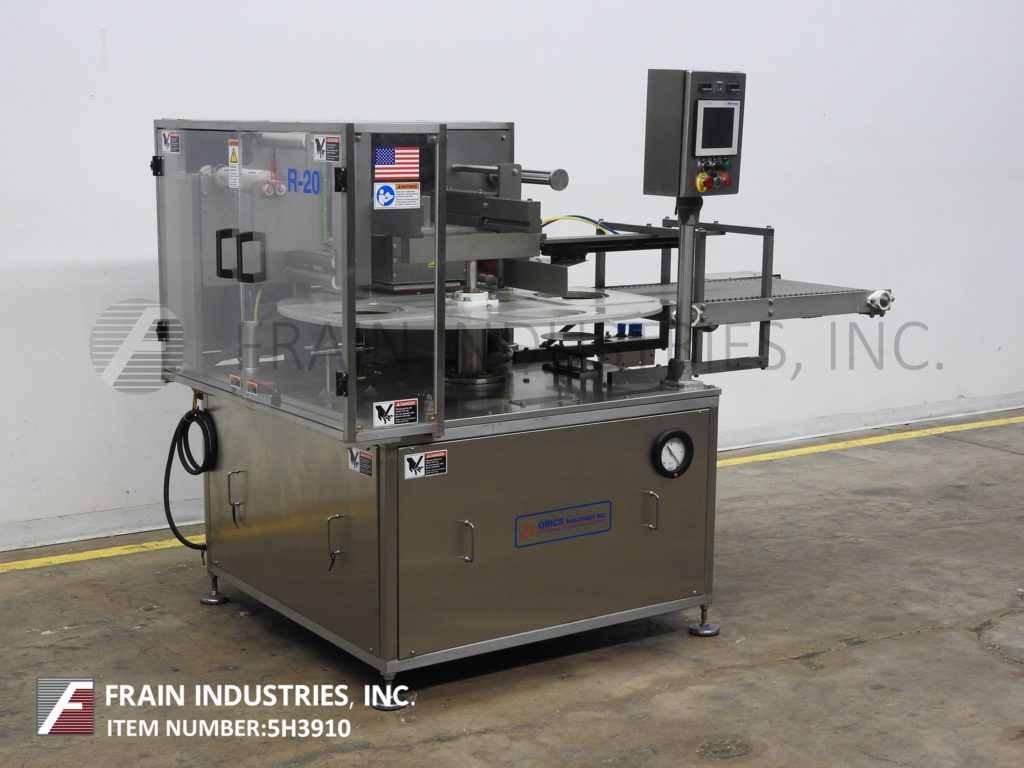

Orics, Model R-20, MAP, 4 station, rotary tray sealer. Rated from 10 to 13 cycles per minute – with number of product – depending on materials, application and machine configuration. Equipped with a 48" diameter product turntable with an air operated, gripper tray infeed, (4) stations, with 18" long x 12" wide seal head, vacuum chamber assembly with gas flush, adjustable seal temperature and pressure with a Busch 5 hp vacuum pump, 12" film web width, auto film rewind and air operated ram discharge to 36" long x 18" wide plastic flexlink discharge conveyor. Control panel with a GE Panuc controller, Orics OI-1060 PLC touch pad display, push botton stop/start, conveyor and turntable speed controls, jog/run switch, and e-stop. Plexy glass guarding with interlock shut-off.
OAD: 94"L x 70"W x 71"H

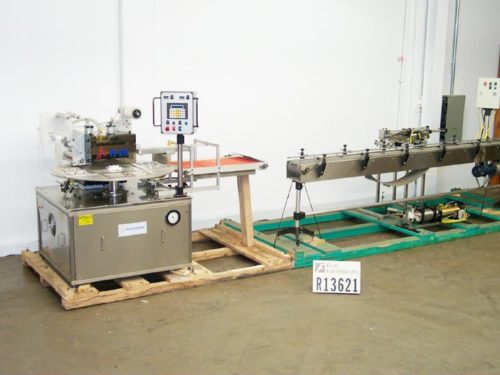

Orics integrated tray sealing system, capable of speeds to 13 cycles @ minute with a maximum platten size of 11 1/2" x 18 1/2". Consists of R-20 MAP rotary heat seal machine has both vacuum and gas flush options. Sealing film web width of 12.5", 18" x 11" chamber, tooling. Equipped with Orics SLC-IDX-1200 intermittent motion conveyor, 12′ Long x 10" Wide, with integrated controls for Orics operated fill system.
