Single Door Machines

Finn Aqua Sterilizer Single Door 61212BGMPABS5

• Manufacturer: Finn Aqua
• Model Number: 61212BGMPABS5
• Frain Number: 5D4483

Finn Aqua, 316 S/S dimpled designed gravity style steam sterilizer with a chamber size of 24" x 48" x 48". Max chamber working pressure and jacket pressure is 45 psig. Features several programmable cycles including pre-cycle, pre conditioning, and exposure. Also features several cooling cycles including vacuum drying, pulse drying, slow exhaust and fast exhaust. Allen Bradley SLC 5/04 CPU with an AB panel view 1000 display and it’s own vacuum pump.

OAD: (L) 82" x (W) 80" x (H) 90"

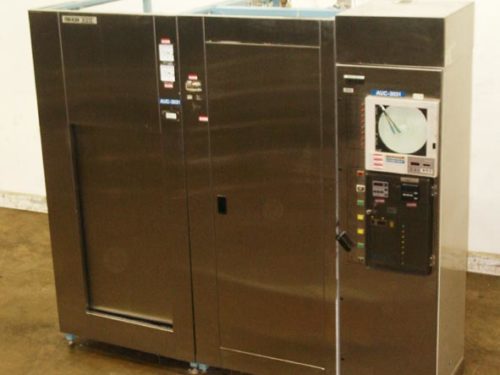

Finn Aqua Sterilizer Single Door 61212

• Manufacturer: Finn Aqua
• Model Number: 61212
• Frain Number: 5D4482

Finn Aqua, 316 S/S dimpled designed gravity style steam sterilizer with a chamber size of 24" x 48" x 48". Max chamber working pressure and jacket pressure is 45 psig. Features several programmable cycles including pre-cycle, pre conditioning, and exposure. Also features several cooling cycles including vacuum drying, pulse drying, slow exhaust and fast exhaust. Includes a Finn Aqua Autolog 36 CPU controller.

OAD: (L) 52" x (W) 102" x (H) 90"

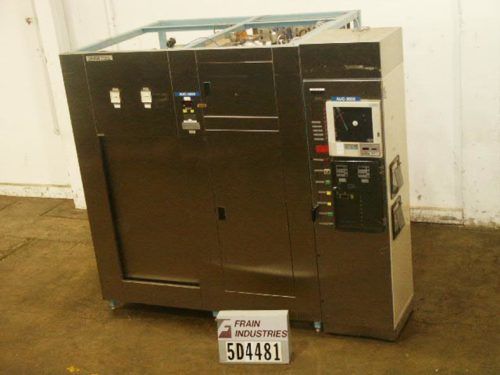

Finn Aqua Sterilizer Single Door 71212

• Manufacturer: Finn Aqua
• Model Number: 71212
• Frain Number: 5D4481

Finn Aqua 71212, 316 S/S dimpled designed gravity style steam sterilizer with a chamber size of 24" x 48" x 48". Max chamber working pressure and jacket pressure is 36.3 psi @ 282 degrees F. Features several programmable cycles including pre-cycle, pre conditioning, and exposure. Also features several cooling cycles including vacuum drying, pulse drying, slow exhaust and fast exhaust. Includes a Finn Aqua Autolog 36 CPU controller. National Board #1884.

OAD: 82" L x 68" W x 90" H

Amsco Sterilizer Single Door 2145

• Manufacturer: Amsco
• Model Number: 2145
• Frain Number: 5C4863

Amsco, Single door gravity steam sterilizer. Chamber measures 20 X 20 X 36. Jacket is rated for maximum working pressure of 40 Psi at 300 Deg F. Chamber is rated for maximum working pressure of 40 Psi at 300 Deg F. Unit has temperature range from 150 To 280 Deg F. Chamber is manufactured from nickle clad.
NB #21634
OAD = 49"W (Unit 29" + Controls 20") X 48"D X 73"H.

Getinge Sterilizer Single Door BIOFOE STR-05

• Manufacturer: Getinge
• Model Number: BIOFOE STR-05
• Frain Number: 5E6470

Getinge BIOFOE, Single door, S/S, self contained, electric steam, vacuum sterilizer, with 15.5 cu ft or (450L) of sterilization area. 316L S/S internal chamber, with ID of: 26-1/2" L x 26-1/2" H x 39" D can accommodate up to (4) shelves, currently has (2) 24-3/4" W x 35-1/4" L slide in shelves with 5" clearance and vertical, power sliding chamber door. Chamber and outer jacket (304 S/S) has a MWAP of 45 psi @ 300 deg f, and MDMTof 68 deg f @ -12psi, air: 3scfm @ 80-100psi, water: 8 gpm use at 40-60 psig. Cabinet style sterilizer capable of doing liquid, hard, and wrapped goods, microprocessor with touch pad controls LED display, chamber, / jacket pressure gauges 0-60psi, data printer, sterilization / drying timers, chamber, jacket , and load temp controls, parameter setting, and media probe on / off switches, vacuum system has all S/S cabinet with self contained electrical steam generator.

OAD: 48" L x 48" W x 78" H

Getinge Sterilizer Single Door 49930-0101

• Manufacturer: Getinge
• Model Number: 49930-0101
• Frain Number: 5D0205

Getinge, Stainless steel single door steam sterilizer. Chamber dimensions: 26" Long x 16" Wide x 16" High. Chamber rated at 45psi @ 300 Deg F, 60 psi internal steam, and 5 gpm water use. With a chart recorder, both sterilization/drying timers, and vertical powered sliding chamber door.

OAD: 39" L x 30" W x 64" H
