Automatic continuous motion horizontal cartoner rated from 50 to 400 cpm – speeds depending on materials and application. Carton size range: 20 to 75mm in Length; 16 to 70mm in Width; 65 to 200mm in Depth. Equipped with 6′ adjustable bucket infeed, 4" centers, Nordson hot melt with stitch controller and internal vacuum pump.
OAD: 236" (L) x 82" (W) x 80" (H)
Doboy Model 201, 2-up, horizontal, continuous motion flow wrapper rated from 50 to 250 packages per minute – depending on materials, application and machine configuration. Stainless steel contact parts. Product size range: 1-1/2" to 22.2" in Length; 1/2" to 9.8" in Width; up to 3.5" in Height with proper change parts. Equipped with 10′ lugged product infeed, horizontal hot seal jaws and fin seal wheels, film registration, 24" long discharge chute with safety guarding. Web specifications: up to 26" in width; up to 16" in diameter; 3" core diameter. Dual film spindles with splicing table for ease of film roll change. Control panel has touchpad controls with LCD display operator interface. Mounted on height adjustable legs with casters and leveling legs.
OAD: 273" L x 60" W x 72" H
Bosch, Model 7520, Automatic, dual head, hot melt glue tray former. Rated from 30 to 70 cycles per minute – depending on materials, application and machine configuration. Carton size range: Flat blank 5" to 45.6" in Width and 5" to 35" in Length. Formed carton: 3" to 17" in Width, 4" to 20" in Length and 1" to 6" in depth. Equipped with (2) 22" long blank tray magazines, dual head formers and Nordson hot melt glue system. Control panel has AB controller and touch screen HMI.
OAD: 110" L x 68" W x 88" H
Bosch, Model Elematic, Automatic, inline, servo driven, wrap around case packer. Rated from 10 to 24 cases per minute with number of product – depending on materials, application and pack pattern. Blank case size range: 5.5" to 35.4" in Length x 10.2" to 47.2 " in Width. Case size range: 7.9" to 23.6" in Length x 3.1" to 15.7" in Width x 3.1" to 11.8" in Height. Capable of packing cartons, bottles, cans, jars, jugs and more with proper change parts. Equipped with 4" wide x 187" long product infeed conveying section, smart belt product indexing with (4) w" wide x 11" long conveyors, 4" wide x 76" long transfer conveyor section into product buckets, 90° transfer arm, down stacker, robotic pic clamp transfer arm thru former, 50" long powered blank magazine and Nordson hot melt glue system.
OAD: 519"L x 86"W x 110"H

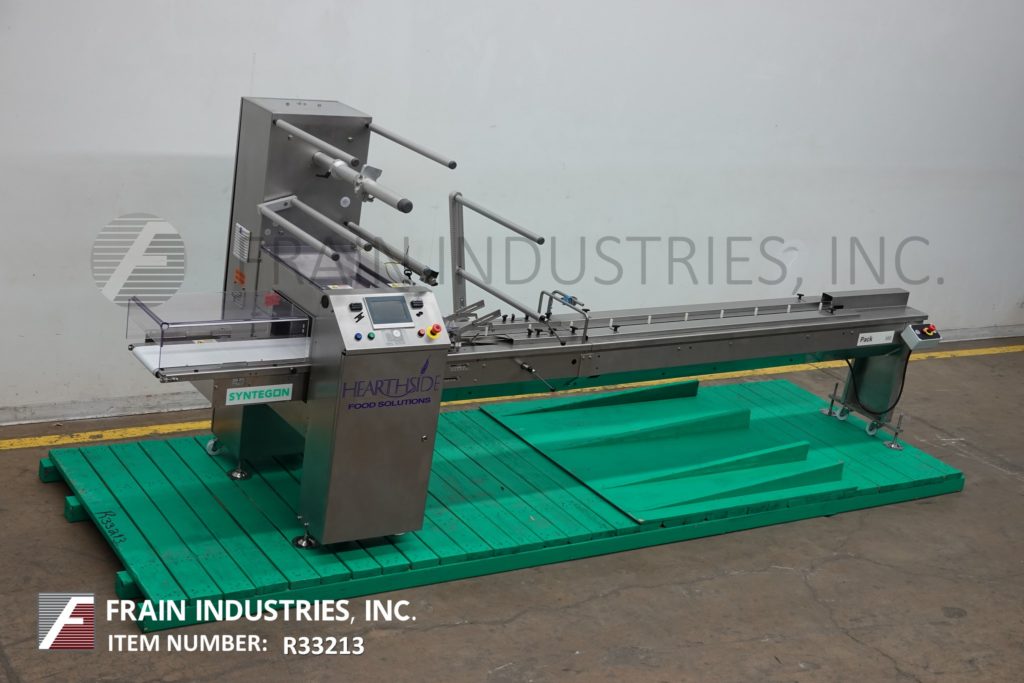

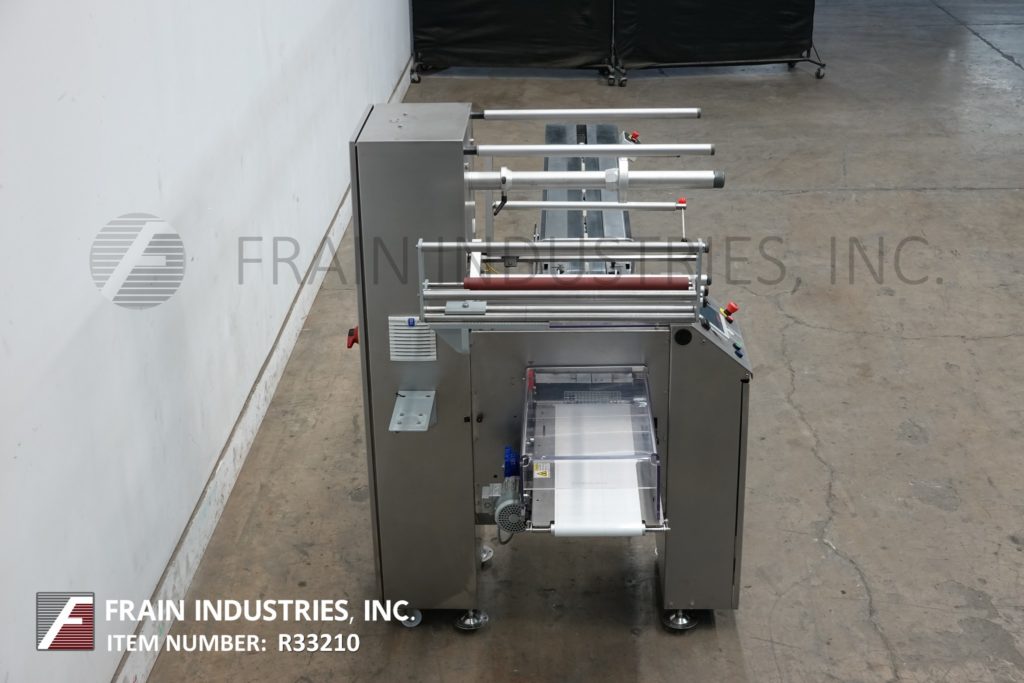

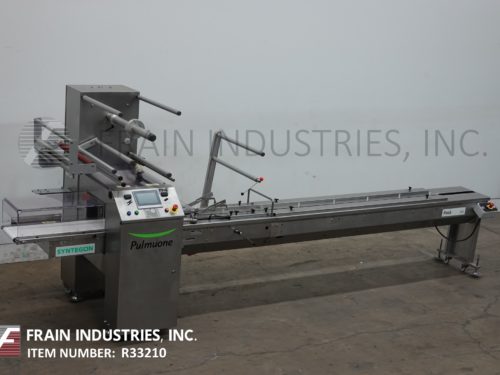

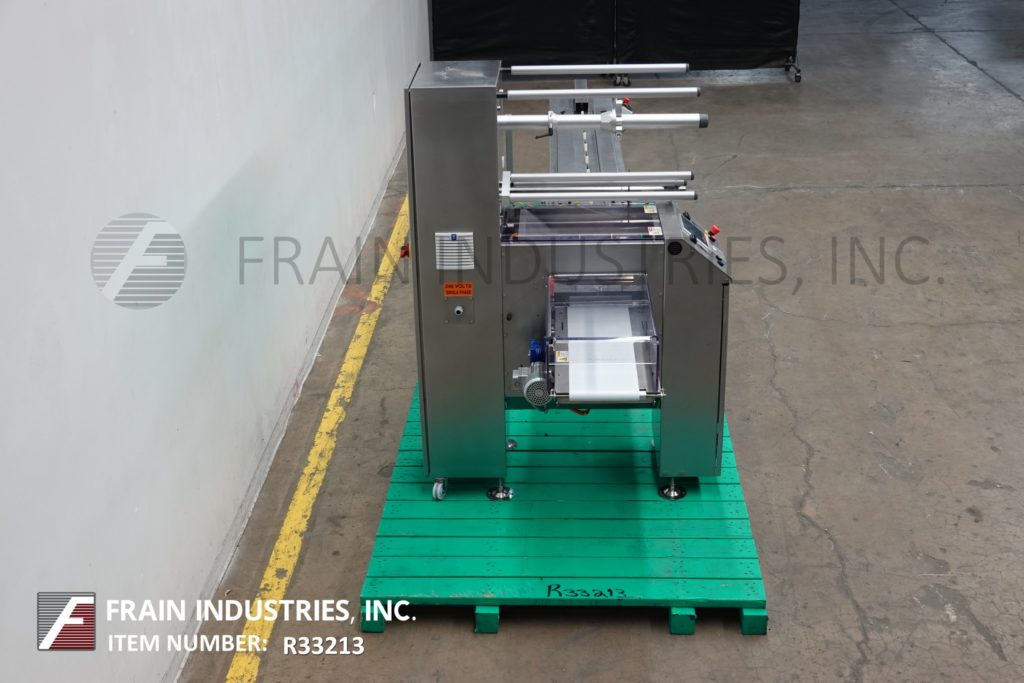

Bosch, Model PACK 102, 2-up, stainless steel, horizontal wrapper rated from 50 to 150 packages per minute – depending on materials, application and machine configuration. Product size range: 3" to 9" in Length; 1/2" to 9-3/4" in Width; up to 3-3/4" in Height. Equipped with 60" long lugged in feed conveyor, pop out lugs, adjustable former, 2-up 10-1/2" wide by 3/4" thick serrated knife seal jaws, (2) sets of fin seal wheels (1- heated / 1- cold), film registration and safety guarding. Web specifications up to 26" in width; up to 15.7" in diameter; 3" core. Mounted on stainless steel frame with casters and height adjustable leveling legs. Optional coder available at additional cost.OAD: 140" L x 52" W x 70" H

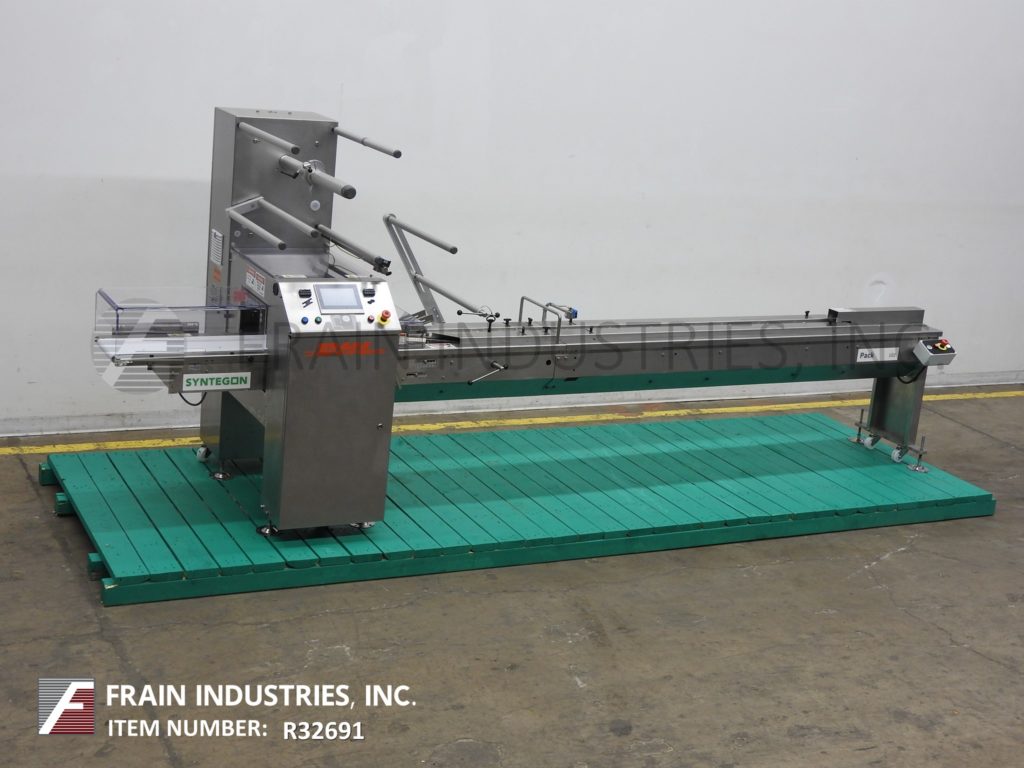

Bosch PACK 102, 2-up, stainless steel, horizontal wrapper. Product size range, one-up configuration: 4" to 18.5" in Length; 0.5" to 8.5" in Width; up to 3-3/4" in Height. Product size range, two-up configuration: 3" to 9.25" in length; 0.5" to 8.5" in Width; up to 3-3/4" in Height. Equipped with 72" lugged in feed, pop out lugs, adjustable former, 2-up 10-1/2" wide by 3/4" thick seal jaws, (2) sets of fin seal wheels (1- heated / 1- cold), film registration and safety guarding. Web specification: up to 26" in width; up to 15.7" in diameter; 3" core. Mounted on stainless steel frame with casters and leveling legs, Speed dependant on materials, application and machine configuration.
OAD: 185" L x 52" W x 70" H

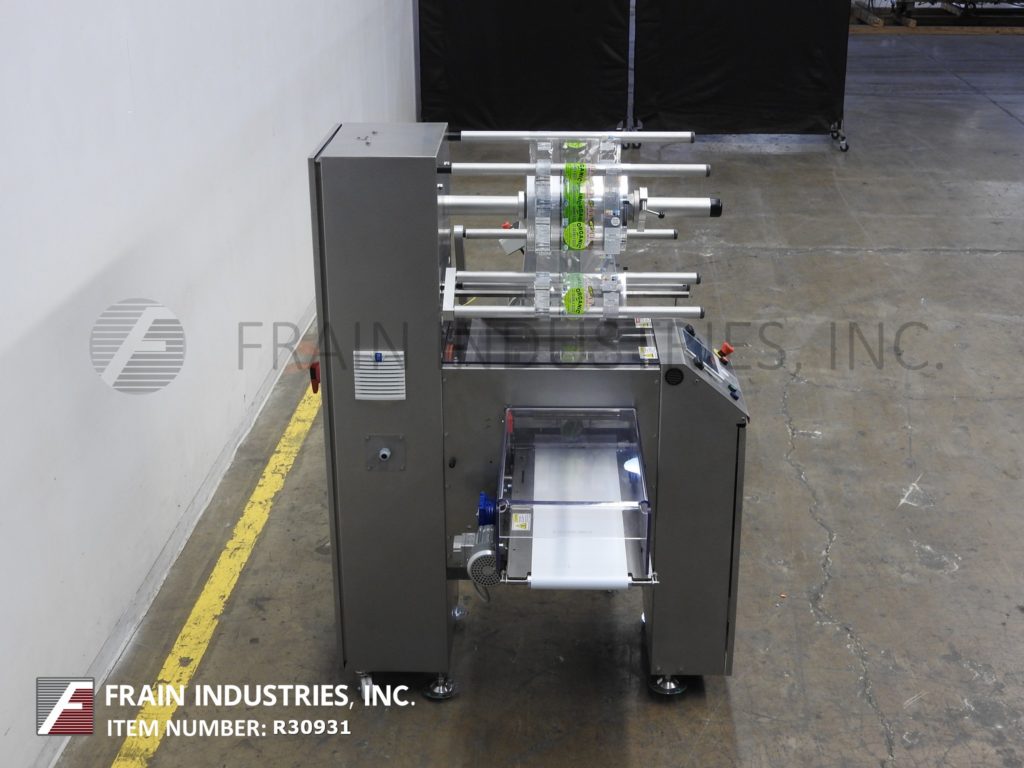

Bosch, Model PACK 102, 2-up, stainless steel, horizontal wrapper with number of packages per minute – depending on materials and application. Product size range: 3" to 9" in Length; 1/2" to 9-3/4" in Width; up to 3-3/4" in Height. Equipped with 72" long lugged product load area, with pop out lugs, adjustable former, 2-up 10-1/2" wide by 3/4" thick serrated knife seal jaws, (2) sets of fin seal wheels (1- heated / 1- cold), film registration and safety guarding. Web specifications up to 26" in width; up to 15.7" OD; on 3" OD core. Control panel has touch pad controller with upper and lower jaw temperature controllers with start, stop and e-stop push buttons. Mounted on stainless steel frame with casters and height adjustable leveling legs.
OAD: 183" L x 52" W x 76" H

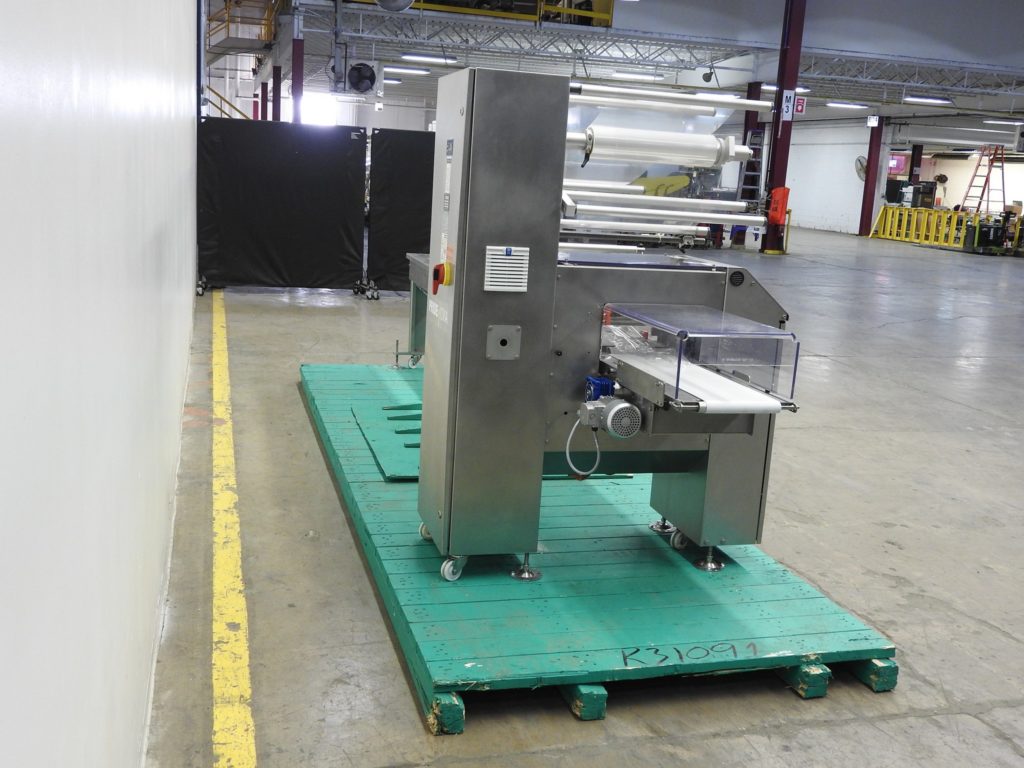

Bosch, Model PACK 102, 2-up, stainless steel, horizontal wrapper rated from 50 to 150 packages per minute – depending on materials, application and machine configuration. Product size range: 3" to 9" in Length; 1/2" to 9-3/4" in Width; up to 3-3/4" in Height. Equipped with 72" long lugged product loading area, pop out lugs, adjustable former, 2-up 10-1/2" wide by 3/4" thick serrated knife seal jaws, (2) sets of fin seal wheels (1- heated / 1- cold), film registration and safety guarding. Web specifications up to 26" in width; up to 15.7" in diameter; 3" core. Mounted on stainless steel frame with casters and height adjustable leveling legs
Bosch, Model PACK 102, 2-up, stainless steel, horizontal wrapper. Product size range: 3" to 9" in Length; 1/2" to 9-3/4" in Width; up to 3-3/4" in Height. Equipped with 76" long lugged product loading area, pop out lugs, adjustable former, 2-up 10-1/2" wide by 3/4" thick serrated knife seal jaws, (2) sets of fin seal wheels (1- heated / 1- cold), film registration and safety guarding. Web specifications up to 26" in width; up to 15.7" in diameter; 3" core. Mounted on stainless steel frame with casters and height adjustable leveling legs. Speed dependent on materials, application, machine configuration and operator dexterity.

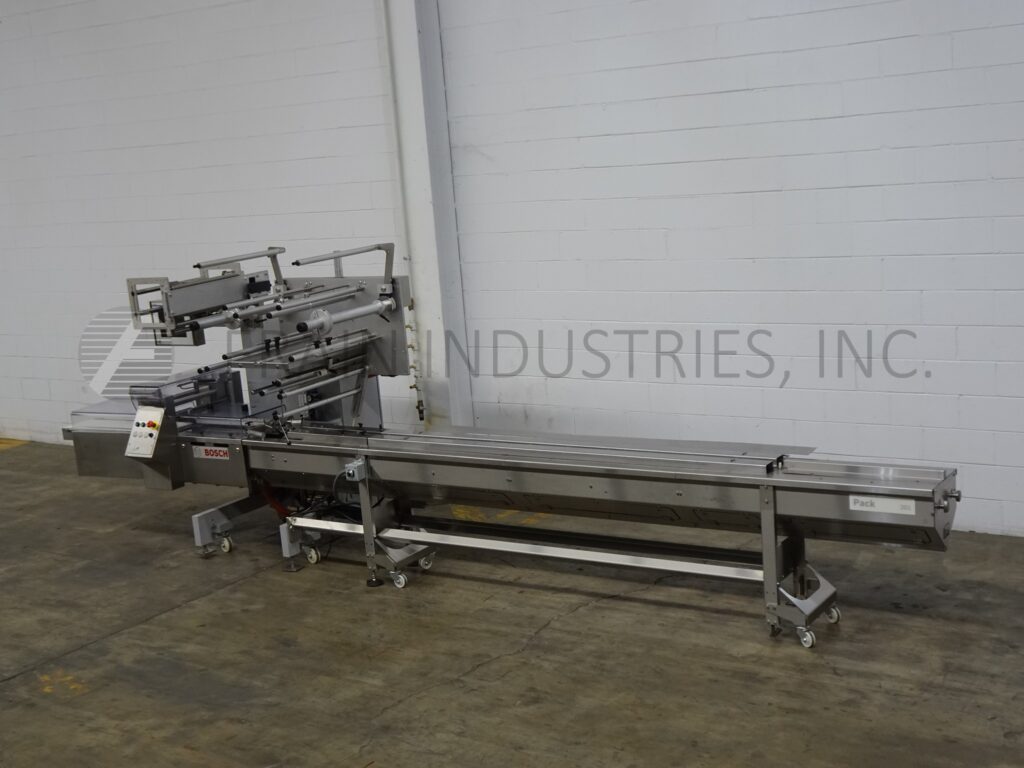

Bosch Model PACK 101, 2-up, horizontal, flow wrapper rated from 50 to 150 packages per minute – depending on materials, application, machine configuration and operator dexterity. Currently set for product size range: 3" to 18" in Length; 1/2" to 9" in Width; 1/16" to 4.3" in Height. Equipped with 96" long lugged product in feed and operator hand load conveyor with 2" high pop out lugs set on 7" centers with no product eye, adjustable forming head, 7-1/2" wide x 1" thick serrated hot knife seal jaws, fin seal wheels, 32" long x 10" wide discharge conveyor with safety guarding and 32" discharge height. Film reel specs: 25.6" in width; to 15.7" OD; on 3" OD core. Control panel has touchscreen controller with (2) temperature controllers, start, stop and e-stop push buttons. Mounted on base frame with casters and height adjustable leveling legs.
OAD: 204" L x 48" W x 70" H
