Cherry Burrell / Waukesha Machines

About Cherry Burrell / Waukesha Equipment

Frain provides Cherry Burrell / Waukesha pumps, homogenizers, stainless steel tanks, cleaners, machinery, equipment and more.

Talk with one of our engineers today to discuss your next project requirements and timeline for free.


Cherry Burrell / Waukesha Machines In Stock

Cherry Burrell / Waukesha Heat Exch Scrape Surface SPX

SPX, Cherry Burrell, Waukesha, Model 6 x 72, stainless steel, horizontal, scrape surface heat exchanger with pounds of product per hour – depending on materials and application. Equipped with 6" OD x 72" long stainless steel product chamber with (9.0 ft²) of heat transfer area and is capable of heating and cooling products with viscosities in 1,000,000 centipoise range. (1) 3-1/2" OD front, (2) 3-3/4" OD media and (1) 3" OD jacket ports, with 10 Hp motor drive. Mounted on heavy duty (4) leg base frame.

Shell: MAWP: 600 psi @ 400°F
MDMT: -20°F @ 600 psi
Jacket: MAWP: 250 psi @ 400°F
MDMT: -20°F @ 250 psi

OAD: 120" L x 24" W x 54" H

Get a Free Quote Call: 630-629-9900

Cherry Burrell / Waukesha Cleaner CIP/COP

Cherry Burell, all stainless steel, 2 tank, CIP system with plate and frame heat exchanger and cyntrifical pump. Equipped with (2) 17-1/2/" ID x 21-1/2" Deep, (aprox 25 gallon) stainless steel tanks with lift off covers and mixer mounting brackets, can be used independently, or in conjunction with each other. Cherry Burrell Model L2RGS, stainless steel plate and frame heat exchanger with 16" long x 6" wide plates and sanitary in / outlets, 1/3 Hp centrifical pump, used to pump cleaning solution, then rinse water for cleaning process, (3) Partlow Model 100n RTD temp gauges to 300 deg f, with Partlow chart recorder. GE control package with on / off, pump, water, steam and cooling push button controls. Has all 2" OD stainless steel sanitary connections. Mounted on 94" long x 60" wide stainless steel common base frame with casters.

OAD: 94" L x 60" W x 65" H Without Casters
73" H With Casters

Get a Free Quote Call: 630-629-9900

Cherry Burrell / Waukesha Heat Exch Scrape Surface 1C312L

Votator, Model 1C312L, stainless steel, continuous scrape surface heat exchanger. Equipped with 12" long x 3" ID product cylinder, (2) scraper blades, ¾ ft² of heat transfer area, (2) ½" NPT product connections and (2) ¾" NPT media connections. Powered by a 2 hp drive with a variable speed gearbox.

OAD: 51"L x 15"W x 36"H

Get a Free Quote Call: 630-629-9900

Cherry Burrell / Waukesha Heat Exch Scrape Surface 1C312L

Votator, Model 1C312L, stainless steel, continuous scrape surface heat exchanger. Equipped with 12" long x 3" ID product cylinder, (2) scraper blades, ¾ ft² of heat transfer area, (2) ½" NPT product connections and (2) ¾" NPT media connections. Powered by a 2 hp drive with a variable speed gearbox.

OAD: 51"L x 15"W x 36"H

Get a Free Quote Call: 630-629-9900

Cherry Burrell / Waukesha Tank SS Single Wall 500 GAL

Cherry Burrell, 500 gallon capacity, 316 stainless steel cone bottom process tank. Vessel dimensions: 66" diameter x 56" deep with a 36" straight wall and cone bottom. Equipped with a dome top, 18" diameter manway, (2) CIP spray attachments with 2"OD / 1½"ID Tri-Clamp connections, (1) bottom flush mounted pressure diaphram, 5 Hp top mounted scrape agitator and 3½" OD / 3" ID Tri-clamp style bottom discharge with 45" ground clearance.

Top Ports:
(4) 2½" OD / 2" ID – Tri-Clamp
(1) 3" OD – Open Vent

Side Ports:
(1) 2½"OD / 2"ID – Tri-Clamp

OAD: 70"L x 70"W x 155"H

Get a Free Quote Call: 630-629-9900

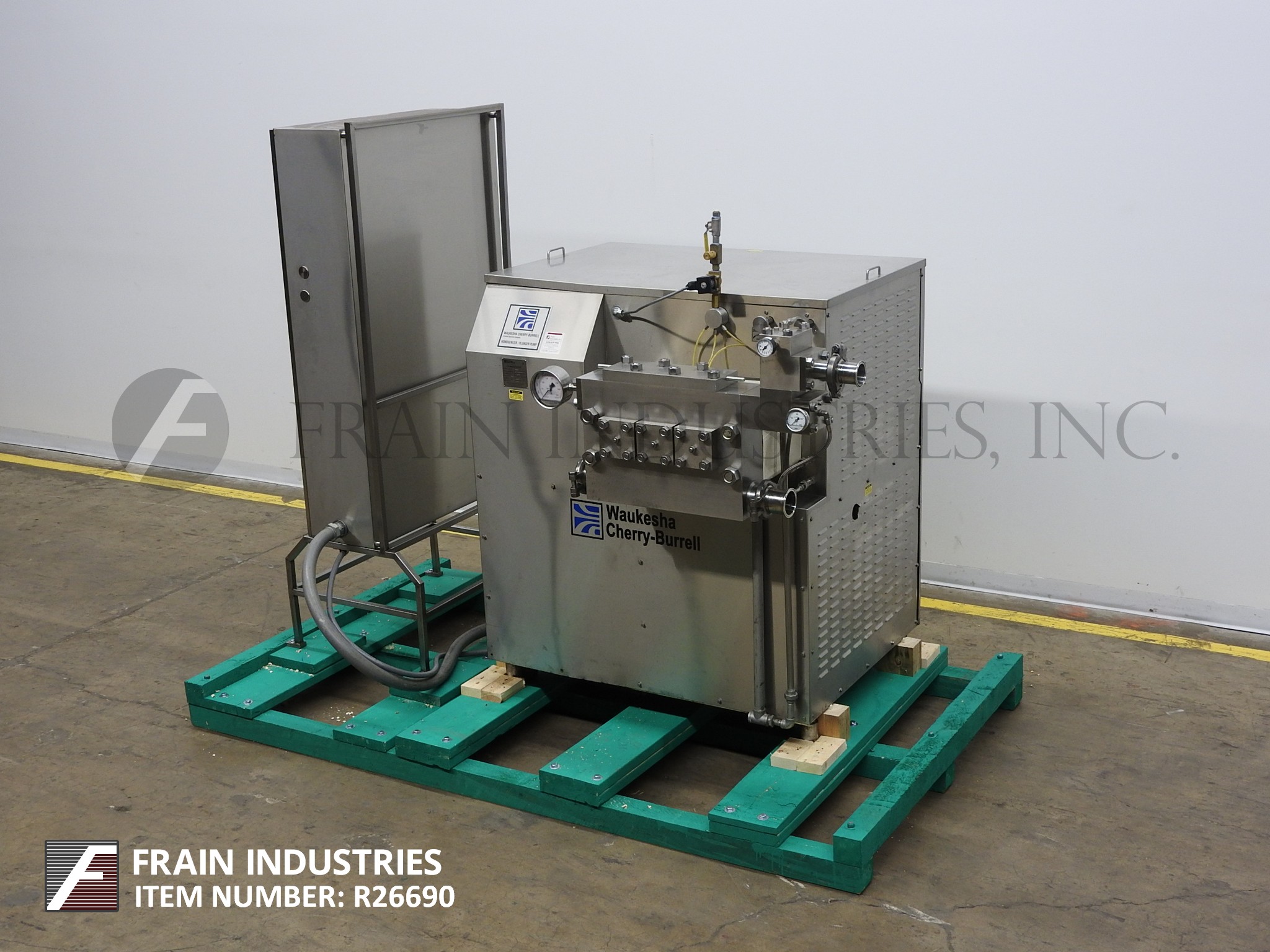

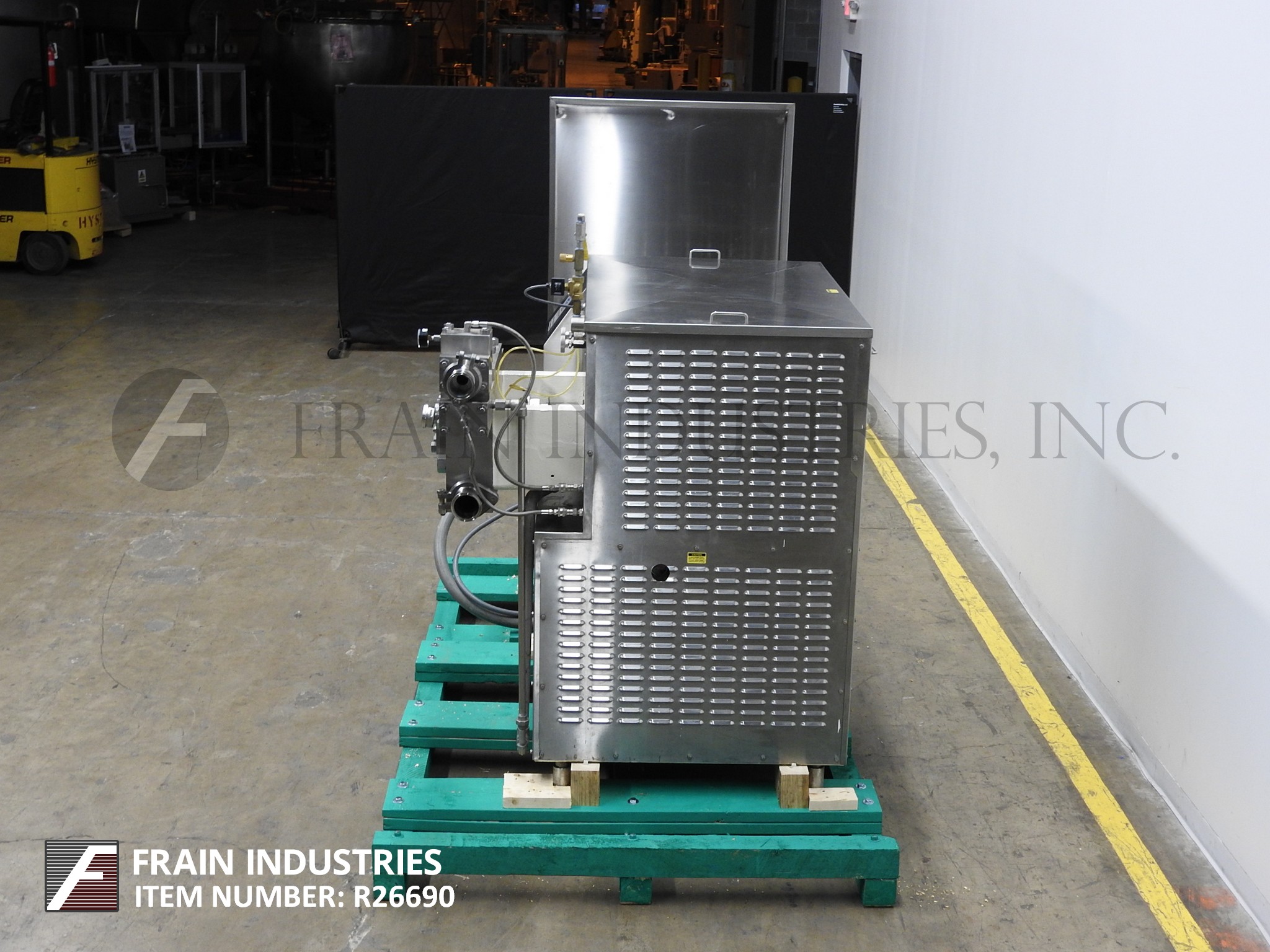

Cherry Burrell / Waukesha Homogenizer 2 Stage 3000

Cherry Burrell / Waukesha, Model 3000, two stage three valve, stainless steel homogenizer. Equipped with poppet-valve cylinder whith output capacity up to 2500 gallons per hour. Operating pressure up to 3000 psi, two stage pneumatic homogenizing valve actuator assembly with (2) 4"OD / 3"ID I-Line style charge ports and 3½"OD / 1¼"ID I-Line style discharge port and pressure gage up to 5000 psi.

OAD: 59"L x 52"W x 69"H

Get a Free Quote Call: 630-629-9900

Cherry Burrell / Waukesha Homogenizer 2 Stage 400-HD6

Cherry Burrell Model Steller series 400 superhomo, two stage homoginizer rated up to 200 gals per hour – depending on materials and appliaction. All 316 S/S contact parts, with 13/16" cylinder rated to 2500 psi, heavy duty construction, 15 Hp direct V-belt driven pump. Equipped with 2.5"OD/1¾"ID tri-clamp style fittings.

OAD: 46" L x 28" W x 53" H

Get a Free Quote Call: 630-629-9900
