Chester Jensen Machines

Chester Jensen Kettle Single Motion 350 GAL

• Manufacturer: Chester Jensen
• Model Number: 350 GAL
• Frain Number: 5H2380

Chester Jensen, 350 gallon capacity, 304 stainless steel kettle. Vessel dimensions: 72" diameter x 28" deep with a cone style bottom and 15" straightwall. Equipped with lift up covers and interrior baffle. 5 Hp bridge mounted scrape agitator. Unit mounted on (4) legs with a 2½" OD / 2" ID Tri-clamp style bottom discharge with butterfly valve and 28" ground clearance.

Top Ports:
(1) 5" diameter open vent
(2) 2"OD / 1½"ID Seated Bevel
(1) 3"OD / 2½"ID Seated Bevel

Jacket Ports:
(2) 2" NPT

National Board: 109
MAWP: 94 PSI @ 300°F (water)
MAWP: 50 PSI @ 300°F (steam)

OAD: 80"L x 75"W x 92"H

Chester Jensen Heat Exch Plate B-4-OT-4-32

• Manufacturer: Chester Jensen
• Model Number: B-4-OT-4-32
• Frain Number: 5J1023

Chester Jensen, Model B-4-OT4-52, Open type instant chiller and heat exchanger with amount of product per hour – depending on materials and application. All stainless steel, open type, single pass chiller has (4) short gas flow cooling sections with (32) 45-1/8" x 42-1/2" and 6.75 gallon internal volume 42.75 sq ft cooling area and is capable of bringing product medium down to 33 Deg F in a single pass with all capacity and tonnage ratings based on the use of 26°F, 28°F or 30°F full-flooded or liquid recirculated (4:1) ammonia and will provide sanitary means to instanly, continously and safely chill water, brine, glycols and other fluid media to 1°F of their freezing point R404a refrigerant design ambient 95°F. Plate and frame heat exchanger with Hot side MAWP 435psi @ 450 °F mdmt -310°F @ 450psi. Cold side MAWP 435psi @ 400 °F MDMT -310°F @ 435psi. Mounted on (4) leg stainless steel frame.

OAD: 95" L x 36" W x 90" H

Chester Jensen Heat Exch Plate 100 GPM HTST

• Manufacturer: Chester Jensen
• Model Number: 100 GPM HTST
• Frain Number: 5G7986

Complete, 25 to 100 gallon per minute, HTST pasteurizing system. Equipped with a Chester Jensen, Model M466F, (2) zone (233) plate heat exchanger with 1085 ft² heat exchange surface area; (43) first zone, (190) second zone. Stainless steel 50 gallon holding tube. Schlueter, 150 gallon, stainless steel tank with level detection. Chem Tek, 226 gallon, stainless steel tank with bottom side mounted prop agitation. Waukesha, Model 130, positive displacement pump powered by a 10 hp drive. (2) Tri-Clover centrifugal pumps powered by 5 Hp drives and (1) centrifugal pump powered by 10 Hp drive. Neptune Meter, valves and controls panel with an AB PLC, AVG EZ series touch panel, Anderson chart recorder and push button system power on with E-stop.

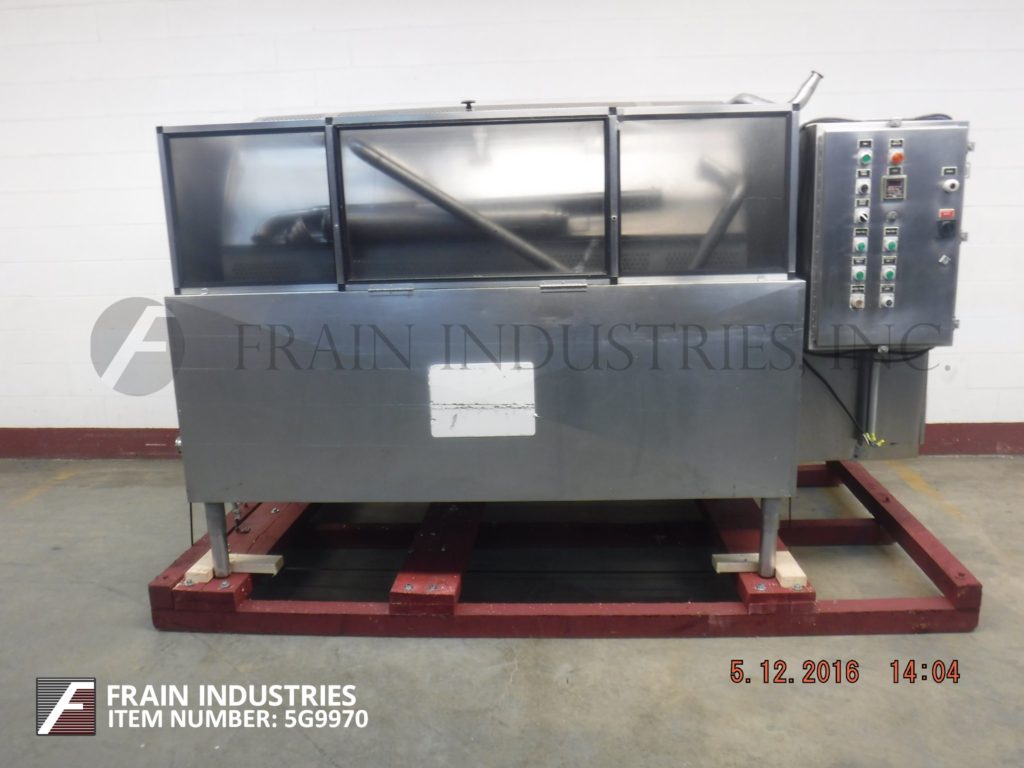

Chester Jensen Cooler TC46

• Manufacturer: Chester Jensen
• Model Number: TC46
• Frain Number: 5G9970

Chester Jensen, Model TC-4-6, stainless steel perforated, rotating tumbler cooling drum. Capacity: to 240 gallon. Equipped with 48" diameter x 71" long dual compartment drum front loading and unloading Fully insulated stainless steel chilled water reservoir with (3) 2½"OD / 2"ID access ports. Stainless steel water circulating pump with integral strainer and level control. Electric safety inter-locked drum door. Control panel with timer, motor starters and audio alarm. Unique "Gentle Cycle" feature that accommodating tumble-chilling of even the most delicate food products. Mounted on stainless steel base frame.
Product per hour dependant on materials, application and machine configuration.
Requires independent chilled water system.

OAD: 108"L x 59"W x 67"H
