Chester Jensen Kettle Single Motion 350 GAL

  Back to All Equipment

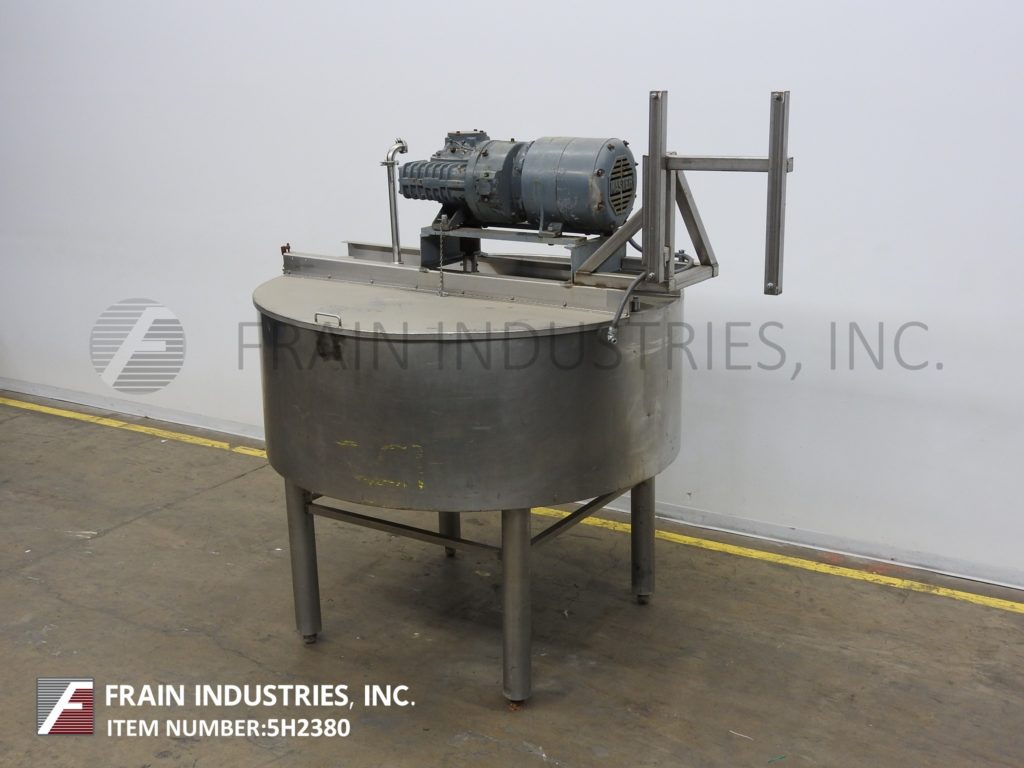

Chester Jensen, 350 gallon capacity, 304 stainless steel kettle. Vessel dimensions: 72" diameter x 28" deep with a cone style bottom and 15" straightwall. Equipped with lift up covers and interrior baffle. 5 Hp bridge mounted scrape agitator. Unit mounted on (4) legs with a 2½" OD / 2" ID Tri-clamp style bottom discharge with butterfly valve and 28" ground clearance.

Top Ports:
(1) 5" diameter open vent
(2) 2"OD / 1½"ID Seated Bevel
(1) 3"OD / 2½"ID Seated Bevel

Jacket Ports:
(2) 2" NPT

National Board: 109
MAWP: 94 PSI @ 300°F (water)
MAWP: 50 PSI @ 300°F (steam)

OAD: 80"L x 75"W x 92"H
