Kettle Single Motion 400 GAL

  Back to All Equipment

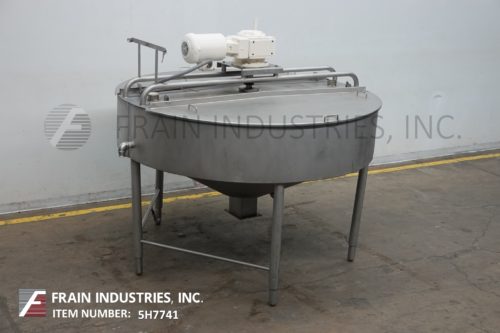

400 gallon capacity, 304 stainless steel low pressure jacketed process tank. Vessel dimensions: 82" diameter x 32" deep with a 12" straight wall and cone bottom. Equipped with lift up covers, 2 Hp top mounted scrape agitator and 8" x 6" flanged bottom discharge with 14½" ground clearance.

Top Ports:
(2) 3½"OD / 3"ID Tri-clamp

Jacket Ports:
(2) 1½" NPT

OAD: 86"L x 84"W x 77"H
