Colton Machines


Colton Machines In Stock

Colton Press Tablet Single Action 4T

  • Manufacturer: Colton
  • Model Number: 4T
  • Frain Number: 5C3405

Single station tablet press. 4 ton maximum compression force. 2" die diameter for 1-1/2" maximum tablet diameter, up to 1-1/4" depth fill. Rated up to 110 tablet per minute – depending on materials and application. Rugged construction consisting of cast base & pedestal. SS feed hopper with brass feed frame. Volume of fill and & compression pressure is adjusted on lower punch.
OAD: 54" W x 48" 4D x 84" H

Get a Free Quote Call: 630-629-9900

Colton Filler Paste Quad CARTRIDGE

  • Manufacturer: Colton
  • Model Number: CARTRIDGE
  • Frain Number: 5C1850

Four head cartridge filler rated from 8 to 32 containers per minute – depending on materials and application. Equipped with container magazine, container indexing system, 32 ounce pistons, 1/8" nozzles, bottom up fill, no container / no fill. Stainless steel contact parts.

OAD: 91"L x 69"W x 81"H

Get a Free Quote Call: 630-629-9900

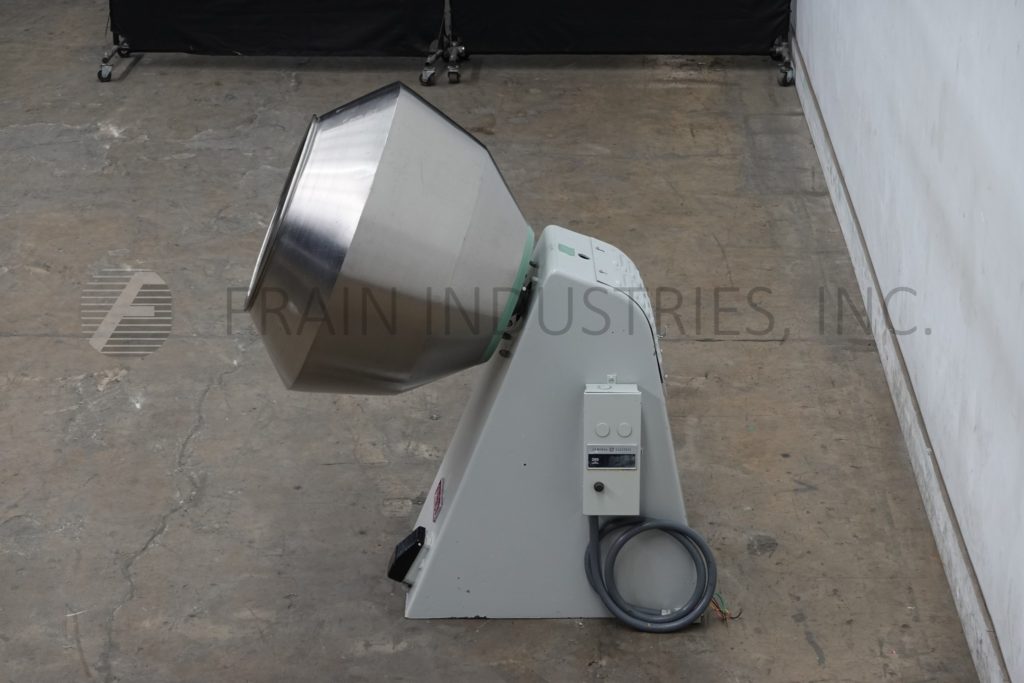

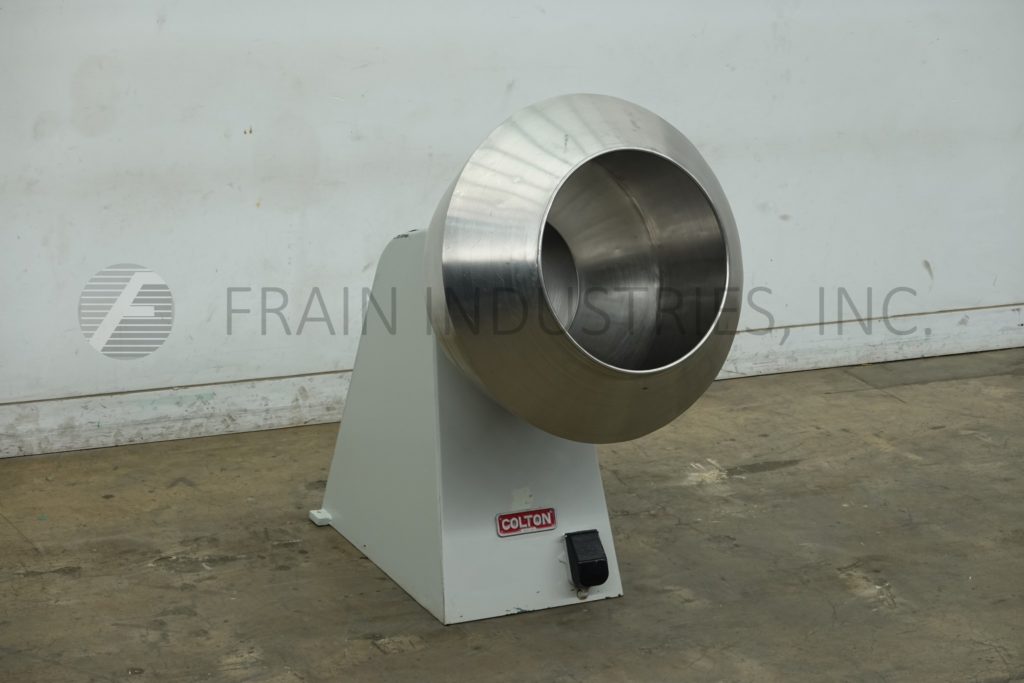

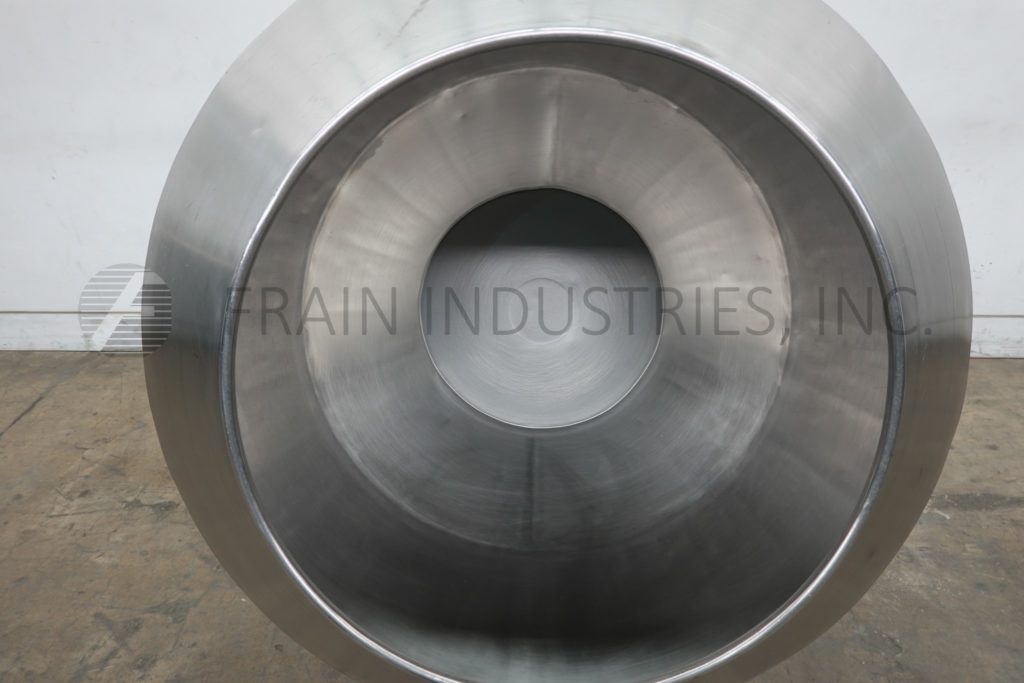

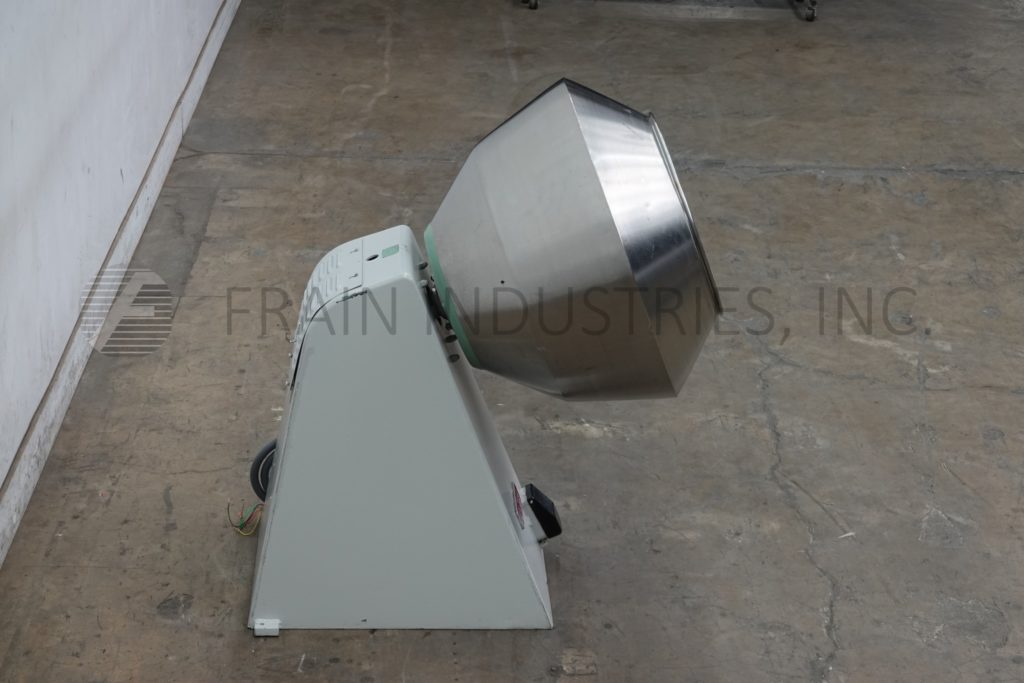

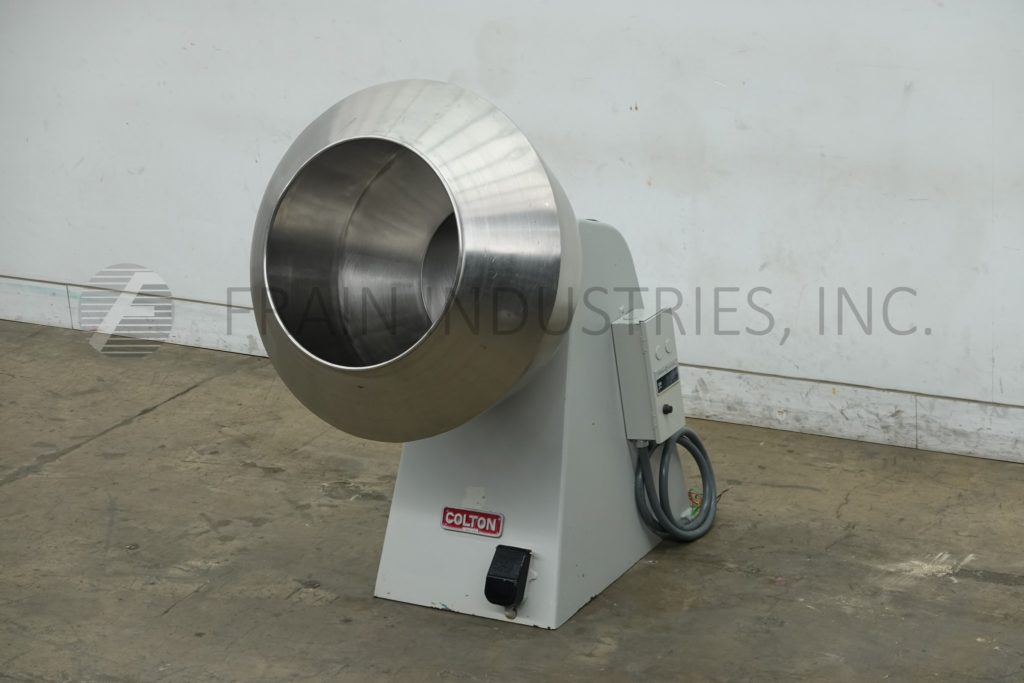

Colton Pans, Revolving 15" DIA

  • Manufacturer: Colton
  • Model Number: 15" DIA
  • Frain Number: R30130

Colton 15" diameter, sphere shaped, stainless steel contact parts, table top coating pan with pounds of product per our hour – depending on materials, application and operator dexterity. Coating pan dimensions: 15" inner diameter; 16" in depth, 10" inner diameter product access port with (4) 3/4" wide x 1/2" high inner baffles and has 1/2 Hp motor drive with on / off switch.

OAD: 28" L x 17" W x 18" H

Get a Free Quote Call: 630-629-9900

Colton Press Tablet Rotary 244

  • Manufacturer: Colton
  • Model Number: 244
  • Frain Number: 5C5822

Colton Model 244, 33 station, dual layer, dual sided rotary tablet press rated up to 2625 tablets per minute – depending on materials and application. with low granulation shut off. Maximum tablet diameter of 7/16", maximum fill depth of 3/4", Maximum pressure rating of 4 tons. Equipped with keyed uppers, brass feed frames and a micrometer cell for accurate tablet weight adjustment. 5 Hp variable speed V-Belt motor drive. Mounted on heavy duty base frame. Customer to supply tooling.

OAD: 61" H x 47" W x 38" L

Get a Free Quote Call: 630-629-9900

Colton Press Tablet Rotary 244

  • Manufacturer: Colton
  • Model Number: 244
  • Frain Number: 5C5825

Colton Model 244, 33 station, dual layer, dual sided rotary tablet press rated up to 2625 tablets per minute – depending on materials and application. with low granulation shut off. Maximum tablet diameter of 7/16", maximum fill depth of 3/4", Maximum pressure rating of 4 tons. Equipped with keyed uppers, brass feed frames and a micrometer cell for accurate tablet weight adjustment. 5 Hp variable speed V-Belt motor drive.
Mounted on heavy duty base frame. Customer to supply tooling.

OAD: 61" H x 47" W x 38" L

Get a Free Quote Call: 630-629-9900

Colton Press Tablet Single Action 4T

  • Manufacturer: Colton
  • Model Number: 4T
  • Frain Number: 5C9556

Automatic single station press capable of speeds from 70 tablets per minute – depending on materials and application. Maximum compression: 4 tons. Maximum fill depth: 11/16". Maximum diameter:1".

OAD: 40" L x 36" W x 76" H

Get a Free Quote Call: 630-629-9900

Colton Press Tablet Single Action 340-23

  • Manufacturer: Colton
  • Model Number: 340-23
  • Frain Number: 5G0302

Colton Model 340-23, single station tablet press rated from 10 to 90 tablets per minute – depending on material, application, type of product, size and depth of tablet. 4 ton maximum compression force with 1-1/4" maximum tablet diameter and up to 1-1/4" fill depth. Equipped with 10" diameter x 17" long stainless steel feed hopper, brass feed frame, swing open safety door, start / stop push button controls, 1.5 Hp motor to sproket drive, guarding. Mounted on a forkable pedestal base frame.

OAD: 55" W x 46" x 69" H

Get a Free Quote Call: 630-629-9900

Colton Mixer Paste Horizontal 6 FT³

  • Manufacturer: Colton
  • Model Number: 6 FT³
  • Frain Number: 5G7635

7 ft³ ( 5.7 ft³ workable), paddle mixer with stainless steel contact parts. Inner mixing chamber dimensions: 26" in Length; 19" in Width; 23" in Depth. Equipped with a 1½" diameter motor shaft, 1½" diameter mixing shaft with 1½" x 8" stainless steel paddles powered by a 2 Hp drive with variable speed control, Waukesha model 60 positive displacement pump powered by a 2 hp drive with a variable speed gearbox and 3" OD / 2½" ID Tri-clamp style discharge with 9" ground clearance. Mounted on stainless steel base frame with casters.

OAD: 48" L x 28" W x 55" H

Get a Free Quote Call: 630-629-9900

Colton Press Tablet Rotary 227-192

  • Manufacturer: Colton
  • Model Number: 227-192
  • Frain Number: 5D2826

Colton Model 227-192, 42 station rotary tablet press rated up to 1400 tablets per minute – depending on materials and application. Max tablet diam: .945". Equipped with "D" tooling and (2) 10" diameter stainless steel product hoppers, 20"long x 4-3/4" wide discharge chute, 16"long x 3-1/2" wide discharge chute, and 1" thick die plate with 1" diameter die holes and 3/4" round upper and lower punches, and has a maximum of 9000 lbs or 4.5 tons pressure. Mounted on heavy duty base frame. Customer to supply tooling.

OAD: 56"L x 36"W x 68"H

Get a Free Quote Call: 630-629-9900

Colton Press Tablet Rotary 216

  • Manufacturer: Colton
  • Model Number: 216
  • Frain Number: 5G4734

Colton Model 216, automatic, 16 station rotary tablet press rated from 450 to 1150 tablets per minute – depending on size, shape, depth and product. Maximum pressure of 3 tons. Maximum tablet diameter 5/8", Maximum fill depth 3/4". Equipped with 16" OD x 22" long stainless steel conical product hopper, with brass feed frame, (16) 5/8" OD keyed upper and 1/4" lower round dies, with safety guarding, start and stop push button controls with pound and pressure guage. Mounted on heavy duty (4) leg base frame. Customer to supply tooling.

OAD: 52" L x 32" W x 70" H With Hopper

Get a Free Quote Call: 630-629-9900

Colton Press Tablet Rotary 216

  • Manufacturer: Colton
  • Model Number: 216
  • Frain Number: 5G0660

Colton Model 216 automatic rotary 16 station tablet press rated from 100 to 650 tablets per minute – depending on materials and application. Maximum tablet diameter 5/8", Maximum fill depth 3/4". Single pressure press with maximum pressure of 3 ton. Additionally features Micrometer cell adjustment, keyed upper head, brass feeder, and stainless steel hopper. Mounted on 46 x 36 frame. Customer to supply tooling.

OAD 46"L x 36"W x 64"H

Get a Free Quote Call: 630-629-9900

Colton Mixer Paste Single Arm 10 FT³

  • Manufacturer: Colton
  • Model Number: 10 FT³
  • Frain Number: 5G0460

10 ft³, 304 stainless steel, single wall, single arm sigma mixer. Chamber dimensions: 30" in Length; 20" in Width; 32" Deep. Equipped with a 2.5" wide x 1" thick outer / 1.5" wide x 1" thick inner single sigma style blade, 7.5 hp drive geared to 25 revolutions per minute, E-stop safety line, and a hand crank tilt discharge.

OAD: 84" L x 37" W x 60" H

Get a Free Quote Call: 630-629-9900
