Girton Tank Processors FVS-200

• Manufacturer: Girton
• Model Number: FVS-200
• Frain Number: R37603

Girton, two chamber, 304 stainless steel, low pressure jacketed and insulated tank. Each chamber is 200 gallons with inner dimension of 40" x 40" x 30" deep. Each chamber equipped with sweep agitation powered by ¾ Hp drive and thermowell. Slant bottom has (2) 2" OD / 1½" ID Tri-Clamp side bottom discharge with 13" floor clearance. Mounted on stainless steel legs. Rectangle construction provides maximum capacity in small floor area.

Jacket Ports
(2) ½" NPT
(2) ¾" NPT
(4) 1" NPT

Top Ports:
(3) 2" OD / 1½" ID
(1) 2½" OD / 2" ID

OAD: 87" L x 48" W x 66" H

Get a Free Quote Call: 630-629-9900

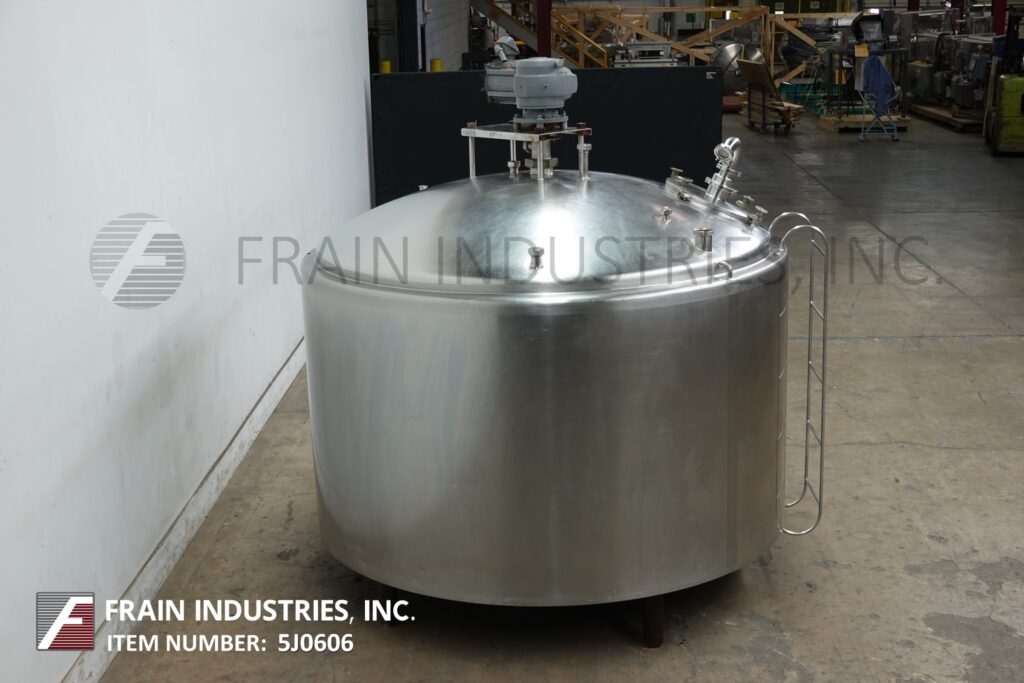

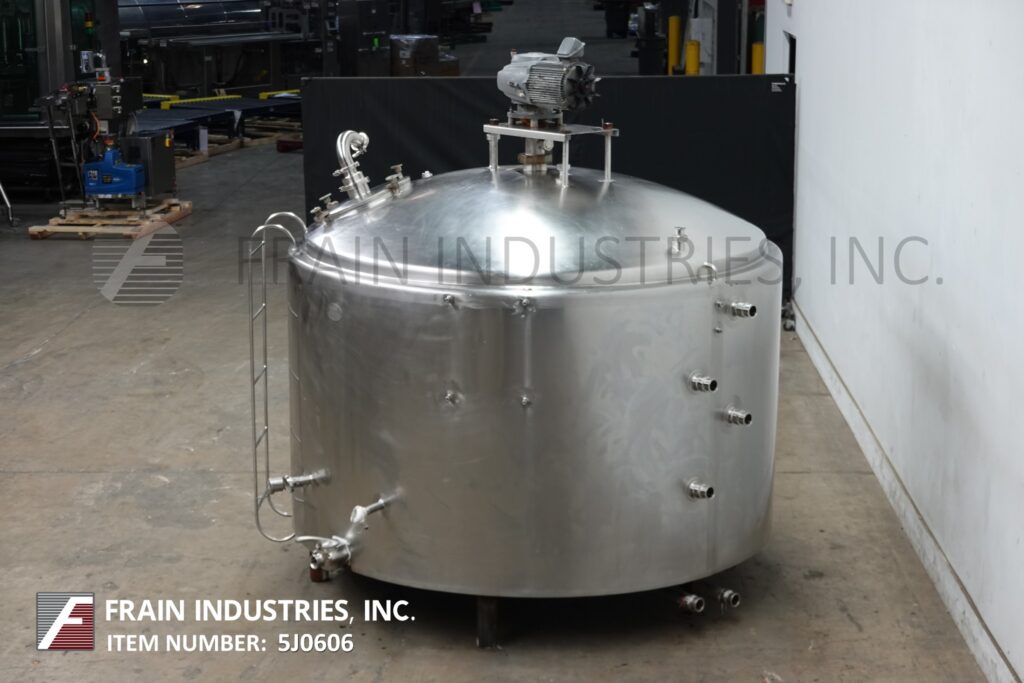

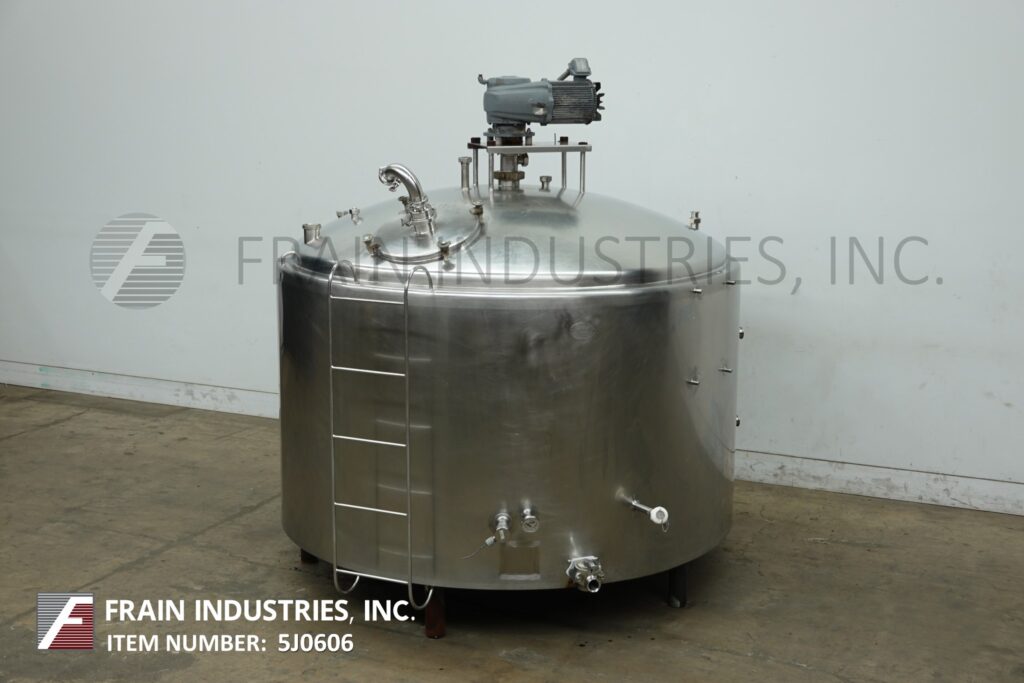

Girton Tank Processors VP1000

• Manufacturer: Girton
• Model Number: VP1000
• Frain Number: 5J0606

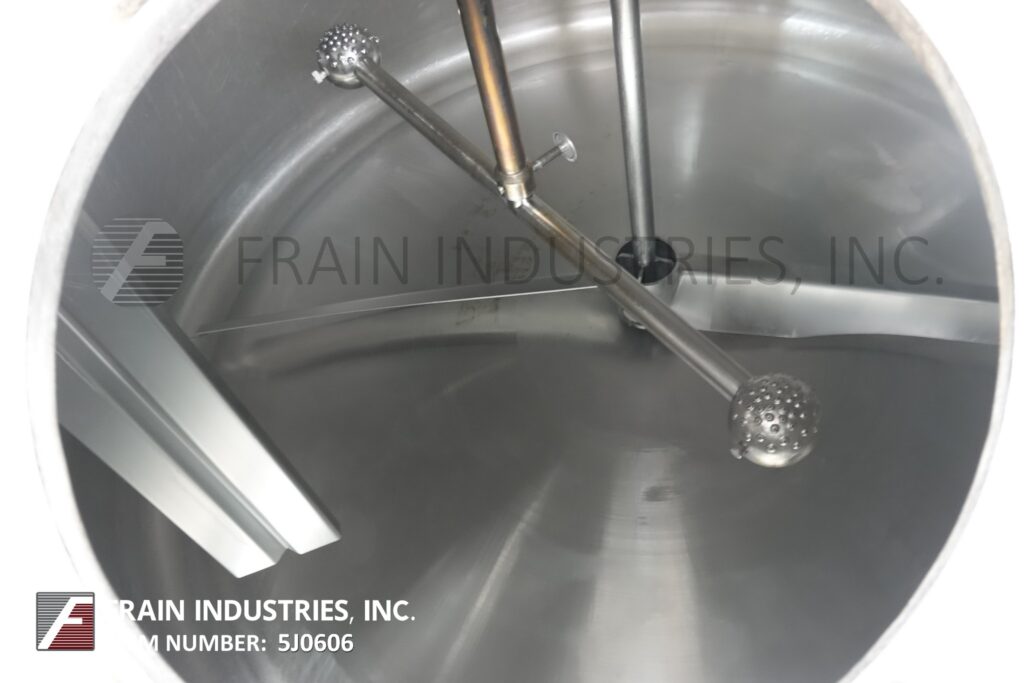

Girton, 1,000 gallon capacity, 304 stainless steel jacketed vacuum processor. Vessel Dimensions: 84" dia x 48" straight wall. Equipped with 16" manway, top mounted sweep agitation, thermowell and CIP spray balls. slant bottom has 2½" OD / 2" ID seated bevel discharge with flow control valve and 12" ground clearance.

Top Ports:
(1) 3½" / 3" Seated Bevel
(1) 2" / 1½" Seated Bevel

Jacket Ports:
(6) 2" NPT

OAD: 96"L x 96"W x 100"H
