Hamilton Kettle Double Motion AGITATION

• Manufacturer: Hamilton
• Model Number: AGITATION
• Frain Number: 5H1753

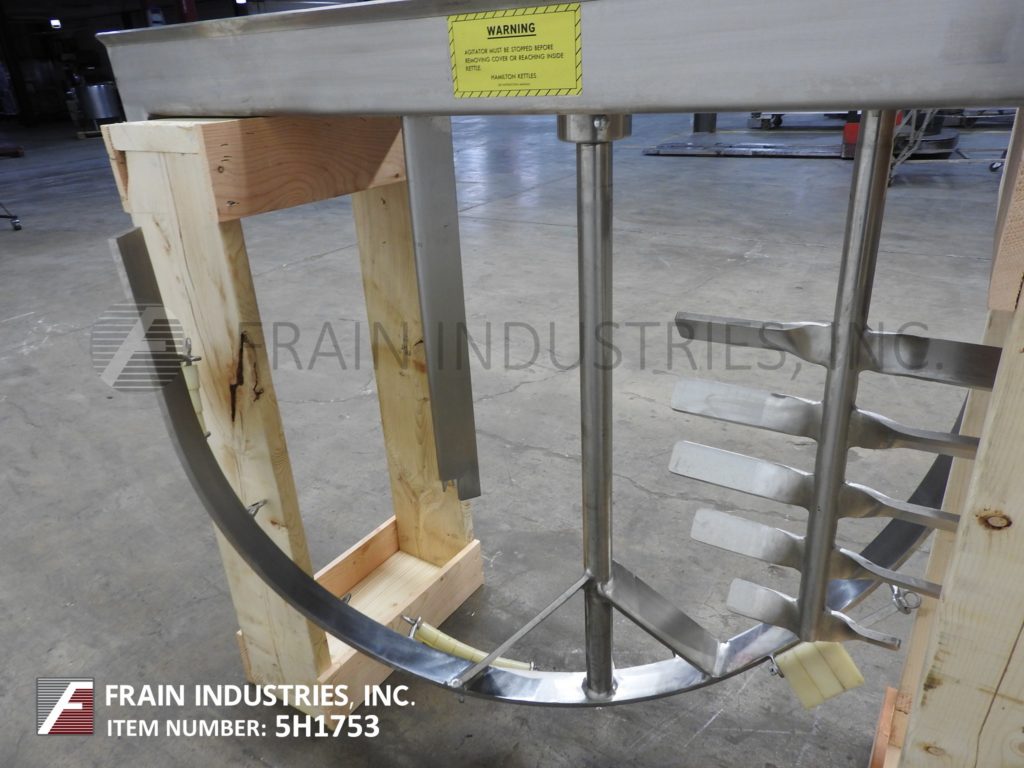

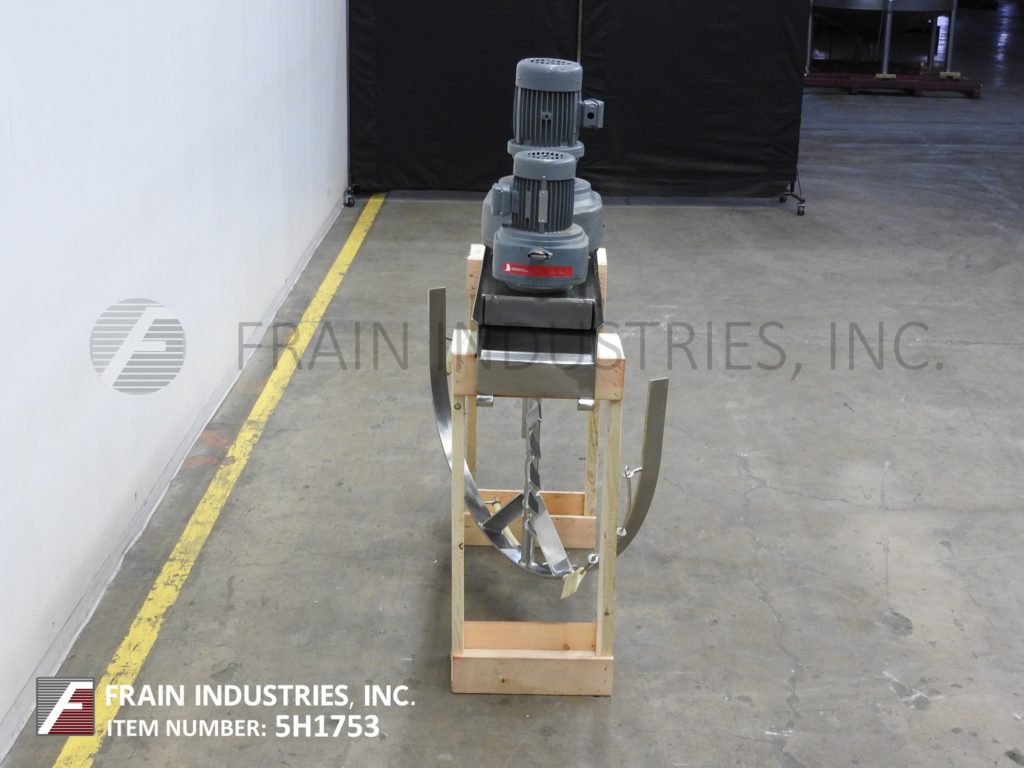

Hamilton, Double Motion, bridge mounted kettle agitation. Equipped with a 3 hp scrape agitator and a 2 hp christmas tree agitator. To be mounted on a 56" diameter x 43" deep (350 gallon) Hamilton kettle.

OAD: 67"L x 24"W x 75"H

Hamilton Kettle Single Motion SA200

• Manufacturer: Hamilton
• Model Number: SA200
• Frain Number: 5H4124

Hamilton, Model SA200, 304 stainless steel jacketed kettle. Vessel Dimensions: 48" diameter x 35" deep with a 10" straight wall. Equipped with scrape surface agitator, 4½" wide fixed baffle and flip up covers. Dish bottom with 2½" OD / 2"ID Tri-Clamp center bottom discharge with 3" ground clearance. Mounted on (3) tubular leg frame.

Top Access:
(1) 2½" OD / 2" ID Tri-Clamp
(1) 1½" NPT

Jacket Fittings:
(1) 2" NPT
(2) 1½" NPT
(1) 1" NPT

MAWP: 40 PSI @ 267° F
MDMT: -20°F @ 40 PSI
Nat’l Brd: 105

OAD: 60"L x 58"w x 82"H

Hamilton Kettle Single Motion 300

• Manufacturer: Hamilton
• Model Number: 300
• Frain Number: 5H3521

Hamilton, Model 350 gallon 316 stainless steel jacketed mixing kettle. Vessel Dimensions: 56" diameter x 38" deep with a 14" straight wall. Equipped with top bridge mounted 3 Hp scrape surface agitation and dual flip up covers, 15" adjustable baffle. Dish bottom has3.5" OD / 3" ID Tri-clamp style discharge with 7" ground clearance.

Side Fittings:
(2) seated bevel 2.5"OD / 2"ID

Jacket Fittings:
(3) 1¼" NPT

MAWP: 90 PSI @ 320°F

OAD: 66" L x 64" W x 87" H

Hamilton Kettle Double Motion SA100

• Manufacturer: Hamilton
• Model Number: SA100
• Frain Number: 5H3431

Hamilton, Model SA100, 316 stainless steel jacketed kettle. Vessel Dimensions: 38" diameter x 27" deep with a 10" straight wall. Equipped with bridge mounted scrape agitation. Dish bottom with 3½" OD / 3"ID seated bevel center bottom discharge with17" ground clearance. Mounted on (3) tubular leg frame.

Jacket Fittings: (3) 1" NPT

MAWP: 90 PSI @ 320° F
MDMT: -20°F @ 90 PSI
Nat’l Brd: 6286

OAD: 48"L x 40"w x 67"H

Hamilton Kettle Double Motion 500GAL

• Manufacturer: Hamilton
• Model Number: 500GAL
• Frain Number: 5G9688

Hamilton, 500 gallon, 304 stainless steel jacketed kettle with pounds of product per hour – depending on materials and application. Vessel Dimensions: 67" diameter x 48" deep with a 16" straight wall. Equipped with clamp down covers, 22" diameter semi-circle grated port with lift up cover, bridge mounted scrape agitator powered by a single 10 Hp drive, 3½" OD / 3"ID tri-clamp style discharge with pneumatic ball valve and 21" ground clearance. Mounted on (4) tubular legs.

Top Fittings:
(1) 2½"OD / 2"ID Tri-Clamp

Jacket Fittings:
(4) 1" NPT

MAWP: 60 PSI @ 293° F
Nat’l Brd: 3492

OAD: 103"L x 75"W x 114"H

Hamilton Kettle Triple Motion 50 GALLON

• Manufacturer: Hamilton
• Model Number: 50 GALLON
• Frain Number: 5H3090

Hamilton, 50 gallon capacity, 304 stainless steel, jacketed triple motion kettle. Vessel dimensions: 30" diameter x 24" deep with a 10" straight wall. Equipped with 3 Hp bridge mounted scrape / (2) christmas tree agitators with variable speed gear box and 2" OD / 1½" ID Tri-Clamp style bottom discharge with ball valve and 8" ground clearance. Mounted on a base frame with casters

Jacket Ports:
(4) 1" NPT

MAWP: 40 PSI @ 267°F

OAD: 45"L x 42"W x 93"H

Hamilton Kettle W/O Agitation 750 GAL

• Manufacturer: Hamilton
• Model Number: 750 GAL
• Frain Number: 5H1800

Hamilton, 750 gallon capacity, 304 stainless steel, low pressure jacketed kettle. Vessel dimensions: 72" diameter x 52" deep with 37" straight wall. Equipped with an open top, thermowell and 2½"OD / 2"ID Tri-Clamp style discharge with 18" ground clearance. Mounted on a (4) leg base.

Jacket Ports:
(2) 1½" NPT
(2) 1" NPT

OAD: 78"L x 76"W x 80"H

Hamilton Kettle Single Motion 150 GALLON

• Manufacturer: Hamilton
• Model Number: 150 GALLON
• Frain Number: 5G5818

Hamilton, Model SA, 150 gallon 316 stainless steel half jacketed kettle. Vessel Dimensions: 44" diameter x 33" deep with 12" straight wall. Equipped with bridge mounted scrape agitator powered by a 2 Hp drive, (2) 12" wide baffles, lift off covers and a 3½"OD/3"ID diameter tri-clamp style discharge with 16" ground clearance. Mounted on (3) tubular legs.

Top Fittings:
(1) 6" open vent
(1) 3½" open vent
(1) 1" open vent
(2) 2" NPT
(1) 1" NPT

Jacket Fittings:
(3) 1" NPT

MAWP: 150 PSI @ 358° F
Nat’l Brd: 5831

OAD: 55"L x 50"W x 80"H

Hamilton Kettle Double Motion 500GAL

• Manufacturer: Hamilton
• Model Number: 500GAL
• Frain Number: 5G5790

Hamilton, 500 gallon, jacketed 316 stainless steel mixing kettle. Mixing bowl has a 67" diameterl, hemispherical bottom and total depth of 47". Equipped with dual lift off top covers, bridge mounted 3 Hp scrape & 3 hp counter roatating agitation. Bottom has (1) 2½"OD/1¾"ID seated bevel thread style center bottom discharge with a 90° elbow and 15" ground clearance. Unit mounted on (4) stainless steel legs.

National Board: 4766
MAWP: 40 PSI @ 267° F

Jacket Fittings: (3) 1¾" NPT

OAD: 74" L x 70" W x 96" H

Hamilton Kettle Double Motion 150 GALLON

• Manufacturer: Hamilton
• Model Number: 150 GALLON
• Frain Number: 5F9890

Hamilton Model SA150, 150 gallon, 304 stainless steel, dual motion kettle, APV Model R4R PD pump, and A/B control package. Kettle dimensions: 41" ID x 32" in Depth. Equipped with, 5 Hp bridge mounted scrape surface agitation and 1.5 Hp secondary christmas tree mixer, dual flip top latch down covers, 1/2 jacket with MAWP of 125 psi @ 345 Deg F and (2) 2" OD threaded jacket in/outlets Dish bottom has 2-1/2" OD center bottom discharge with16" floor clearance and (3) legs mounted on 85" long x 51" wide metal skid and APV R4R PD rotary transfer pump with 5 Hp motor drive. Control panel has Allen Bradley controller with vari speed controls and heater, scrappers, pump on / off switches, with temperture controller. National Board # 5727 and UL rated.

OAD: 85" L x 51" W x 84" H

Hamilton Tank SS Single Wall SA

• Manufacturer: Hamilton
• Model Number: SA
• Frain Number: 5G7362

Hamilton, Model SA, 350 gallon 304 stainless steel single wall mixing kettle. Vessel Dimensions: 56" diameter x 43" deep with a 16" straight wall. Equipped with top bridge mounted 2 hp scrape surface agitation, ½ bolt down / ½ flip up cover, 24" x 16" manway, level detector and baffle. Dish bottom with 3½"OD / 3"ID tri-clamp style discharge with 12" ground clearance.

Top Fittings:
(3) 3½" OD / 3" ID Tri-clamp
(5) 2½" OD / 2" ID Tri-clamp

OAD: 67"L x 59"W x 93"H

Hamilton Tank SS Single Wall SA

• Manufacturer: Hamilton
• Model Number: SA
• Frain Number: 5G7361

Hamilton, Model SA, 350 gallon 304 stainless steel single wall mixing kettle. Vessel Dimensions: 56" diameter x 43" deep with a 16" straight wall. Equipped with top bridge mounted 2 hp scrape surface agitation, ½ bolt down / ½ flip up cover, 24" x 16" manway, level detector and baffle. Dish bottom with 3½"OD / 3"ID tri-clamp style discharge with 12" ground clearance.

Top Fittings:
(3) 3½" OD / 3" ID Tri-clamp
(5) 2½" OD / 2" ID Tri-clamp

OAD: 67"L x 59"W x 93"H
