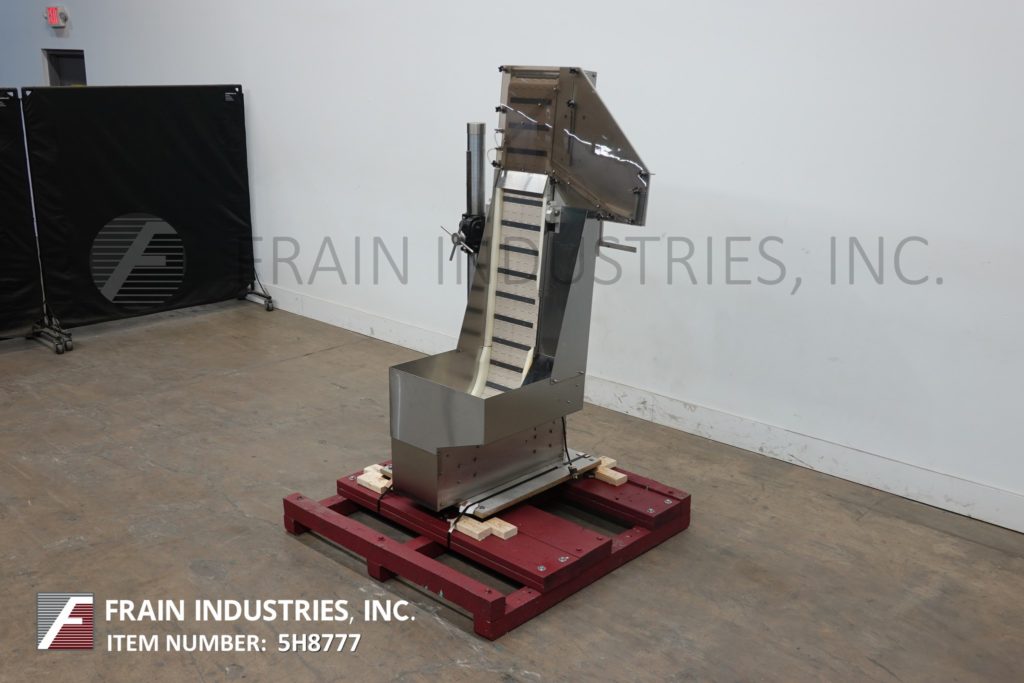

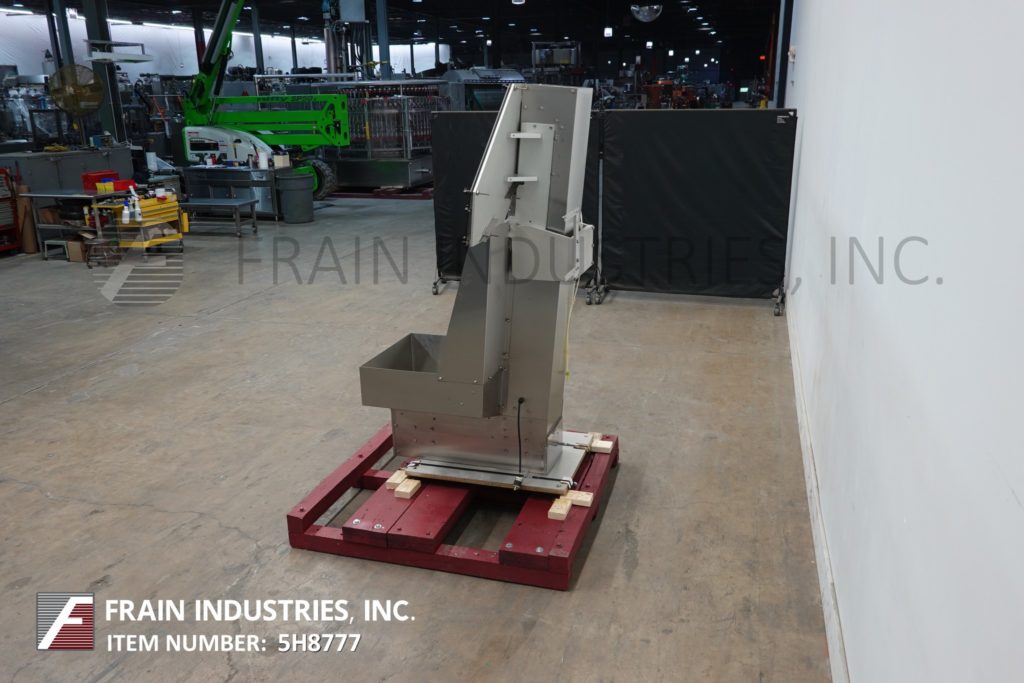

Kalish, automatic stainless steel water fall style cap elevator / feeder and sorter. Rated from 50 to 300 caps per minute – depending on materials and application. Capable of handling screw, snap or childproof caps (with proper change parts). Equipped with a 10" wide x 75" long cleated cap conveyor belt with ¼" high cleats on 4½" centers, 25" long x 24" wide x 15" deep stainless steel bulk product hopper, 20" long discharge chute with 54" discharge height.
OAD: 44"L x 42"W x 80"H
Kalish LS4000 automatic, inline, stainless steel, pressure sensitive, wrap labeler capable of speeds from 20 to 100 cpm – depending on materials, application and machine configuration. Container size range: 40mm – 130mm in Length; 28mm – 99mm in Width; 50mm – 350mm in Height. Label size range: 15mm – 255mm in Length; 20mm – 200mm in Width. Equipped with a 12′ long x 4-1/2" wide conveyor, chain aligner product spacer, product top hold down, no container/no label. 300mm maximum roll diameter on a 45mm OD core.
OAD: 12′ L x 58" W x 54" H
Kalish, Model 5182, single head chuck capper. Rated from 10 to 60 containers per minute – depending on materials, application and machine configuration. Cap Size: 13mm to 89mm. Container Diameter: ½" to 3½". Container Height: 1" to 12". Equipped with a 18" diameter star wheel, adjustable cap chute and single chuck style head. Mounted on a stainless steel base frame.
OAD: 58"L x 45"W x 65"H

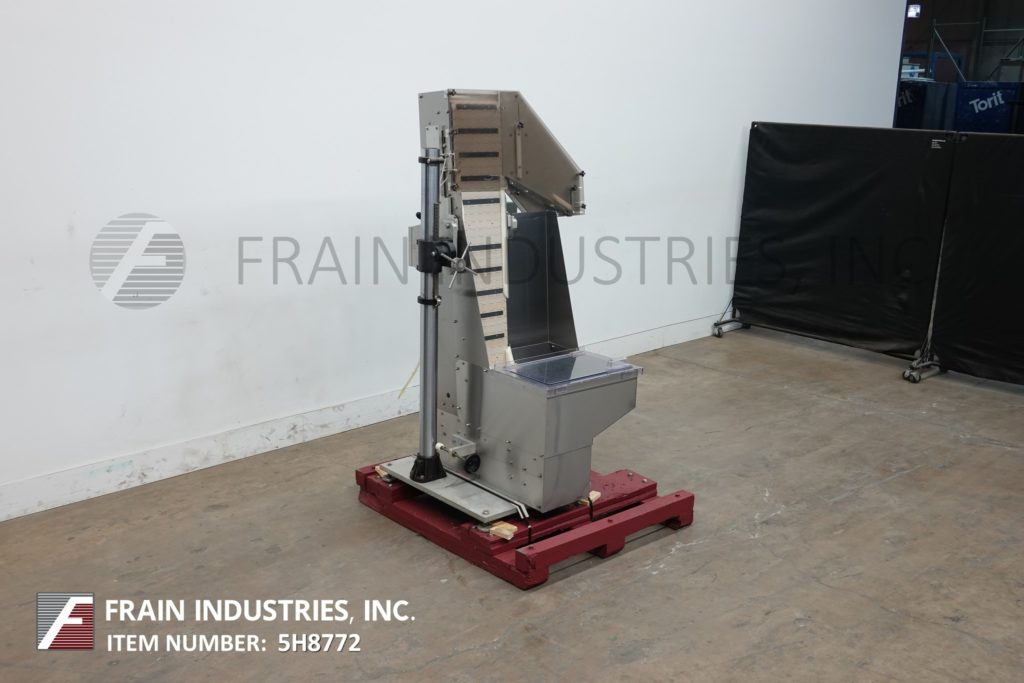

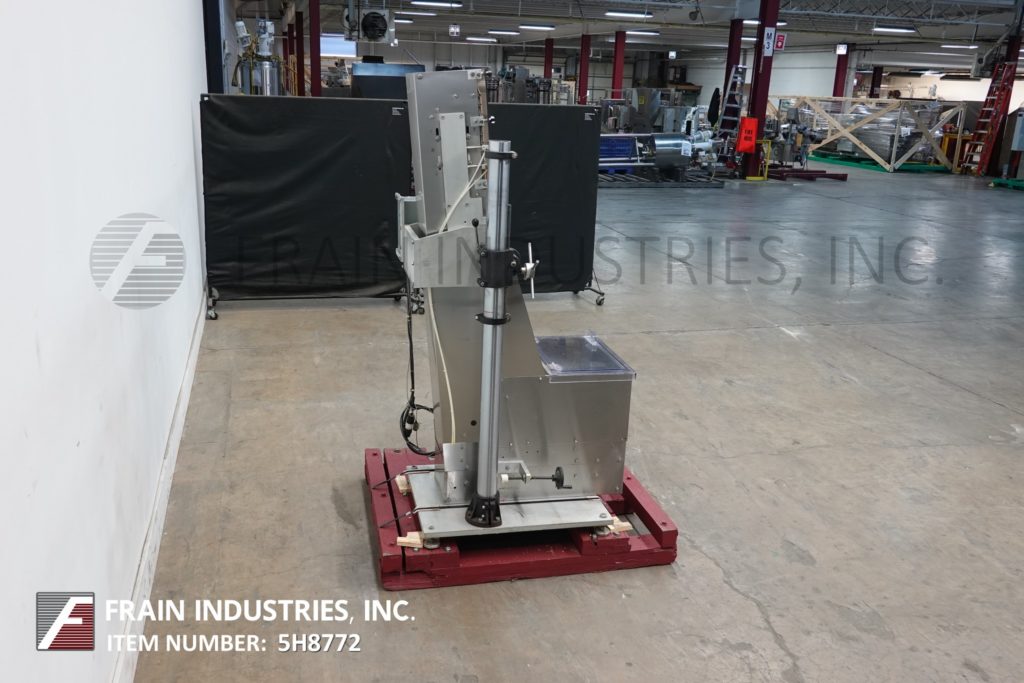

Kalish, Model SDR1, automatic stainless steel water fall style cap elevator / feeder and sorter. Rated from 50 to 300 caps per minute – depending on materials and application. Capable of handling screw, snap or childproof caps (with proper change parts). Equipped with a 34" wide x 21" long x 15" deep (5 ft³) cap hopper, 10½" wide x 60" long cleated cap conveyor belt with ¼" high cleats on 3" centers, 40" long adjustable discharge chute with 37" discharge height. Mounted on a stainless steel base frame with casters.
OAD: 50"L x 45"W x 71"H
Kalish, Model SDR2, automatic stainless steel water fall style cap elevator / feeder and sorter. Rated from 50 to 300 caps per minute – depending on materials and application. Capable of handling screw, snap or childproof caps (with proper change parts). Equipped with a 10½" wide x 55" long cleated cap conveyor belt with ¼" high cleats on 6" centers, 21" long x 33" wide x 16" deep (approx 5 ft³) stainless steel bulk product hopper, 16" long adjustable cap size discharge chute. Elevator on height adjustable stand with a 61" to 72" discharge range. Mounted on a stainless steel base frame with casters.
OAD: 53" L x 44" W x 78" H
SuperCap II stainless steel quill capper. Cap size range: 24mm to 120mm. Container size range: up to 6" in Diameter; up to 12" in Height. Equipped with 10 cu ft hopper, waterfall cap orientate / feeder and four spindle stations, Ceco gages and adjustable clutch. Mounted on leveling legs. Speeds dependant on materials, application and machine configuration.
OAD: 76" (L) x 48" (W) x 72" (H)
