Kaps All Machines


Kaps All Machines In Stock

Kaps All Filler Liquid Grav/Press FAR24

  • Manufacturer: Kaps All
  • Model Number: FAR24
  • Frain Number: R30091

Kaps All, Model FA-R-24, automatic, 24 head, stainless steel, rotary pressure filler and is rated from 60 to 240 containers per minute – depending on materials, application and machine configuration. Container size: up to 4½" in Diameter: up to 12" in Height (with proper change parts). Equipped with worm screw to star wheel in feed and discharge, 46" OD table with (24) (5/8)" OD stainless steel nozzles set on 5" centers, no container / no fill and 43" long x 12" wide x 16" deep product reservoir. Control panel has AB PLC with an AB PanelView 600 touch screen HMI and push button start / stop. Mounted on a (4) leg frame.

OAD: 96" L x 68" W x 98" H

Get a Free Quote Call: 630-629-9900

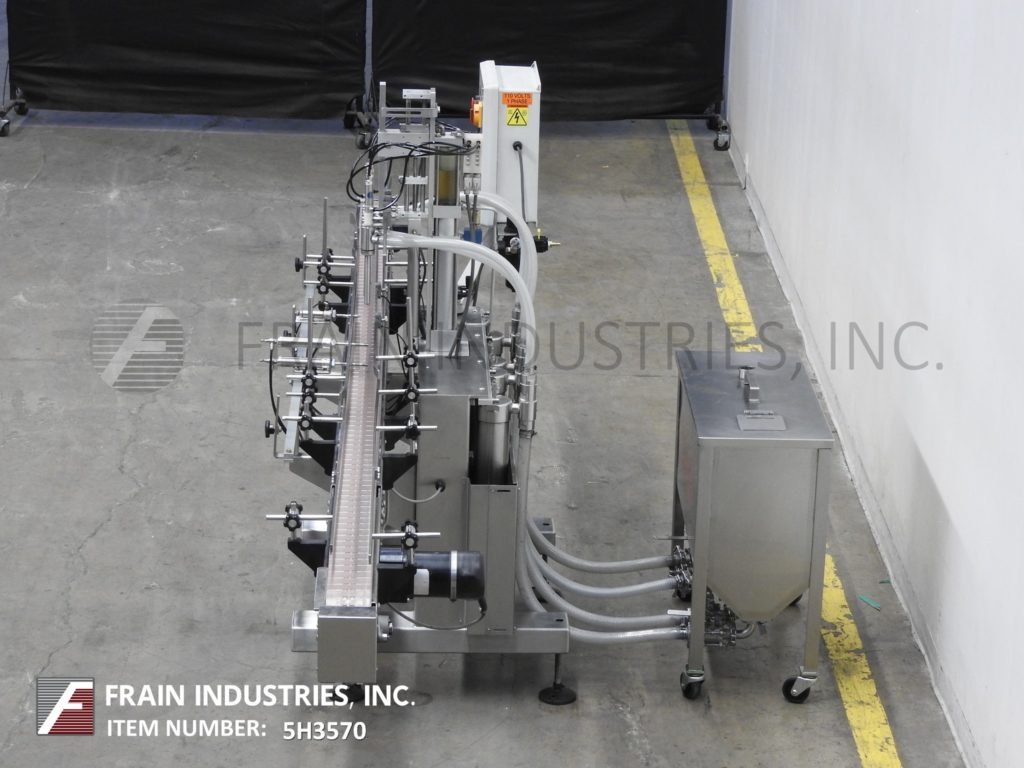

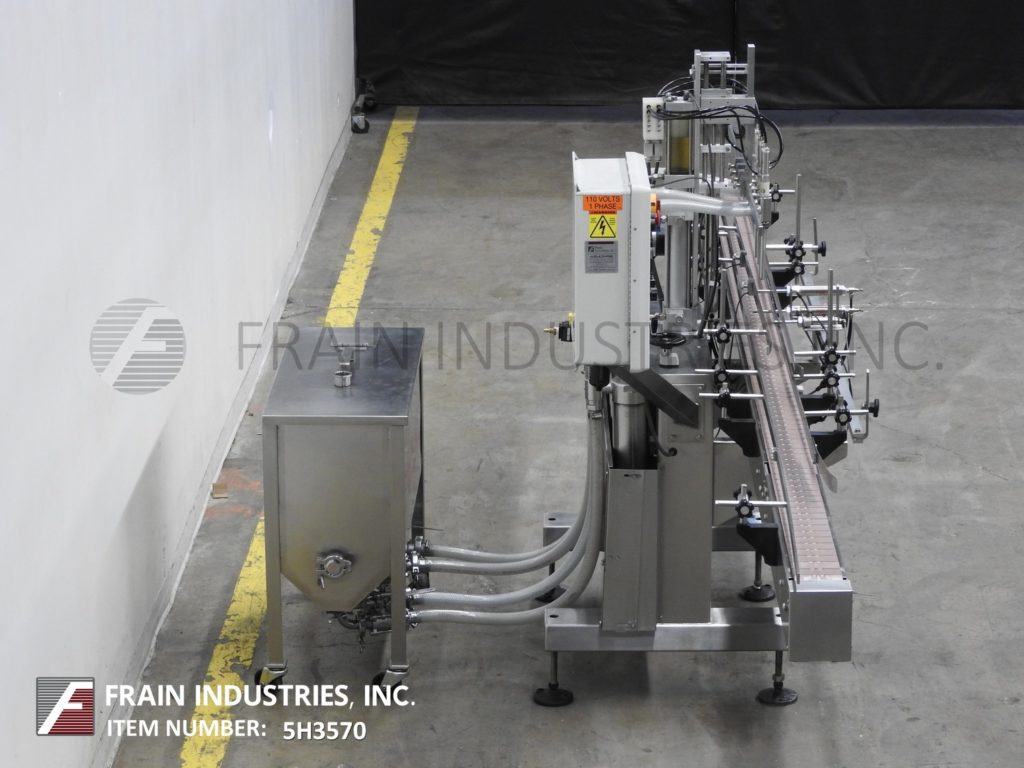

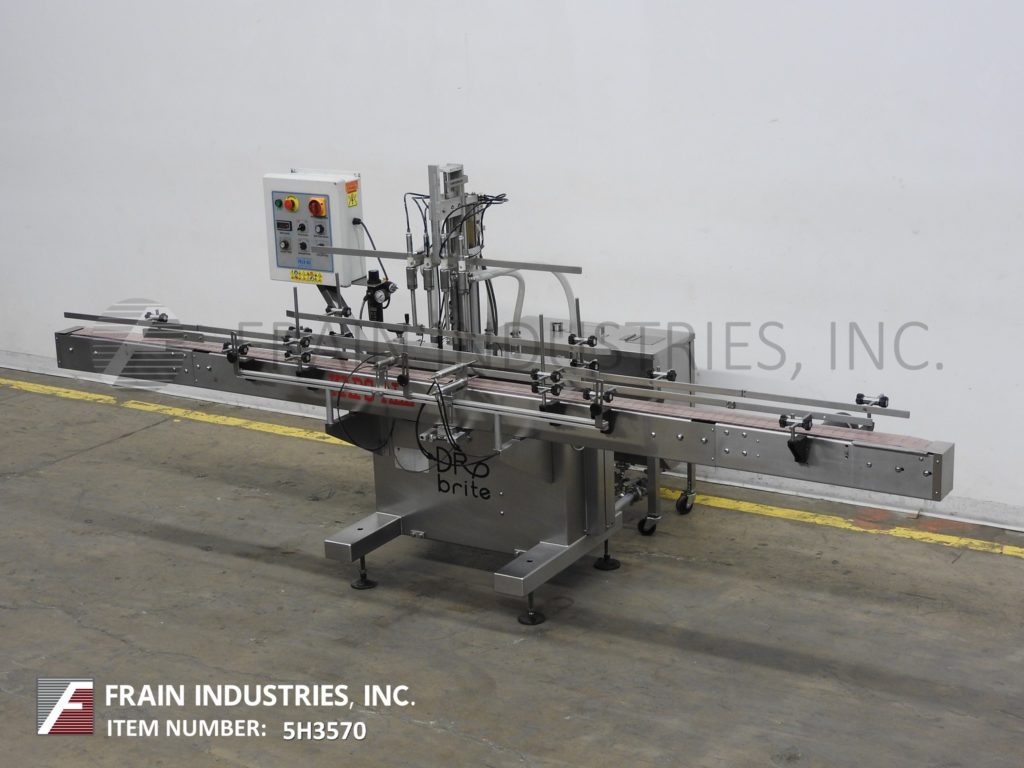

Kaps All Filler Liquid Pos Disp FILLS ALL

  • Manufacturer: Kaps All
  • Model Number: FILLS ALL
  • Frain Number: 5H3570

Kaps All, Model VOL-32-4, automatic, stainless steel 4 head piston filler. Rated from 0 to 20 cycles per minute with number of containers – depending on materials, application and machine configuration. Stainless steel contact parts. Fill range of: 10 cc to 1100 cc with proper change parts. Equipped with 4½" wide x 145" long plastic delrin product conveyor with pneumatic gate indexing, 32" long x 14" wide x 20" deep product hopper, (4) 36 oz. piston pumps with fill accuracies of ± 0.5%, and (4) ¾"OD diving nozzles (both change parts per application). Control panel has an AB controller with push button start / stop, on / off and multi-stroke selection switches and conveyor speed control dial. Mounted on base frame with casters.

OAD: 148" L x 32" W x 65" H

Get a Free Quote Call: 630-629-9900

Kaps All Capper Quill A6

  • Manufacturer: Kaps All
  • Model Number: A6
  • Frain Number: R25140

Kaps All Model A6, automatic, portable, inline, stainless steel, 3 station, 6 spindle capper rated from 20 to 200 containers per minute – depending materials, application and machine configuration. Cap size range: 8mm to 120mm. Equipped with 90" long by 4-1/2" wide delron conveyor, 32" diameter vibratory bowl, 3 station, 6 spindle cap tighting station, double gripper belts and hand crank adjustable for quick and easy changeovers. Control panel with start / e-stop buttons, cap feed, spindle, conveyor and gripper speed control dials and mounted H style stainless steel base frame with locking casters and leveling legs. (Change parts may be required to handle size and container changes).

OAD: 90" L x 48" W x 80" H

Get a Free Quote Call: 630-629-9900

Kaps All Capper Semi Auto (Capper) FC8

  • Manufacturer: Kaps All
  • Model Number: FC8
  • Frain Number: R26165

Kaps-All Model FC8, semi – automatic, stainless steel 4 station, 8 spindle capper, rated from 20 to 400 containers per minute – depending material and application. Cap size range: 8mm to 120mm, Container size range: 1oz to 2-1/2 gallons and capable of handling all types of caps including pilfer proof and child resistant, containers of plastic, metal, or glass all with proper change parts and hand crank adjustable for quick changeovers. Equipped with 36" long x 1" wide single container gripper belts, 3 station, 6 spindle non-marring cap tighners with adjustable torque clutches. Control panel with spindle and gripper belt on / off switches and speed controls dials, raise and lower switch, start, e-stop push button controls and statis light. Mounted on stainless steel base frame with casters, ment to roll over existing conveyor.

OAD: 48" L x 36" W x 65" H

Get a Free Quote Call: 630-629-9900

Kaps All Capper Quill A6

  • Manufacturer: Kaps All
  • Model Number: A6
  • Frain Number: R26570

Kaps All Model A6, automatic, inline, 3 station, 6 spindle capper rated from 50 to 200 containers per minute – depending materials and application. Cap size range: 8mm to 120mm, Container size range: low jars up to 2-1/2" gallons and capable of handling all types of caps including child resistant and plastic, metal, or glass, containers. (Change parts may be required to handle different caps and containers) Cap feeder has 25" long; 20" wide; 18" deep cap hopper with 36" long x 10" wide cleated feed belt 1/4" high cleats on 8" centers, 132" long x 4-1/2" wide plastic delron product conveyor, 3 station, 6 spindle cap tighting section hand crank adjustable for quick and easy changeovers. Control panel has start / e-stop buttons, cap feed, supply hopper, spindle, conveyor and gripper speed control dials. Mounted on H style base frame with casters and leveling legs.

OAD: 132" L x 48" W x 68" H

Get a Free Quote Call: 630-629-9900

Kaps All Capper Quill A

  • Manufacturer: Kaps All
  • Model Number: A
  • Frain Number: 5G4111

Kaps All Model A, automatic, inline, 3 station, 6 spindle capper rated from 20 to 200 containers per minute – depending on materials and application. Cap size range: 13mm to 120mm, Container size range from low jar and vials to 2-1/2 gallons, capable of handling all types of caps including pilfer proof and child resistant and containers of plastic, metal, or glass, (all with proper change parts). Equipped with 72" long x 3-1/2" wide Delran container conveyor 36" diameter vibrtory feed bowl , dual 28" long x 1" wide double container gripper belts and 3 station, 6 spindle cap tightner section with start, stop and e-stop push button controls. Mounted on painted base frame.

OAD: 72" L x 40′ W x 80" W

Get a Free Quote Call: 630-629-9900

Kaps All Capper Quill 6

  • Manufacturer: Kaps All
  • Model Number: 6
  • Frain Number: 5G0308

Kaps, All Model 6, automatic, inline, stainless steel, spindle capper rated from 20 to 150 containers per minute – depending materials, application and machine configuration. Cap size range: 8mm to 70mm, with proper change parts. Equipped with 96" long by 3-1/2" wide conveyor, bump wheel, 24" diameter feed bowl, 3 station / 6 spindle cap tighting station, single container gripper belts and e-stop. Mounted on stainless steel frame with leveling legs. Change parts may be required to accommodate size range.

OAD: 96" L x 36" W x 74" H

Get a Free Quote Call: 630-629-9900

Kaps All Capper Quill E

  • Manufacturer: Kaps All
  • Model Number: E
  • Frain Number: 5G0885

Kaps All Model E4, Automatic, 2 station, 4 spindle, quill capper / cap tightner rated from 20 to 80 containers per minute – depending on materials and application. Cap size range of: 13mm to 70mm in Diameter can handle all types of caps including child resistant. Container size range: 1oz to gallons, of plastic, metal, or glass containers with proper change parts. Equipped with 24" diameter sorting bowl, 36" long x 1/2" wide single container gripper belts, control panel with start / e-stop, cap feed, cap bin, spindle and conveyor controls with speed control dials and mounted height adjustable base frame.

OAD: 42" L x 40" W x 68" H

Get a Free Quote Call: 630-629-9900

Kaps All Capper Quill E

  • Manufacturer: Kaps All
  • Model Number: E
  • Frain Number: 5G2320

Kaps All Model E, 2 station, 4 spindle, cap tightner rated from 20 to 80 containers per minute – depending on materials and application. Cap size range: 8mm to 70mm and capable of handling all types of caps including pilfer evident and child resistant. Container size range: 1oz to gallons, of plastic, metal, or glass (with proper change parts). Equipped with 24" diameter bowl feeder, 24" long x 1" wide single container gripper belts hand crank adjustable. Control panel with cap bin, feeder, bottle gripper speed control dials, start / stop push buttons controls and mounted on base frame with casters and leveling legs to roll over existing conveyor.

OAD: 33" L x 33" W x 76" H

Get a Free Quote Call: 630-629-9900

Kaps All Feeder Incline/Cleated FSB

  • Manufacturer: Kaps All
  • Model Number: FSB
  • Frain Number: 5G9765

Kapsall, Model FS-B, stainless steel incline cleated belt feeder with number of product per hour – depending on materials and application. Equipped with 20" wide x 37" long x 30" deep (6 ft³) stainless steel product hopper, 8" wide x 84" long belt conveyor with 1½" high cleats set on 8" centers and 71" discharge height powered by a ¼ hp drive with variable speed control. Mounted on stainless steel base frame with casters.

OAD: 84"L x 30"W x 89"H

Get a Free Quote Call: 630-629-9900

Kaps All Unscrambler Disc FS-U 36

  • Manufacturer: Kaps All
  • Model Number: FS-U 36
  • Frain Number: 5H0395

Kaps All, Model FS-U 36, 36" OD disc accumulator. Equipped with 24" wide x 24" long manual pack off station, 2" high adjustable side guide rails, 32" to 37" discharge height and control panel with on / off switch and speed control dial.

OAD: 60"L x 36"W x 42"H

Get a Free Quote Call: 630-629-9900

Kaps All Capper Quill E

  • Manufacturer: Kaps All
  • Model Number: E
  • Frain Number: 5G5050

Kaps All, Model E, semi-automatic 2-station 4-spindle quill capper. Cap size range: 8mm to 70mm. Container size range: 1oz to gallons. Equipped with 20" long x 20" wide x 12" deep stainless steel cap hopper, 22" diameter Syntron bowl sorter, adjustable C-shape chute, 4½" wide x 87" long Delrin conveyor, 25" long x ¾" wide single container gripper belts. Control panel with spindle, gripper, cap feed, cap bin and conveyor speed dials and on / off switches, start / e-stop buttons and mounted on stainless steel base with conveyor and casters. Speeds dependant on materials, application, environment and machine configuration

OAD: 90" L x 34" W x 94" H

Get a Free Quote Call: 630-629-9900
