Label Aire Machines

Label Aire Labeler P/S Wrap 3111

• Manufacturer: Label Aire
• Model Number: 3111
• Frain Number: 5G2981

Label-Aire Inc. Model 3111, Automatic pressure sensitive wrap labeler. Speeds from 500" to 1500" per minute with number of labels and packages – depending on materials, application and machine configuration. Equipped with Label-aire Model 3111 label head and has a label size range of: 3/4" to 4" in Width; 3/4" to 5" in Length with accuracy: + / – 1/32" with touch pad controls and readout. 96" long x 7" wide Quadro product roller conveyor, with 1/3 Hp motor drive and 1-3/4" wide wrap belt. Maximum label roll of 16" OD on 2-1/2" OD core and maximum label rewind roll of 9" OD on 1" OD core and a maximum web width of 4.13". Control panel has main power and conveyor on / off switches with wrap belt and conveyor speed control dials, start, stop and e-stop push buttons with statis light bars. Mounted on height adjustable "T" style stand with locking casters and leveling legs.

OAD: 80" L x 36" W x 98" H

Label Aire Labeler P/S Spot 3114

• Manufacturer: Label Aire
• Model Number: 3114
• Frain Number: 5G7796

Dual Label Aire, Model 3114, pressure sensitive, tamp on spot, around the corner, tamper evident labeling system. Rated from 600 to 1500 linear inches per minute with number of product – depending on materials and application. Equipped with (2) swivel mounted bracket label heads, 12" OD label roll and 7" OD powered label rewind, (2) 1" wide x 14" long overhead product hold down belts and (2) side rollers to fold label around corner. Stepper driven has touch pad controller with digital display and statis light bar. Mounted on 8" wide x 165" long belt conveyor with casters.

OAD: 168"L x 73"W x 74"H

Label Aire Labeler P/S Spot 3115NV

• Manufacturer: Label Aire
• Model Number: 3115NV
• Frain Number: R29992

Label Aire Model 3115 NV 1500 7"x16" RH pressure sensitive, wipe on spot labeler rated from 600 to 1,500 linear inches per minute, with number of product – depending on materials and application. Equipped with swivel mounted bracket with accuracies of +/- 1/32", and has 1" to 10" adjustable stroke with maximum 20" OD label roll and 20" OD label rewind with 3" ID cores and has stepper drive, with touch pad controller with R3 digital display. Mounted on hand crank height adjustable T-stand with casters. Can be converted to do left or right hand use as well as doing top, side or bottom labeling.

OAD: 48"L x 35"W x 70"H

Label Aire Labeler P/S Spot 3115NV

• Manufacturer: Label Aire
• Model Number: 3115NV
• Frain Number: R29993

Label Aire Model 3115 NV 1500 7"x16" RH pressure sensitive, wipe on spot labeler rated from 600 to 1,500 linear inches per minute, with number of product – depending on materials and application. Equipped with swivel mounted bracket with accuracies of +/- 1/32", and has 1" to 10" adjustable stroke with maximum 20" OD label roll and 20" OD label rewind with 3" ID cores and has stepper drive, with touch pad controller with R3 digital display. Mounted on hand crank height adjustable T-stand with casters. Can be converted to do left or right hand use as well as doing top, side or bottom labeling.

OAD: 48"L x 35"W x 70"H

Label Aire Labeler P/S Spot 3114NV

• Manufacturer: Label Aire
• Model Number: 3114NV
• Frain Number: R29990

Label Aire Model 3114 NV 1500 7"x16" RH 1-10"ST pressure sensitive, blow tamp spot labeler rated from 600 to 1,500 linear inches per minute, with number of product – depending on materials and application. Equipped with swivel mounted bracket and blow tamp label head with label size range: 3/4" to 5" in Length; 3/4" to 4" in Width, with accuracies of +/- 1/32", and has 1" to 10" adjustable stroke with maximum 20" OD label roll and 20" OD label rewind with 3" ID cores and has stepper drive, with touch pad controller with R3 digital display. Mounted on hand crank height adjustable T-stand with casters. Can be converted to do left or right hand use as well as doing top, side or bottom labeling.

OAD: 48"L x 35"W x 70"H

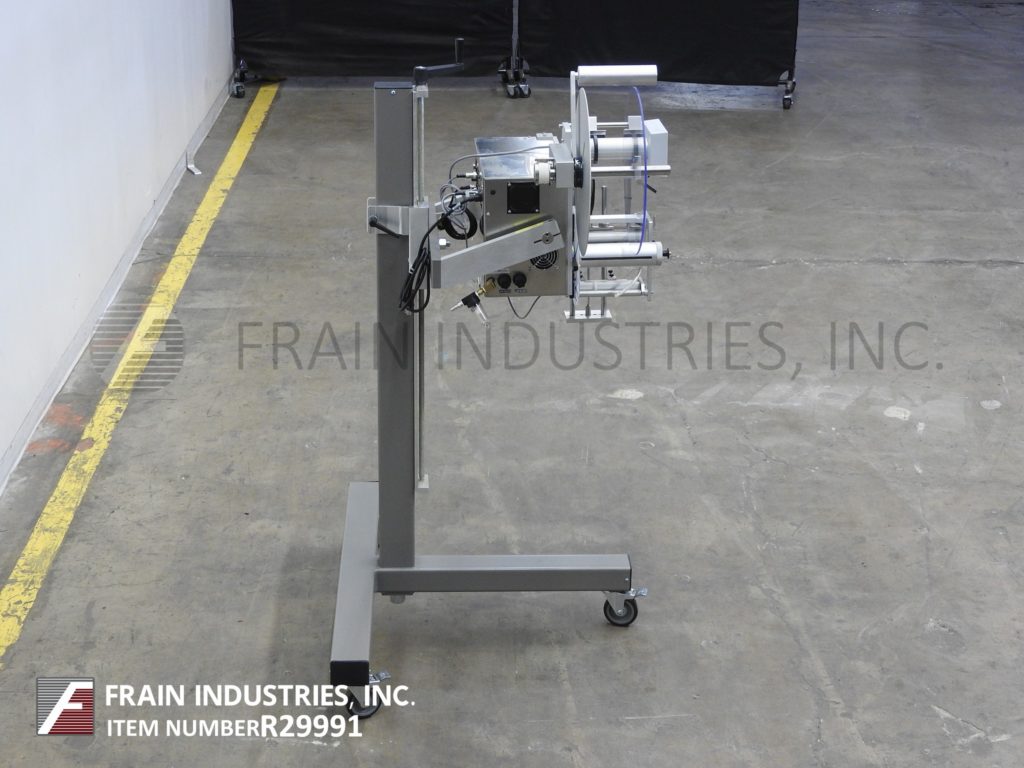

Label Aire Labeler P/S Spot 3114NV

• Manufacturer: Label Aire
• Model Number: 3114NV
• Frain Number: R29991

Label Aire Model 3114 NV 1500 7"x16" RH 1-10"ST pressure sensitive, blow tamp spot labeler rated from 600 to 1,500 linear inches per minute, with number of product – depending on materials and application. Equipped with swivel mounted bracket and blow tamp label head with label size range: 3/4" to 5" in Length; 3/4" to 4" in Width, with accuracies of +/- 1/32", and has 1" to 10" adjustable stroke with maximum 20" OD label roll and 20" OD label rewind with 3" ID cores and has stepper drive, with touch pad controller with R3 digital display. Mounted on hand crank height adjustable T-stand with casters. Can be converted to do left or right hand use as well as doing top, side or bottom labeling.

OAD: 48"L x 35"W x 70"H

Label Aire Labeler P/S Spot 2114ST

• Manufacturer: Label Aire
• Model Number: 2114ST
• Frain Number: 5D8514

Label Aire 2114ST automatic pressure sensitive tamp labeling system. System consists of 2114ST labeling head mounted over 96" long x 4" wide conveyor. Labeling head is a stepper driven pressure sensitive tamp labeler with speeds of 500 to 1250 ft/min. Label dimensions: up to 4" in Width; up to 5-1/2" in Length. Placement accuracy to +/- 1/32". Equipped with 12" diameter foam applicator wheel and variable speed adjustment for applicator wheel and conveyor speed. Labeler mounted on 3-axis stand for complete adjustability. Maximum roll diameter of 12" on a 3" ID core.

OAD: 120"(L) x 50"(W) x 72"(H)

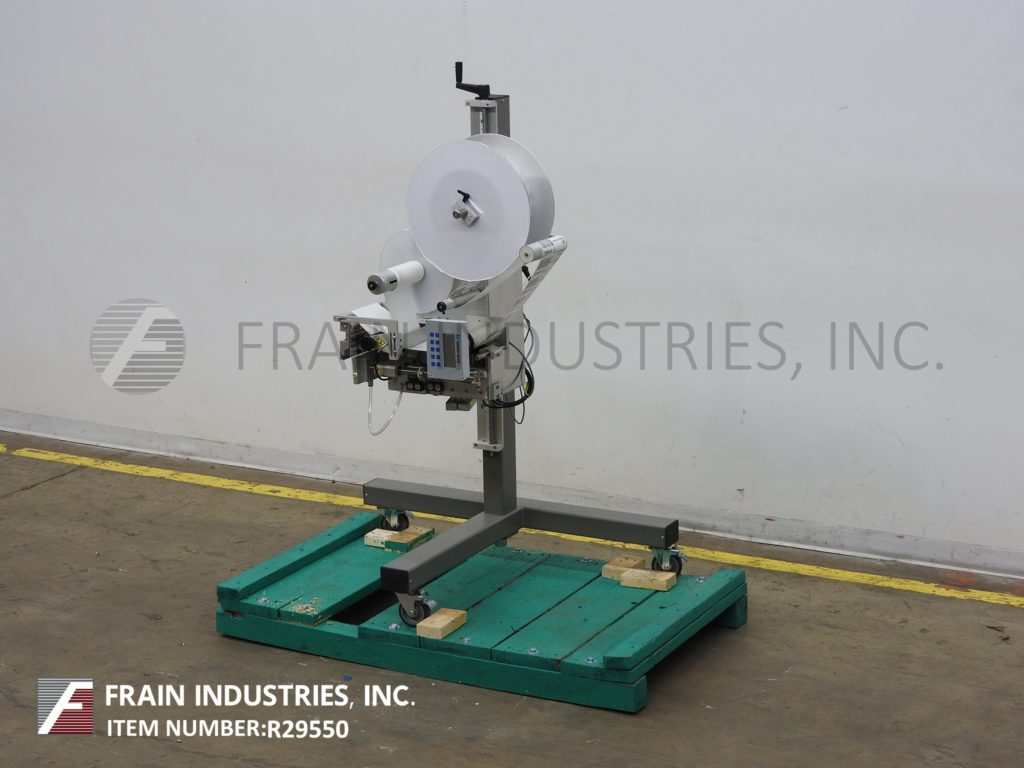

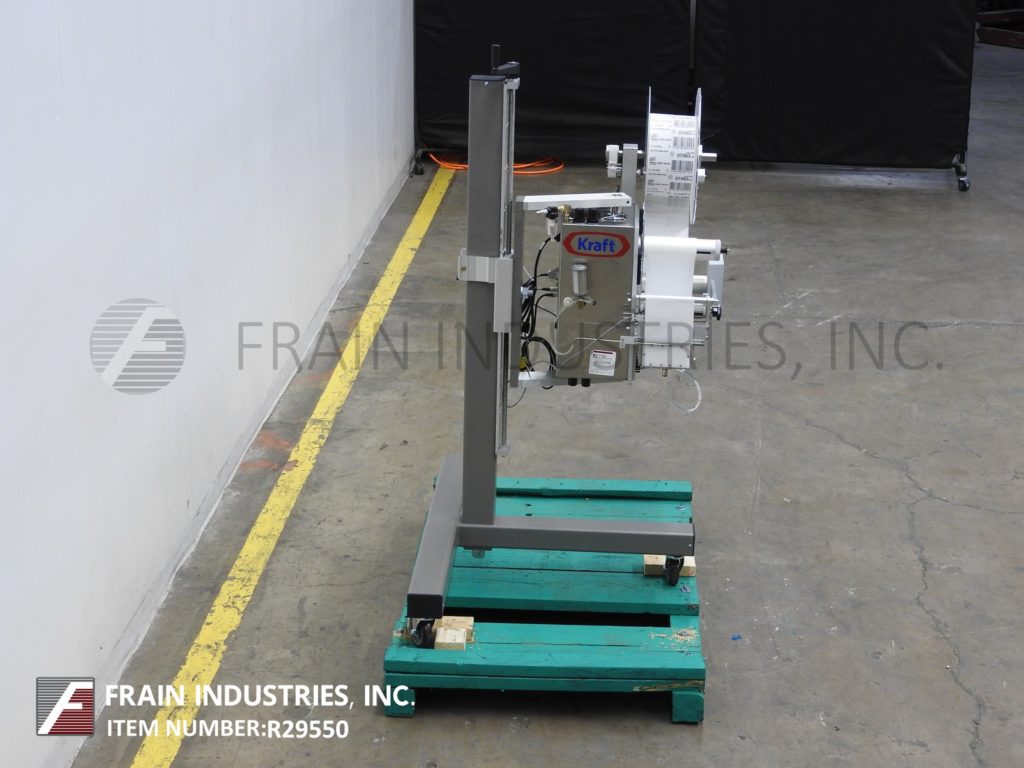

Label Aire Labeler P/S Spot 3114NV

• Manufacturer: Label Aire
• Model Number: 3114NV
• Frain Number: R29550

Label Aire Model 3114 NV 1500 7"x16" RH 1-10"ST pressure sensitive, blow tamp spot labeler rated from 600 to 1,500 linear inches per minute, with number of product – depending on materials and application. Equipped with swivel mounted bracket and blow tamp label head with label size range: 3/4" to 5" in Length; 3/4" to 4" in Width, with accuracies of +/- 1/32", and has 1" to 10" adjustable stroke with maximum 20" OD label roll and 20" OD label rewind with 3" ID cores and has stepper drive, with touch pad controller with R3 digital display. Mounted on hand crank height adjustable T-stand with casters. Can be converted to do left or right hand use as well as doing top, side or bottom labeling.

OAD: __" L x __" W x __" H

Label Aire Labeler P/S Spot 3114NV

• Manufacturer: Label Aire
• Model Number: 3114NV
• Frain Number: R29551

Label Aire Model 3114 NV 1500 7"x16" RH 1-10"ST pressure sensitive, blow tamp spot labeler rated from 600 to 1,500 linear inches per minute, with number of product – depending on materials and application. Equipped with swivel mounted bracket and blow tamp label head with label size range: 3/4" to 5" in Length; 3/4" to 4" in Width, with accuracies of +/- 1/32", and has 1" to 10" adjustable stroke with maximum 20" OD label roll and 20" OD label rewind with 3" ID cores and has stepper drive, with touch pad controller with R3 digital display. Mounted on hand crank height adjustable T-stand with casters. Can be converted to do left or right hand use as well as doing top, side or bottom labeling.

OAD: __" L x __" W x __" H

Label Aire Labeler P/S Spot 2114CD

• Manufacturer: Label Aire
• Model Number: 2114CD
• Frain Number: R20241

Tamp/blow label applicator capable of dispensing 1,600” of web per/min with a maximum label width of 4” and label length dependent on application. Label accuracy up to +/- 1/32”. Features include 20" extended diameter unwind clearance, stepper driven motor, power unwind/power rewind and menu driven microprocessor to allow repeatable settings. Tamp/blow applicator stroke is approximately 3". Additional feature includes a T-base stand with 36" vertical adjustment and leveling legs.
OAD:42”(L) x 50”(W) x 70"(H)

Label Aire Labeler P/S Spot 3114-15002X4RH

• Manufacturer: Label Aire
• Model Number: 3114-15002X4RH
• Frain Number: R24430

Label Aire 3114 pressure sensitive, blow tamp spot labeler capable of speeds from 600 to 2000 linear inches per minute, number of product – depending on materials and application. Equipped with swivel mounted bracket and blow tamp label head with label size range: 3/4" – 5" in Length ; 3/4" – 4" in Width, with accuracies of: +/- 1/32", maximum 12" OD label roll, and maximim 7" OD powered label rewind with 3" ID cores. Features stepper drive, touch pad controller with digital display, and is mounted on hand crank height adjustable T-stand with casters.

OAD: 45" L x 35" W x 68" H

Label Aire Labeler P/S Spot 3115CD/2114CD

• Manufacturer: Label Aire
• Model Number: 3115CD/2114CD
• Frain Number: 5F8670

Label Aire model 3115CD / 2114CD top and bottom pressure sensitive labeling system rated from 100 to 1250 linear inches per minute, with number of labels – depending on materials and application. Label size range: 3/4" to 4" in Width; Length dependant on application with label placement accuracy of up to +/- 1/32". Equipped with (2) 57" long x 1-1/2" wide side product gripper belts with 4" to 7-1/2" adjustable in width. Label Aire 3115CD pressure sensitive stepper driven wipe on labeler on top and Label Aire 2114CD tamp blow labeler on bottom with maximum roll diameter of 12" on 3" OD core. Mounted on frame with height adjustable from 4" to 7".

Nordson AZO-7 coder available at additional cost.

OAD: 60"L x 35"W x 79"H
