Mueller Machines

Mueller Tank Processors 3000GAL

• Manufacturer: Mueller
• Model Number: 3000GAL
• Frain Number: 5J0607

Mueller, 3,000 gallon capacity, 304 stainless steel low pressure jacketed processor with vessel dimensions of 84" dia x 128" straight wall. Equipped with 18" manway, top mounted sweep agitation powered by a 3 hp drive, thermowell and CIP spray balls supplied by 2"OD / 1½" ID Tri-clamp fitting. slant bottom has 2½" OD / 2" ID Tri-Clamp discharge with 21" ground clearance.

Top Ports:
(2) 3½"OD / 3"ID Tri-Clamp
(1) 2½"OD / 2"ID Tri-Clamp

Jacket Ports:
(6) 2½"OD / 2"OD Tri-Clamp

OAD: 106"L x 96"W x 190"H

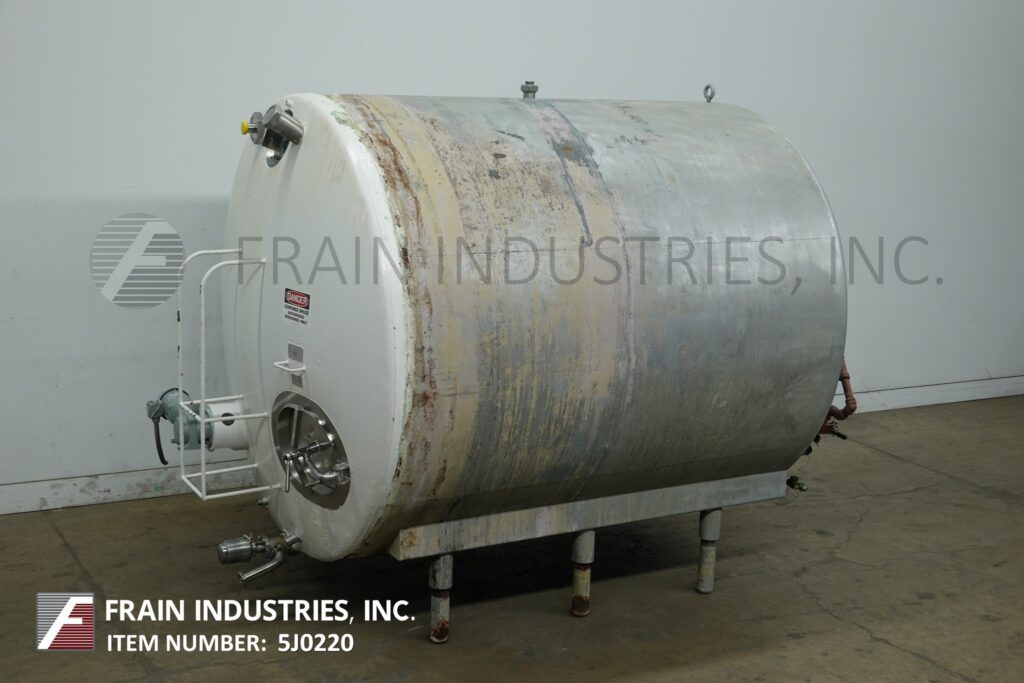

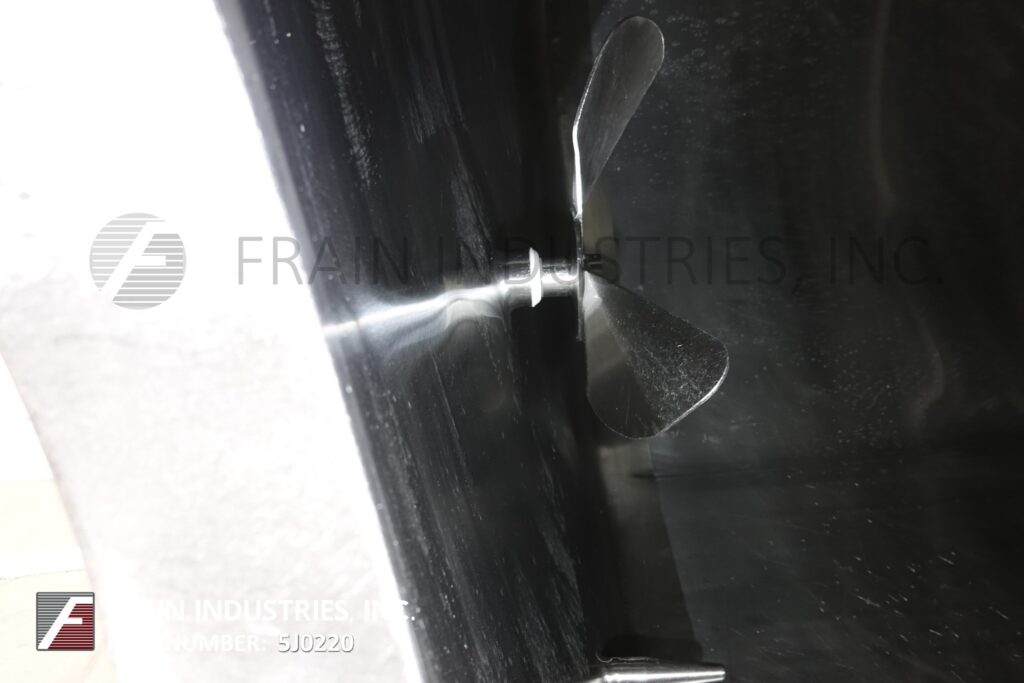

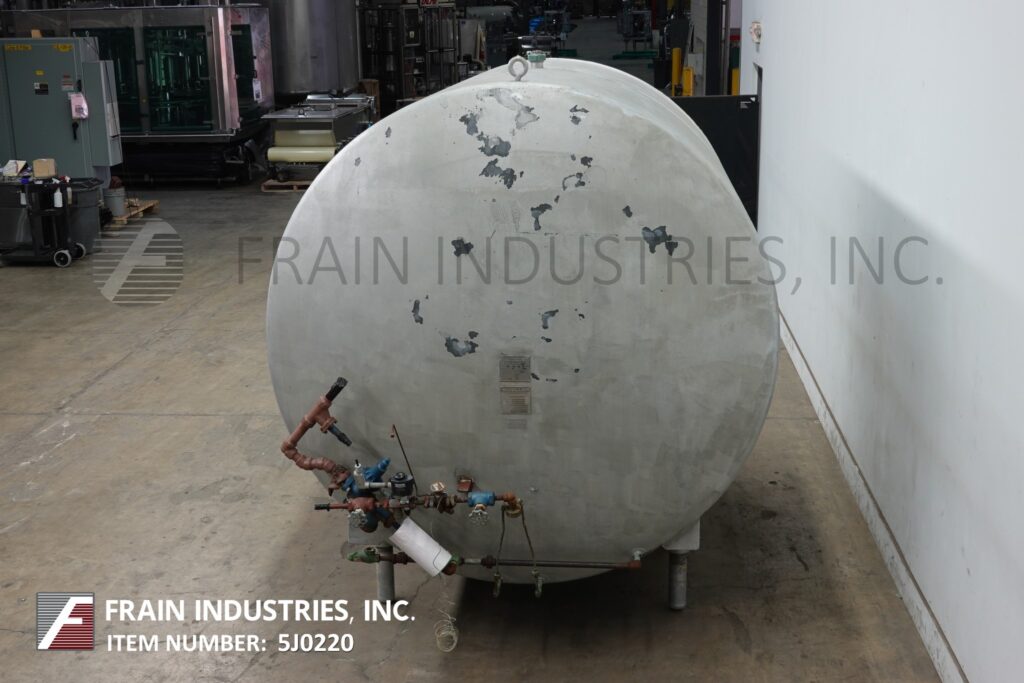

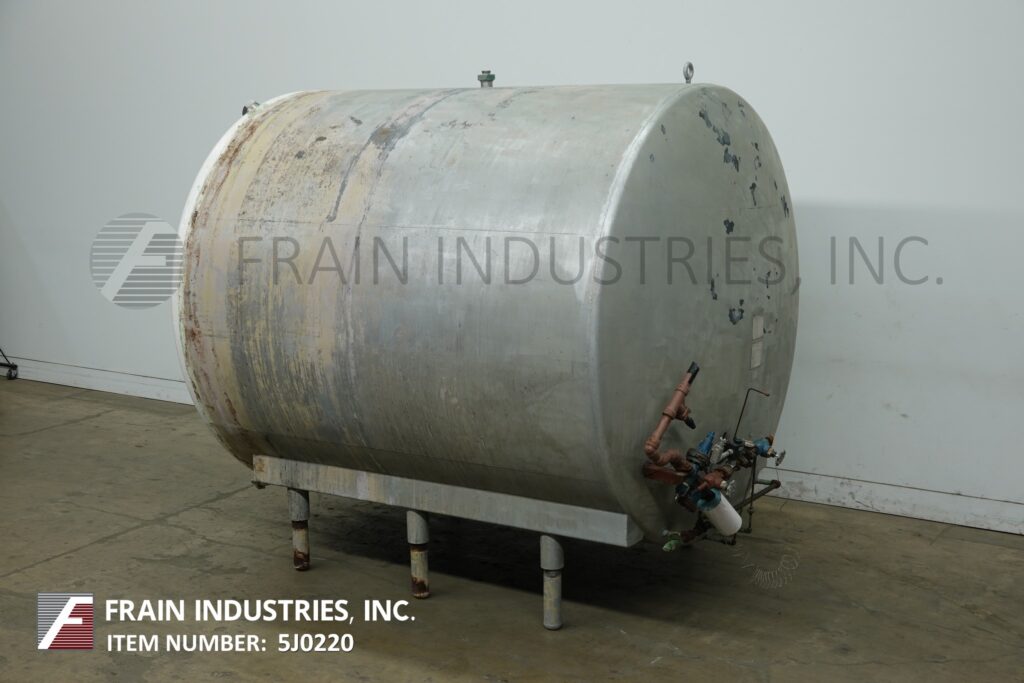

Mueller Tank Processors SHW

• Manufacturer: Mueller
• Model Number: SHW
• Frain Number: 5J0220

Mueller, 2,500 Gallon total capacity, 304 stainless steel, jacketed, horizontal mixing tank. Chamber dimensions: 87" diameter x 100" length. Equipped with 20" x 15" manway with cover, side mounted prop style agitation, temp probe, CIP spray ball and 2½"OD / 2"ID Tri-clamp style side bottom outlet with 10" ground clearance.

Nat’l Brd: 31
MAWP: 150 PSI @ 400°F

OAD: 140"L x 94"W x 112"H

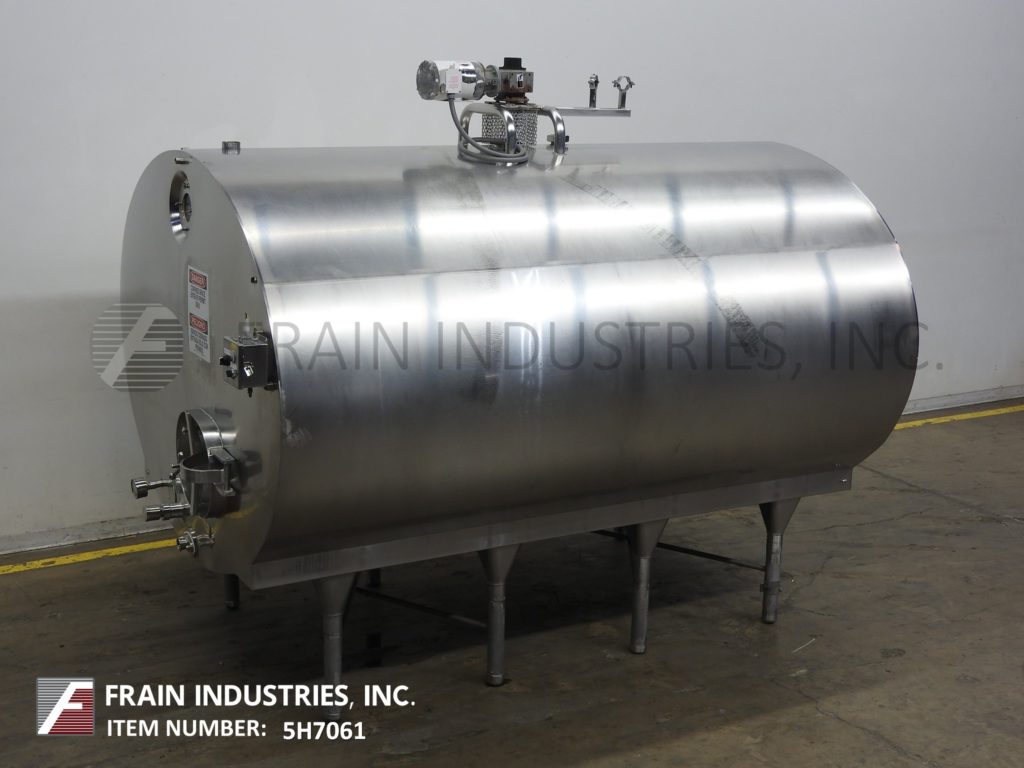

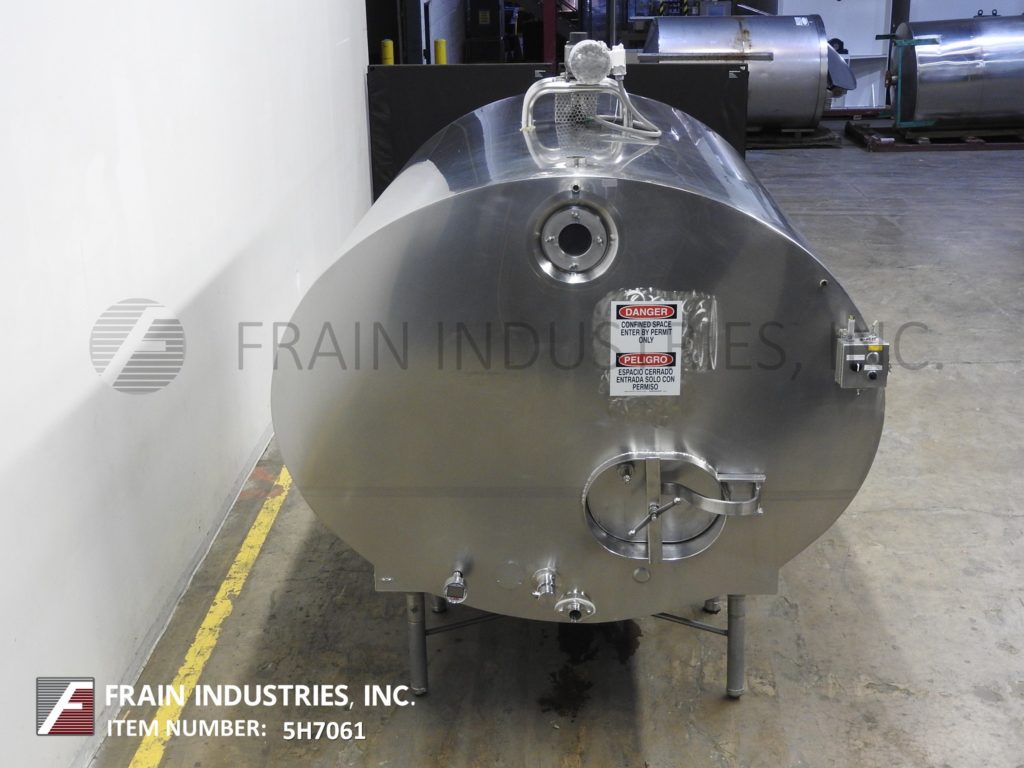

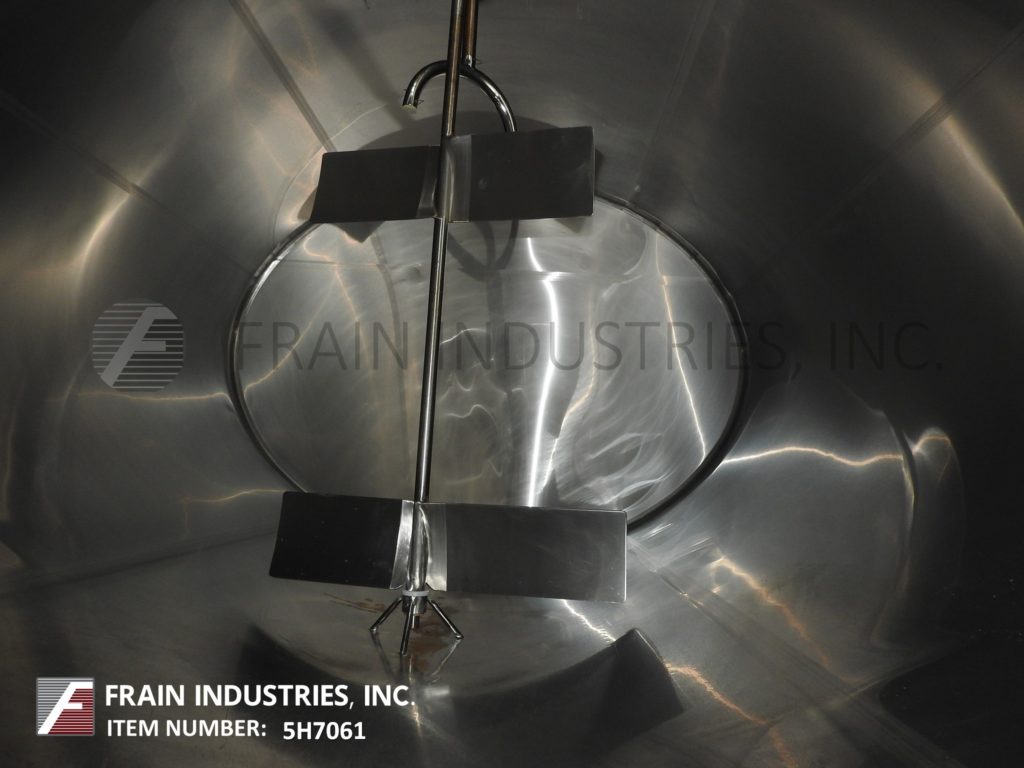

Mueller Tank Processors 2000 GAL

• Manufacturer: Mueller
• Model Number: 2000 GAL
• Frain Number: 5H7061

Mueller, 2,000 Gallon total capacity, 304 stainless steel, ammonia jacketed, horizontal mixing tank. Chamber dimensions: 65" height x 84" width x 114" length. Equipped with 20" OD manway with cover, top mounted prop style agitation powered by a 1 hp drive, CIP spray ball and 2½"OD / 2"ID Tri-clamp stlye side bottom outlet with 20" ground clearance.

MAWP: 150 PSI (ammonia)

OAD: 125"L x 90"W x 110"H

Mueller Tank Processors 2000 GAL

• Manufacturer: Mueller
• Model Number: 2000 GAL
• Frain Number: 5H7062

Mueller, 2,000 Gallon total capacity, 304 stainless steel, ammonia jacketed, horizontal mixing tank. Chamber dimensions: 65" height x 84" width x 114" length. Equipped with 20" OD manway with cover, top mounted prop style agitation powered by a 1 hp drive, CIP spray ball and 2½"OD / 2"ID Tri-clamp stlye side bottom outlet with 20" ground clearance.

MAWP: 150 PSI (ammonia)

OAD: 125"L x 90"W x 110"H

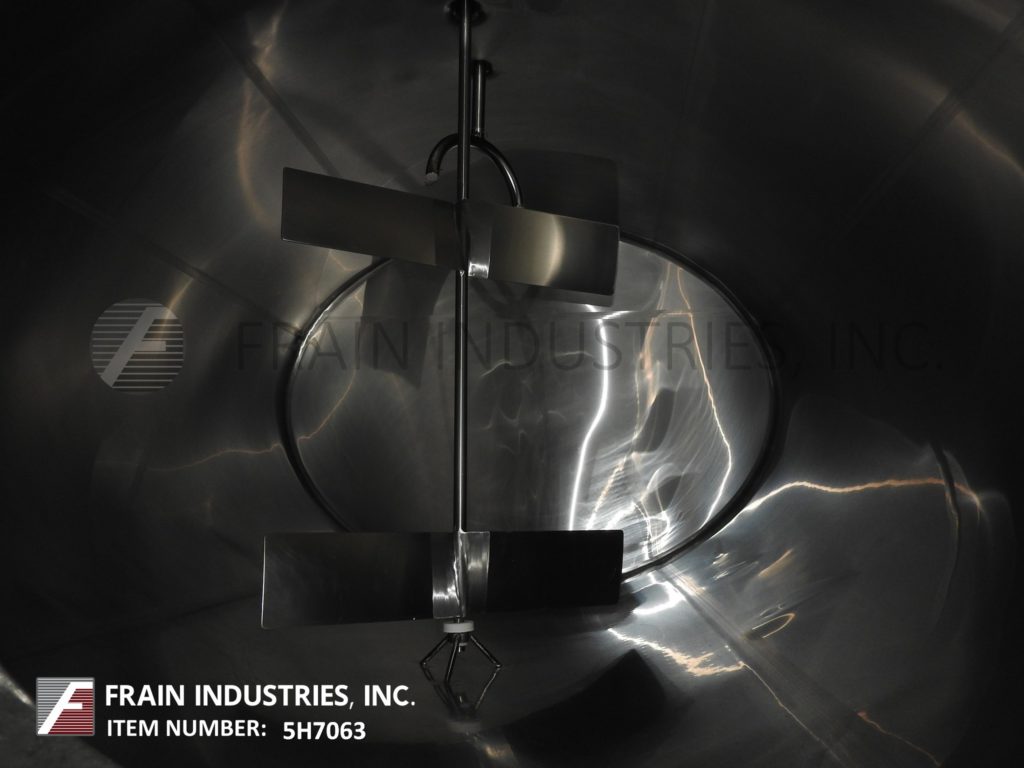

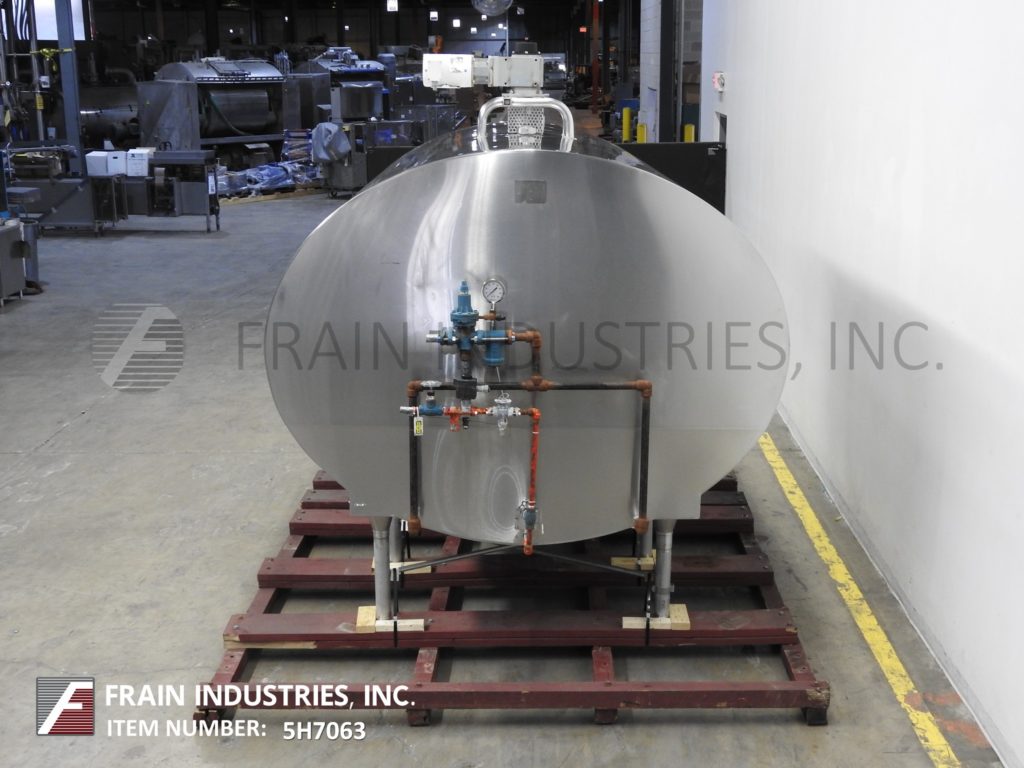

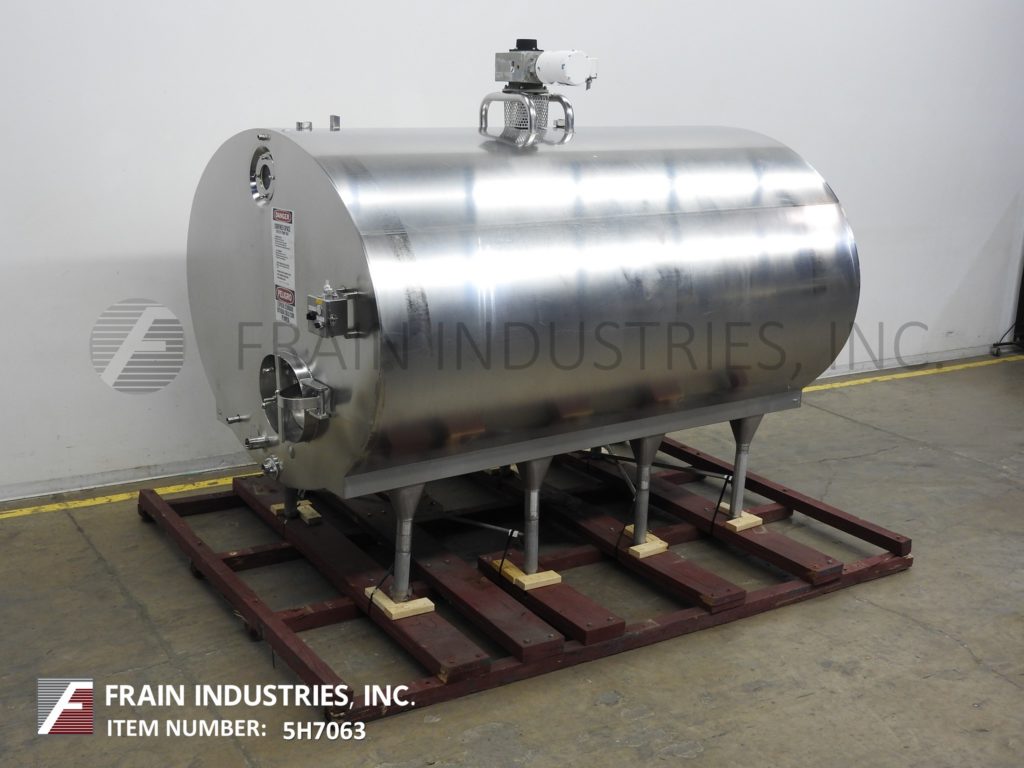

Mueller Tank Processors 2000 GAL

• Manufacturer: Mueller
• Model Number: 2000 GAL
• Frain Number: 5H7063

Mueller, 2,000 Gallon total capacity, 304 stainless steel, ammonia jacketed, horizontal mixing tank. Chamber dimensions: 65" height x 84" width x 114" length. Equipped with 20" OD manway with cover, top mounted prop style agitation powered by a 1 hp drive, CIP spray ball and 2½"OD / 2"ID Tri-clamp stlye side bottom outlet with 20" ground clearance.

MAWP: 150 PSI (ammonia)

OAD: 125"L x 90"W x 110"H

Mueller Tank Processors SHW

• Manufacturer: Mueller
• Model Number: SHW
• Frain Number: 5H7060

Mueller, 2,000 Gallon total capacity, 304 stainless steel, ammonia jacketed, horizontal mixing tank. Chamber dimensions:84" OD x 90" straight wall. Equipped with 20" OD manway with screw down swing open cover, 28" diameter prop style agitation powered by a 2 hp drive, CIP spray ball and 3"OD / 2½"ID Tri-clamp stlye side bottom outlet.

MAWP: 150 PSI (ammonia)

OAD: 120"L x 90"W x 110"H

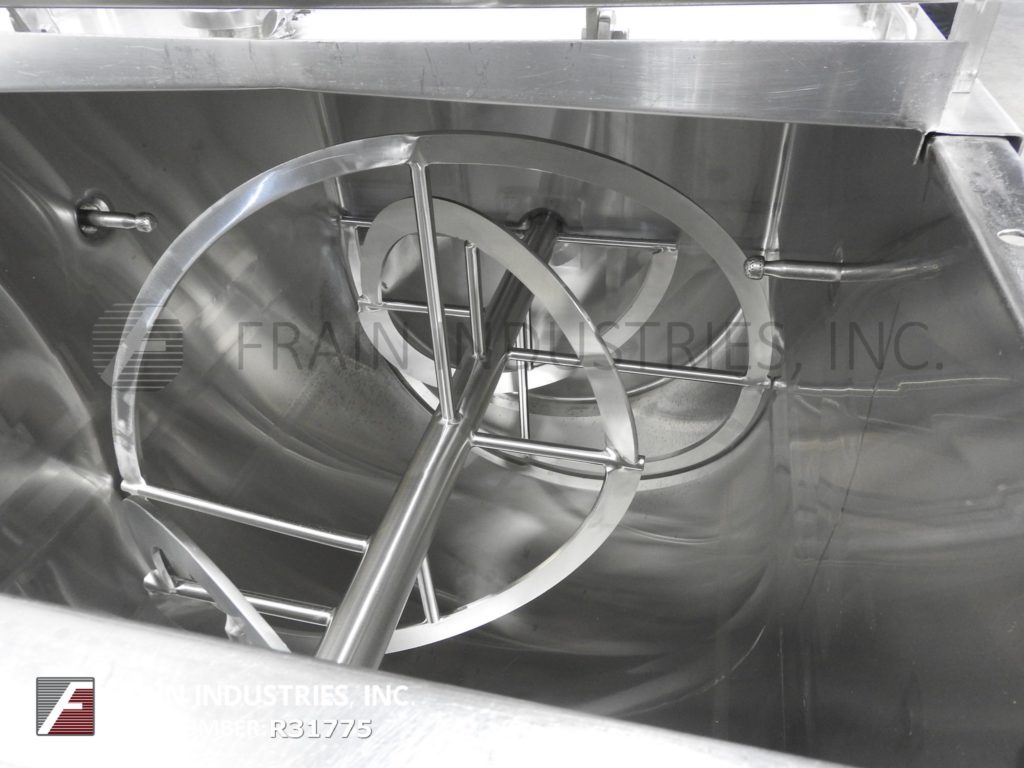

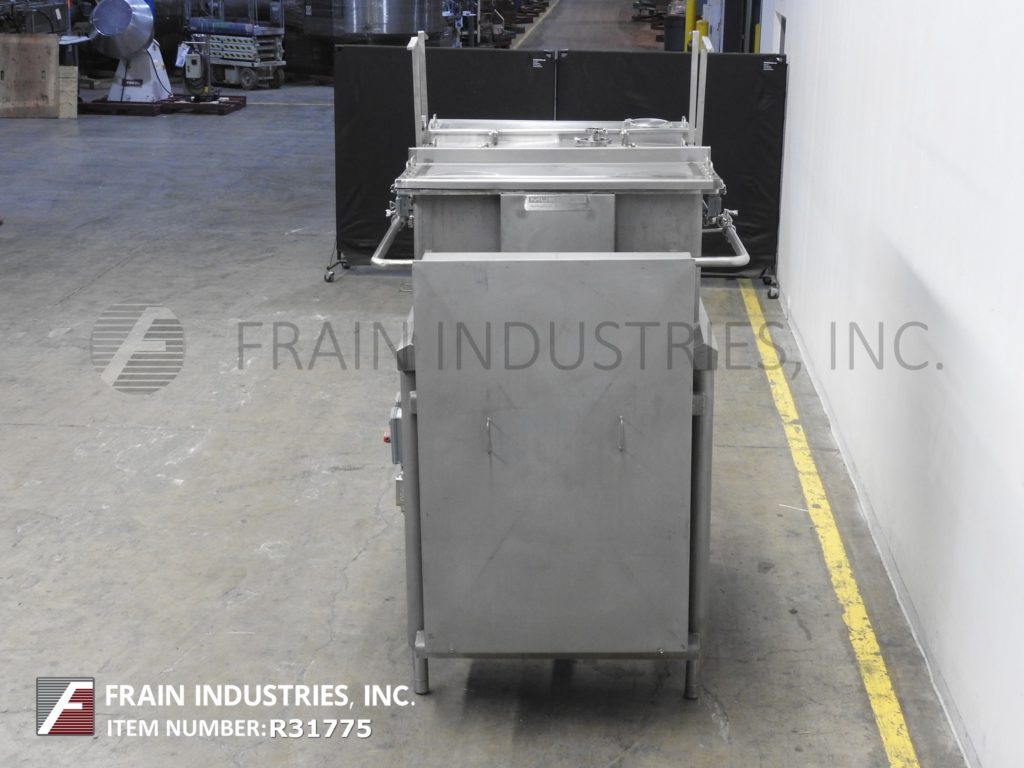

Mueller Mixer Powder Ribbon S. S. 50FT³

• Manufacturer: Mueller
• Model Number: 50FT³
• Frain Number: R31775

Mueller, 50 ft³, double ribbon mixer with pounds of product per hour – depending on materials and application. 304 stainless steel contact parts. Inner mixing chamber dimensions of: 58" in Length; 41" in Width; 45" in Depth. Equipped with dual flip up cover and lift out safety grate, 3" OD mixing shaft with 1½" wide x (5/8)" thick (outer) and 2½" wide x (3/8)" thick (inner) stainless steel ribbons and (2) CIP spray balls. 4¾"OD / 3¾" ID Tri-Clamp discharge with 27" ground clearence. Mounted on (4) leg frame.

OAD: 96"L x 55"W x 80"H

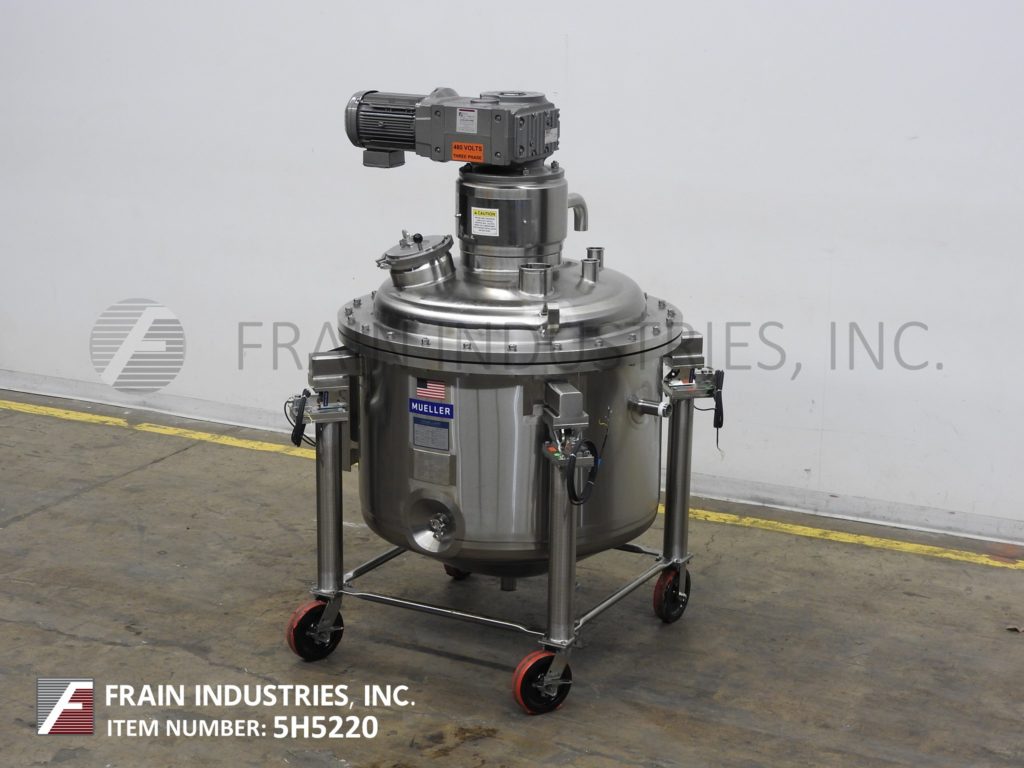

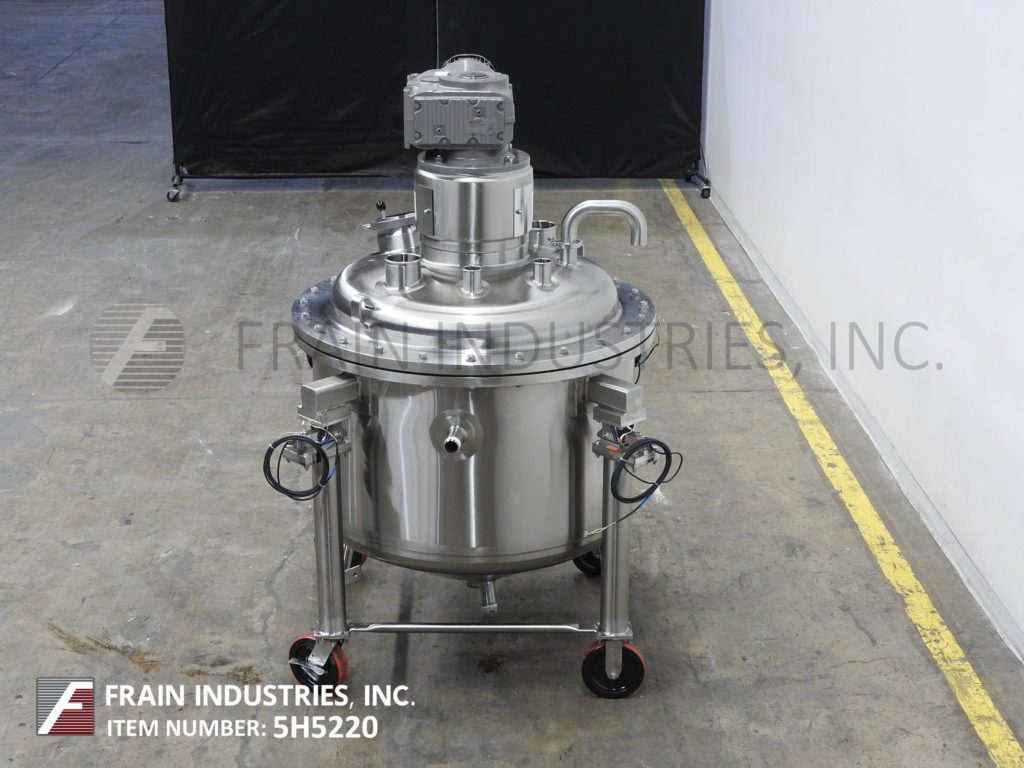

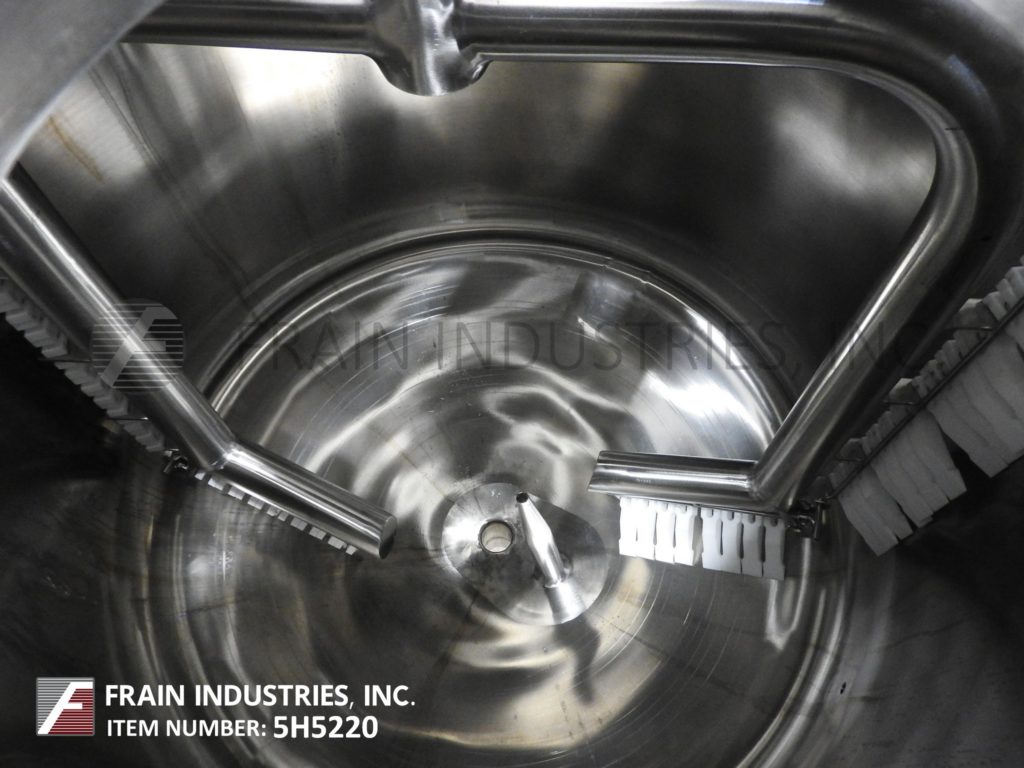

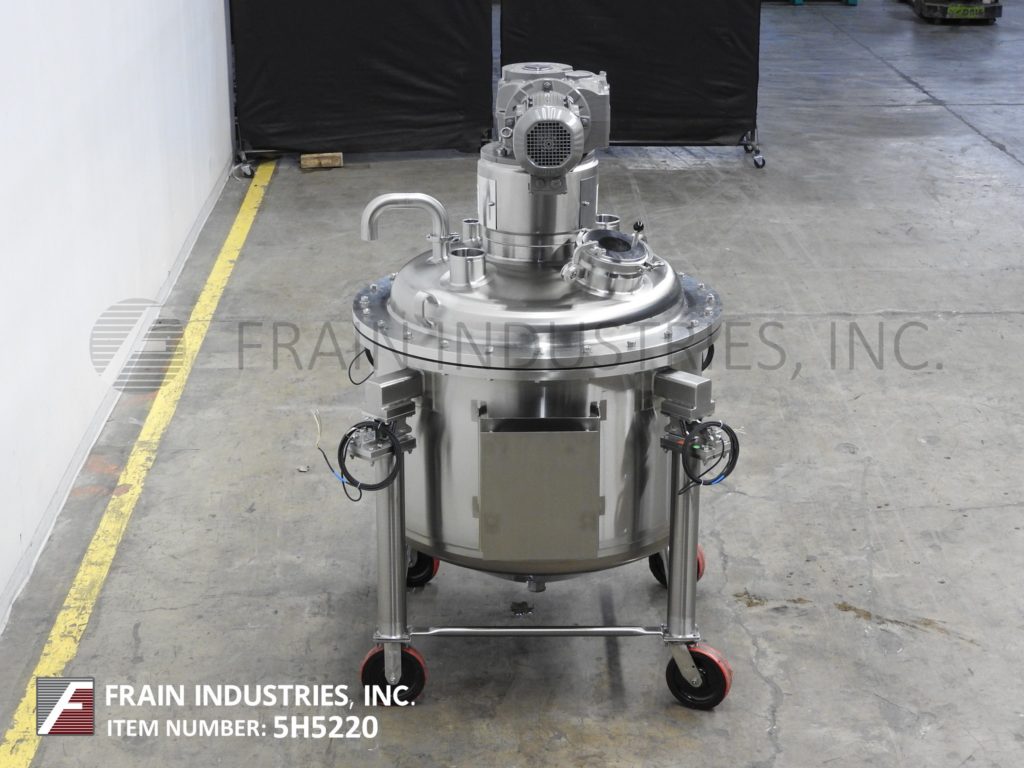

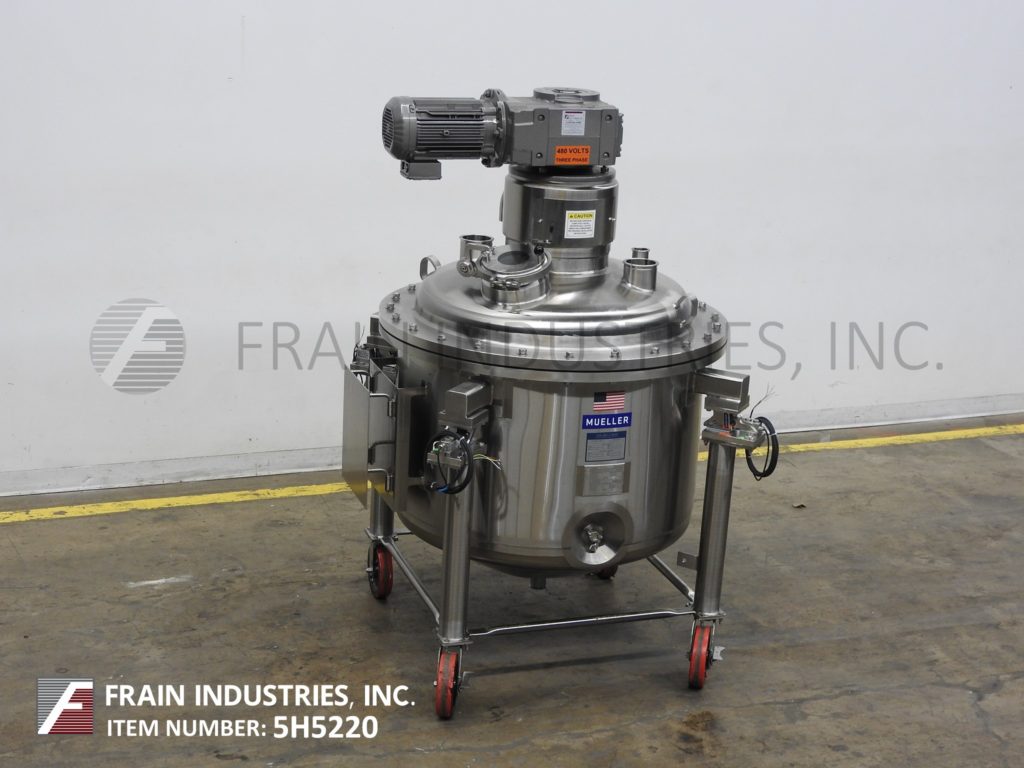

Mueller Tank Processors 500 LITER

• Manufacturer: Mueller
• Model Number: 500 LITER
• Frain Number: 5H5220

Mueller, 500 Liter, 316 stainless steel jacketed process tank. Vessel dimensions: 36" ID x 36" deep with 28" straight wall. Equipped with an 8" diameter bolt down manway with sight glass, (1) thermowell, 5 Hp top mounted scrape agitator and 2½" OD / 2" ID tri-clamp style bottom center discharge with 7" ground clearance. Mounted on a stainless steel (4) leg base with casters and Mettler Toledo load cells.

Top Ports:
(3) 2½"OD / 2"ID Tri-Clamp
(2) 4½"OD / 4"ID Tri-Clamp

Jacket Ports:
(2) 1½" NPT

Jacket:
MAWP: 100 PSI/FV @ 250°F
MDMT: -20°F @ 100 PSI/FV

Nat’l Brd: 52019

OAD: 55"L x 48"W x 78"H

Mueller Tank Processors 500 LITER

• Manufacturer: Mueller
• Model Number: 500 LITER
• Frain Number: 5H5221

Mueller, 500 Liter, 316 stainless steel jacketed process tank. Vessel dimensions: 36" ID x 36" deep with 28" straight wall. Equipped with an 8" diameter bolt down manway with sight glass, (1) thermowell, 5 Hp top mounted scrape agitator and 2½" OD / 2" ID tri-clamp style bottom center discharge with 7" ground clearance. Mounted on a stainless steel (4) leg base with casters and Mettler Toledo load cells.

Top Ports:
(3) 2½"OD / 2"ID Tri-Clamp
(2) 4½"OD / 4"ID Tri-Clamp

Jacket Ports:
(2) 1½" NPT

Jacket:
MAWP: 100 PSI/FV @ 250°F
MDMT: -20°F @ 100 PSI/FV

Nat’l Brd: 52018

OAD: 55"L x 48"W x 78"H

Mueller Tank SS JKT 1000 GAL

• Manufacturer: Mueller
• Model Number: 1000 GAL
• Frain Number: R29036

Mueller, 1000 gallon capacity, 304 stainless steel, insulated process tank. Vessel dimensions: 78" diameter x 70" deep with a 46" straight wall. Equipped with a dome top with an 18" diameter top hinged man way, (1) fixed angle baffle, (2) thermowells, 5Hp / 6 Hp (2) speed top mounted scrape agitator and 3" ID discharge with 6"OD / 5"ID Tri-clamp adaptor with 24" ground clearance.

Top Ports:
(1) 3½"OD / 3"ID Tri-Clamp
(1) 3"OD / 2½"ID Tri-Clamp
(1) 3"OD Open Vent

Jacket Ports:
(5) 1½" NPT

OAD: 105"L x 96"W x 135"H

Mueller Tank Processors 120 GAL

• Manufacturer: Mueller
• Model Number: 120 GAL
• Frain Number: 5G1972

Mueller, 450 Liter, 120 gallon, 316 stainless steel, jacketed, internal pressure & vacuum rated mix vessel. Vessel dimensions: 32" ID x 36" straight wall. Equipped with dome top, 16" manway with 3" OD sanitary port, prop style agitator, (3) 2" OD and (1) 3" OD sanitary top ports. Full side and bottom jacket with 1-1/2" ID NPT in / outlets. Dish bottom has 3" OD sanitary center bottom discharge with valve with 10" floor clearance with valve (16" floor clearance without valve).
National Board #10605

Jacket:
MAWP 150 psi @ 365°F

Vessel:
MAWP 50 psi @ 365°F
Full Vacuum

OAD: 40" Diameter x 88" High
