Mueller Tank Processors 120 GAL

  Back to All Equipment

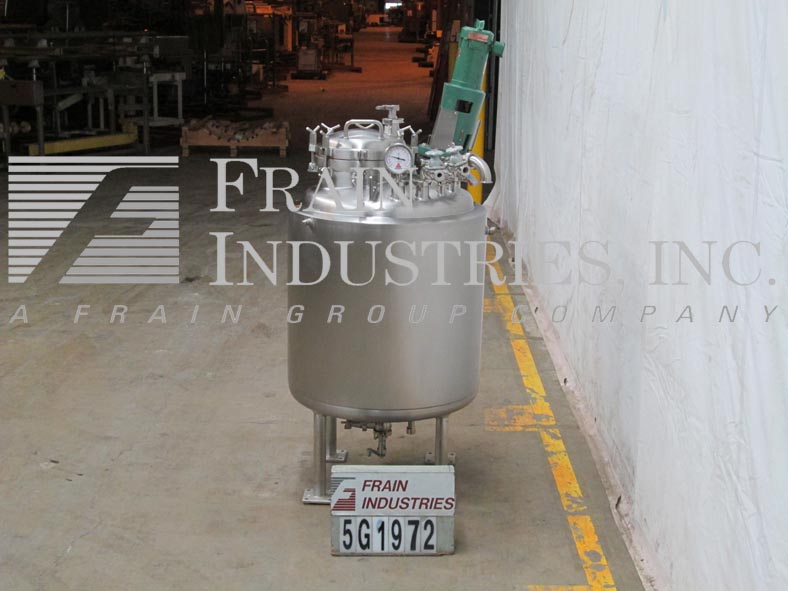

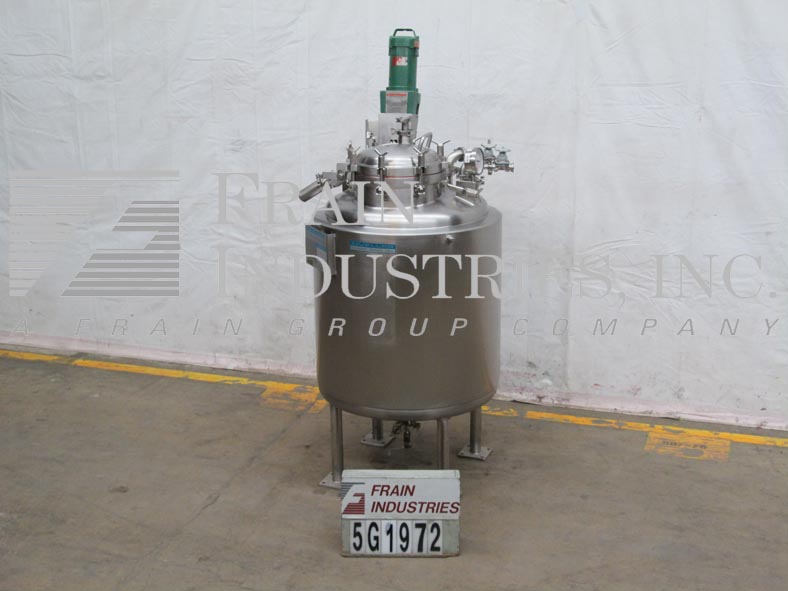

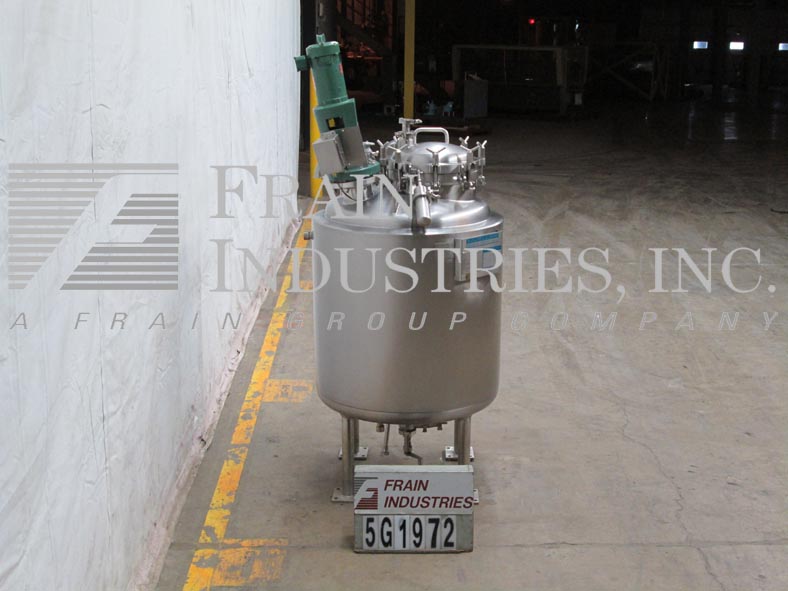

Mueller, 450 Liter, 120 gallon, 316 stainless steel, jacketed, internal vacuum rated mixing tank. Vessel dimensions: 26" ID x 36" straight wall. Equipped with dome top, 16" ID bolt down man way with 3" OD sanitary port, top flange mounted paddle style mixer with 9" OD flange with (8) 3/4" bolt holes on 3-1/2" centers and (3) 2" OD and (1) 3" OD sanitary top ports. Full side and bottom jacket with pressure ratings of: MAWP 150 psi @ 365 Deg F. Full Internal vacuum with pressure rating of: MAWP 50 psi @ 365 Deg F with (2) 1-1/2" ID, side and (1) 1-1/2" ID threaded bottom jacket in / outlets. Dish bottom has 3" OD staintary center bottom discharge with valve and 16" floor clearance without valve and 10" floor clearence with valve. Mounted on (4) stainless steel legs. National Board #10605

OAD: 40" Diameter x 88" High
