Stainless Steel Processor Machines

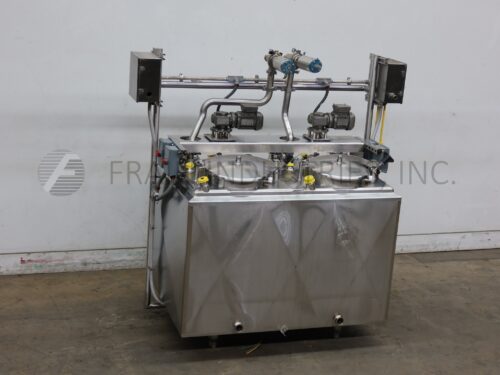

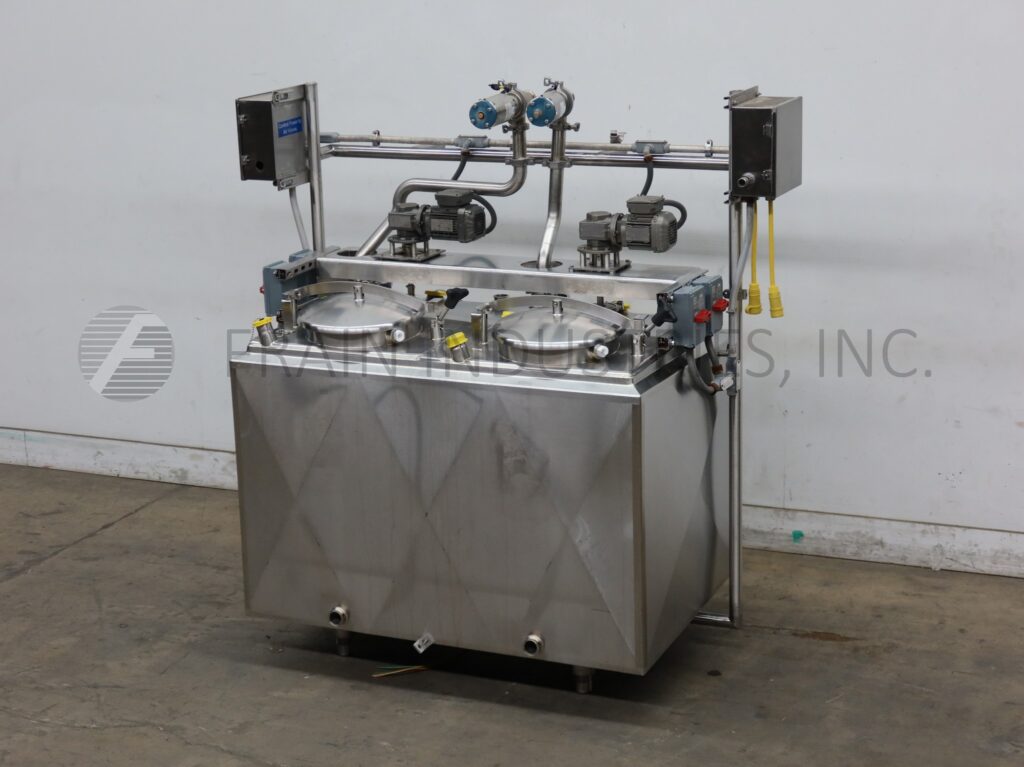

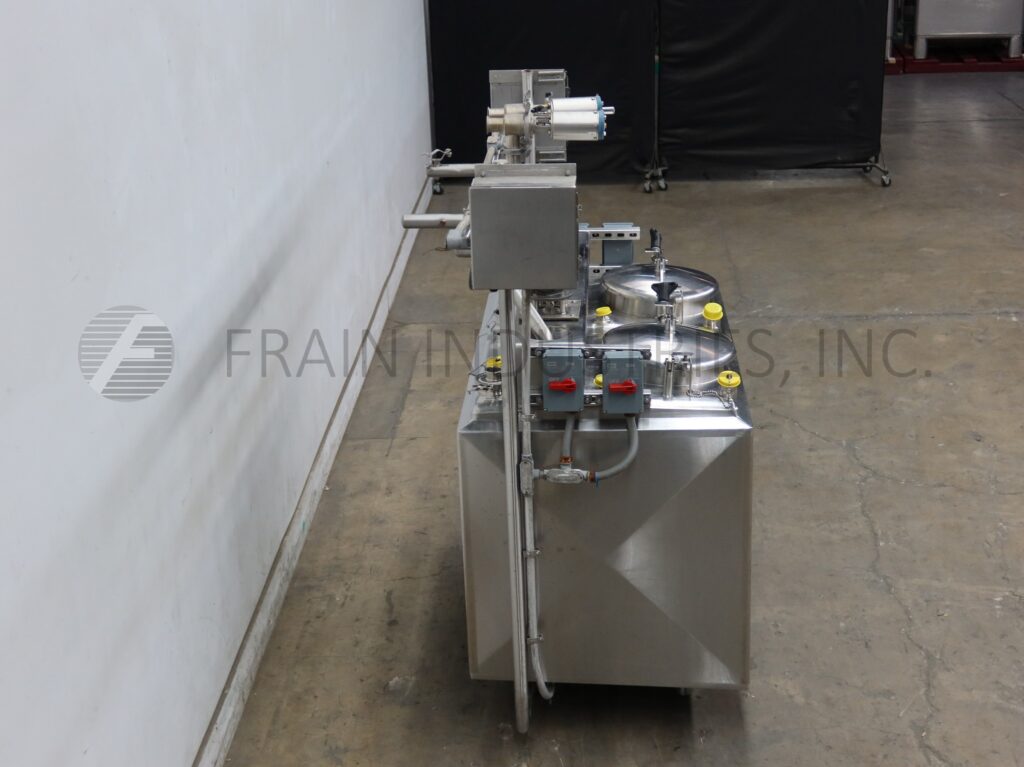

Stainless Fabrication Inc Tank Processors 100 GALLON

• Manufacturer: Stainless Fabrication Inc
• Model Number: 100 GALLON
• Frain Number: 5J2655

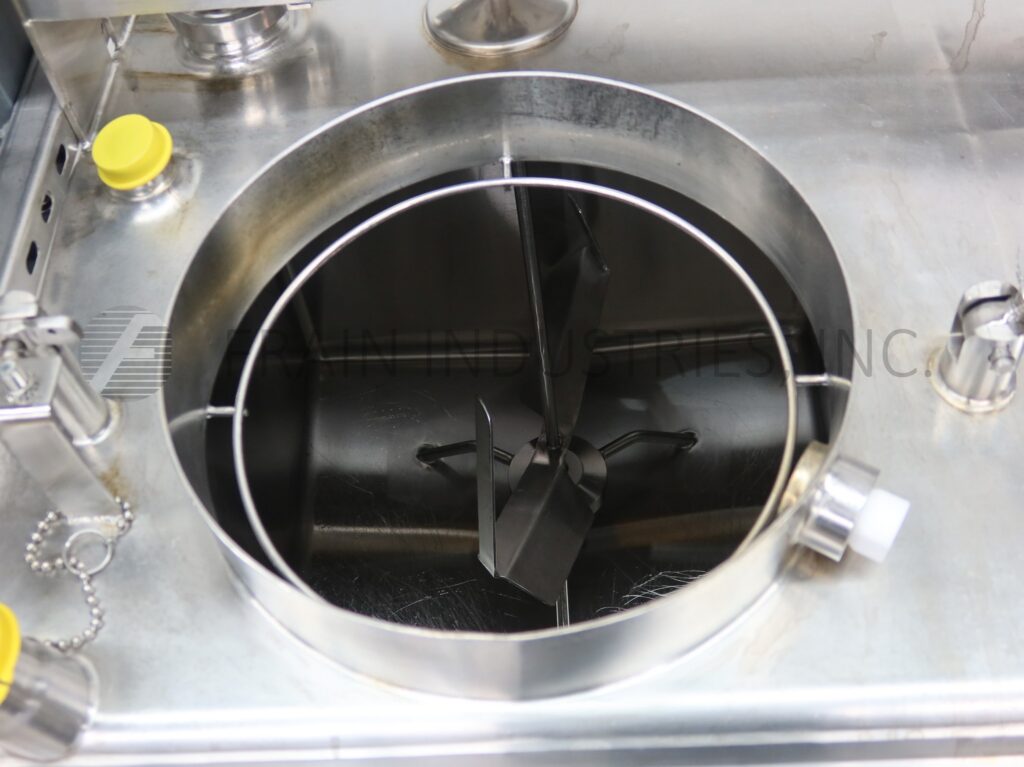

Stainless Fabrication Inc, 100 Gallon Dual Compartment, 316 stainless steel, insulated flavor tank. Each chamber is 100 gallons with inner dimension of 28" x 34" x 33" Deep. Equipped with lift up covers, 16" diameter manway, top mounted prop agitation powered by ½ Hp motor drive and CIP spray balls supplied by 2½"OD / 2"ID Tri-Clamp fittings. Slant bottom has 2½" OD / 2" ID Tri-Clamp side bottom discharge with 8" floor clearance.
Rectangle construction provides maximum capacity in small floor area.

Top Access Ports (Left Compartment)
(1) 4½"OD / 4"ID Tri-Clamp
(1) 3"OD / 2½"ID Tri-Clamp
(2) 2½"OD / 2"ID Tri-Clamp
(1) 2"OD / 1½"ID Tri-Clamp

Top Access Ports (Right Compartment)
(2) 4½"OD / 4"ID Tri-Clamp
(1) 3"OD / 2½"ID Tri-Clamp
(1) 2½"OD / 2"ID Tri-Clamp
(1) 2"OD / 1½"ID Tri-Clamp

OAD: 81"L x 48"W x 81"H

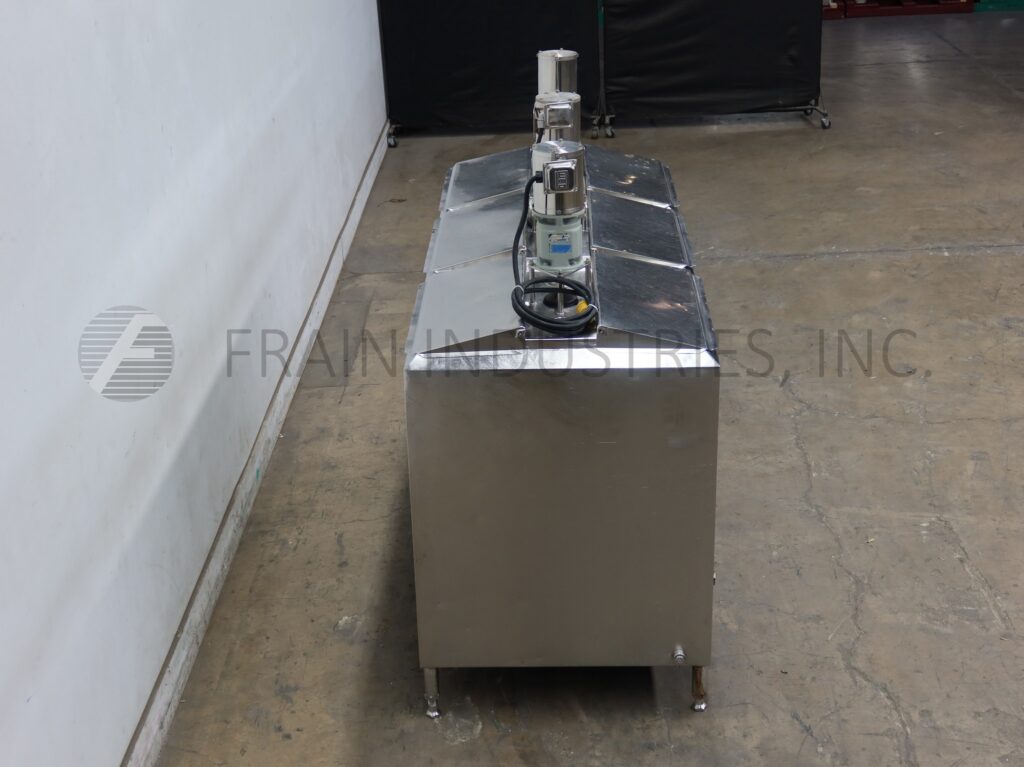

Cherry Burrell Tank Processors BC

• Manufacturer: Cherry Burrell
• Model Number: BC
• Frain Number: 5J2654

Cherry Burrell, model BC, 3- Compartment, 304 stainless steel, low pressure jacketed and insulated flavor tank. Each chamber is 150 gallons with inner dimension of 28" x 34" x 39" Deep. Equipped with lift up covers, 28" x 12" manway, top mounted prop agitation powered by ½ Hp motor drive. Slant bottom has 2" OD / 1½" ID Tri-Clamp side bottom discharge with 10½" floor clearance.
Rectangle construction provides maximum capacity in small floor area.

Top Access Ports (each compartment)
(1) 2½"OD / 2"ID Tri-Clamp
(1) 2"OD / 1½"ID Tri-Clamp

Jacket Ports
(2) ¾" NPT

OAD: 97"L x 41"W x 75"H

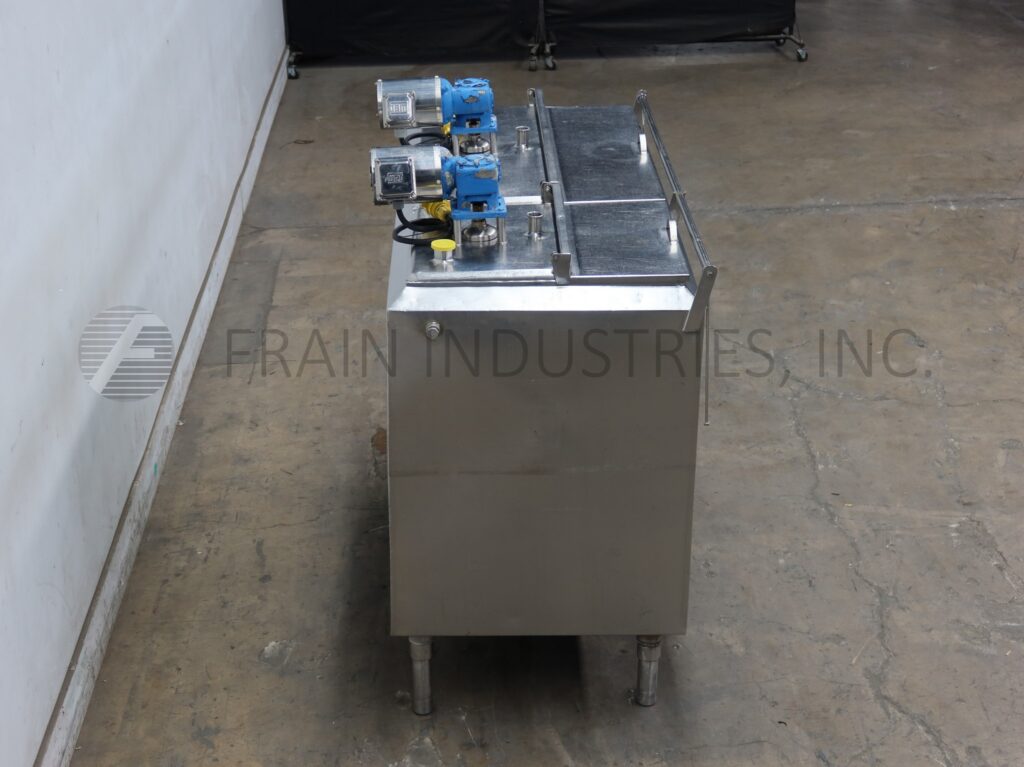

Cherry Burrell Tank Processors BC

• Manufacturer: Cherry Burrell
• Model Number: BC
• Frain Number: 5J2653

Cherry Burrell, model BC, 2-Compartment, 304 stainless steel, low pressure jacketed and insulated flavor tank. Left chamber is 100 gallons with inner dimension of 24" x 29" x 39" Deep. Right chamber is 200 gallons with inner dimension of 44" x 29" x 39" Deep. Equipped with lift up covers, top mounted prop agitation powered by ¾ Hp motor drive. Slant bottom has 2½" OD / 2" ID Tri-Clamp side bottom discharge with 13½" floor clearance.
Rectangle construction provides maximum capacity in small floor area.

Top Access Ports (each compartment)
(2) 2½"OD / 2"ID Tri-Clamp
(1) 2"OD / 1½"ID Tri-Clamp

Jacket Ports
(2) ¾" NPT

OAD: 78"L x 38"W x 65"H

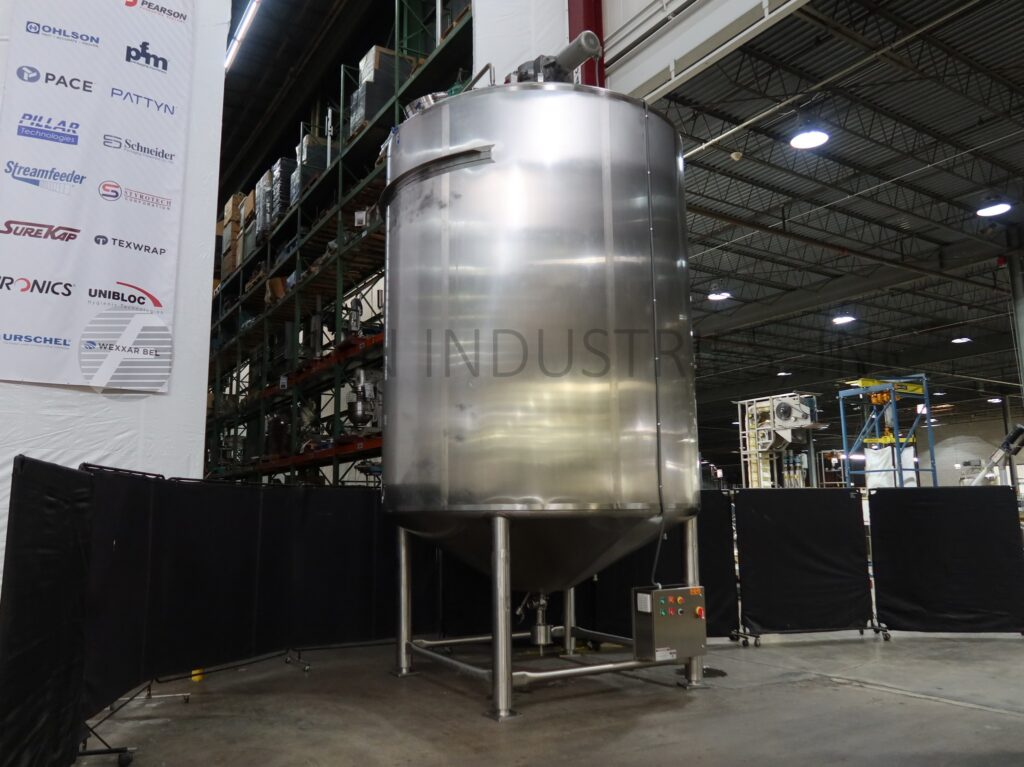

Feldmeier Tank Processors 7500JKT

• Manufacturer: Feldmeier
• Model Number: 7500JKT
• Frain Number: R37296

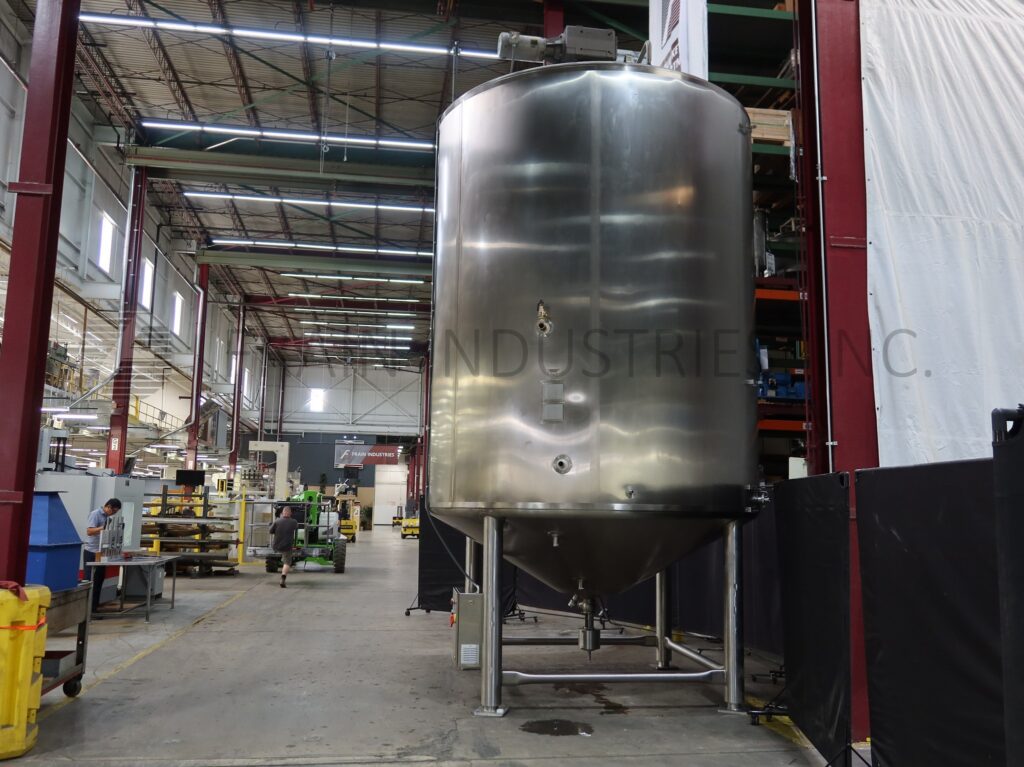

Feldmeier, 7500 gallon capacity, stainless steel jacketed and insulated process tank. 304 stainless steel contact parts and 304 stainless steel jacket and exteroir parts. Vessel dimensions: 120" diameter with 144" straight wall. Equipped with dome top, 18" diameter bolt down man way, top mounted 10 Hp side and bottom scrape surface agitation, baffle, (2) CIP spray balls supplied by 2"OD / 1½"ID Tri-clamp fittings and thermowell. Dish bottom has 3½" OD / 3" ID center bottom pneumatic valve discharge with 30" ground clearence. Control panel with push button start / stop and variable speed control. Mounted on (4) legs with foot pads.

Nat’l Brd: 8616
MAWP: 100 PSI @ 350°F (Jacket)
MDMT: -20°F @ 100 PSI (Jacket)

MAWP: 10 PSI @ 165°F (Vessel)
MDMT: -20°F @ 10 PSI (Vessel)

Top Ports:
(1) 6" ID sanitary clamp covered vent
(1) 4¾"OD / 4"ID Tri-Clamp
(4) 2½"OD / 2"ID Tri-Clamp

Jacket Ports:
(4) 1½" NPT

OAD: 130" L x 130" W x 262" H

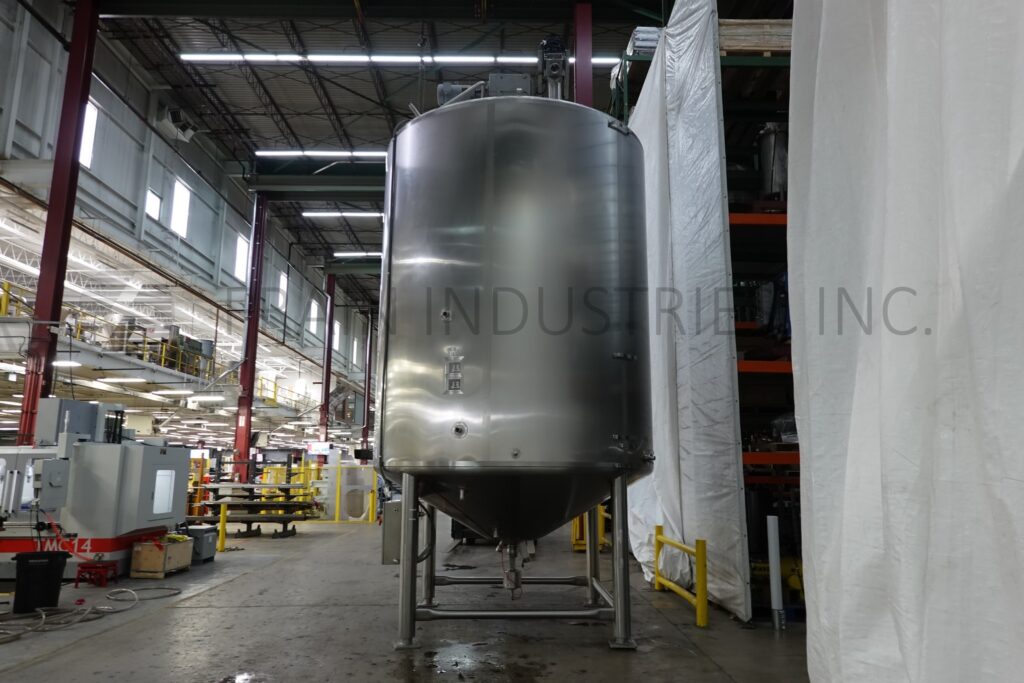

Feldmeier Tank Processors 7500JKT

• Manufacturer: Feldmeier
• Model Number: 7500JKT
• Frain Number: R37293

Feldmeier, 7500 gallon capacity, stainless steel jacketed and insulated process tank. 304 stainless steel contact parts and 304 stainless steel jacket and exteroir parts. Vessel dimensions: 120" diameter with 144" straight wall. Equipped with dome top, 18" diameter bolt down man way, top mounted 10 Hp side and bottom scrape surface agitation, baffle, (2) CIP spray balls supplied by 2"OD / 1½"ID Tri-clamp fittings and thermowell. Dish bottom has 3½" OD / 3" ID center bottom pneumatic valve discharge with 30" ground clearence. Control panel with push button start / stop and variable speed control. Mounted on (4) legs with foot pads.

Nat’l Brd: 8617
MAWP: 100 PSI @ 350°F (Jacket)
MDMT: -20°F @ 100 PSI (Jacket)

MAWP: 10 PSI @ 165°F (Vessel)
MDMT: -20°F @ 10 PSI (Vessel)

Top Ports:
(1) 6" ID sanitary clamp covered vent
(1) 4¾"OD / 4"ID Tri-Clamp
(4) 2½"OD / 2"ID Tri-Clamp

Jacket Ports:
(4) 1½" NPT

OAD: 130" L x 130" W x 262" H

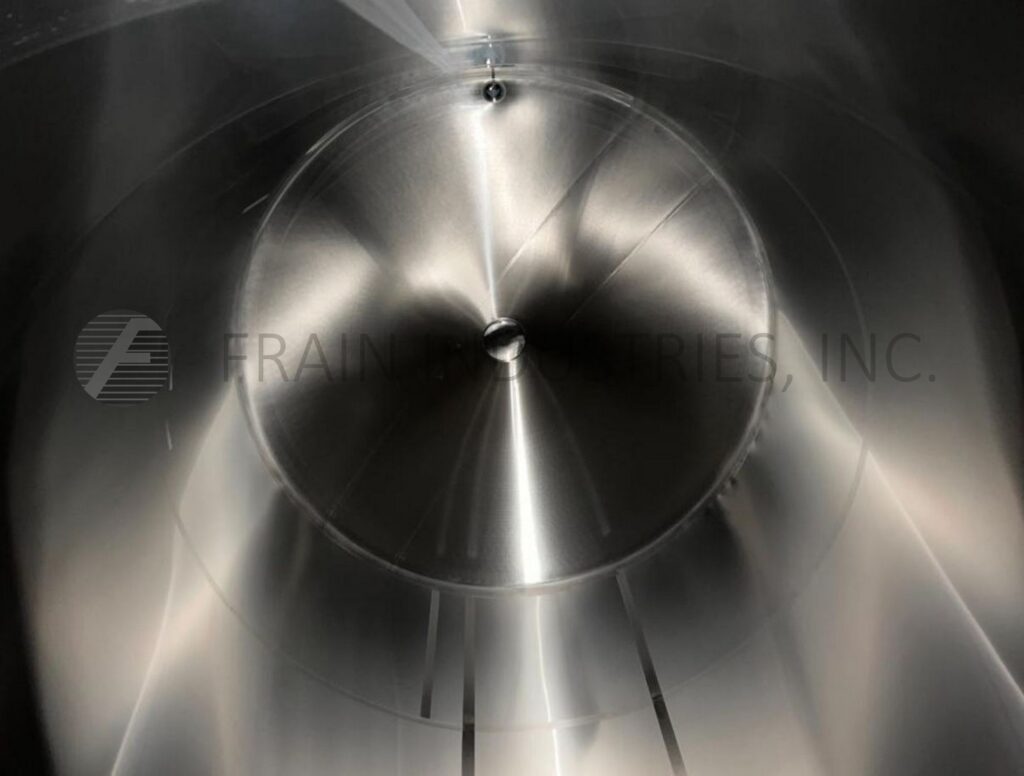

DCI Tank Processors 7000 GAL

• Manufacturer: DCI
• Model Number: 7000 GAL
• Frain Number: R37524

DCI, 7,000 Gallon, 316 stainless steel, jacketed and insulated tank. Vessel Dimensions: 107" diameter x 184" straight wall. Equipped with dome top, slant bottom with bottom prop agitation powered by 2 Hp motor drive, 16" x 20" side manway with bolt down cover, (2) thermowells, CIP spray ball supplied by a 2½" OD / 2" ID Tri-Clamp, 3" OD vent line, 3" OD / 2½" ID Tri-clamp style bottom side inlet and bottom side discharge.

Jacket Access:
(2) 2" SW Union Flange

MAWP: 150 PSI @ 100°F
MDMT: -20°F @ 150 PSI

OAD: 138" L x 115" W x 242" H

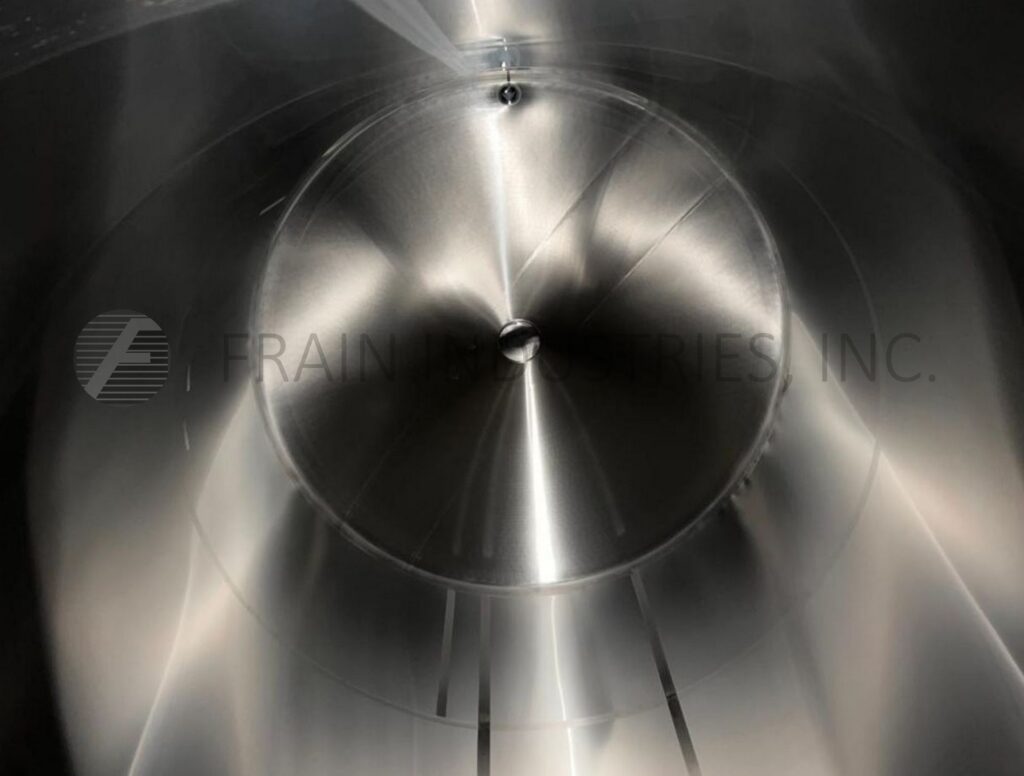

DCI Tank Processors 7000 GAL

• Manufacturer: DCI
• Model Number: 7000 GAL
• Frain Number: R37523

DCI, 7,000 Gallon, 316 stainless steel, jacketed and insulated tank. Vessel Dimensions: 107" diameter x 184" straight wall. Equipped with dome top, slant bottom with bottom prop agitation powered by 2 Hp motor drive, 16" x 20" side manway with bolt down cover, (2) thermowells, CIP spray ball supplied by a 2½" OD / 2" ID Tri-Clamp, 3" OD vent line, 3" OD / 2½" ID Tri-clamp style bottom side inlet and bottom side discharge.

Jacket Access:
(2) 2" SW Union Flange

MAWP: 150 PSI @ 100°F
MDMT: -20°F @ 150 PSI

OAD: 138" L x 115" W x 242" H

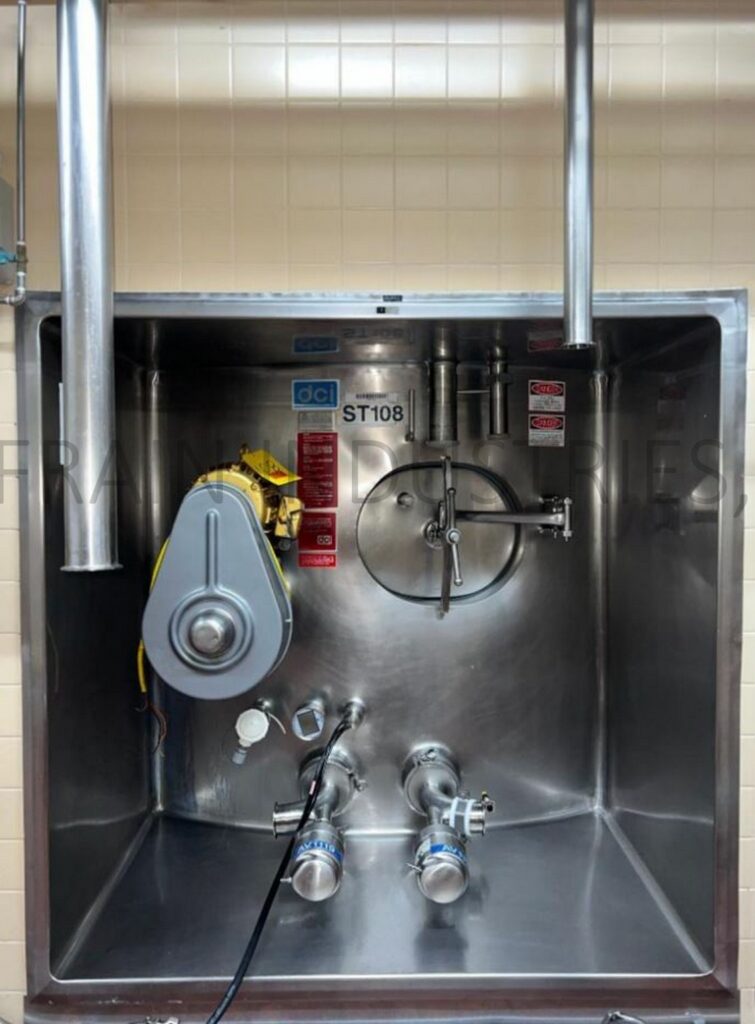

DCI Tank Processors 7000 GAL

• Manufacturer: DCI
• Model Number: 7000 GAL
• Frain Number: R37522

DCI, 7,000 Gallon, 316 stainless steel, jacketed and insulated tank. Vessel Dimensions: 107" diameter x 184" straight wall. Equipped with dome top, slant bottom with bottom prop agitation powered by 2 Hp motor drive, 16" x 20" side manway with bolt down cover, (2) thermowells, CIP spray ball supplied by a 2½" OD / 2" ID Tri-Clamp, 3" OD vent line, 3" OD / 2½" ID Tri-clamp style bottom side inlet and bottom side discharge.

Jacket Access:
(2) 2" SW Union Flange

MAWP: 150 PSI @ 100°F
MDMT: -20°F @ 150 PSI

OAD: 138" L x 115" W x 242" H

Walker Tank Processors HHT

• Manufacturer: Walker
• Model Number: HHT
• Frain Number: 5J1471

Walker, Model HHT, 6000 Gallon, 316L Stainless steel, horizontal, jacketed, processing tank. Has vessel Dimensions of: 106" in Diameter; x 180" Straight wall. Equipped with 19" x 16" manway with bolt down cover, 3½"OD / 3" ID Tri-Clamp side inlet, top mounted (2) 3 Hp prop agitation and (3) CIP spray balls supplied by a 2"OD / 1½" ID Tri-Clamp fitting, 4" observation opening, thermowell, (2) top mounted paddle mixers and 3½"OD / 3" ID side discharge with 19" ground clearence. Mounted on (6) stainless steel legs and access ladder.

Jacket
MAWP: 150 psi @ 300°F
MDMT: -20°F @ 150

Side Access:
(2) 1¼" NPT
(1) 2" NPT

Nat’l Brd: 1421

OAD: 264" L x 120" W x 128" H

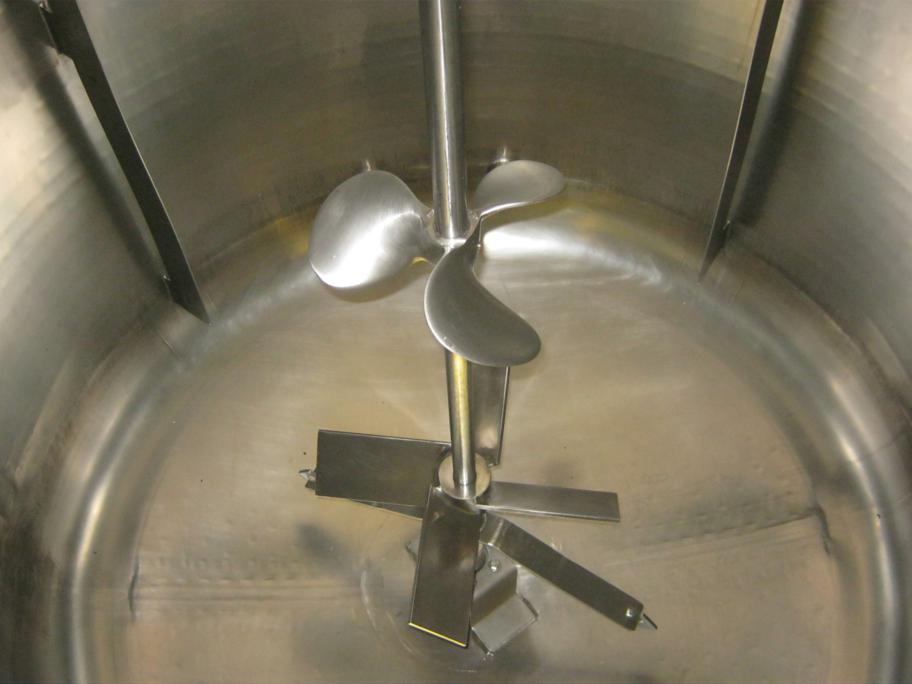

Mueller Tank Processors 550 GAL

• Manufacturer: Mueller
• Model Number: 550 GAL
• Frain Number: 5D3775

Mueller, 550 gallon 304 stainless steel jacketed dual agitation internal pressure rating of 20 psi @ 350F and 60psi @ 350F for the jacket. Features dome top with 20" manway, five 2" O.D. top ports for the vessel, and 2-1/2" sanitary center bottom discharge 2" above the ground. Jacket has (9) 3/4" threaded I.D. side ports, (2) 1" threaded O.D. threaded side ports. Mounted on 4 legs. Nation Board # 2046.

OAD: 60"L x 60"W x 96"H

Mueller Tank Processors 550 GAL

• Manufacturer: Mueller
• Model Number: 550 GAL
• Frain Number: 5D3773

Mueller, 550 gallon 304 stainless steel jacketed dual agitation internal pressure rating of 20 psi @ 350°F and 60psi @ 350°F for the jacket. Dual prop agitation. Dome top with 20" man way , 52" sidewall, 57" ID, multipile 2" inlet/outlets on top of vessel. Dish bottom with 2½" sanitary center bottom discharge 2½" above the ground. Mounted on 4 legs for stability.

Nat’l Brd: 2044

OAD: 96" H x 60" diameter

Crepaco Tank Processors 300 GAL

• Manufacturer: Crepaco
• Model Number: 300 GAL
• Frain Number: 5D3272

Crepaco, 300 gallon 316 stainless steel jacketed mix tank. 50" ID x 39" straight wall. Dome top has a 18"diameter man way.with sweep agitation, side baffle and CIP spray ball. Fully dimpled side / bottom low pressure jacket. Cone bottom with 3" center bottom discharge equipped with manual ball valve, and a 34½" discharge height. Mounted on (4) stainless steel legs. Equipped with Dodge Hydraulic Motor.

OAD: 54" L x 54" W x 130" H
