Stainless Steel Jacketed Machines

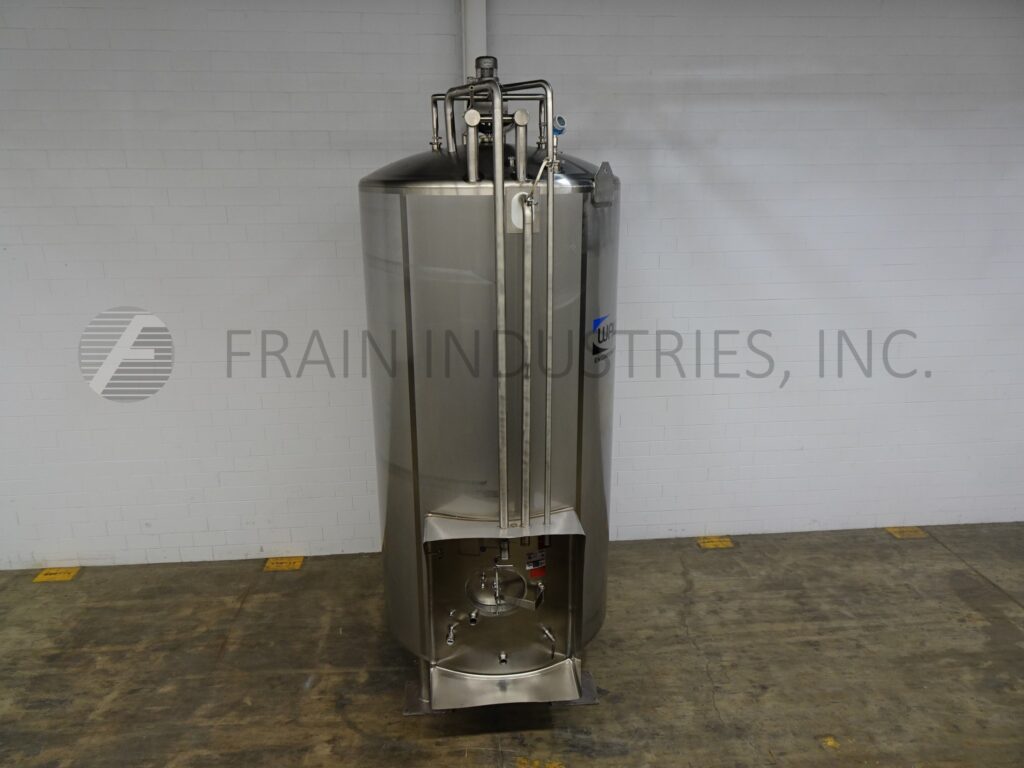

Walker Tank SS JKT 3500 GAL

• Manufacturer: Walker
• Model Number: 3500 GAL
• Frain Number: R38372

Walker, 3,500 gallon capacity, 304 stainless steel jacketed process tank. Vessel dimensions: 82" diameter, 162" straight wall, with 14" x 20" manway. Equipped with side bolt down covers, top mounted 5 Hp sweep agitation, (2) thermo wells, (1) flush mounted sensor and (2) CIP spray balls supplied by a 3½"OD / 3" ID Tri-Clamp fitting. Slant bottom has 3" OD / 2½" ID bottom discharge with 30" ground clearence.

Jacket
MAWP: 100 PSI @ 250°F
MDMT: -20°F @ 100 PSI

Top Ports:
(1) 4½"OD / 4"ID Tri-Clamp
(1) 3"OD / 3½"ID Tri-Clamp
(1) 2"OD / 1½"ID Tri-Clamp

Jacket Ports:
(8) 2" NPT

OAD: 188" L x 72" W x 226" H

Walker Tank SS JKT 3500 GAL

• Manufacturer: Walker
• Model Number: 3500 GAL
• Frain Number: R38371

Walker, 3,500 gallon capacity, 304 stainless steel jacketed process tank. Vessel dimensions: 82" diameter, 162" straight wall, with 14" x 20" manway. Equipped with side bolt down covers, top mounted 5 Hp sweep agitation, (2) thermo wells, (1) flush mounted sensor and (2) CIP spray balls supplied by a 3½"OD / 3" ID Tri-Clamp fitting. Slant bottom has 3" OD / 2½" ID bottom discharge with 30" ground clearence.

Nat’l Brd: 7525

Jacket
MAWP: 100 PSI @ 250°F
MDMT: -20°F @ 100 PSI

Top Ports:
(1) 4½"OD / 4"ID Tri-Clamp
(1) 3"OD / 3½"ID Tri-Clamp
(1) 2"OD / 1½"ID Tri-Clamp
(1) 3" Top Side Vent
(1) 3" Top Vent

Jacket Ports:
(8) 2" NPT

OAD: 188" L x 72" W x 226" H

Walker Tank SS JKT 3500 GAL

• Manufacturer: Walker
• Model Number: 3500 GAL
• Frain Number: R38370

Walker, 3,500 gallon capacity, 304 stainless steel jacketed process tank. Vessel dimensions: 82" diameter, 162" straight wall, with 14" x 20" manway. Equipped with side bolt down covers, top mounted 5 Hp sweep agitation, (2) thermo wells, (1) flush mounted sensor and (2) CIP spray balls supplied by a 3½"OD / 3" ID Tri-Clamp fitting. Slant bottom has 3" OD / 2½" ID bottom discharge with 30" ground clearence.

Nat’l Brd: 7524

Jacket
MAWP: 100 PSI @ 250°F
MDMT: -20°F @ 100 PSI

Top Ports:
(1) 4½"OD / 4"ID Tri-Clamp
(1) 3"OD / 3½"ID Tri-Clamp
(1) 2"OD / 1½"ID Tri-Clamp
(1) 3" Top Side Vent
(1) 3" Top Vent

Jacket Ports:
(8) 2" NPT

OAD: 188" L x 72" W x 226" H

Walker Tank SS JKT HHT

• Manufacturer: Walker
• Model Number: HHT
• Frain Number: 5J1470

Walker, Model HHT, 6000 Gallon, 316L Stainless steel, horizontal, jacketed, processing tank. Has vessel Dimensions of: 106" in Diameter; x 180" Straight wall. Equipped with 19" x 16" manway with bolt down cover, 3½"OD / 3" ID Tri-Clamp side inlet, top mounted (2) 3 Hp prop agitation and (3) CIP spray balls supplied by a 2"OD / 1½" ID Tri-Clamp fitting, 4" observation opening, thermowell, (2) top mounted paddle mixers and 3½"OD / 3" ID discharge side with 19"ground clearence. Mounted on (6) stainless steel legs and access ladder.

Jacket
MAWP: 150 psi @ 300°F
MDMT: -20°F @ 150

Side Access:
(2) 1¼" NPT
(1) 2" NPT

Nat’l Brd: 1422

OAD: 264" L x 120" W x 128" H

Walker Tank SS JKT 3500 GAL

• Manufacturer: Walker
• Model Number: 3500 GAL
• Frain Number: R38373

Walker, 3,500 gallon capacity, 304 stainless steel jacketed process tank. Vessel dimensions: 82" diameter, 162" straight wall, with 14" x 20" manway. Equipped with side bolt down covers, top mounted 5 Hp sweep agitation, (2) thermo wells, (1) flush mounted sensor and (2) CIP spray balls supplied by a 3½"OD / 3" ID Tri-Clamp fitting. Slant bottom has 3" OD / 2½" ID bottom discharge with 30" ground clearence.

Nat’l Brd: 7526

Jacket
MAWP: 100 PSI @ 250°F
MDMT: -20°F @ 100 PSI

Top Ports:
(1) 4½"OD / 4"ID Tri-Clamp
(1) 3"OD / 3½"ID Tri-Clamp
(1) 2"OD / 1½"ID Tri-Clamp
(1) 3" Top Side Vent
(1) 3" Top Vent

Jacket Ports:
(8) 2" NPT

OAD: 188" L x 72" W x 226" H

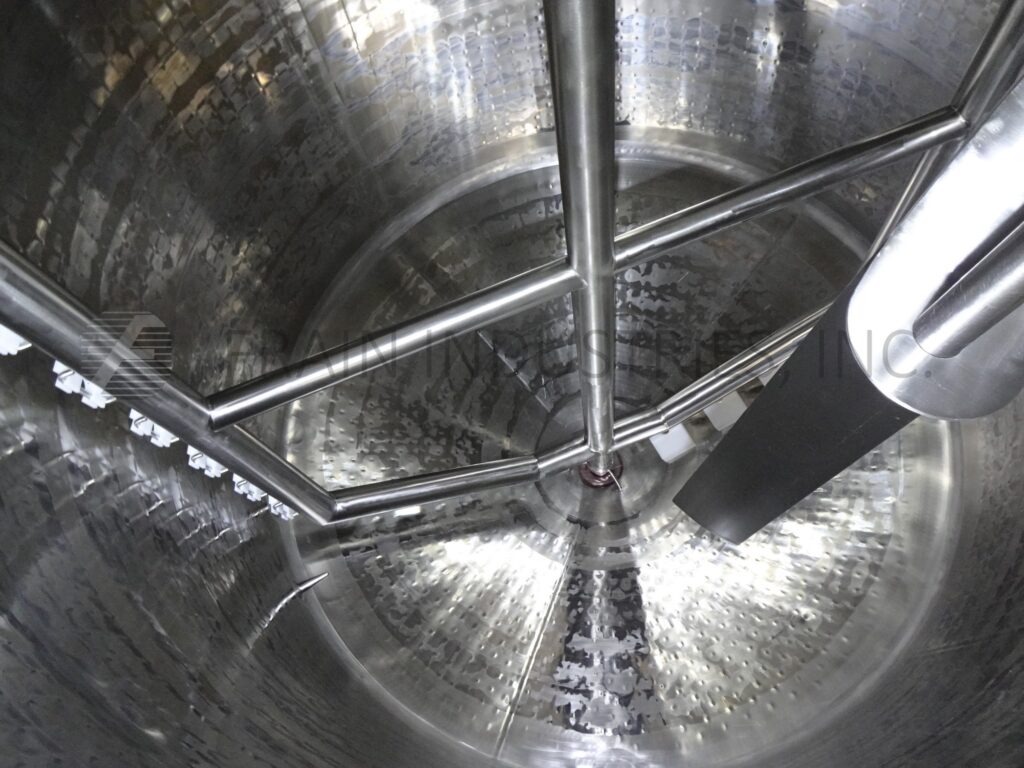

DCI Tank SS JKT 3000 GAL

• Manufacturer: DCI
• Model Number: 3000 GAL
• Frain Number: R38374

DCI, 3,000 gallon capacity, 316L stainless steel jacketed process tank. Vessel dimensions: 96" diameter, 120" deep, 89" straight wall, Equipped with a 18" top manway with flip-up cover and top mounted 5/10 HP scrape agitation, thermo well, (2) CIP T-Spray Balls supplied by a 2½" OD / 2" ID Tri-Clamp fitting and single CIP Spray Ball supplied by a 3½" OD / 3" ID Tri-Clamp fitting. Cone bottom has 3½" OD / 3" ID bottom discharge with 29" ground clearence.

Jacket
MAWP: 100 PSI @ 300°F
MDMT: -20°F @ 150 PSI

Vessel
MAWP: 0 PSI @ 100°F
MDMT: -20°F @ 0 PSI

Top Ports:
(2) 2½"OD / 2"ID Tri-Clamp
(3) 3½"OD / 3"ID Tri-Clamp

Side Ports:
(2) 2½"OD / 2"ID Tri-Clamp

Jacket Ports:
(8) 1½" NPT

OAD: 120" L x 105" W x 206" H

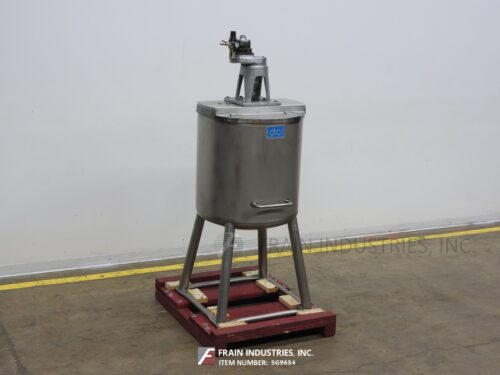

DCI Tank SS JKT 60 GAL

• Manufacturer: DCI
• Model Number: 60 GAL
• Frain Number: 5G9654

DCI, 60 gallon capacity, 316L stainless steel jacketed and insulated tank. Vessel dimensions: 26" diameter x 30" deep with a dish style bottom. Equipped with lift off covers, thermowell and (3) 3" wide side baffles. Air powered bridge mounted agitator with (3) 9" diameter props. Unit mounted on (4) legs with casters with a 2" OD / 1½" ID Tri-Clamp style bottom discharge with 30" ground clearance.

Top Ports:
(1) 1¾" diameter open vent
(1) 1½" diameter open vent

Jacket Ports:
(2) ¾" NPT

MAWP: 130 PSI @ 320°F
MDMT: -20°F @ 130 PSI
Nat’l Brd: 15

OAD: 33"L x 32"W x 86"H

Quality Tank Solutions Tank SS JKT 3775G

• Manufacturer: Quality Tank Solutions
• Model Number: 3775G
• Frain Number: R37810

Quality Tank Solutions, 3,775 Gallon, 304 stainless steel, jacketed and insulated tank. Vessel Dimensions: 80" diameter x 168" straight wall. Equipped with a dome top, dish bottom, 18" x 22" side manway with bolt down cover, top 24" diameter manway with bolt down cover with full face sight glass, (1) thermowell, CIP spray ball supplied by a 3"OD / 2½"ID Tri-Clamp fitting and 3"OD / 2½"ID Tri-clamp style bottom discharge with 12" ground clearance.

Jacket Access:
(5) 1½" NPT
(3) ¾" NPT

Top Ports:
(4) 3½" OD / 3" ID

MAWP: 50 PSI @ 200°F

OAD: 94"L x 87"W x 220"H

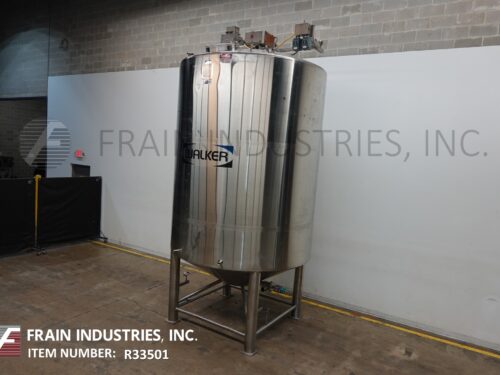

Walker Tank SS JKT PC-CB-SP

• Manufacturer: Walker
• Model Number: PC-CB-SP
• Frain Number: R33501

Walker, Model PC-CB-SP, 3000 gallon capacity, 316L stainless steel jacketed and insulated process tank. Vessel dimensions: 90" diameter x 140" deep with a 115" straight wall. Equipped with a dome top with an 19" diameter top hinged man way, (2) CIP spray balls supplied by a 2"OD / 1½"ID Tri-clamp fitting, (2) thermowells, 5 Hp top mounted scrape agitator, 5 HP top mounted 18" diameter prop agitator and bottom 6"OD / 5"ID Tri-clamp discharge with 24" ground.

Top Ports:
(1) 4½"OD / 4"ID Tri-Clamp
(1) 3½"OD / 3"ID Tri-Clamp

Jacket Ports:
(6) 2½"OD / 2"ID Tri-Clamp

MAWP: 100 PSI @ 300°F
MDMT: -20°F @ 100 PSI

OAD: 102"L x 98"W x 195"H

Walker Tank SS JKT PC-CB-SP

• Manufacturer: Walker
• Model Number: PC-CB-SP
• Frain Number: R33500

Walker, Model PC-CB-SP, 3000 gallon capacity, 316L stainless steel jacketed and insulated process tank. Vessel dimensions: 90" diameter x 140" deep with a 115" straight wall. Equipped with a dome top with an 19" diameter top hinged man way, (2) CIP spray balls supplied by a 2"OD / 1½"ID Tri-clamp fitting, (2) thermowells, 5 Hp top mounted scrape agitator, 5 HP top mounted 18" diameter prop agitator and bottom 6"OD / 5"ID Tri-clamp discharge with 24" ground.

Top Ports:
(1) 4½"OD / 4"ID Tri-Clamp
(1) 3½"OD / 3"ID Tri-Clamp

Jacket Ports:
(6) 2½"OD / 2"ID Tri-Clamp

MAWP: 100 PSI @ 300°F
MDMT: -20°F @ 100 PSI

OAD: 102"L x 98"W x 195"H

Feldmeier Tank SS JKT EPC60048FS

• Manufacturer: Feldmeier
• Model Number: EPC60048FS
• Frain Number: R32010

Feldmeier, 600 gallon capacity, 304 stainless steel jacketed process tank. Vessel dimensions: 48" ID x 80" straight wall. Equipped with dome top, 18" ID top manway, 5 Hp top mounted sweep agitator, (2) CIP spray balls supplied by 2"OD / 1½"ID Tri Clamp fittings, (1) thermowell and 3½" OD / 3" ID tri-clamp center bottom discharge with 22" ground clearance.

Top Ports:
(2) 3½"OD / 3"ID Tri-Clamp
(3) 2½"OD / 2"ID Tri-Clamp
(1) 4" ID Open Vent

Jacket Ports Side / Bottom
(4) 1½" NPT

Jacket:
Nat’l Brd: 9480
MAWP: 100 PSI @ 300°F
MDMT: -20°F @ 100 PSI

OAD: 55"L x 50"W x 160"H

Lee Tank SS JKT 55DP

• Manufacturer: Lee
• Model Number: 55DP
• Frain Number: 5H8770

Lee, Model 55 DP, 55 gallon total capacity, 316 stainless steel jacketed mixing tank with gallons of product per hour – depending on materials and application. Vessel dimensions: 20" ID x 40" deep straight wall. Equipped with flat top with clamp down cover, 0.33 hp prop agitation, side and bottom jacket. Dish bottom has 2" OD / 1½"ID Tri-Clamp style discharge with 18" ground clearance. Mounted on (4) stainless steel legs with locking casters.

Nat’l Brd: 11708
MAWP: 100 psi @ 338°F
MDMT of -20°F @ 100 psi.

Jacket Ports:
(2) ¾" NPT

OAD: 40"L x 38"W x 83"H
