Feldmeier Machines

Feldmeier Tank SS Single Wall 550

• Manufacturer: Feldmeier
• Model Number: 550
• Frain Number: 5J3910

Feldmeier, 550 Gallon capacity, 316 stainless steel, internal pressure / vacuum tank. Vessel dimensions: 50" diameter x 64" straight wall. Equipped with 18" diameter bolt down cover and 2½" Tri-Clamp style discharge with 12" ground clearance. Mounted on (4) stainless steel legs.

Side Ports:
(1) 3" Tri-Clamp
(2) 2" Tri-Clamp

Top Ports:
(1) 4" Tri-Clamp
(1) 3" Tri-Clamp
(1) 1½" Tri-Clamp
(1) ¾" Tri-Clamp

MAWP: 15PSI / FV @ 300°F (Vessel)
MDMT: 0°F @ 15PSI / FV

Nat’l Brd: 2495

OAD: 58"L x 58"W x 105"H

Feldmeier Tank Processors 1000JKT

• Manufacturer: Feldmeier
• Model Number: 1000JKT
• Frain Number: R35773

Feldmeier, 1000 gallon capacity, stainless steel jacketed and insulated process tank. 316L stainless steel contact parts and 304 stainless steel jacket and exteroir parts. Vessel dimensions: 72" diameter with 60" straight wall. Equipped with dome top, 18" OD flip top man way, top mounted 7½ Hp side and bottom scrape surface agitation, baffle, (2) CIP spray balls supplied by 2"OD / 1½"ID Tri-clamp fittings and thermowell. Dish bottom has 3½" OD / 3" ID center bottom ball valve discharge with 18" ground clearence. Control panel with push button start / stop and variable speed control. Mounted on (4) legs with foot pads.

Nat’l Brd: 11776
MAWP: 150 PSI @ 350°F
MDMT: -20°F @ 150 PSI

Top Ports:
(2) 3½"OD / 3"ID Tri-Clamp

Jacket Ports:
(4) 1½" NPT

OAD: 82" L x 78" W x 133" H

Feldmeier Tank Processors 1000JKT

• Manufacturer: Feldmeier
• Model Number: 1000JKT
• Frain Number: R35772

Feldmeier, 1000 gallon capacity, stainless steel jacketed and insulated process tank. 316L stainless steel contact parts and 304 stainless steel jacket and exteroir parts. Vessel dimensions: 72" diameter with 60" straight wall. Equipped with dome top, 18" OD flip top man way, top mounted 7½ Hp side and bottom scrape surface agitation, baffle, (2) CIP spray balls supplied by 2"OD / 1½"ID Tri-clamp fittings and thermowell. Dish bottom has 3½" OD / 3" ID center bottom ball valve discharge with 18" ground clearence. Control panel with push button start / stop and variable speed control. Mounted on (4) legs with foot pads.

Nat’l Brd: 11778
MAWP: 150 PSI @ 350°F
MDMT: -20°F @ 150 PSI

Top Ports:
(2) 3½"OD / 3"ID Tri-Clamp

Jacket Ports:
(4) 1½" NPT

OAD: 82" L x 78" W x 133" H

Feldmeier Tank Processors 2000JKT

• Manufacturer: Feldmeier
• Model Number: 2000JKT
• Frain Number: R35923

Feldmeier, 2000 gallon working capacity, stainless steel jacketed process tank. 316L stainless steel contact parts and 304 stainless steel jacket and exterior parts. Vessel dimensions: 84" diameter with 84" straight wall. Equipped with dome top, 18" OD flip top man way, top mounted 15 Hp side and bottom scrape surface agitation, CIP spray balls and thermowell, dimpled side and bottom jacketed. Dish bottom has 3½" OD / 3" ID center bottom ball valve discharge with 8" ground clearance. Control panel with push button start / stop and variable speed control. Mounted on (4) legs.

Nat’l Brd: 11890
MAWP: 150 PSI @ 350°F
MDMT: -20°F @ 150 PSI

Top Ports:
(1) 4½"OD / 4"ID Tri-Clamp
(2) 3½"OD / 3"ID Tri-Clamp

Jacket Ports:
(6) 1½" NPT

OAD: 113" L x 91" W x 162" H

Feldmeier Tank Processors 2000JKT

• Manufacturer: Feldmeier
• Model Number: 2000JKT
• Frain Number: R35922

Feldmeier, 2000 gallon working capacity, stainless steel jacketed process tank. 316L stainless steel contact parts and 304 stainless steel jacket and exterior parts. Vessel dimensions: 84" diameter with 84" straight wall. Equipped with dome top, 18" OD flip top man way, top mounted 15 Hp side and bottom scrape surface agitation, CIP spray balls and thermowell, dimpled side and bottom jacketed. Dish bottom has 3½" OD / 3" ID center bottom ball valve discharge with 8" ground clearance. Control panel with push button start / stop and variable speed control. Mounted on (4) legs.

Nat’l Brd: 11889
MAWP: 150 PSI @ 350°F
MDMT: -20°F @ 150 PSI

Top Ports:
(1) 4½"OD / 4"ID Tri-Clamp
(2) 3½"OD / 3"ID Tri-Clamp

Jacket Ports:
(6) 1½" NPT

OAD: 113" L x 91" W x 162" H

Feldmeier Tank Processors 2000JKT

• Manufacturer: Feldmeier
• Model Number: 2000JKT
• Frain Number: R33313

Feldmeier, 2000 gallon capacity, stainless steel jacketed and insulated process tank. 316L stainless steel contact parts and 304 stainless steel jacket and exteroir parts. Vessel dimensions: 84" diameter with 84" straight wall. Equipped with dome top, 18" OD flip top man way, top mounted 15 Hp side and bottom scrape surface agitation, CIP spray balls and thermowell. Dish bottom has 3½" OD / 3" ID center bottom ball valve discharge with 8" ground clearence. Control panel with push button start / stop and variable speed control. Mounted on (4) legs with foot pads.

Nat’l Brd: 722
MAWP: 150 PSI @ 350°F
MDMT: -20°F @ 150 PSI

Top Ports:
(1) 4½"OD / 4"ID Tri-Clamp
(2) 3½"OD / 3"ID Tri-Clamp

Jacket Ports:
(6) 1½" NPT

OAD: 113" L x 91" W x 157" H

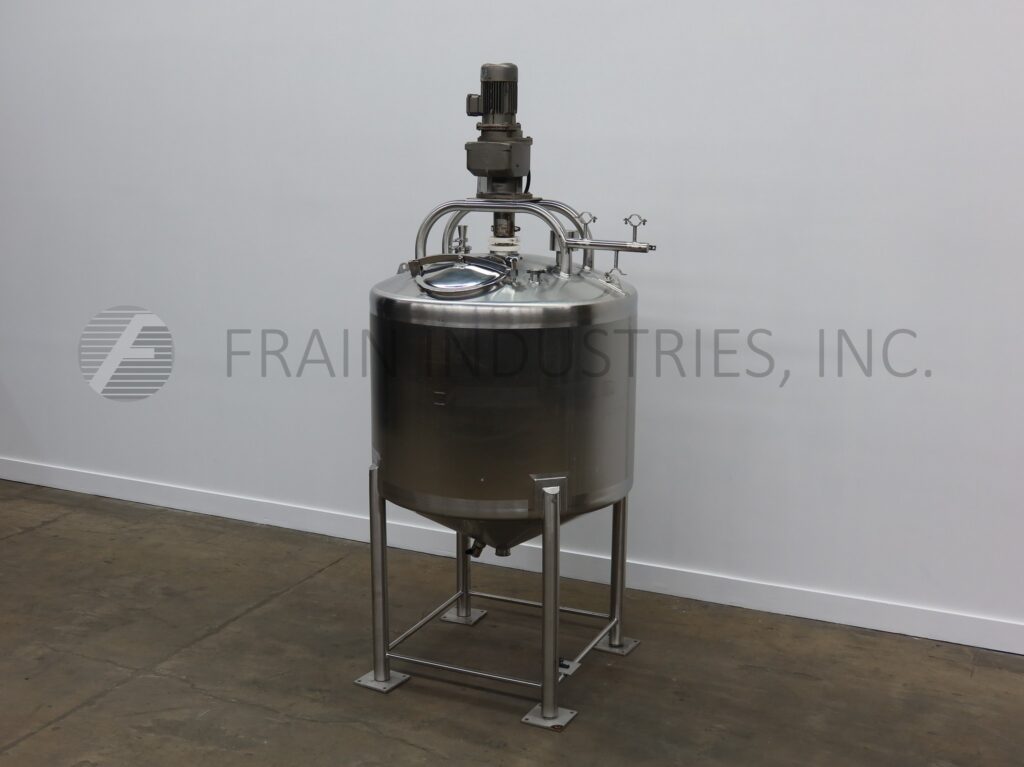

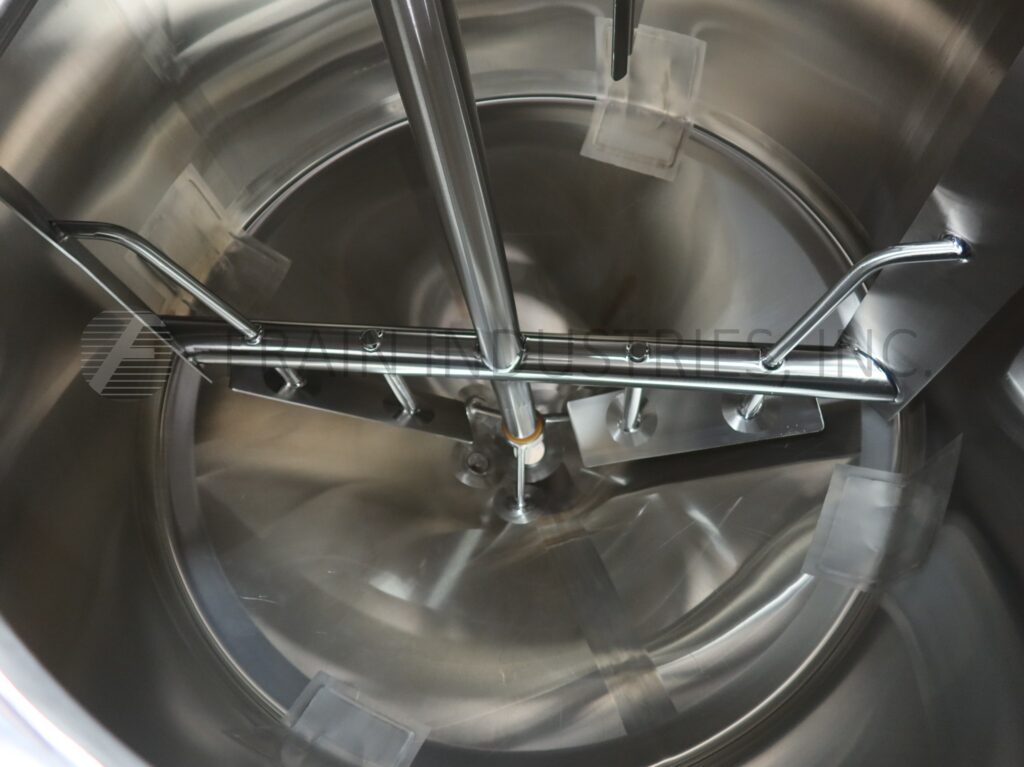

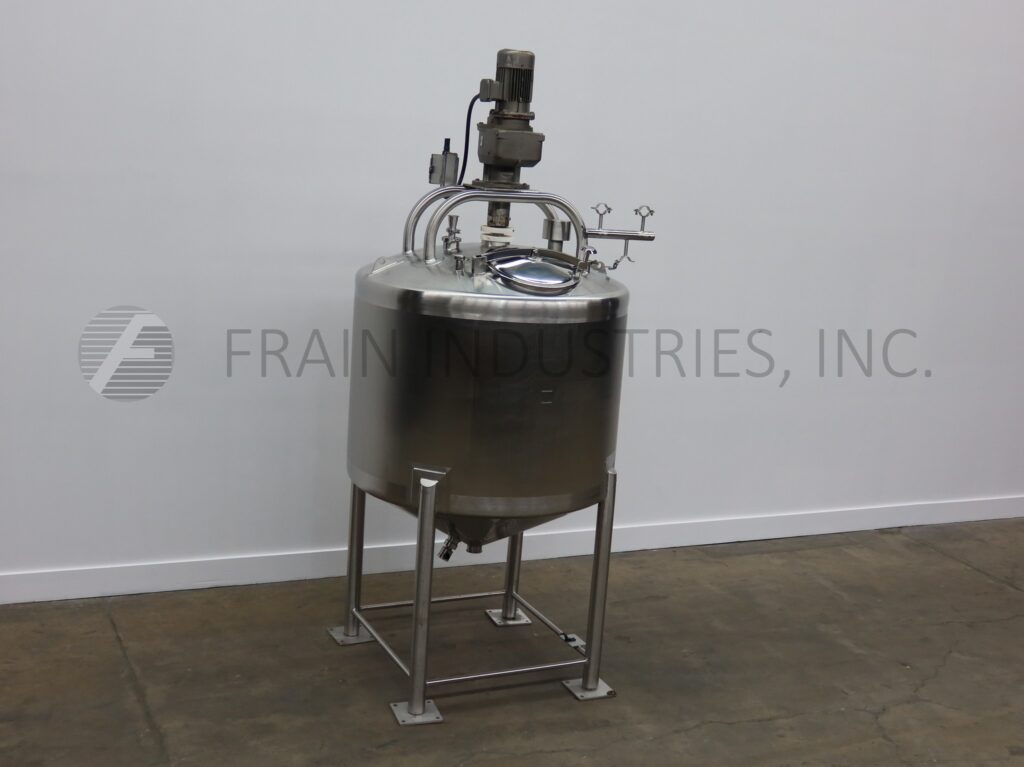

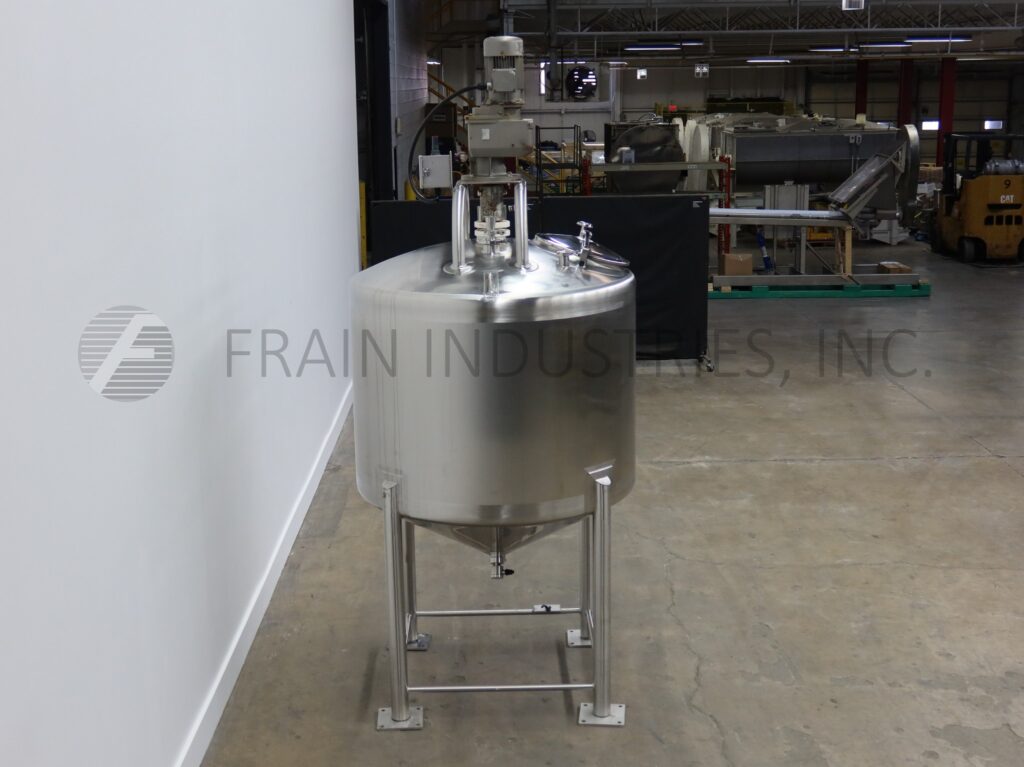

Feldmeier Tank SS Single Wall 500 GAL

• Manufacturer: Feldmeier
• Model Number: 500 GAL
• Frain Number: 5J2934

Feldmeier, 500 gallon capacity, 316 stainless steel single wall tank. Vessel dimensions: 57" diameter with 42" straight wall and 16" deep cone bottom. Equipped with dome top, 18" OD flip top man way, top mounted 3 Hp sweep agitation, adjustable baffle, flush mounted sensor and CIP spray ball supplied by 2"OD / 1½"ID tri-clamp fitting. Cone bottom has 3½" OD / 3" ID tri-clamp discharge with 26" ground clearence.

Top Ports:
(1) 3" diameter open vent
(2) 2½" OD / 2"ID Tri-clamp

OAD: 60"L x 60"W x 133"H

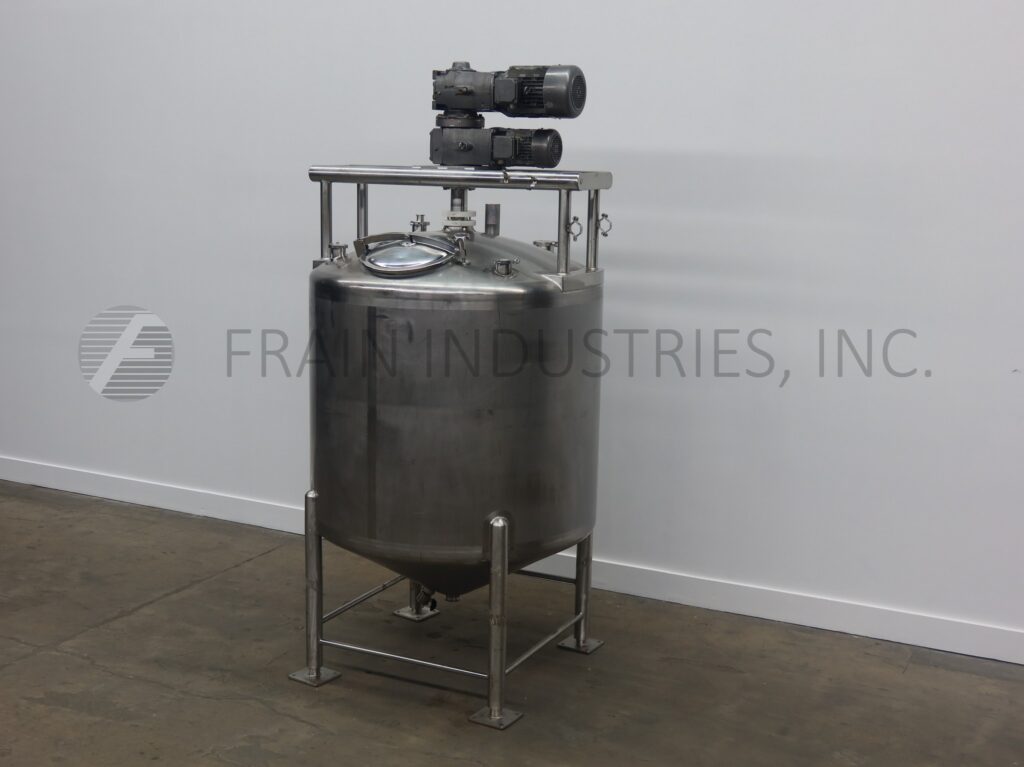

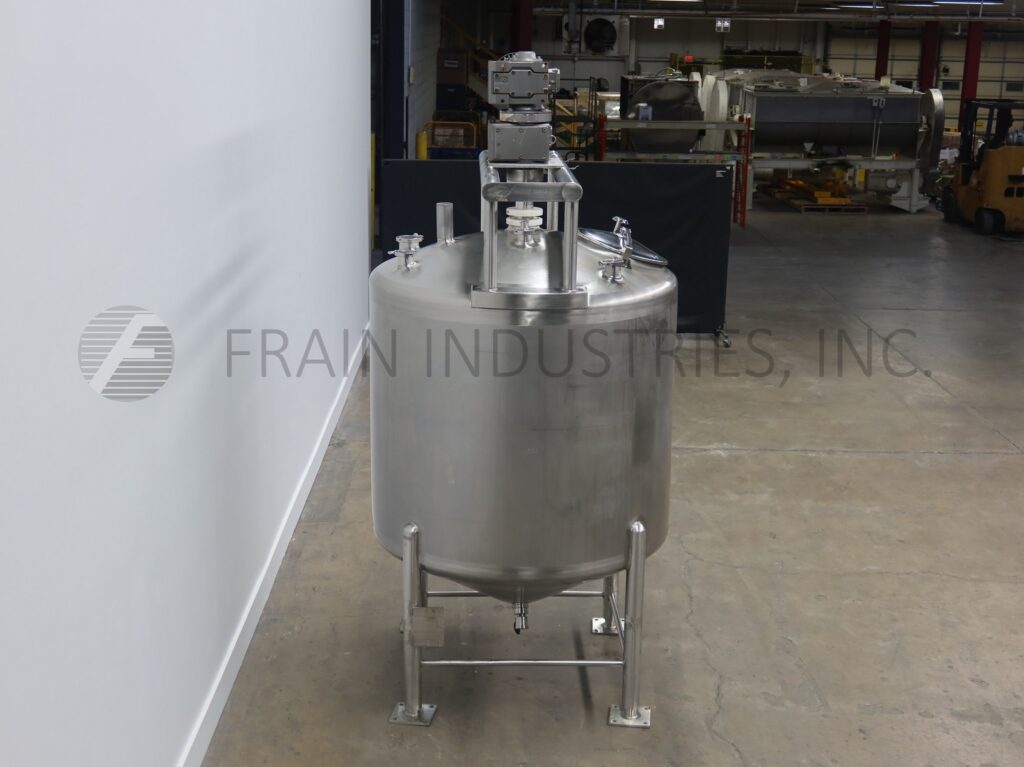

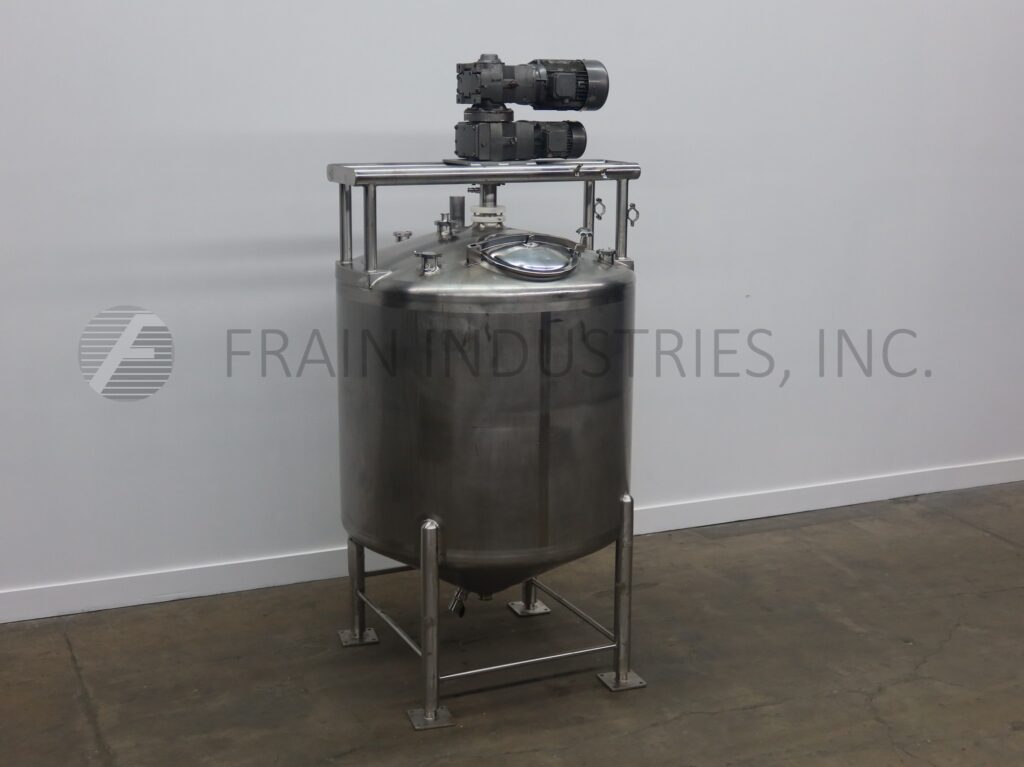

Feldmeier Tank SS Single Wall 500 GAL

• Manufacturer: Feldmeier
• Model Number: 500 GAL
• Frain Number: 5J2935

Feldmeier, 500 gallon capacity, 316 stainless steel single wall vertical tank. Vessel dimensions: 60" diameter x 70" deep with a 50" straight wall. Equipped with dome top, 18" OD top manway, double motion scrape agitation powered by a 3 hp drive and dixie agitation powered by a 10 hp drive, (2) CIP spray balls supplied by 2"OD / 1½"ID Tri Clamp fitting and flush mount sensor. Cone bottom has 3½" OD / 3" ID tri-clamp center bottom discharge with 14" ground clearance.

Top Access Ports:
(1) 4½"OD / 4"ID Tri-Clamp
(3) 3½"OD / 3"ID Tri-Clamp
(1) 3" diameter open vent

OAD: 65"L x 60"W x 125"H

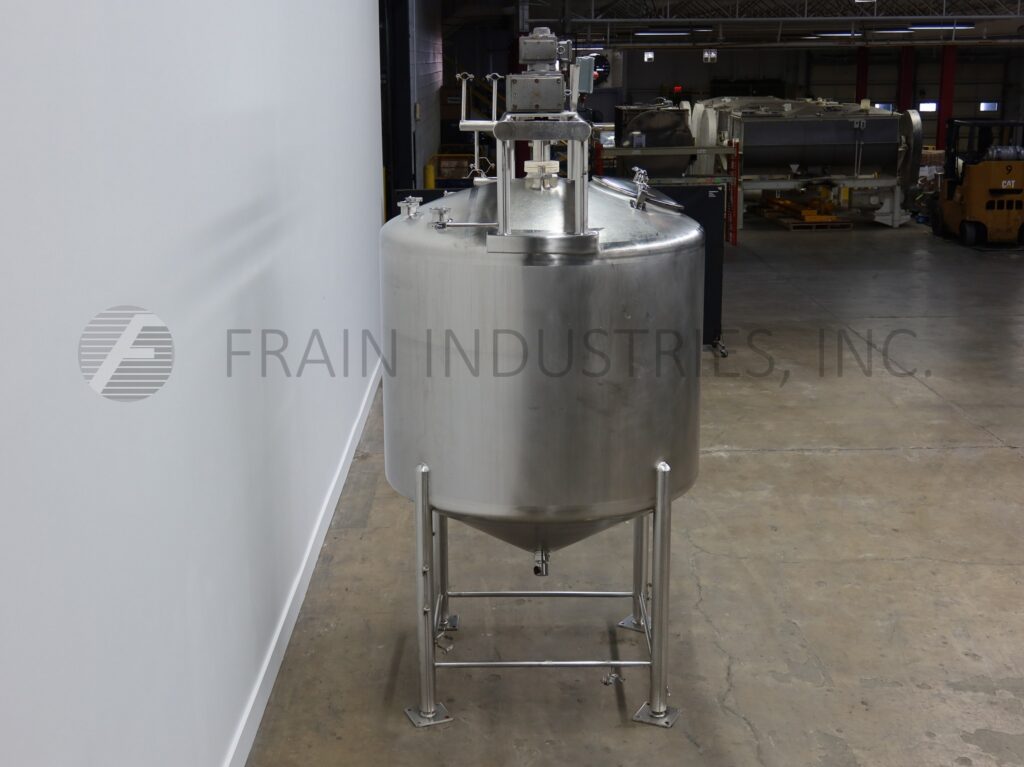

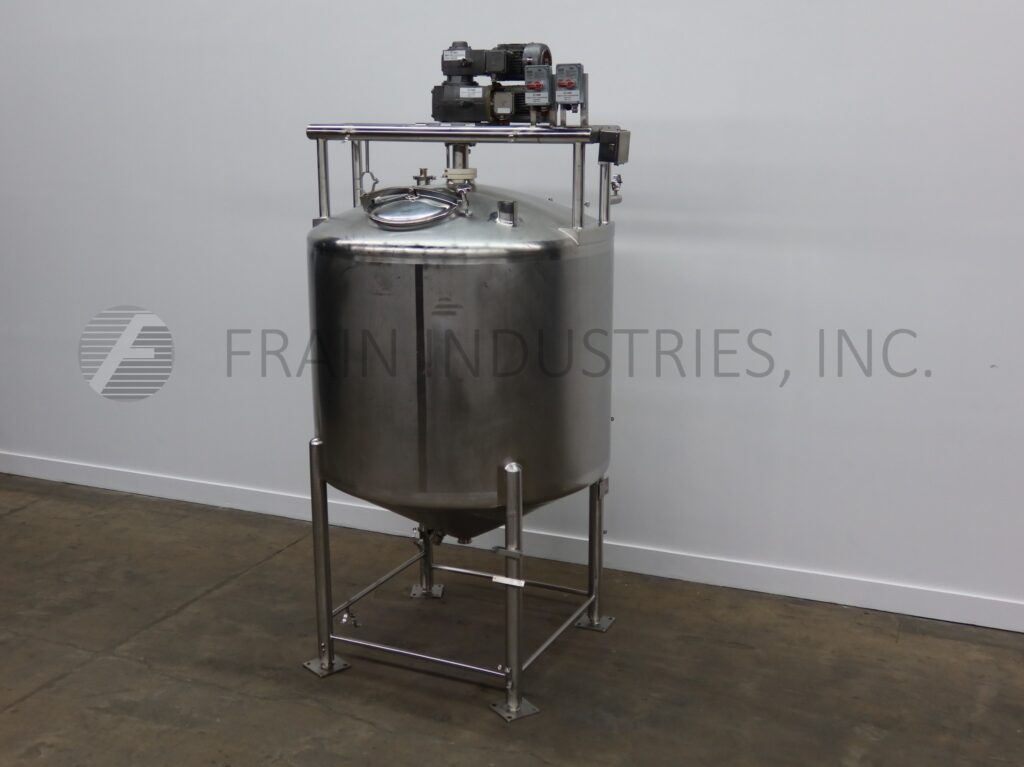

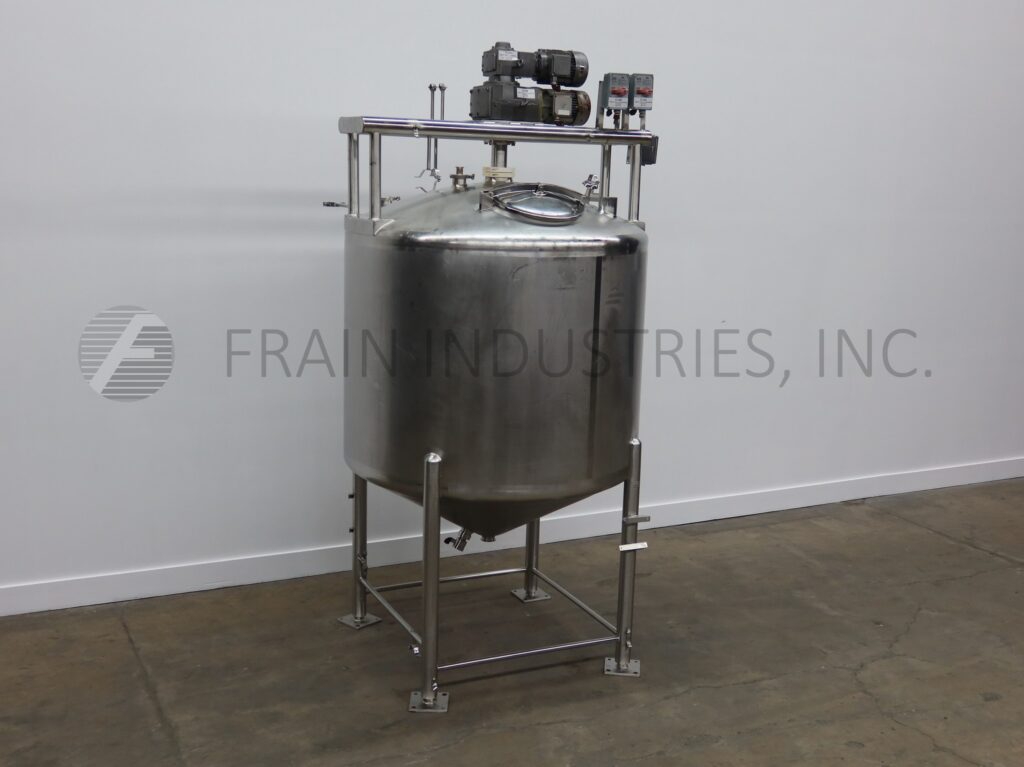

Feldmeier Tank SS Single Wall 650 GAL

• Manufacturer: Feldmeier
• Model Number: 650 GAL
• Frain Number: 5J2933

Feldmeier, 600 gallon capacity, 316 stainless steel single wall tank. Vessel dimensions: 60" diameter x 70" deep with a 50" straight wall. Equipped with dome top, 18" OD top manway, double motion scrape and prop agitation, (2) CIP spray balls supplied by 2"OD / 1½"ID Tri Clamp fitting and flush mount sensor. Cone bottom has 3½" OD / 3" ID tri-clamp center bottom discharge with 25" ground clearance.

Top Access Ports:
(1) 4" diameter open vent
(2) 3½"OD / 3"ID Tri-Clamp
(2) 2"OD / 1½"ID Tri-Clamp

OAD: 65"L x 60"W x 135"H

Feldmeier Tank Processors 2000JKT

• Manufacturer: Feldmeier
• Model Number: 2000JKT
• Frain Number: R33312

Feldmeier, 2000 gallon capacity, stainless steel jacketed and insulated process tank. 316L stainless steel contact parts and 304 stainless steel jacket and exteroir parts. Vessel dimensions: 84" diameter with 84" straight wall. Equipped with dome top, 18" OD flip top man way, top mounted 15 Hp side and bottom scrape surface agitation, CIP spray balls and thermowell. Dish bottom has 3½" OD / 3" ID center bottom ball valve discharge with 8" ground clearence. Control panel with push button start / stop and variable speed control. Mounted on (4) legs with foot pads.

Nat’l Brd: 721
MAWP: 150 PSI @ 350°F
MDMT: -20°F @ 150 PSI

Top Ports:
(1) 4½"OD / 4"ID Tri-Clamp
(2) 3½"OD / 3"ID Tri-Clamp

Jacket Ports:
(6) 1½" NPT

OAD: 113" L x 91" W x 157" H

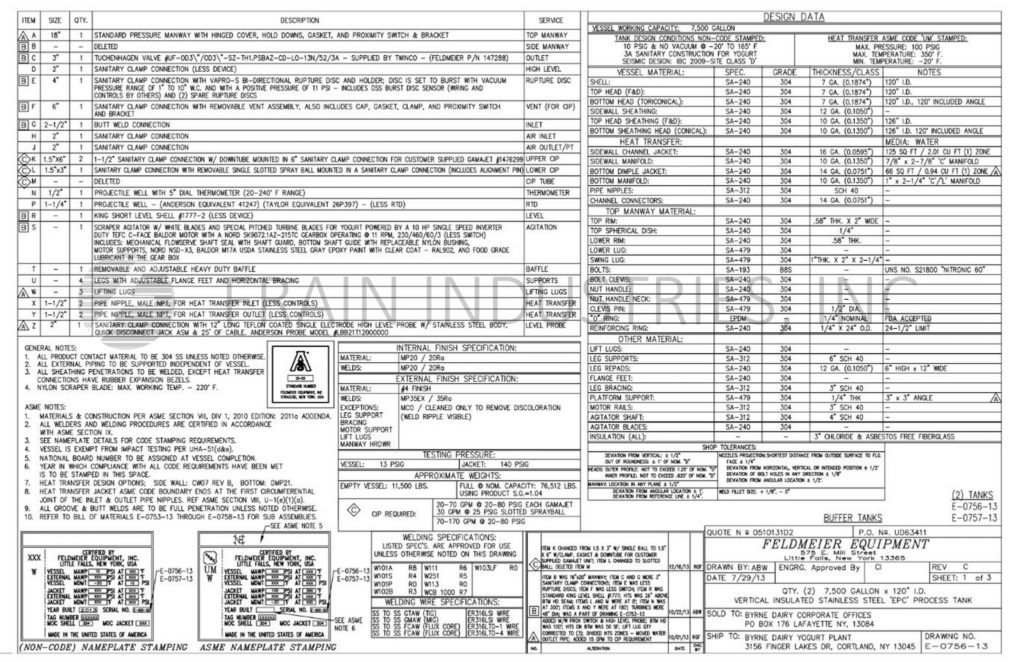

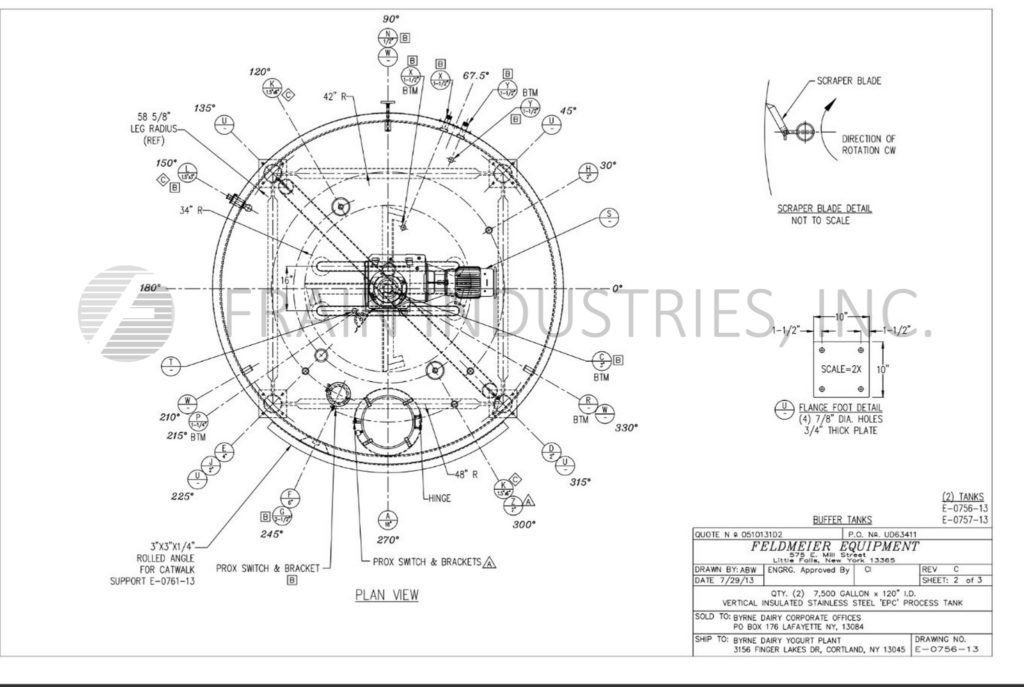

Feldmeier Tank Processors 7500JKT

• Manufacturer: Feldmeier
• Model Number: 7500JKT
• Frain Number: R37296

Feldmeier, 7500 gallon capacity, stainless steel jacketed and insulated process tank. 304 stainless steel contact parts and 304 stainless steel jacket and exterior parts. Vessel dimensions: 120" diameter with 144" straight wall. Equipped with dome top, 18" diameter bolt down man way, top mounted 10 Hp side and bottom scrape surface agitation, baffle, (2) CIP spray balls supplied by 2"OD / 1½"ID Tri-clamp fittings and thermowell. Dish bottom has 3½" OD / 3" ID center bottom pneumatic valve discharge with 30" ground clearence. Control panel with push button start / stop and variable speed control. Mounted on (4) legs with foot pads.

Nat’l Brd: 8616
MAWP: 100 PSI @ 350°F (Jacket)
MDMT: -20°F @ 100 PSI (Jacket)

MAWP: 10 PSI @ 165°F (Vessel)
MDMT: -20°F @ 10 PSI (Vessel)

Top Ports:
(1) 6" ID sanitary clamp covered vent
(1) 4¾"OD / 4"ID Tri-Clamp
(4) 2½"OD / 2"ID Tri-Clamp

Jacket Ports:
(4) 1½" NPT

OAD: 130" L x 130" W x 262" H

Feldmeier Tank Processors 7500JKT

• Manufacturer: Feldmeier
• Model Number: 7500JKT
• Frain Number: R37293

Feldmeier, 7500 gallon capacity, stainless steel jacketed and insulated process tank. 304 stainless steel contact parts and 304 stainless steel jacket and exteroir parts. Vessel dimensions: 120" diameter with 144" straight wall. Equipped with dome top, 18" diameter bolt down man way, top mounted 10 Hp side and bottom scrape surface agitation, baffle, (2) CIP spray balls supplied by 2"OD / 1½"ID Tri-clamp fittings and thermowell. Dish bottom has 3½" OD / 3" ID center bottom pneumatic valve discharge with 30" ground clearence. Control panel with push button start / stop and variable speed control. Mounted on (4) legs with foot pads.

Nat’l Brd: 8617
MAWP: 100 PSI @ 350°F (Jacket)
MDMT: -20°F @ 100 PSI (Jacket)

MAWP: 10 PSI @ 165°F (Vessel)
MDMT: -20°F @ 10 PSI (Vessel)

Top Ports:
(1) 6" ID sanitary clamp covered vent
(1) 4¾"OD / 4"ID Tri-Clamp
(4) 2½"OD / 2"ID Tri-Clamp

Jacket Ports:
(4) 1½" NPT

OAD: 130" L x 130" W x 262" H
