Feldmeier Machines

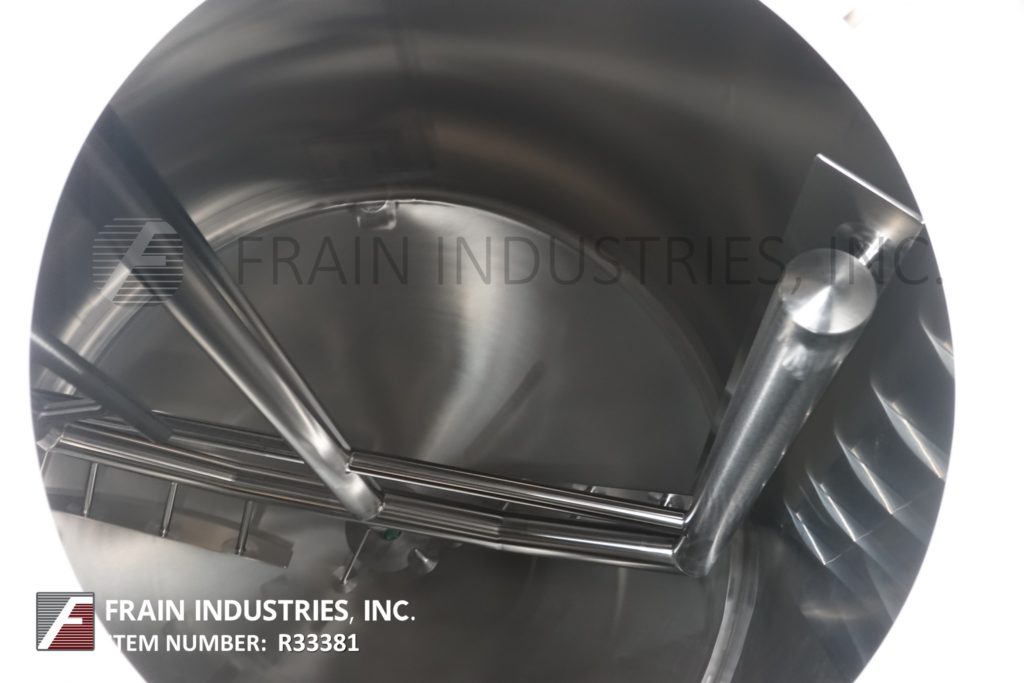

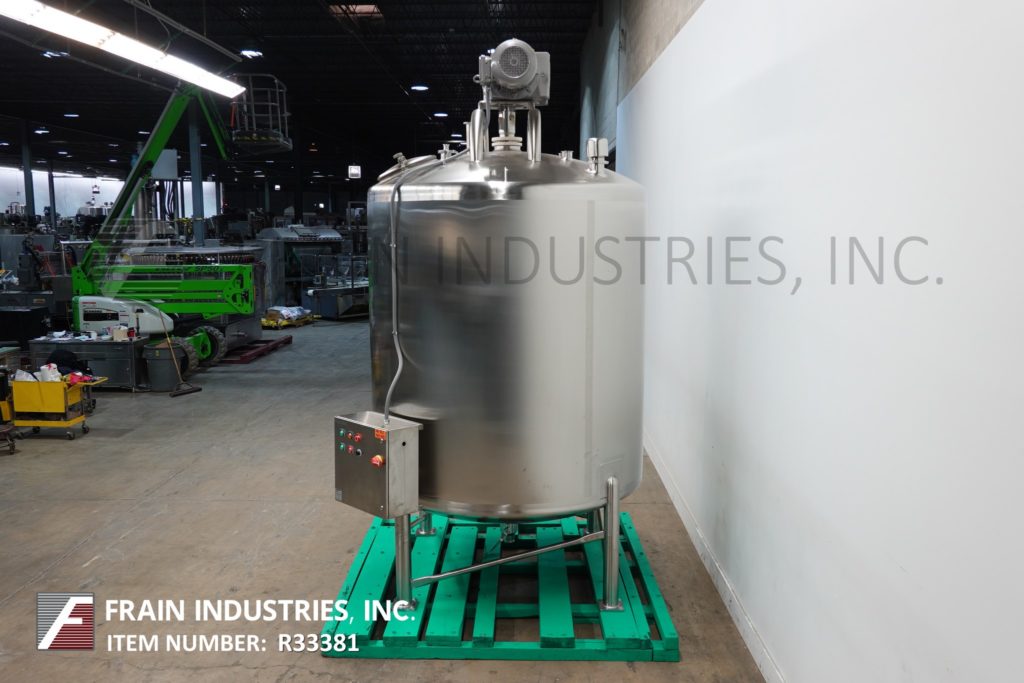

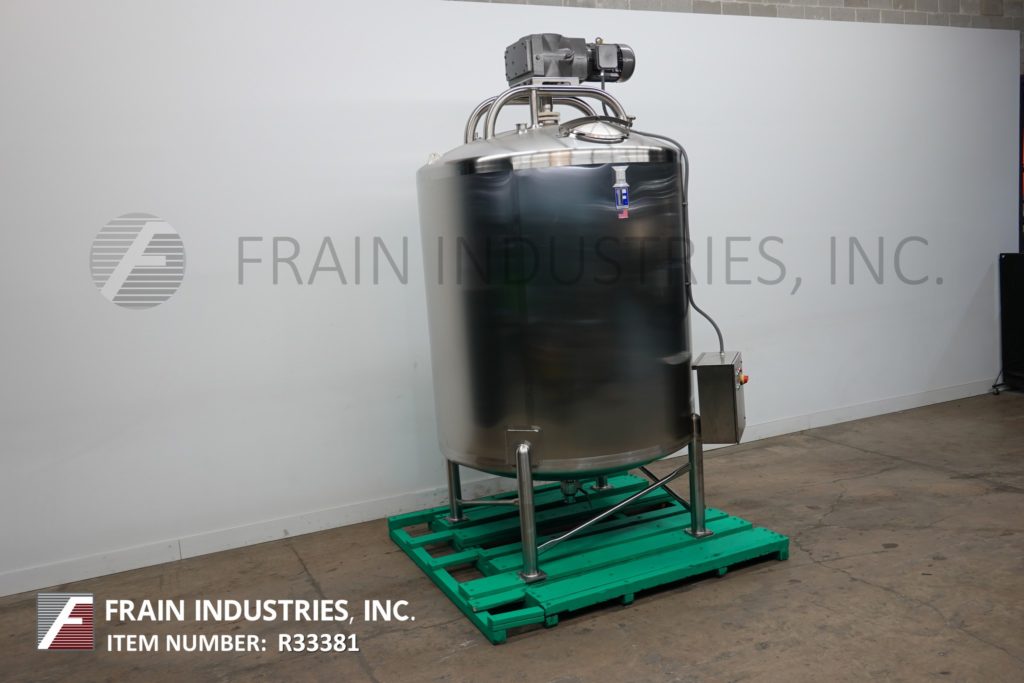

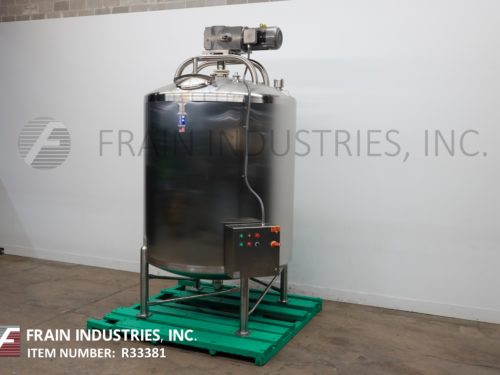

Feldmeier Tank SS Single Wall 2000SW

• Manufacturer: Feldmeier
• Model Number: 2000SW
• Frain Number: R33381

Feldmeier, 2000 gallon capacity, stainless steel process tank with 316L stainless steel contact parts. Vessel dimensions: 84" diameter with 84" straight wall. Equipped with dome top, 18" OD flip top man way, top mounted 15 Hp side and bottom sweep agitation, CIP spray balls and thermowell. Dish bottom has 3½" OD / 3" ID center bottom ball valve discharge with 8" ground clearence. Control panel with push button start / stop and variable speed control. Mounted on (4) legs with foot pads.

Top Ports:
(1) 4½"OD / 4"ID Tri-Clamp
(2) 3½"OD / 3"ID Tri-Clamp

OAD: 108" L x 90" W x 159" H

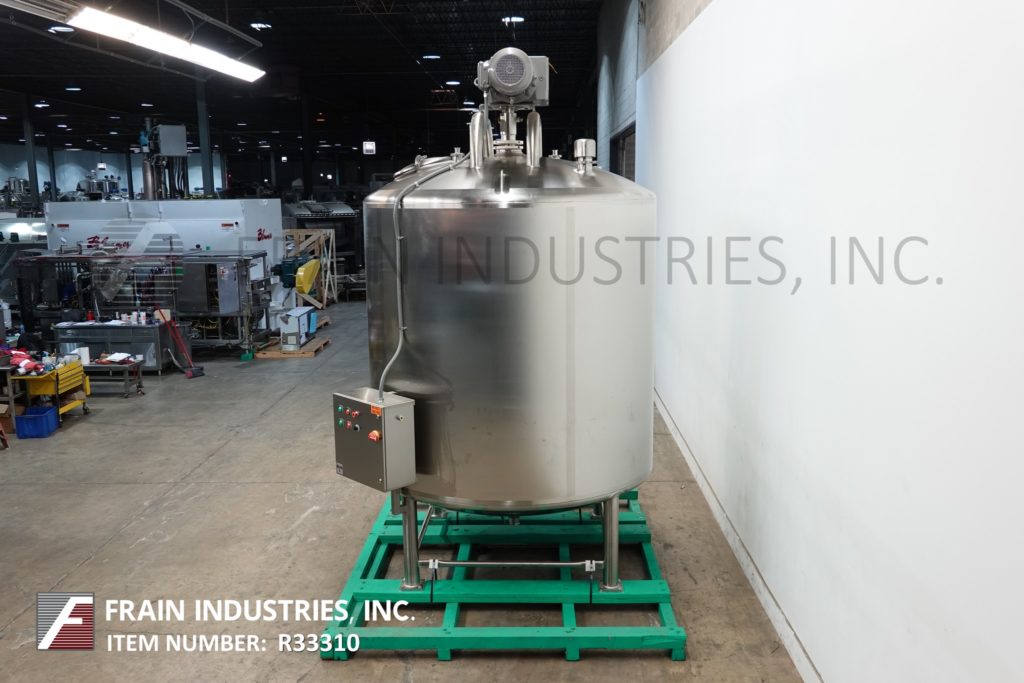

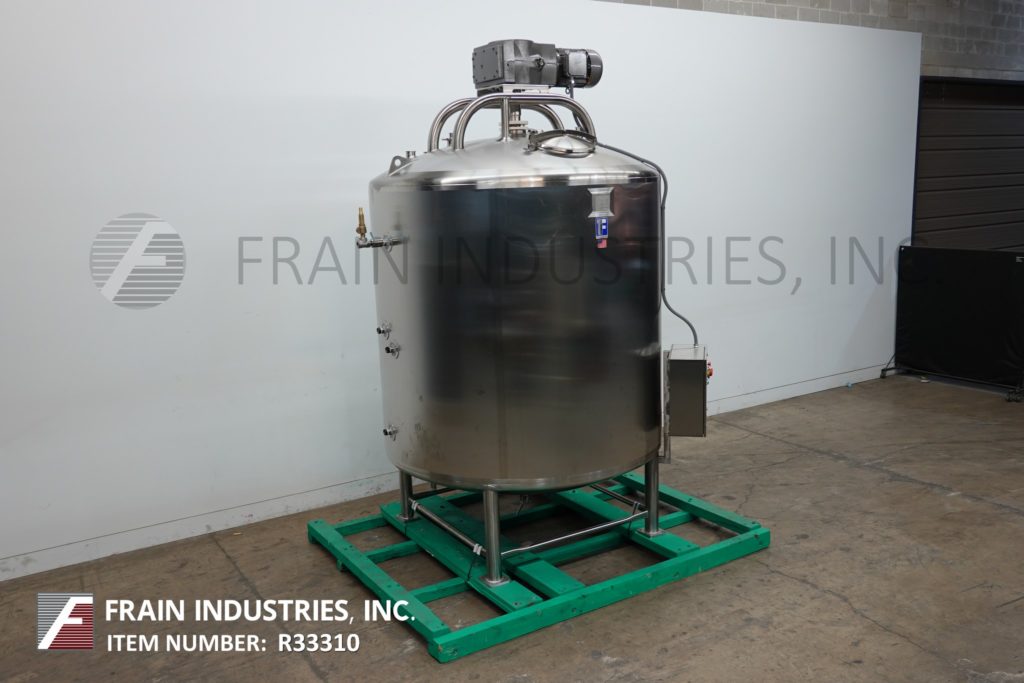

Feldmeier Tank Processors 2000JKT

• Manufacturer: Feldmeier
• Model Number: 2000JKT
• Frain Number: R33310

Feldmeier, 2000 gallon capacity, stainless steel jacketed and insulated process tank. 316L stainless steel contact parts and 304 stainless steel jacket and exteroir parts. Vessel dimensions: 84" diameter with 84" straight wall. Equipped with dome top, 18" OD flip top man way, top mounted 15 Hp side and bottom scrape surface agitation, CIP spray balls and thermowell. Dish bottom has 3½" OD / 3" ID center bottom ball valve discharge with 8" ground clearence. Control panel with push button start / stop and variable speed control. Mounted on (4) legs with foot pads.

Nat’l Brd: 719
MAWP: 150 PSI @ 350°F
MDMT: -20°F @ 150 PSI

Top Ports:
(1) 4½"OD / 4"ID Tri-Clamp
(2) 3½"OD / 3"ID Tri-Clamp

Jacket Ports:
(6) 1½" NPT

OAD: 113" L x 91" W x 157" H

Feldmeier Tank Processors 3720 GAL

• Manufacturer: Feldmeier
• Model Number: 3720 GAL
• Frain Number: 5H8060

Feldmeier, 3,720 Gallon, 316L stainless steel, jacketed and insulated tank. Vessel Dimensions: 84" diameter x 174" straight wall. Equipped with a dome top, slant bottom, bottom sweep agitation powered by a 3 hp drive, 20" x 16" side manway with bolt down cover, (2) thermowells, CIP spray ball supplied by a 2"OD / 1½"ID Tri-Clamp fitting, (1) 3" OD internal vent line and (1) 4" OD internal over flow line with Tri-Clamp fittings and 3½"OD / 3"ID Tri-clamp style bottom discharge with 18" ground clearance.

Side Access:
(1) 3½"OD / 3"ID Tri-Clamp

Jacket Access:
(2) 1½" NPT

MAWP: 150 PSI @ 200°F
MDMT: -20°F @ 150 PSI

OAD: 96"L x 92"W x 230"H

Feldmeier Kettle Double Motion 150DMK

• Manufacturer: Feldmeier
• Model Number: 150DMK
• Frain Number: R31842

Feldmeier Model 150-44-TMIX, 150 gallon, jacketed double motion kettle. 316 Stainless steel contact materials and 304 stainless steel non-contact materials, Vessel dimensions: 44" ID; 39" in Depth. #4 Finish inside and outside with all welds ground flush, polished and buffed. Equipped with bridge mounted counter rotating 3 Hp side and bottom scrape surface agitator, 3 Hp secondary turbine impeller, (4) 3" OD top ports and CIP spray ball. 1.5" NPT jacket in / outlets. 3" Center bottom discharge with 16" floor clearance. Rated up to 100,000 Cps. Number of gallons of product per hour dependent on materials and application.

Jacket rating:
MAWP of 150 psi @ 350 Deg F
FV
MDMT -20 Deg F @ 150 psi

NB #: 10737

OAD: 57" L x 54" W x 98" H

Feldmeier Kettle Double Motion 150DMK

• Manufacturer: Feldmeier
• Model Number: 150DMK
• Frain Number: R31841

Feldmeier Model 150-44-TMIX, 150 gallon, jacketed double motion kettle. 316 Stainless steel contact materials and 304 stainless steel non-contact materials, Vessel dimensions: 44" ID; 39" in Depth. #4 Finish inside and outside with all welds ground flush, polished and buffed. Equipped with bridge mounted counter rotating 3 Hp side and bottom scrape surface agitator, 3 Hp secondary turbine impeller, (4) 3" OD top ports and CIP spray ball. 1.5" NPT jacket in / outlets. 3" Center bottom discharge with 16" floor clearance. Rated up to 100,000 Cps. Number of gallons of product per hour dependent on materials and application.

Jacket rating:
MAWP of 150 psi @ 350 Deg F
FV
MDMT -20 Deg F @ 150 psi.

N/B #: 10736

OAD: 57" L x 54" W x 98" H

Feldmeier Kettle Double Motion 150DMK

• Manufacturer: Feldmeier
• Model Number: 150DMK
• Frain Number: R31840

Feldmeier Model 150-44-TMIX, 150 gallon, jacketed double motion kettle. 316 Stainless steel contact materials and 304 stainless steel non-contact materials, Vessel dimensions: 44" ID; 39" in Depth. #4 Finish inside and outside with all welds ground flush, polished and buffed. Equipped with bridge mounted counter rotating 3 Hp side and bottom scrape surface agitator, 3 Hp secondary turbine impeller, (4) 3" OD top ports and CIP spray ball. 1.5" NPT jacket in / outlets. 3" Center bottom discharge with 16" floor clearance. Rated up to 100,000 Cps. Number of gallons of product per hour dependent on materials and application.

Jacket rating:
MAWP of 150 psi @ 350 Deg F
FV
MDMT -20 Deg F @ 150 psi

N/B #: 10735.

OAD: 57" L x 54" W x 98" H

Feldmeier Cleaner CIP/COP 1 TANK CIP

• Manufacturer: Feldmeier
• Model Number: 1 TANK CIP
• Frain Number: R30900

Feldmeier, platform mounted, stainless steel, CIP system. Equipped with 36" OD x 45" Deep 200 gallon single wall 316 stainless steel holding tank with 2"ID overflow connection and 2½"OD / 2"ID Tri-clamp style water charge. Vessel discharges into Ampco, Model LCV520-252-21, centrifugal recirculation pump powered by 10 Hp motor drive. The pump brings fluid through a tube in shell heat exchange before discharging to a 3½" ID / 3" OD Tri-clamp CIP supply line. Control panel with an A/B PLC and PanelView touch screen HMI. Mounted on stainless steel platform style base.

Nat’l Brd: 4003
MAWP: 150 PSI @ 350°F (Vessel)
MDMT: -20°F @ 150 PSI (Vessel)
MAWP: 150 PSI @ 350°F (Jacket)
MDMT: -20°F @ 150 PSI (Jacket)

OAD: 96"L x 65"W x 108"H

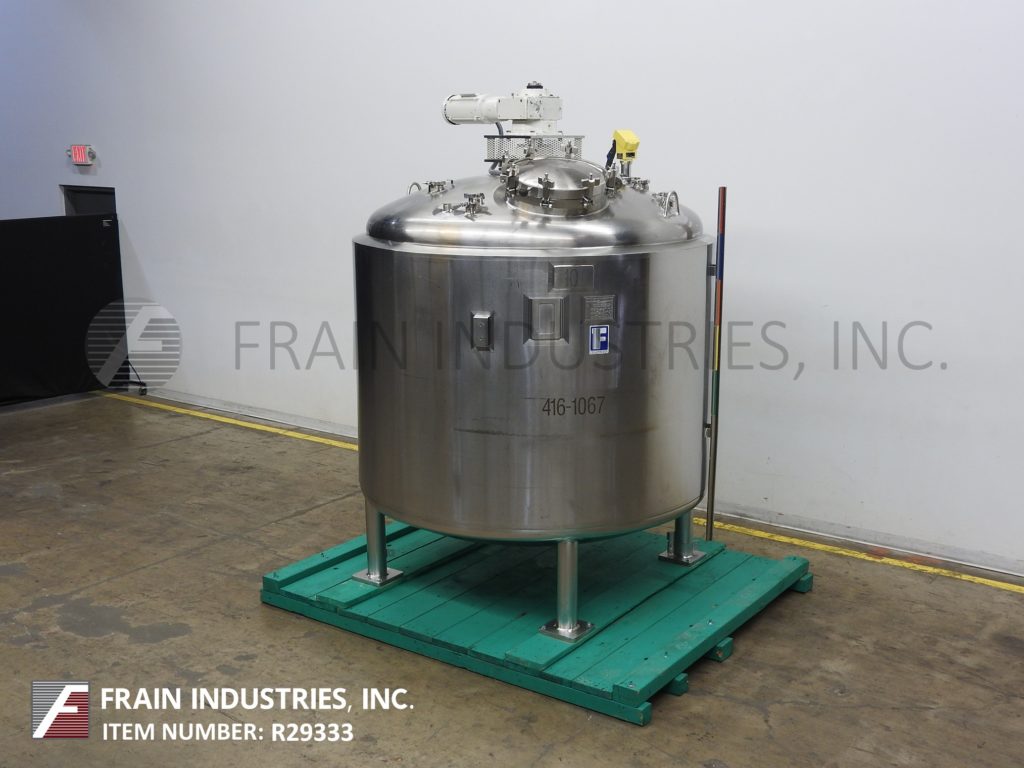

Feldmeier Tank Processors 4500L

• Manufacturer: Feldmeier
• Model Number: 4500L
• Frain Number: R29333

Feldmeier, 4500 Litre or 1125 gallon capacity, 316 stainless steel 3-zone jacketed process tank. Vessel dimensions: 76" ID x 82" deep with 51" straight wall. Equipped with a dome top, slant bottom, (1) 20" diameter top entry hinged man way, (2) thermowells, 3 Hp top mounted 27" diameter prop agitator and 2½" OD / 2" ID tri-clamp style bottom center discharge with a 12" ground clearance.

Top Ports:
(3) 3½"OD / 3"ID Tri-Clamp
(2) 2½"OD / 2"ID Tri-Clamp
(5) 2"OD / 1½"ID Tri-Clamp

Side Ports:
(1) 3½"OD / 3"ID Tri-Clamp

Jacket Ports:
(8) ¾" NPT

Vessel:
MAWP: 25 PSI @ 176°F
MDMT: -22 °F @ 25 PSI

Jacket:
MAWP: 50 PSI/FV @ 176°F
MDMT: -22°F @ 50 PSI/FV

Nat’l Brd: 2686

OAD: 88"L x 82"W x 120"H

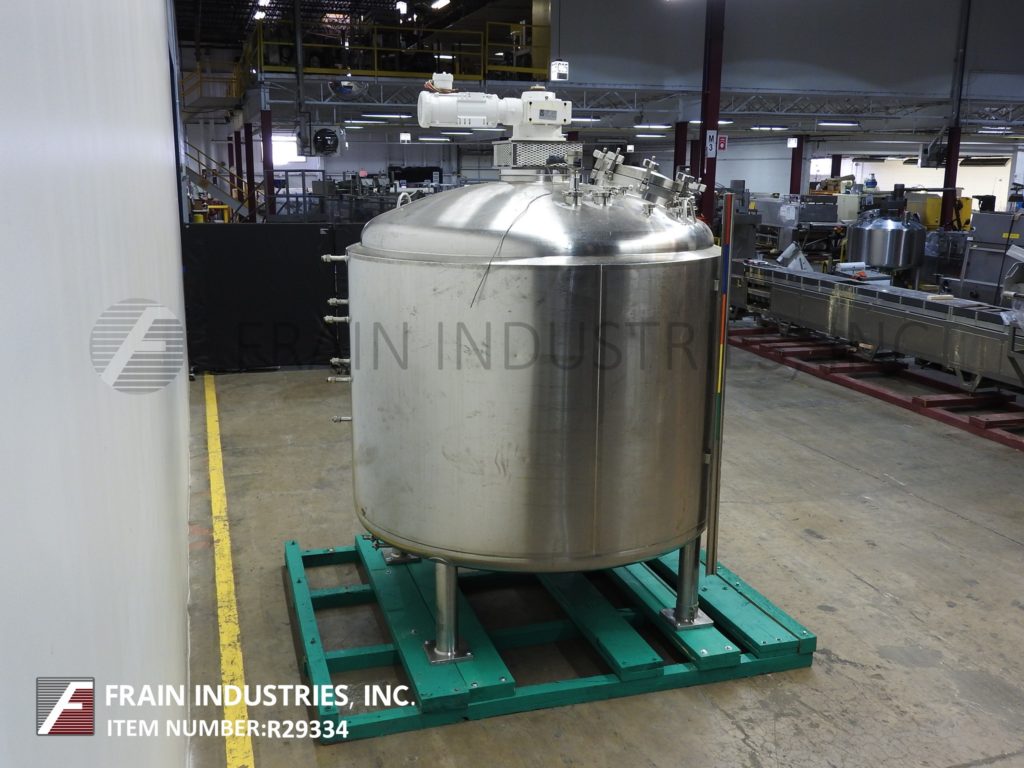

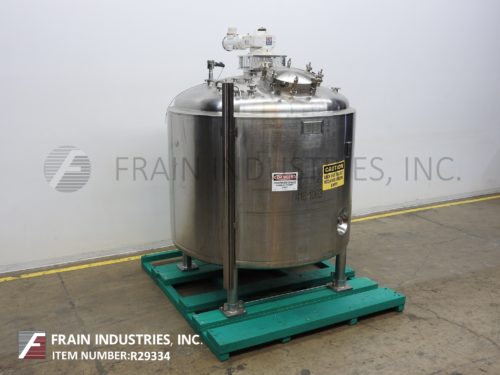

Feldmeier Tank Processors 4500L

• Manufacturer: Feldmeier
• Model Number: 4500L
• Frain Number: R29334

Feldmeier, 4500 Litre or 1125 gallon capacity, 316 stainless steel 3-zone jacketed process tank. Vessel dimensions: 76" ID x 82" deep with 51" straight wall. Equipped with a dome top, slant bottom, (1) 20" diameter top entry hinged man way, (2) thermowells, 2 Hp top mounted 27" diameter prop agitator and 2½" OD / 2" ID tri-clamp style bottom center discharge with a 12" ground clearance.

Top Ports:
(3) 3½"OD / 3"ID Tri-Clamp
(2) 2½"OD / 2"ID Tri-Clamp
(5) 2"OD / 1½"ID Tri-Clamp

Side Ports:
(1) 3½"OD / 3"ID Tri-Clamp

Jacket Ports:
(8) ¾" NPT

Vessel:
MAWP: 25 PSI @ 176°F
MDMT: -22 °F @ 25 PSI

Jacket:
MAWP: 50 PSI/FV @ 176°F
MDMT: -22°F @ 50 PSI/FV

Nat’l Brd: 2684

OAD: 88"L x 82"W x 120"H

Feldmeier Tank Processors 4500L

• Manufacturer: Feldmeier
• Model Number: 4500L
• Frain Number: R29335

Feldmeier, 4500 Litre or 1125 gallon capacity, 316 stainless steel 3-zone jacketed process tank. Vessel dimensions: 76" ID x 82" deep with 51" straight wall. Equipped with a dome top, dish bottom, (1) 20" diameter top entry hinged man way, (2) thermowells, 3 Hp top mounted 27" diameter prop agitator and 2½" OD / 2" ID tri-clamp style bottom center discharge with 12" ground clearance.

Top Ports:
(3) 3½"OD / 3"ID Tri-Clamp
(2) 2½"OD / 2"ID Tri-Clamp
(5) 2"OD / 1½"ID Tri-Clamp

Side Ports:
(1) 3½"OD / 3"ID Tri-Clamp

Jacket Ports:
(8) ¾" NPT

Vessel:
MAWP: 25 PSI @ 176°F
MDMT: -22 °F @ 25 PSI

Jacket:
MAWP: 50 PSI/FV @ 176°F
MDMT: -22°F @ 50 PSI/FV

Nat’l Brd: 2687

OAD: 88"L x 82"W x 120"H

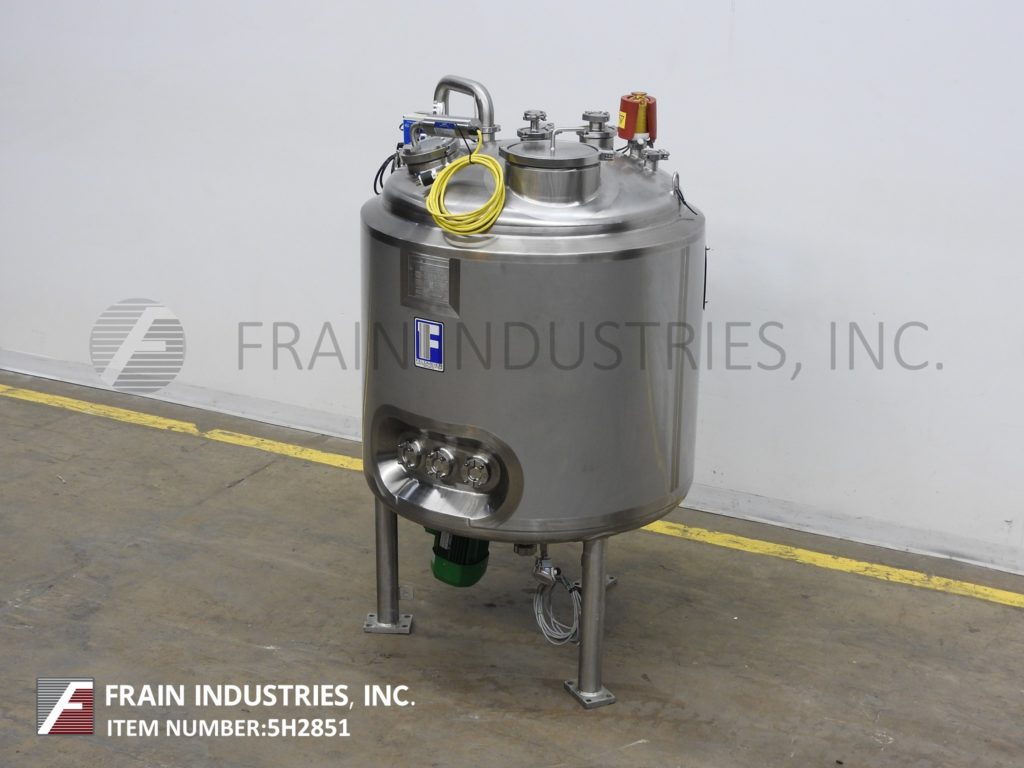

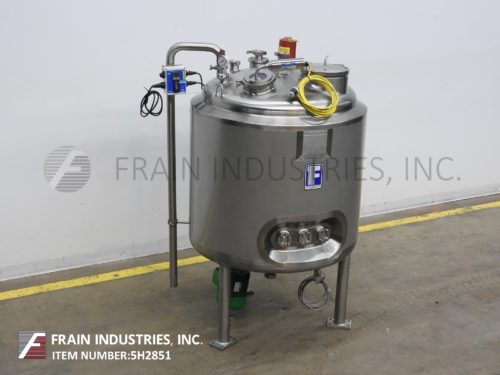

Feldmeier Tank Reactor SS TK115

• Manufacturer: Feldmeier
• Model Number: TK115
• Frain Number: 5H2851

Feldmeier, 150 Gallon capacity, 316L stainless steel, insulated, internal vacuum tank. Vessel dimensions: 36" diameter x 42" deep with a 35" straight wall. Equipped with (1) thermowell, CIP spray ball supplied by a 2"OD / ¾"ID Tri-Clamp fitting, 4" diameter sight glass with lamp, 1¾ HP bottom mounted prop agitation and plug valve with 2"OD / 1½"ID Tri-Clamp style discharge with 15" ground clearance.

Top Ports:
(1) 10½"OD / 9½"ID Tri-Clamp
(3) 2½"OD / 2"ID Tri-Clamp
(3) 2"OD / 1½"ID Tri-Clamp

Side Ports:
(3) 2"OD / 1½"ID Tri-Clamp

MAWP: 50 PSI @ 350°F (Vessel)
MDMT: -20°F @ 50 PSI (Vessel)

Vac: FV (Vessel)

Nat’l Brd: 3784

OAD: 48"L x 43"W x 68"H

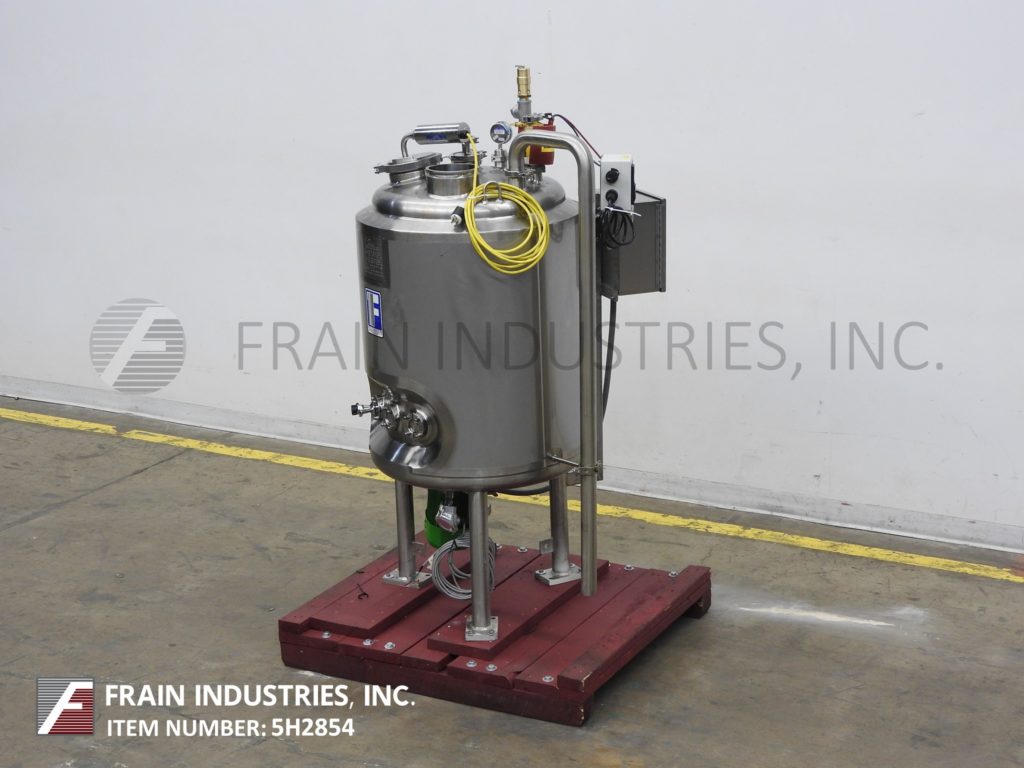

Feldmeier Tank Reactor SS TK110

• Manufacturer: Feldmeier
• Model Number: TK110
• Frain Number: 5H2854

Feldmeier, 60 Gallon capacity, 316L stainless steel, insulated, internal vacuum tank. Vessel dimensions: 24" diameter x 36" deep with a 32" straight wall. Equipped with (1) thermowell, CIP spray ball supplied by a 2"OD / ¾"ID Tri-Clamp fitting, 4" diameter sight glass with lamp, 1¾ HP bottom mounted prop agitation and plug valve with 2"OD / 1½"ID Tri-Clamp style discharge with 15" ground clearance.

Top Ports:
(1) 6½"OD / 5½"ID Tri-Clamp
(1) 3½"OD / 3"ID Tri-Clamp
(2) 2½"OD / 2"ID Tri-Clamp
(2) 2"OD / 1½"ID Tri-Clamp

Side Ports:
(3) 2"OD / 1½"ID Tri-Clamp

MAWP: 50 PSI @ 350°F (Vessel)
MDMT: -20°F @ 50 PSI (Vessel)

Vac: FV (Vessel)

Nat’l Brd: 3783

OAD: 35"L x 32"W x 61"H
