Tank Reactor GL is a custom line of specialty reactors used in making fine chemical intermediates and pharmaceuticals that require a truly inert environment and Glass Lined reactors fill this bill. Reactor GL tanks are pressure rated for the ability to complete pressure and vacuum reactions as well as have jacketing for controlling and initiating the reactions. Reactor GL tanks are usually heavy-duty, specialty purpose reactors with all product contact parts glass lined and this includes the agitators.
Ceramic Coatings 500 gallon, jacketed, Internal pressure rated and vacuum rated glass lined reactor. Vessel dimensions: 66" ID x 36" straight wall. Equipped with dome top, 19" x 15" man way with flip up, bolt down cover, 4" OD site port, top mounted glass lined agitator with 10 Hp drive and variable speed. Additionally features one 14" OD", one 9" OD and one 8" OD flanged top ports. Full side and bottom jacket with 2" threaded jacket ports. Dish bottom with 8" OD flanged 6" ID center bottom discharge at 13" floor clearance (without discharge valve).
OAD: 81" L x 81" H x 120" H
Internal (vessel) MAWP: FV / 60 PSIG at 450°FInternal (vessel) MDMT: -20°F 60 PSIG
Jacket MAWP: 85 PSIG at 450°FJacket MAWP: 70 PSIG w/Full Internal VacuumJacket MDMT: -20°F at 85 PSIG
National Board: 1516
National Board: 1508
National Board: 1511

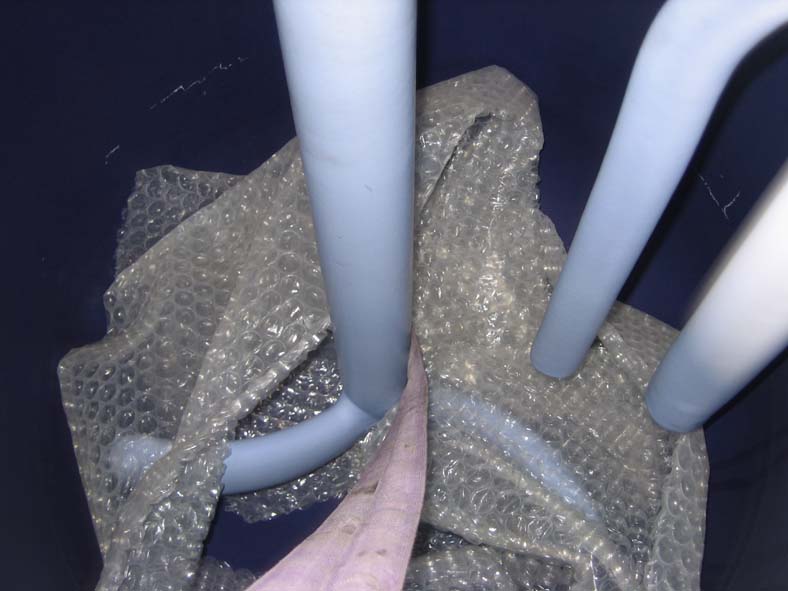

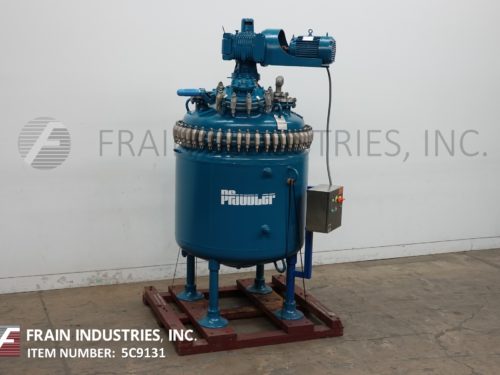

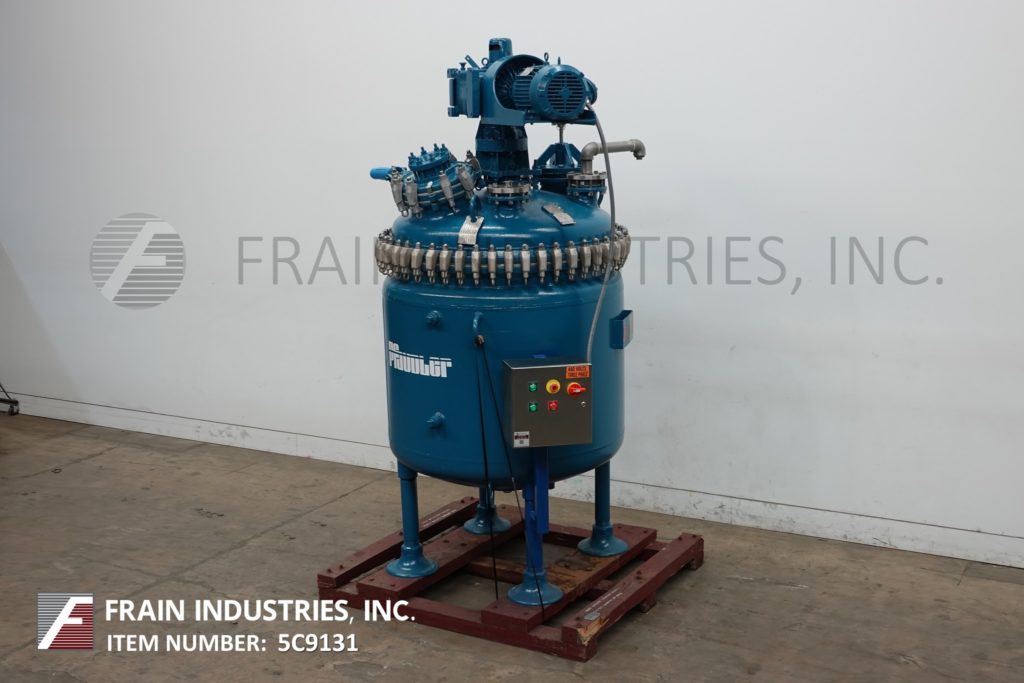

Pfaudler, 200 gallon, Glass lined reactor with amount of product per hour – depending on materials and application. Equipped with 32" diameter x 42" straight wall, dome top, has 16" diameter manway with flip up, bolt down cover, top mounted glass lined prop style impeller and glass lined stationary baffle with temp probe and (2) 4-1/4" (1) 5-1/4" and (1) 6-1/4" OD top ports. Full side and bottom jacketed MAWP jacket 90psi @ 350 deg f, with internal rating of 100psi @ 450 deg f, and MDMT jacket -20 deg f @ 90psi , with internal rating of -20 deg f @ 100 psi, and (2) 2" OD side and (1) 2" OD bottom threaded jacket in / outlets. Dish bottom has 2" OD center bottom discharge with 5" floor clearance, no discharge valve Mounted on (4) stationary bolt down legs.
OAD: 55" L x 54" W x 99" H
Tycon USA, 220 gallon, full jacketed, glass lined reactor. 36" dia x 48" straight wall, dome top, has a bolt down cover, with 2 Hp top mounted prop style glass lined impeller, and (4) flanged top ports. 304 S/S outer construction, has full side and bottom jacketed with MAWP rating jacket of 145psi @ 300 deg f, and vessel rating of 50psi @ 300 deg f, MDMT rating jacket -20 deg f @ 145psi , and vessel rating of -20 deg f @ 50 psi, with (2) 2" ID side and bottom threaded jacket inlet and outlets. Dish bottom with 3" OD center bottom discharge and has (4) side mounting brackets for legs.

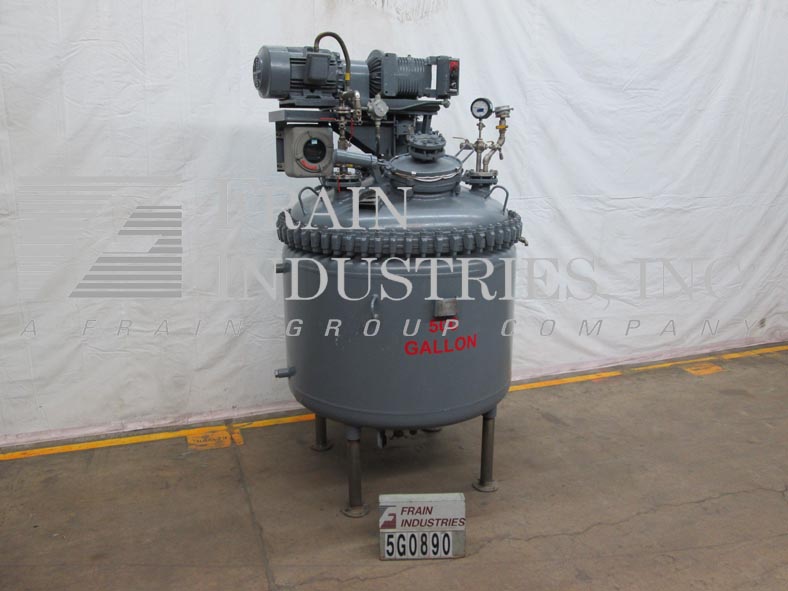

Pfaudler, 300 gallon glass lined reactor rated for 100 psi internal with amount of product per hour – depending on materials and application. (2) piece construction with clamped down top head and dished bottom sections. 48″ inside diameter x 46.5″ straight wall with custom special beveled jacket. # 5025 glassteel lined and retreat curve glass lined impeller and has (2) 1-1/2″ overflows with 12″ x 16″ oval, spring assisted manway. Full vacuum rated at 450 Deg F and 90 Psi jacket pressure at 350 Deg F. Start, stop ande-stop controls. Mounted on (4) leg frame. National Broad # 45845.
OAD: 56″ L x 56″ W x 120″ H
