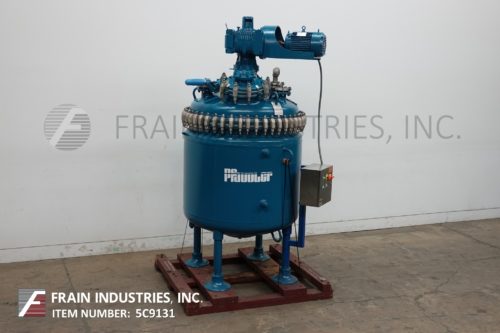

Photo of Pfaudler Robbins Meyers Tank Reactor GL 300 GAL

Pfaudler Robbins Meyers Tank Reactor GL 300 GAL

  Back to All Equipment

Pfaudler, 300-gallon glass lined reactor. Two-piece construction with bolt down head and dished bottom. Vessel dimensions: 48" inside diameter; 46" straight. Retreat curve glass lined impeller. Equipped with (2) 1-1/2" overflows and 12" x 16" oval, spring assisted manway and 2" OD center bottom tri clover connection.

Vessel
Designed Internal Pressure: 100 psi / FV at 450°F
Minimum Design Internal Temp: -20°F at 100 psi

Jacket
Design Pressure: 90 psi at 350°F
Design Pressure: 90 psi w/Internal Vacuum
Minimum Design Temp: -20°F at 90 psi

National Board: 45845

IMPORTANT NOTE: Jacket Pressure NOT to Exceed 40 psi when vessel is not full (risks of damaging the glass lining).

OAD: 56" L x 56" W x 120" H
