Walker Tank Processors MT-102

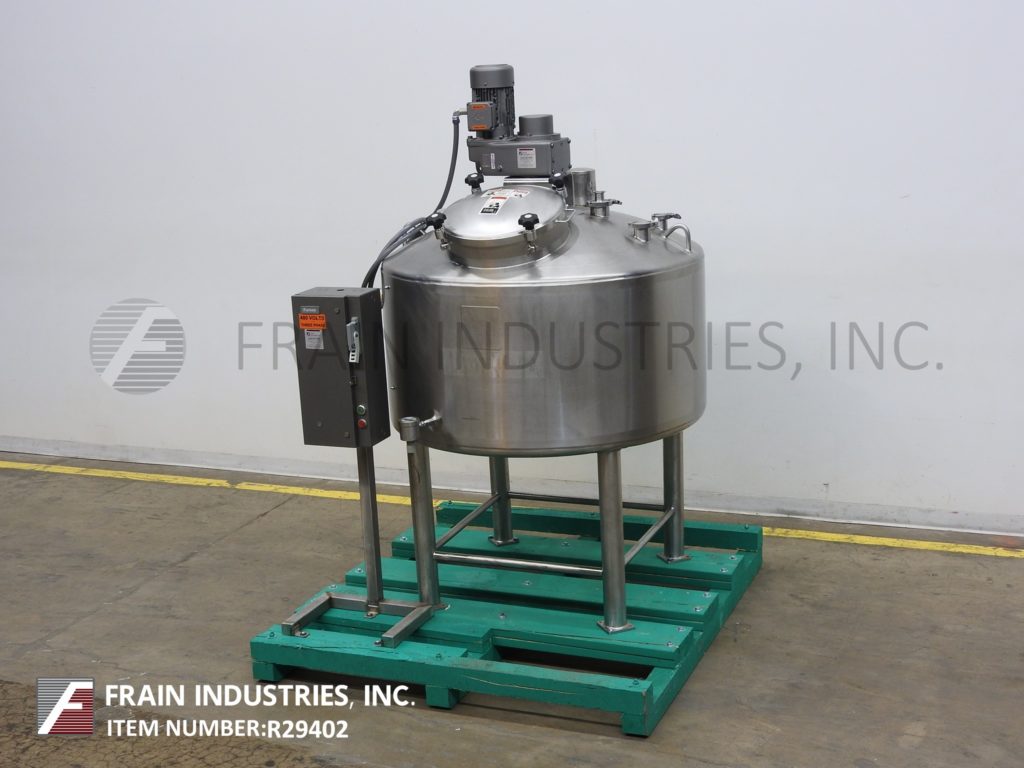

Back to All EquipmentWalker, 150 gallon capacity, 316L stainless steel jacketed / insulated process tank, with gallons of product per hour – depending on materials and application. Vessel dimensions: 46" diameter x 32" deep with 24" straight wall. Equipped with 18" diameter bolt down man way, 2 Hp top mounted scrape agitator, Thermowell, 6" wide fixed baffle and 3" OD / 2.5" ID Tri-clamp style bottom discharge with 24" ground clearance. Mounted on (4) stainless steel legs.
Top Ports:
(1) 2½"OD / 2"ID Tri-clamp
(1) 3"OD / 2½ID Tri-clamp
(1) 3½"OD / 3"ID Tri-clamp
Jacket Ports:
(4) 2"OD / 1½"ID Tri-clamp
MAWP: 150 PSI @ 338°F
MDMT: -20°F @ 150 PSI
Nat’l Brd: 6579
OAD: 51"L x 49"W x 87"H
