Mueller Tank SS JKT 150BBL

• Manufacturer: Mueller
• Model: 150BBL
• Category: Stainless Steel Tank
• Subcategory: Stainless Steel Jacketed

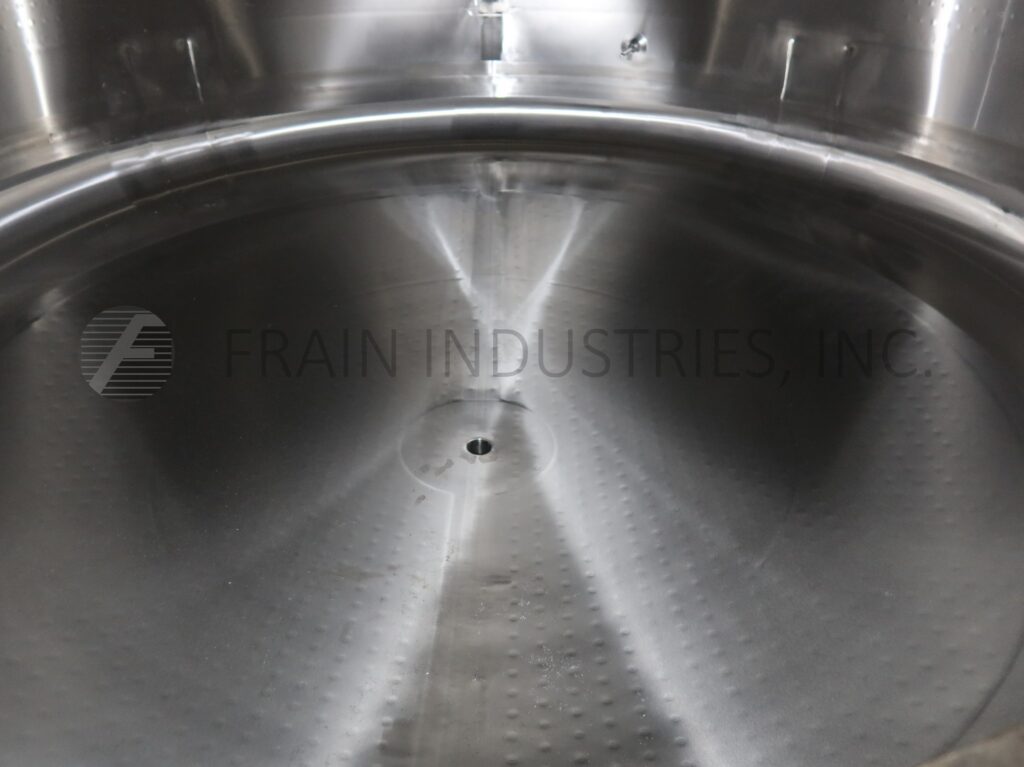

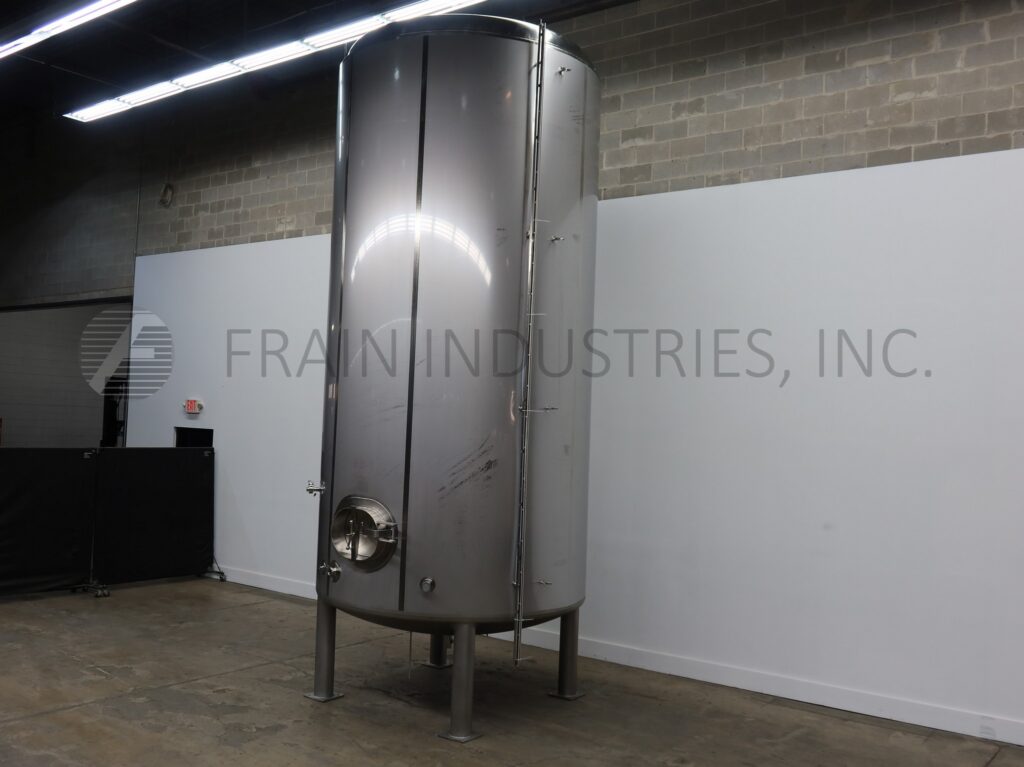

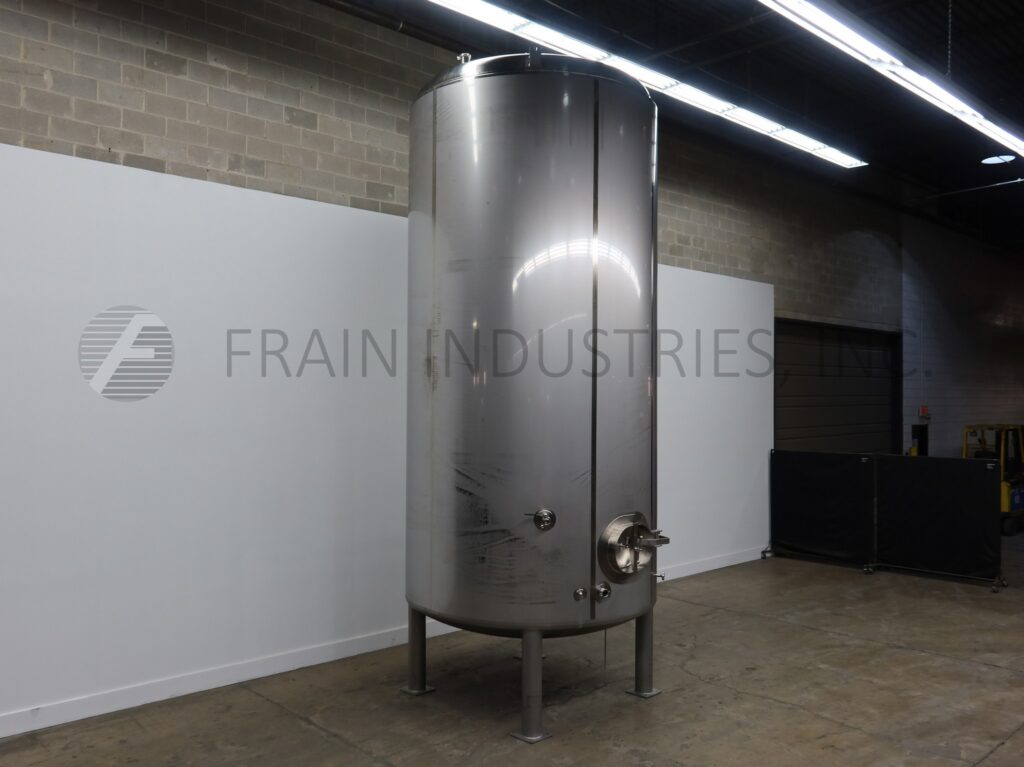

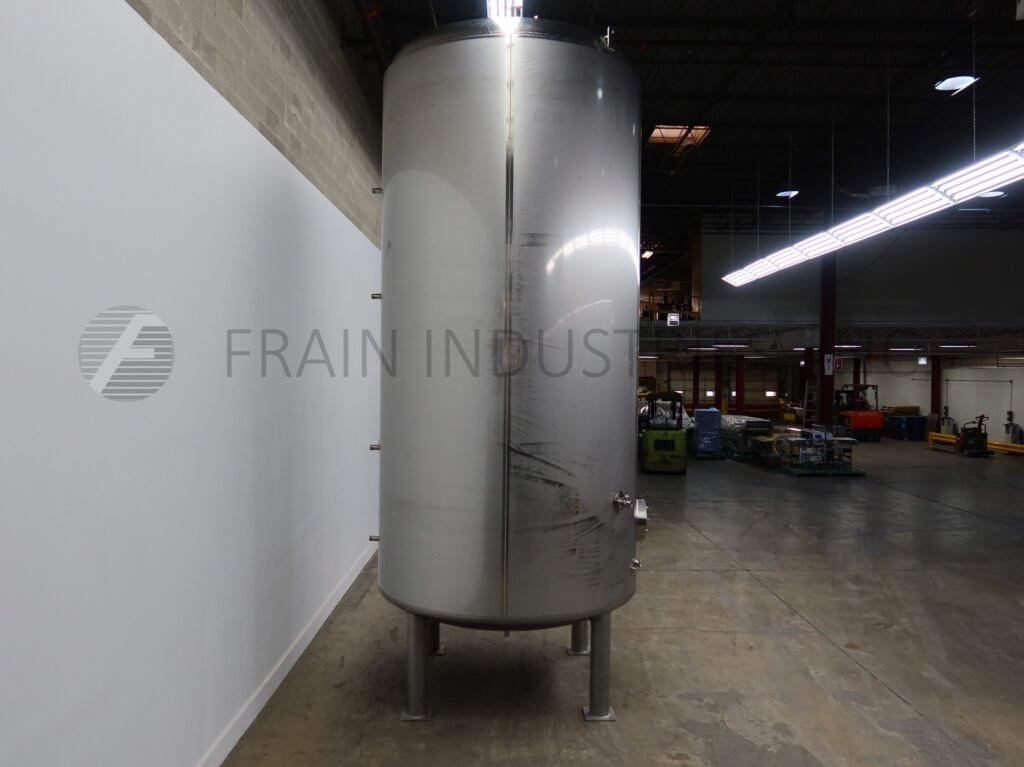

Mueller, 150 BBL, 304 stainless steel, jacketed and insulated tank. Vessel Dimensions: 90" diameter x 177" straight wall with a dish bottom. Equipped with 15½" x 20½" side manway with bolt down cover, (2) thermowells, top pressure releif valve and 2½"OD / 2"ID Tri-clamp style bottom fittings with 13" ground clearance.

Side Access:
(1) 2½"OD / 2"ID Tri-Clamp
(1) 2"OD / 1½"ID Tri-Clamp
(1) 1"OD / ½"ID Tri-Clamp

Top Access:
(2) 3½"OD / 3"ID Tri-Clamp
(1) 2½"OD / 2"ID Tri-Clamp

Jacket Access:
(6) 1½" NPT

Nat’l Brd: 48015
MAWP: 14.9 PSI @ 100°F (Vessel)
MAWP: 80 PSI @ 100°F (Jacket)

OAD: 105"L x 95"W x 244"H
