Tank Processors 1800 GALLON

• Model: 1800 GALLON
• Category: Stainless Steel Tank
• Subcategory: Stainless Steel Processor

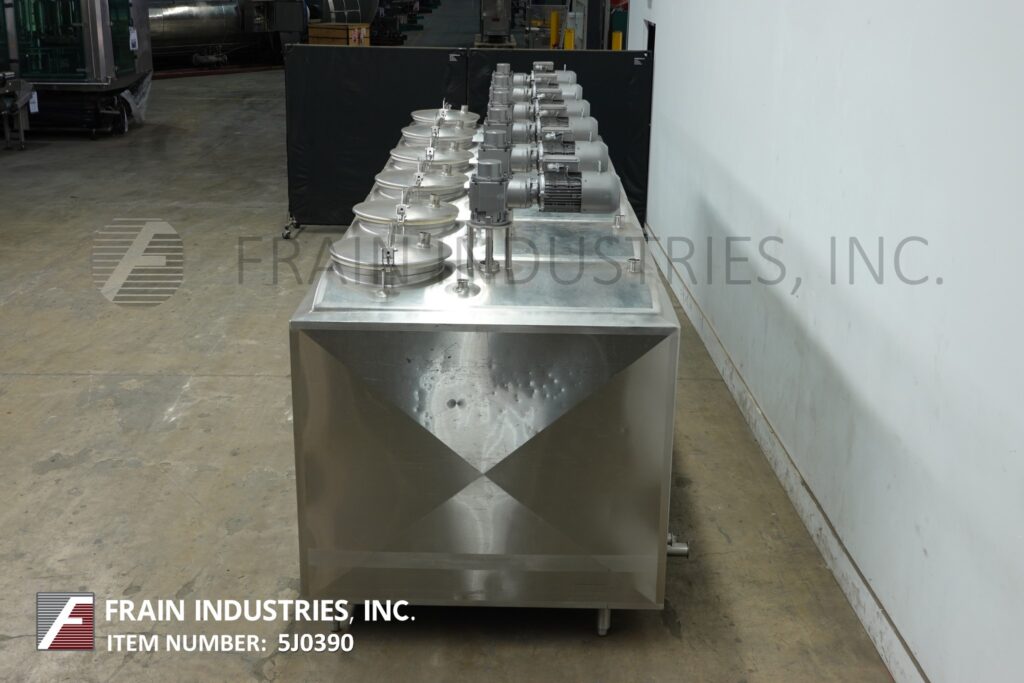

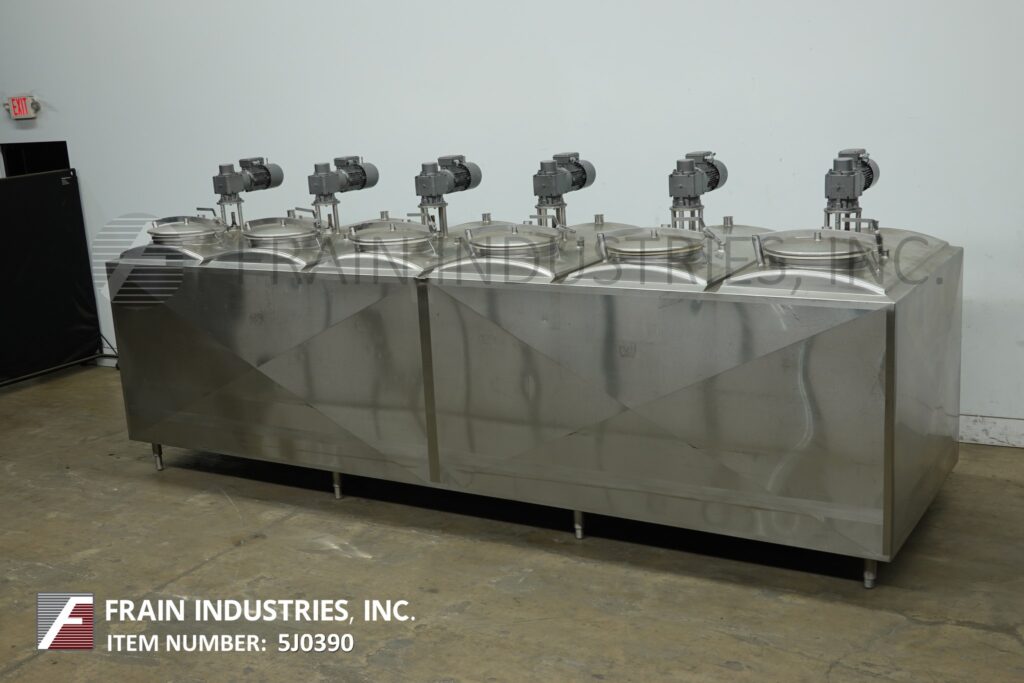

(6) chamber, 304 stainless steel, 1,800 gallon total capacity flavor tank, 300 gallons each chamber with inner chamber dimension of 55" long x 31" wide x 43" deep. Equipped with top mounted lift up covers with 17" ID manway and prop style agitation. Slant bottom has 3" OD / 2½"ID tri-clamp style side bottom discharges with 7" floor clearance. Mounted on multiple stainless steel legs.
Rectangle construction provides maximum capacity in small floor area.

Top Access (Each Chamber)
(1) 2½"OD / 2"ID Tri-Clamp
(1) 2"OD / 1½"ID Tri-Clamp
(1) 2"OD open vent

Side Access (Each Chamber)
(1) 2½"OD / 2"ID Tri-Clamp

OAD: 203" L x 66" W x 68" H
