Tank Processors 50 GAL

  Back to All Equipment

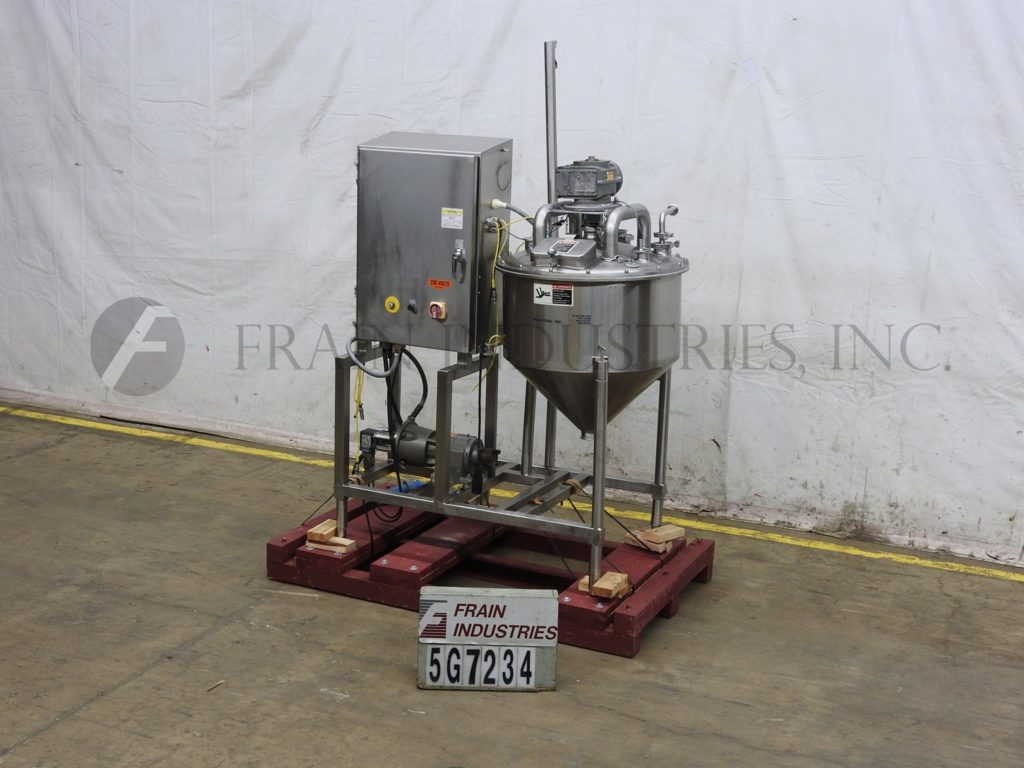

Industrial Inc, 50 gallon capacity, 316 stainless steel process tank with pump. Vessel dimensions: 30" diameter x 28" deep with a 15" straight wall and cone bottom. Equipped with a bolt down cover, 9" x 6" manway, ¾ Hp top mounted 16" diameter (2) paddle prop agitator and 3/4 hp discharge pump. Control box includes start and E-stop buttons. Unit mounted on stainless steel base frame.

Top Ports:
(1) 4¾" OD / 4" ID Tri-clamp
(2) 3½" OD / 3" ID Tri-clamp
(1) 2½" OD / 2" ID Tri-clamp

OAD: 56"L x 33"W x 72"H
