Feldmeier Tank Processors 3000JKT

  Back to All Equipment

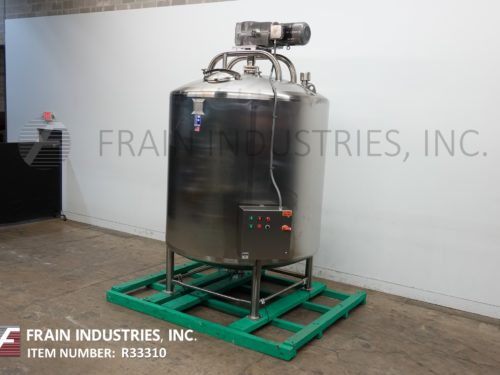

Feldmeier, 3000 gallon capacity, stainless steel jacketed and insulated process tank. 304 stainless steel contact parts and 304 stainless steel jacket and exteroir parts. Vessel dimensions: 72" diameter with 166" straight wall. Equipped with dome top, 18" diameter bolt down man way, top mounted 10 Hp side and bottom scrape surface agitation, baffle, (2) CIP spray balls supplied by 2"OD / 1½"ID Tri-clamp fittings and thermowell. Dish bottom has 3½" OD / 3" ID center bottom pneumatic valve discharge with 25" ground clearence. Control panel with push button start / stop and variable speed control. Mounted on (4) legs with foot pads.

Nat’l Brd: 9619
MAWP: 150 PSI @ 350°F (Jacket)
MDMT: -20°F @ 100 PSI (Jacket)

MAWP: 10 PSI @ 165°F (Vessel)
MDMT: -20°F @ 10 PSI (Vessel)

Top Ports:
(1) 6" ID sanitary clamp covered vent
(1) 4¾"OD / 4"ID Tri-Clamp
(3) 2½"OD / 2"ID Tri-Clamp

Jacket Ports:
(8) 1½" NPT

OAD: 80" L x 80" W x 257" H
