SXR Tank Reactor SS 500 GAL

• Manufacturer: SXR
• Model Number: 500 GAL
• Frain Number: 5D9383

SXR, 500 gallon, jacketed mixing tank. 63" diameter x 90" straight wall, domed top, with 21" L x 17" W manway and top mounted prop agitator, has two 3" diameter top inlets with 2-3/4" flange, two 2" diameter top inlet with 3/4" flange and two 1" diameter top inlet with 2" flange. 304 stainless steel shell, full vacuum rated at 200psi @ 300F and carbom steel Jacket rated at 40psi @ 300F. Dish bottom with 3" diameter threaded center bottom discharge with 2-1/4" flange and 20" ground clearance and mounted on four legs.

OAD: 81"L x 81"W x 160"H

SXR Tank Reactor SS 500 GAL

• Manufacturer: SXR
• Model Number: 500 GAL
• Frain Number: 5D9382

SXR, 500 gallon, jacketed mixing tank. 63" diameter x 90" straight wall, domed top, with 21" L x 17" W manway and top mounted prop agitator, has two 3" diameter top inlets with 2¾" flange, two 2" diameter top inlet with ¾" flange and two 1" diameter top inlet with 2" flange. 304 stainless steel shell, full vacuum rated at 200psi @ 300°F and carbon steel Jacket rated at 40psi @ 300°F. Dish bottom with 3" diameter threaded center bottom discharge with 2¼" flange and 20" ground clearance and mounted on four legs.

OAD: 81" L x 81" W x 160" H

Pfaudler Robbins Meyers Tank Reactor SS 20 GAL

• Manufacturer: Pfaudler Robbins Meyers
• Model Number: 20 GAL
• Frain Number: 5D3150

Pfaudler, 20 gallon, 316 S/S reactor, 20" diameter x 20" straight wall. Dome top, with ¾ hp top mounted anchor style agitator. Internal working pressure 30 psi @ 700°F and Full jacket working pressure of 25 psi. @ 650°F with vacuum pressure gauge up to 29 HG. with (1) 1-3/4" inlet, 4" diameter sight glass on top of vessel, (1) ¾" in / outlet port on the side and (1) ¾" bottom in / outlets for jacket. Dish bottom has 3" diameter center bottom discharge with 10" floor clearance and bottom thermocouple.

OAD: 62" H x 36" W x 34" L

Mueller Tank Reactor SS 12 GAL

• Manufacturer: Mueller
• Model Number: 12 GAL
• Frain Number: 5D0493

Mueller, 316L S/S 50 Liter internal pressure vessel rated for internal maximum working pressure of 40 psi full vacuum @ 300F with a test pressure rating of 60psi @ 29.22"Hg. Has 16" bolt down manway. (1) 1" & (1) 2"OD triclover top mounted tri clover product inlet/outlets ports. Side handles and mounted on casters.
National Board #10353.
OAD = 42H" x 28"W

Precision Stainless Tank Reactor SS 132 GAL 500 Liter 316L S/S Full Jacket 45wp @ 350F

• Manufacturer: Precision Stainless
• Model Number: 132 GAL
• Frain Number: 5D2421

Precision Stainless, 500 Liter, 316L S/S, insulated, internal vacuum tank. Vessel dimensions: 36½" diameter x 48" deep with a 34" straight wall and 36" head dish radius. Equipped with bolt down cover, side mounted temp probe, 1" side mounted heat transfer inlet, 2"OD / 1½"ID Tri-Clamp style infeed, 3½"OD / 3"ID Tri-Clamp style CIP spray ball and 2"OD / 1½"ID Tri-Clamp style discharge with 22" ground clearance. Mounted on (4) stainless steel legs with casters.

Top Ports:
(2) 2"OD / 1½"ID Tri-Clamp
(1) 2½"OD / 2"ID Tri-Clamp
(1) 4½"OD / 4"ID Tri-Clamp

Side Ports:
(1) 1½" NPT
(1) 1½" NPT Splitting to (2) ¾"OD / ½"ID Tri-Clamp

MAWP: 45 PSI @ 350°F
MDMT: -20°F @ 45 PSI
Vac Design: 15 PSI

Nat’l Brd: 7107

OAD: 46"L x 46"W x 70"H

Jaygo Tank Reactor SS APF

• Manufacturer: Jaygo
• Model Number: APF
• Frain Number: 5D1211

Jaygo Model APF, (Agitation Pressure Filter), 500 liter, 316L stainless steel, insulated, agitated, self contained, pressure / vacuum filtration and drying system. Internal pressure rated with amount of product per hour – depending on materials and application. Vessel dimensions: 55" OD dome top, 42" straight wall, with top mounted 5 Hp motor drive supporting bottom sweep agitation, (1) 7" OD / 4" ID flanged top port has and (1) 12" OD flip-up cover, (1) 7" OD / 4" ID flanged sight port, 2" OD / 1½" ID Tri-Clamp inlet and 3" OD / 2½" ID Tri-Clamp side bottom sanitary discharge with 16" floor clearence. Flanged removable bolt down, dish bottom and is fork lift removable, for ease of maintenance and installation of bottom filter cloth. Mounted on (4) stainless steel legs with locking casters.

Sanitary Ports:
(2) 4"
(2) 2"

Nat’l Brd: 418

Vessel
MAWP: 45 psi @110 Deg F
MDMT: -20 Deg F @ 45 psi

OAD: 54" L x 54" W x 88" H Without Casters
94" H With Casters

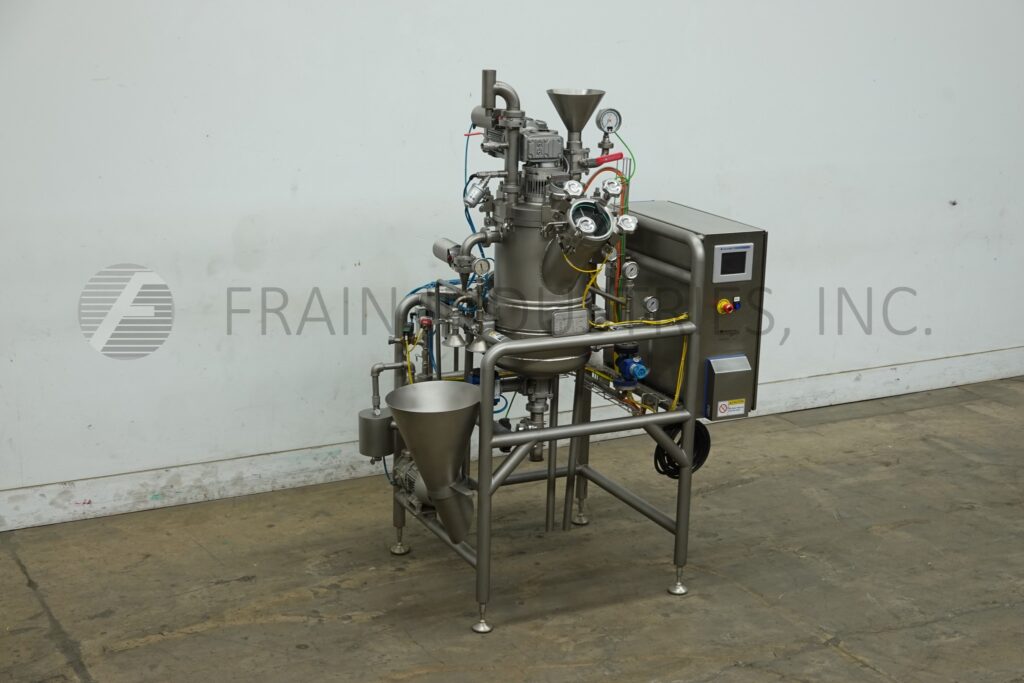

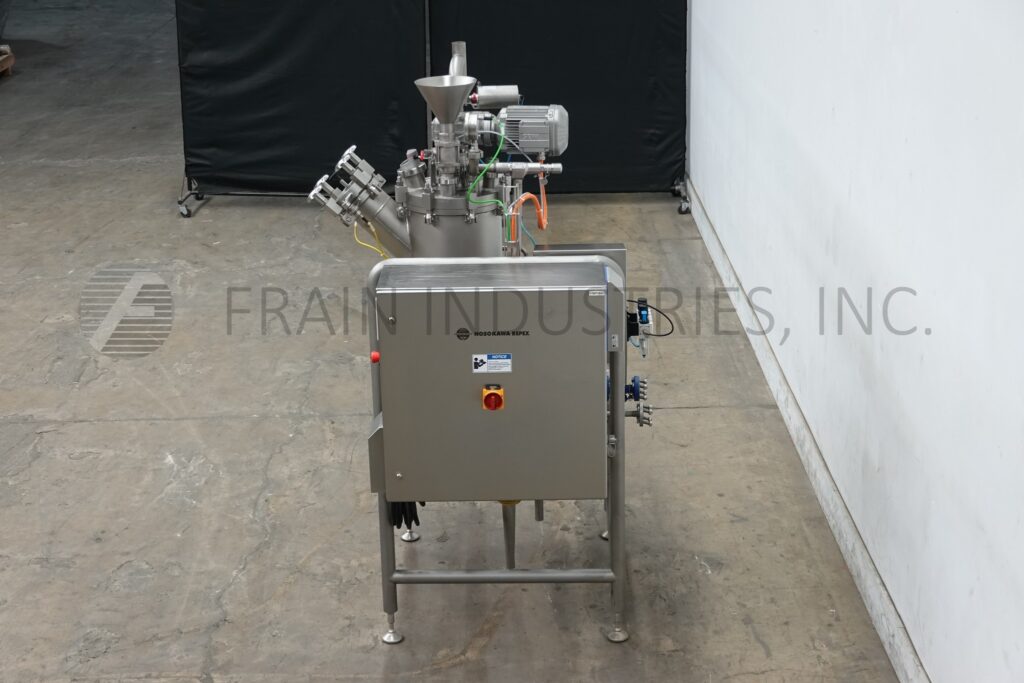

Hosokawa Bepex Tank Reactor SS TBT20V

• Manufacturer: Hosokawa Bepex
• Model Number: TBT20V
• Frain Number: 5J1071

Hosokawa, 15 Gallon, 304 stainless steel, single motion, vacuum kettle. Vessel dimensions: 14" in Diameter; 24" in Depth. Equipped with a bolt down cover top, scrape agitation powered by a 1½ hp drive, 6" ID sight glass, top light, 2hp vacuum system and 2½" OD / 1½" ID bottom discharge with manual ball valve and 22" ground clearance. Control panel with touch screen HMI.

Nat’l Brd: 1269
MAWP: 58 PSI @ 365°F (Jacket)
MAEWP: 14.5 PSI @ 365°F (Vessel)
MDMT: -20°F @ 58 PSI (Jacket)

MAWP: 130.5 PSI @ 365°F (Vessel)
MAEWP: 14.5 PSI @ 365°F (Vessel)
MDMT: -20°F @ 130.5 PSI (Vessel)

Top Access:
(1) 2½" OD / 2" ID Seated Bevel
(3) 3" OD / 2½" ID Seated Bevel
(1) 3½" OD / 3" ID Seated Bevel

Side Access:
(1) 2½" OD / 2" ID Seated Bevel

Jacket Access:
(4) 4"OD / 5/8"ID Flange
(1) 1"

OAD: 50"L x 62"W x 80"H

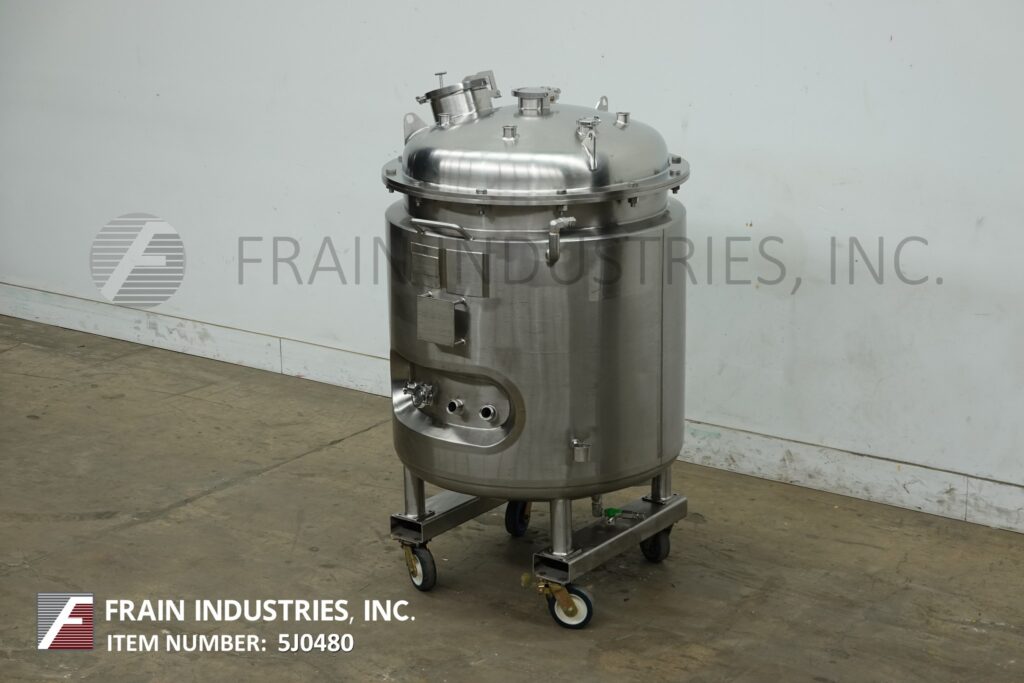

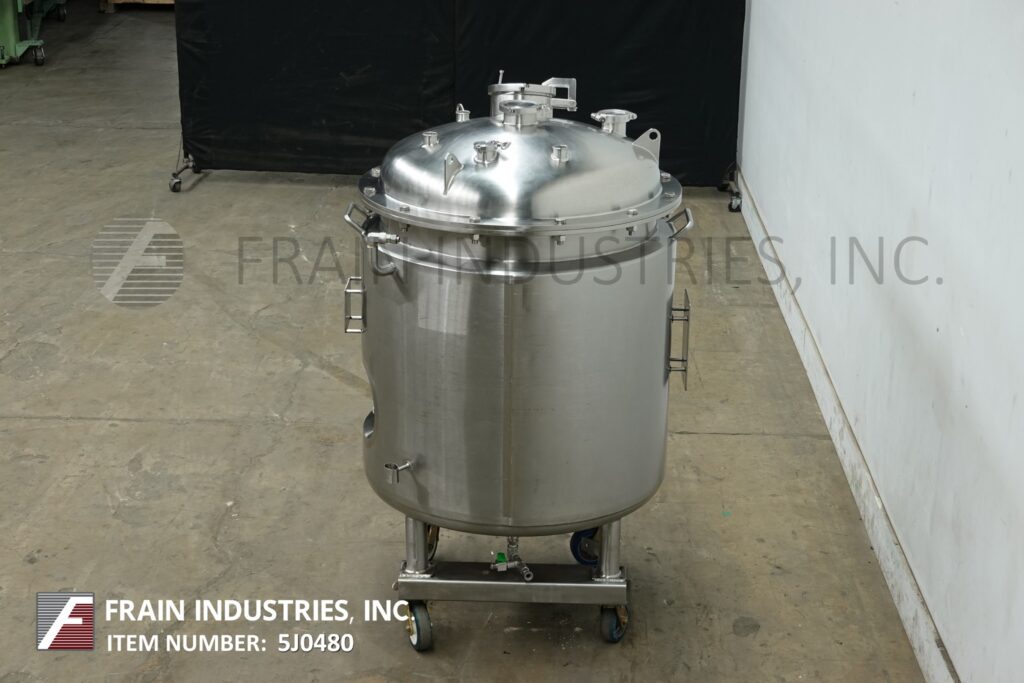

Precision Tank Reactor SS 550L

• Manufacturer: Precision
• Model Number: 550L
• Frain Number: 5J0480

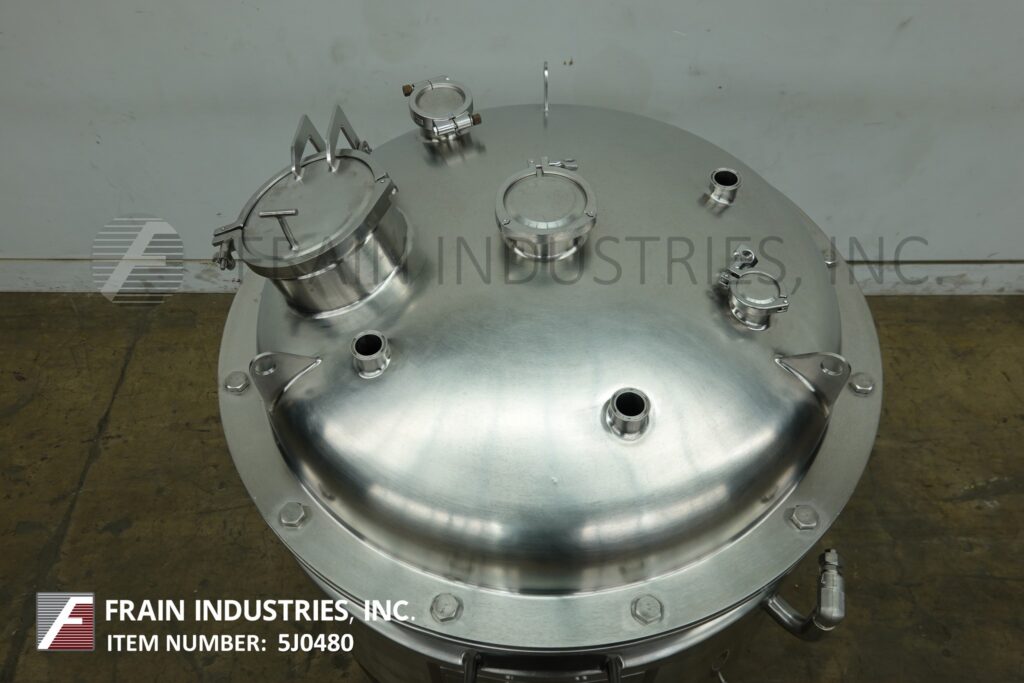

Precision Stainless, 145 gallon capacity, 316 stainless steel jacketed tank. Vessel dimensions: 36" diameter x 38" straight wall. Equipped with bolt down dome cover, 8" diameter bolt down access cover and bottom mounted magnetic prop agitation. Dish bottom has 2" OD / 1½" ID bottom discharge with 14" ground clearance.

Top Ports:
(1) 5" / 4½" Tri-Clamp
(1) 3½" / 3" Tri-Clamp
(1) 2½" / 2" Tri-Clamp
(3) 2" / 1½" Tri-Clamp

Jacket Ports:
(3) 1" NPT
(1) ¾" NPT

Vessel:
MAWP: 0 PSI @ 350°F
MDMT: -20°F @ 0 PSI

Jacket:
MAWP: 100 PSI @ 350°F
MDMT: -20°F @ 100 PSI

Nat’l Brd: 3132

OAD: 46"L x 42"W x 71"H

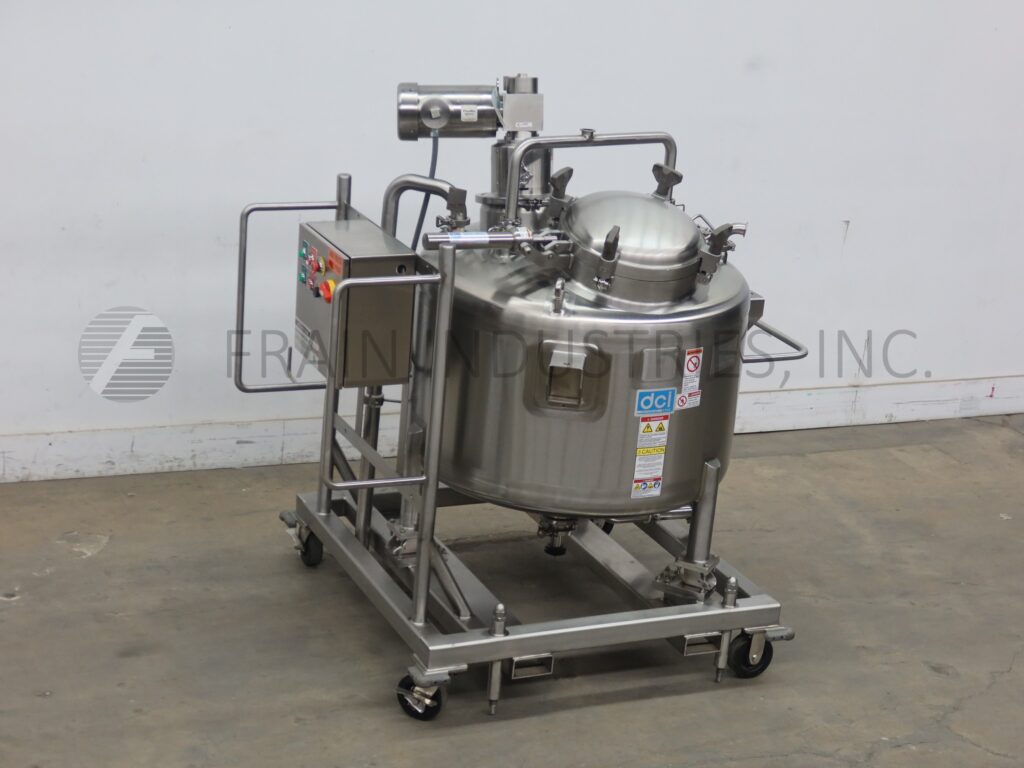

DCI Tank Reactor SS 40 GALLON

• Manufacturer: DCI
• Model Number: 40 GALLON
• Frain Number: 5J0200

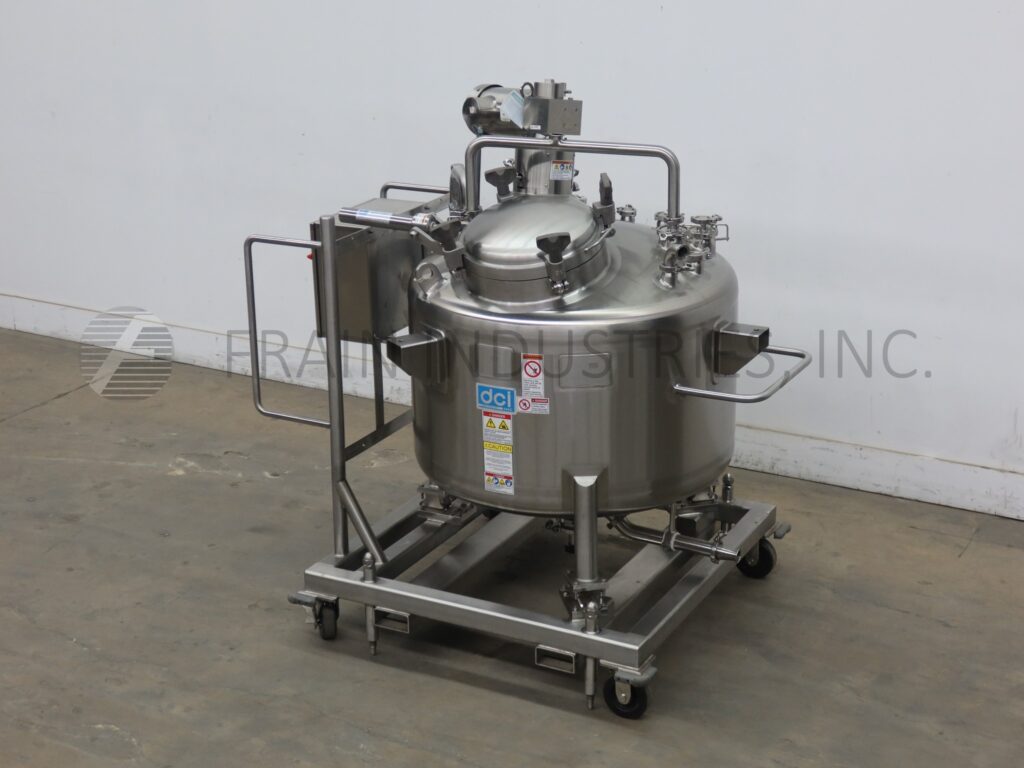

DCI, 40 gallon capacity, 316 stainless steel jacketed processing tank. Vessel dimensions: 30" diameter x 20" straight wall. Equipped with bolt down dome cover, 10" diameter bolt down access cover, thermo well, 1 HP top mounted prop agitation. Dish bottom has 2½" OD / 2" ID bottom discharge with butterfly valve and 19" ground clearance. Control panel with push button start / stop and variable speed controls.

Top Ports:
(6) 3½" / 3" Tri-Clamp
(1) 2½" / 2" Tri-Clamp

Jacket Ports:
(2) ¾" NPT

Vessel:
MAWP: 30 PSI / FV @ 300°F
MDMT: -20°F @ 30 PSI

Jacket:
MAWP: 140 PSI / FV @ 361°F
MDMT: -20°F @ 140PSI

Nat’l Brd: 4687

OAD: 38"L x 36"W x 71"H

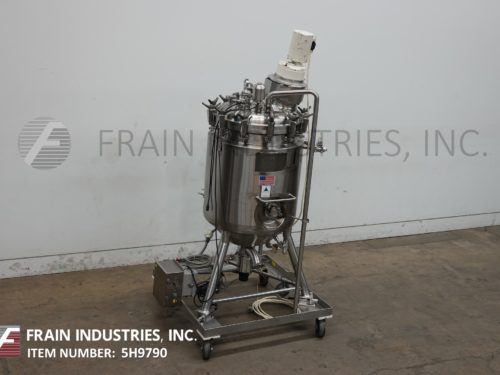

Precision Stainless Tank Reactor SS 75 GAL

• Manufacturer: Precision Stainless
• Model Number: 75 GAL
• Frain Number: 5H9790

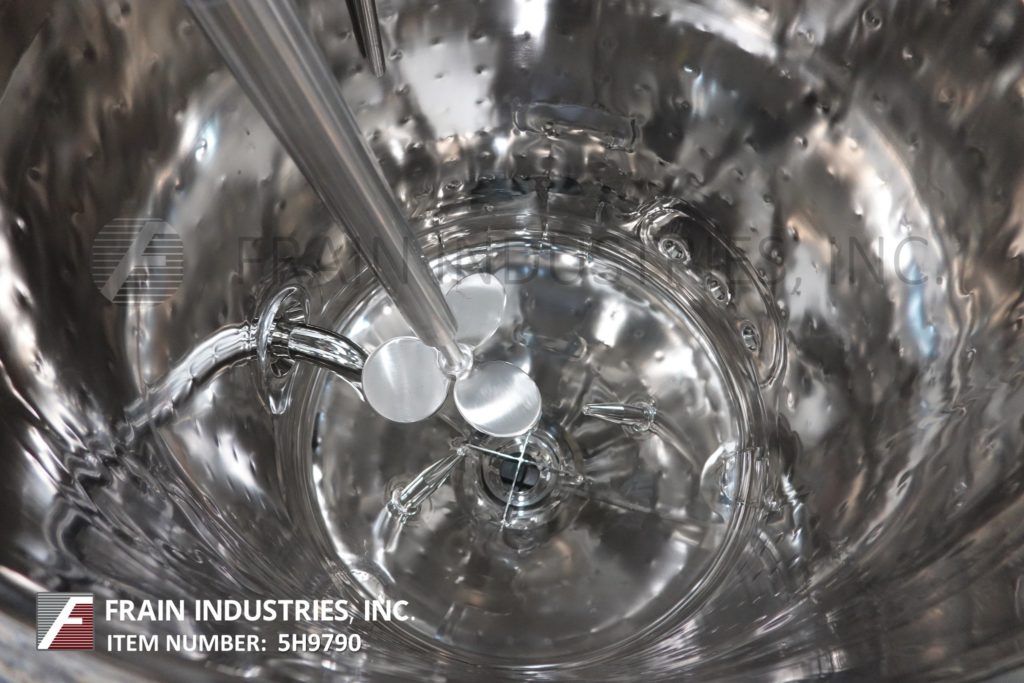

Precision Stainless, 75 gallon capacity, 316 stainless steel jacketed processing tank. Vessel dimensions: 26" diameter x 30" straight wall. Equipped with bolt down dome cover, CIP spray balls supplied by 2"OD / 1½"ID Tri-Clamp fittings, ½ HP top mounted prop agitation and thermowell. Dish bottom has 3½" OD / 3" ID bottom discharge with valve and 22" ground clearance.

Top Ports:
(1) 3½" / 3" Tri-Clamp
(2) 2½" / 2" Tri-Clamp
(6) 2" / 1½" Tri-Clamp

Jacket Ports:
(4) 1¼" NPT

Vessel:
MAWP: 100 PSI / FV @ 400°F
MDMT: -20°F @ 100 PSI / FV

Jacket:
MAWP: 150 PSI / FV @ 400°F
MDMT: -20°F @ 150 PSI / FV

Nat’l Brd: 7991

OAD: 54"L x 48"W x 99"H

Abec Tank Reactor SS 3000L

• Manufacturer: Abec
• Model Number: 3000L
• Frain Number: 5H9211

Stainless Technology, 3000 Liter capacity, 316L stainless steel jacketed processing tank. Vessel dimensions: 60" diameter x 60" straight wall. Equipped 18" ID bolt down acces port, 1½ HP bottom mounted prop agitation. Dish bottom has 2½" OD / 2" ID bottom discharge with 23" ground clearance.

Jacket Ports:
(2) 6"OD / 2½"ID Flange

Vessel:
MAWP: 45 PSI / FV @ 266°F
MDMT: -20°F @ 45 PSI / FV

Jacket:
MAWP: 150 PSI / FV @ 266°F
MDMT: -20°F @ 150 PSI / FV

Nat’l Brd: 379

OAD: 70"L x 65"W x 120"H

Lee Tank Reactor SS 55CBT

• Manufacturer: Lee
• Model Number: 55CBT
• Frain Number: 5H8776

Lee, Model 55 CBT, 55 Gallon capacity, 316 stainless steel, single wall vacuum tank. Equipped with 28" ID x 28" deep vessel with 21" straight wall and has pneumatic tilt up cover. Cone bottom has 2"OD / 1½"ID tri-clamp style discharge with 17" ground clearance. Mounted on (4) stainless steel legs with casters.

Top Ports:
(1) 10½"OD / 9¾" ID Tri-Clamp
(1) 6½"OD / 5¾" ID Tri-Clamp
(3) 3½"OD / 3" ID Tri-Clamp
(2) 2"OD / ¾" ID Tri-Clamp

MAWP: 5 PSI / FV @ 227°F (Vessel)
MDMT: -20°F @ 5 PSI / FV

OAD: 55"L x 50"W x 55"H
