DCI Tank SS JKT 300 LITERS

• Manufacturer: DCI
• Model Number: 300 LITERS
• Frain Number: 5J5166

DCI, 79 gallon capacity, 316 stainless steel, insulated and jacketed tank. Vessel dimensions: 30" diameter with a 25" straight wall. Equipped with 8" Tri-Clamp manway with 2" glass viewing port, (2) CIP spray balls supplied by (2) 1½" Tri-Clamps, (1) thermowell, and 2" Tri-Clamp discharge with 12" ground clearance. Mounted on (4) tubular legs with castors.

Top Fittings:
(2) 4" Tri-Clamp with 2" glass viewing port
(1) 3" Tri-Clamp
(1) 2" Tri-Clamp
(4) 1½" Tri-Clamp

Side Fittings:
(1) ½" Tri-Clamp
(1) Threaded instrument port

Jacket Fittings:
(2) 1½" NPT

Nat’l Brd: 3440

MAWP: 150/FV PSI @ 365°F (Jacket)
MDMT: -20°F @ 165/FV PSI (Jacket)

MAWP: 45/FV PSI @ 300°F (Vessel)
MDMT: -20°F @ 45/FV PSI (Vessel)

OAD: 46" L x 45" W x 65" H

DCI Tank SS JKT 400 LITERS

• Manufacturer: DCI
• Model Number: 400 LITERS
• Frain Number: 5J5165

DCI, 105 gallon capacity, 316L stainless steel, insulated and jacketed tank. Vessel Dimensions: 36" diameter with a 24" side wall. Equipped with 8" Tri-Clamp manway, (1) CIP spray ball supplied by (1) 1½" Tri-Clamp, thermowell and 1½" Tri-Clamp discharge with 10" ground clearance. Mounted on (4) stainless steel tubular legs with castors.

Top Fittings:
(1) 5" ID flange
(2) 3" Tri-Clamp with 1½" glassview ports
(1) 2" Tri-Clamp
(4) 1½" Tri-Clamp
(1) 1" Tri-Clamp

Side Fittings:
(2) 1½" Tri-Clamp
(1) Threaded instrument port

Jacket Fittings:
(2) 1¼" NPT
(1) 1" NPT

Nat’l Brd: 2483

MAWP: 125/FV PSI @ 353°F (Jacket)
MDMT: -20°F @ 130 PSI (Jacket)

MAWP: 45/FV PSI @ 350°F (Vessel)
MDMT: -20°F @ 45/FV PSI (Vessel)

OAD: 50" L x 45" W x 54" H

DCI Tank Reactor SS 145 GAL

• Manufacturer: DCI
• Model Number: 145 GAL
• Frain Number: R40400

DCI, 145 gallon capacity, 316 stainless steel, internal vacuum tank. Vessel dimensions: 42" diameter x 35" deep with a 23" straight wall. Equipped with prop agitation powered by a top mounted 1 hp drive, 16" boltdown manway, (2) CIP balls fed by 1½" Tri-clamp, 2" Tri-clamp discharge with plug valve with 12½" discharge height. Mounted on stainless steel forklift frame with castors.

Top ports:
(1) 3" Tri-clamp
(1) 2" Tri-clamp
(4) 1½" Tri-clamp

MAWP: 50 PSI @ 300°F (Vessel)
MAEWP: 15 PSI @ 300°F (Vessel)
MDMT: -20°F @ 50/-15 PSI (Vessel)

Nat’l Brd: 9951

OAD: 76" L x 52" W x 75" H

DCI Tank Processors 650L

• Manufacturer: DCI
• Model Number: 650L
• Frain Number: R39885

DCI, Model 650L, stainless steel 171 gallon jacketed vacuum tank. Vessel Dimensions: 48" ID with a 28" straight wall. Equipped with a 16" ID diameter bolt down manway with 4"ID Tri-Clamp, thermowell, 3 Hp sweep agitation and 3 Hp prop agitation. Dish bottom with 2"ID Tri-clamp discharge and 10" ground clearance.

Top Ports:
(2) 4" Tri-Clamp
(2) 3" Tri-Clamp
(2) 1½" Tri-Clamp

Jacket Access:
(2) 1½" NPT

MAWP: 135 PSI / -15 PSI @ 358° F (Jacket)
MDMT: -20°F @ 150 PSI (Jacket)

MAWP: 50 PSI / -15 PSI @ 358° F (Vessel)

Nat’l Brd: 4826

OAD: 60"L x 52"W x 84"H

DCI Tank Processors 6000 GAL

• Manufacturer: DCI
• Model Number: 6000 GAL
• Frain Number: 5J0982

DCI, 6000 gallon, 304 stainless steel insulated horizontal tank. Vessel Dimensions: 85" diameter x 243" straight wall with dish ends. Equipped with a 20" x 16" front end man way with flip open cover, (2) ¾ Hp top mounted prop style mixers, CIP spray balls, thermowell and a 3" OD / 2½" ID Tri-clamp style discharge fitting with 12" ground clearance.

Front Ports:
(1) 3½"OD / 3" ID Tri-clamp
(1) 3" Diameter Open Vent

OAD: 270"L x 94"W x 121"H

DCI Tank SS Single Wall 4000 GAL

• Manufacturer: DCI
• Model Number: 4000 GAL
• Frain Number: 5J1665

DCI, 4,000 Gallon, 304 stainless steel, horizontal single wall tank. Vessel Dimensions: 78¼" diameter x 200" deep with a 192" straight wall. Equipped with 16" x 20" diameter side bottom bolt down man way, 3½"OD / 3"ID Tri-clamp fitting infeed and 3½"OD / 3"ID Tri-clamp fitting discharge with 7" ground clearance.

Top Access:
(1) 3½" NPT
(1) 4½"OD / 4"ID Tri-Clamp

Side Access:
(1) 5"OD / 4½"ID Tri-Clamp
(1) 2"ID Flare Out

OAD: 124"L x 80"W x 100"H

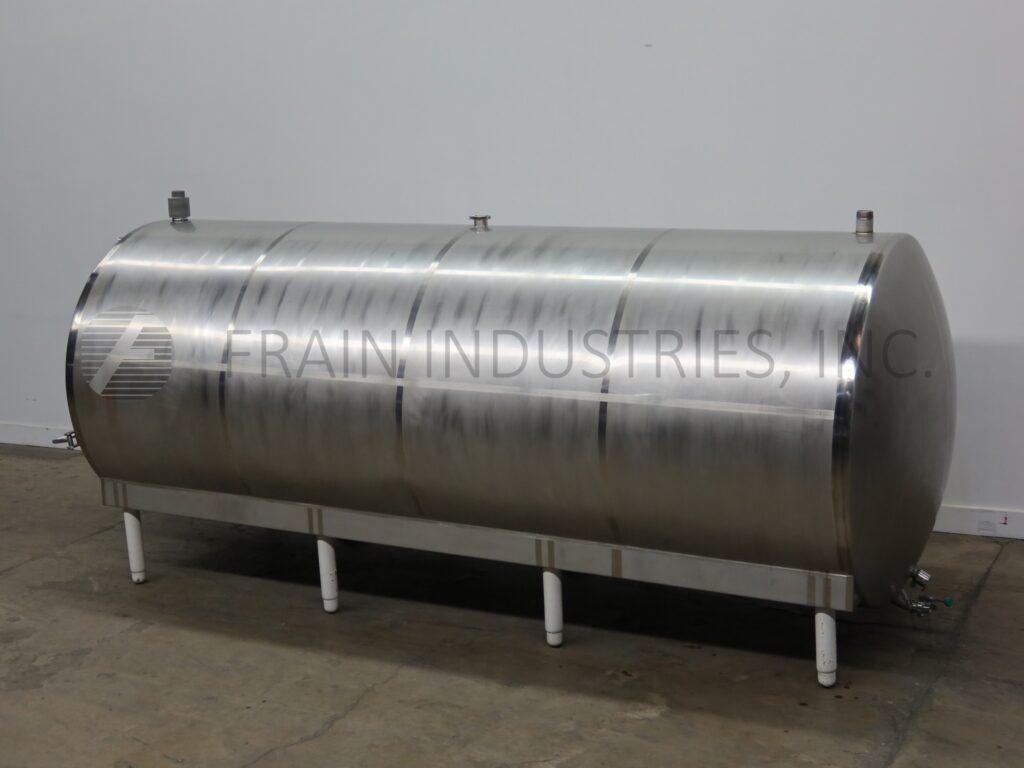

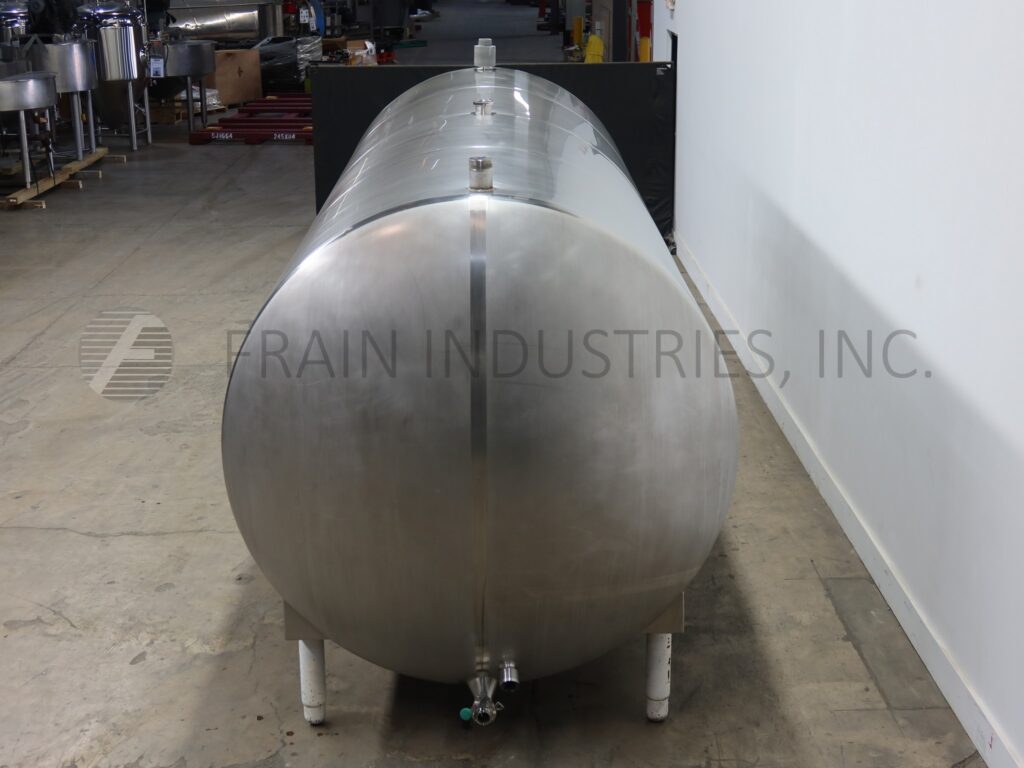

DCI Tank SS Single Wall 4000 GAL

• Manufacturer: DCI
• Model Number: 4000 GAL
• Frain Number: 5J1663

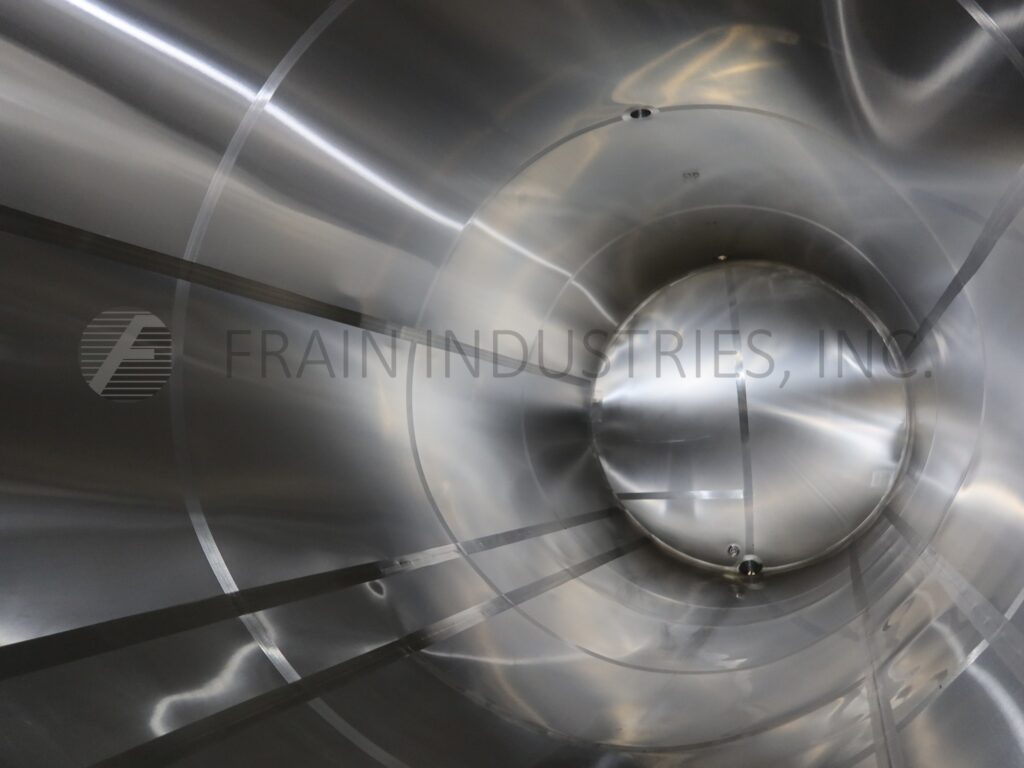

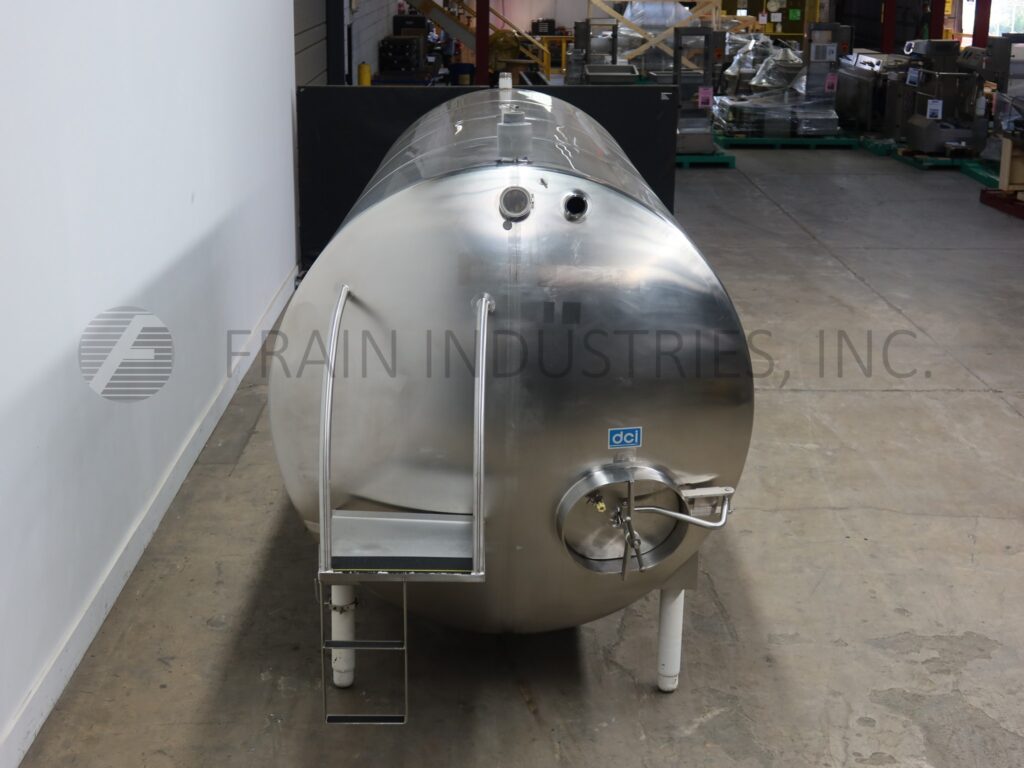

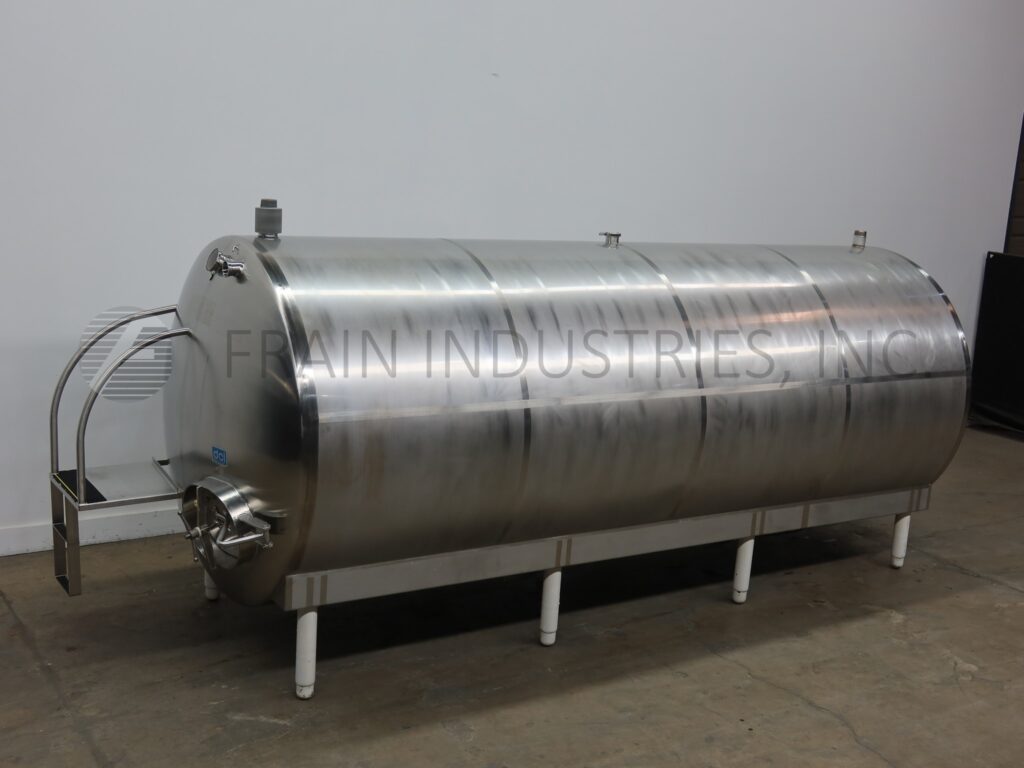

DCI, 4,000 Gallon, 304 stainless steel, horizontal single wall tank. Vessel Dimensions: 78¼" diameter x 200" deep with a 192" straight wall. Equipped with 16" x 20" diameter side bottom bolt down man way, 3½"OD / 3"ID Tri-clamp fitting infeed and 3½"OD / 3"ID Tri-clamp fitting discharge with 7" ground clearance.

Top Access:
(2) 3½" NPT
(1) 4½"OD / 4"ID Tri-Clamp

Side Access:
(1) 5"OD / 4½"ID Tri-Clamp
(1) 2"ID Flare Out

OAD: 124"L x 80"W x 100"H

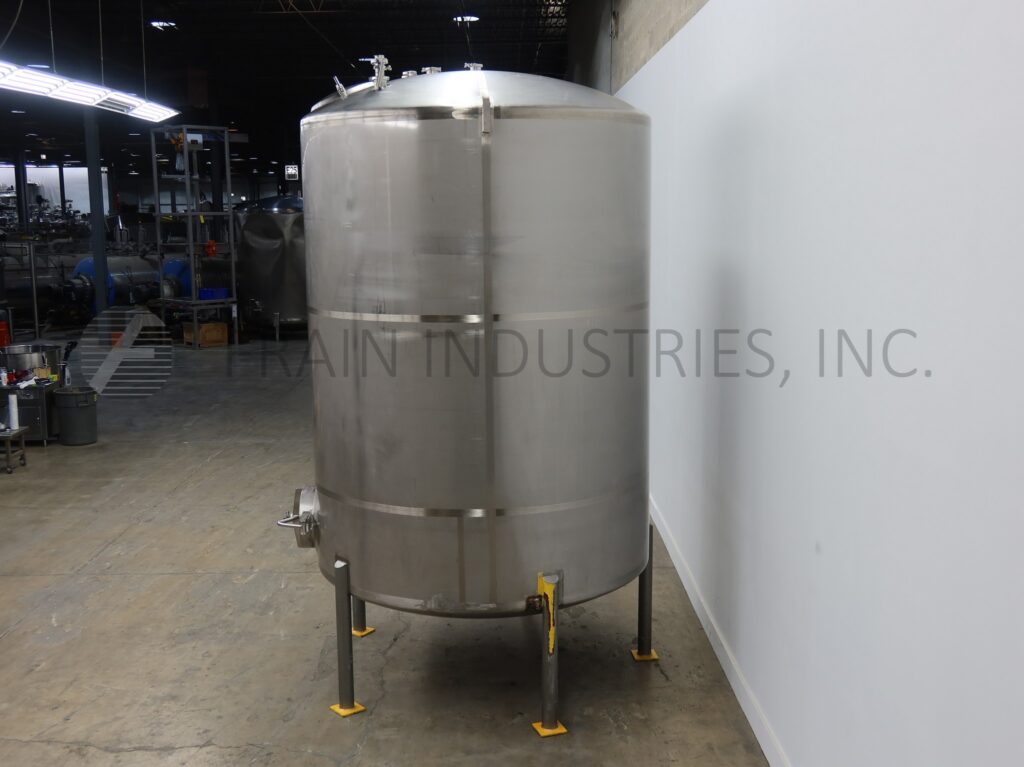

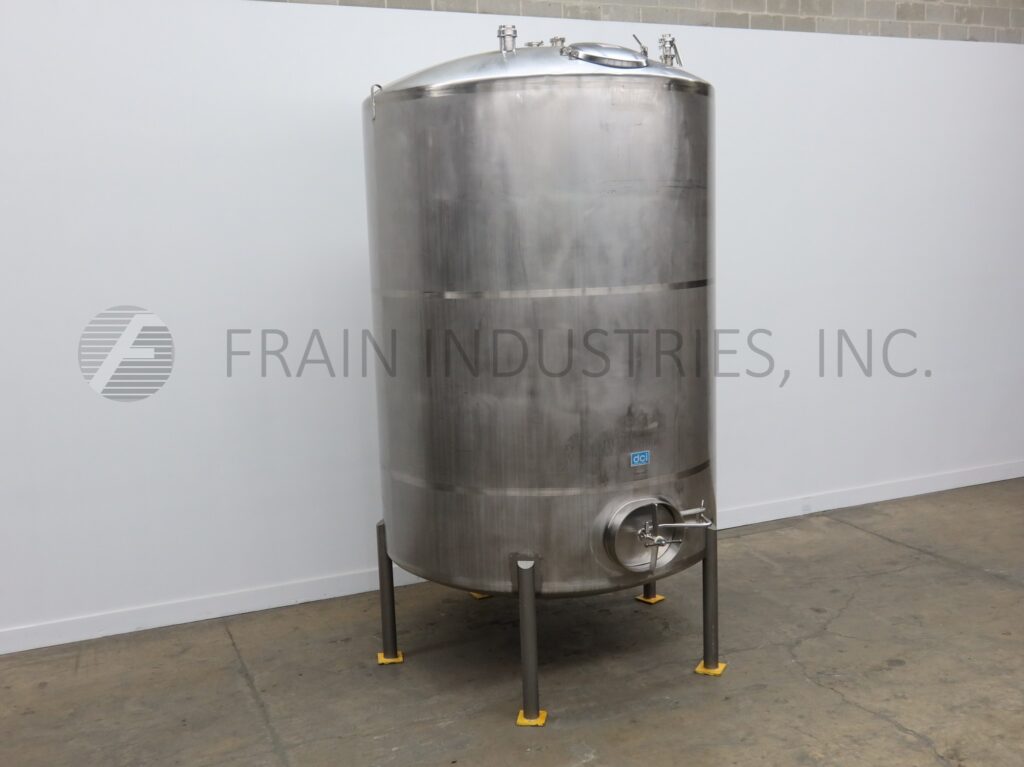

DCI Tank SS Single Wall 4000 GAL

• Manufacturer: DCI
• Model Number: 4000 GAL
• Frain Number: 5J1655

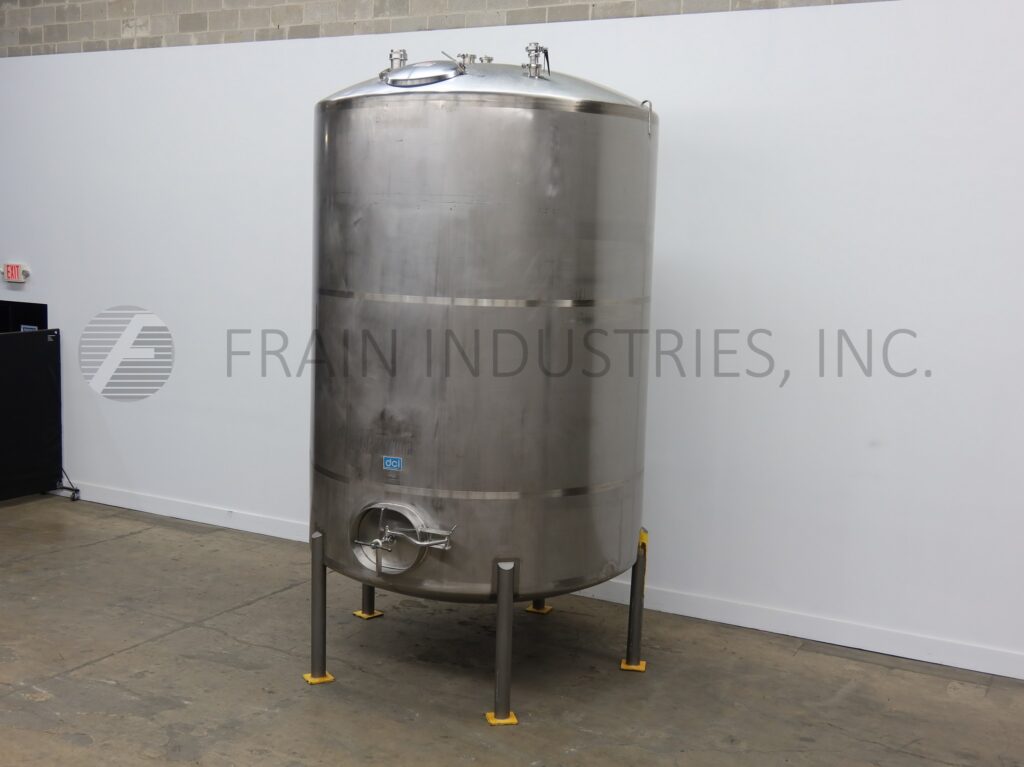

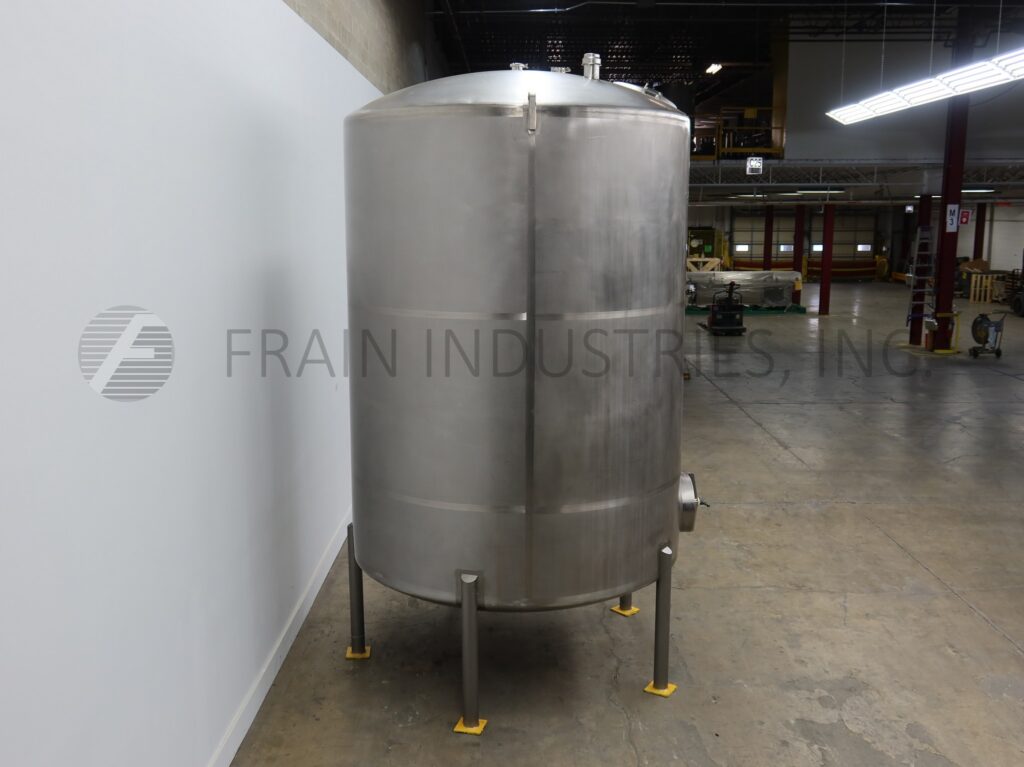

DCI Stainless, 4,000 Gallon, 304 stainless steel, single wall tank. Vessel Dimensions: 95¾" diameter x 148" deep with a 120" straight wall. Equipped with dome top, 3½"OD / 3"ID Tri-Clamp infeed, 4"OD vent, 18" diameter top bolt down manway / 16" x 20" side bolt down manway and 3½"OD / 3"ID Tri-clamp fitting discharge with 18" ground clearance.

Top Access:
(1) 2"OD / 1½"ID Tri-clamp
(1) 2½"OD / 2"ID Tri-Clamp

OAD: 115"L x 115"W x 172"H

DCI Tank Reactor SS 300 GALLON

• Manufacturer: DCI
• Model Number: 300 GALLON
• Frain Number: 5J3124

DCI, 300 Gallon capacity, 316 stainless steel, internal pressure tank. Vessel dimensions: 46" diameter x 51" deep with a 42" straight wall. Equipped with 16"diameter bolt down cover and 2½"OD / 2"ID Tri-Clamp style discharge with 6" ground clearance. Mounted on (4) stainless steel legs with casters

Top Ports:
(2) 3½"OD / 3"ID Tri-Clamp

MAWP: 50PSI @ 300°F (Vessel)

Nat’l Brd: 427

OAD: 60"L x 50"W x 72"H

DCI Tank Reactor SS 300 GALLONS

• Manufacturer: DCI
• Model Number: 300 GALLONS
• Frain Number: 5J3123

DCI, 300 Gallon capacity, 316 stainless steel, internal pressure tank. Vessel dimensions: 46" diameter x 51" deep with a 42" straight wall. Equipped with 16"diameter bolt down cover and 2½"OD / 2"ID Tri-Clamp style discharge with 6" ground clearance. Mounted on (4) stainless steel legs with casters

Top Ports:
(2) 3½"OD / 3"ID Tri-Clamp

MAWP: 50PSI @ 300°F (Vessel)

Nat’l Brd: 429

OAD: 60"L x 50"W x 72"H

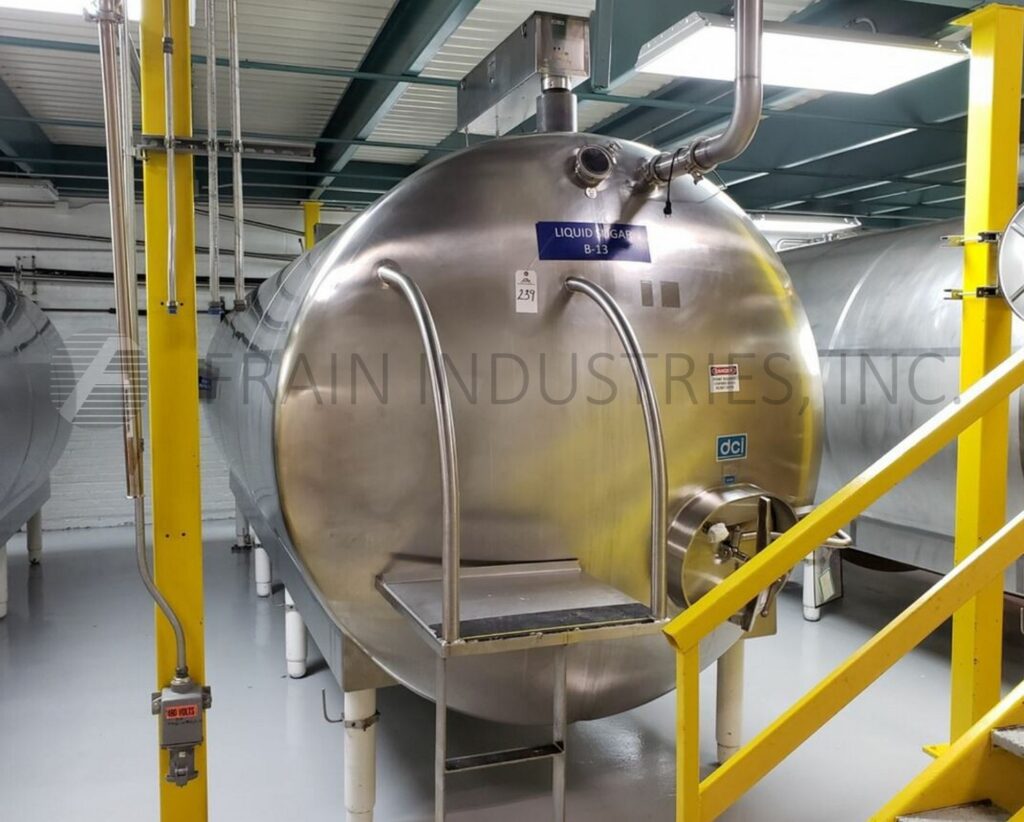

DCI Tank SS Single Wall 4000 GAL

• Manufacturer: DCI
• Model Number: 4000 GAL
• Frain Number: 5J1664

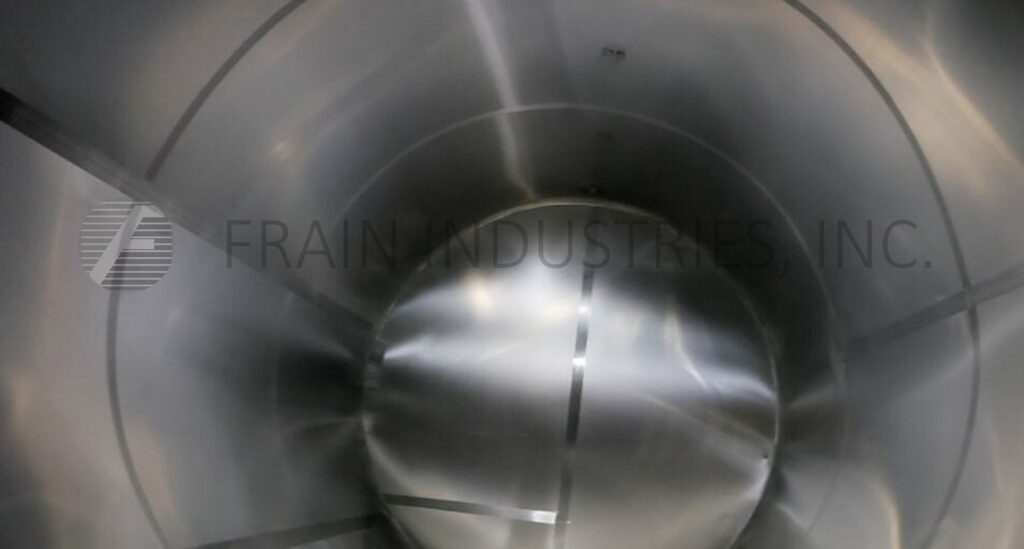

DCI, 4,000 Gallon, 304 stainless steel, horizontal single wall tank. Vessel Dimensions: 78¼" diameter x 200" deep with a 192" straight wall. Equipped with 16" x 20" diameter side bottom bolt down man way, 3½"OD / 3"ID Tri-clamp fitting infeed and 3½"OD / 3"ID Tri-clamp fitting discharge with 7" ground clearance.

Top Access:
(2) 3½" NPT
(1) 4½"OD / 4"ID Tri-Clamp

Side Access:
(1) 5"OD / 4½"ID Tri-Clamp
(1) 2"ID Flare Out

OAD: 124"L x 80"W x 100"H

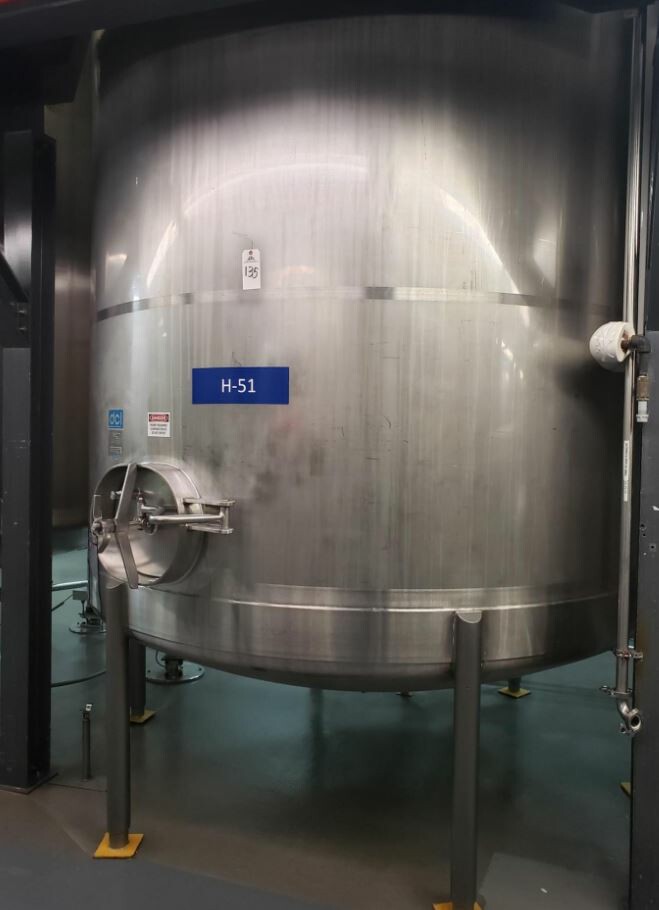

DCI Tank SS Single Wall 5000 GAL

• Manufacturer: DCI
• Model Number: 5000 GAL
• Frain Number: 5J1660

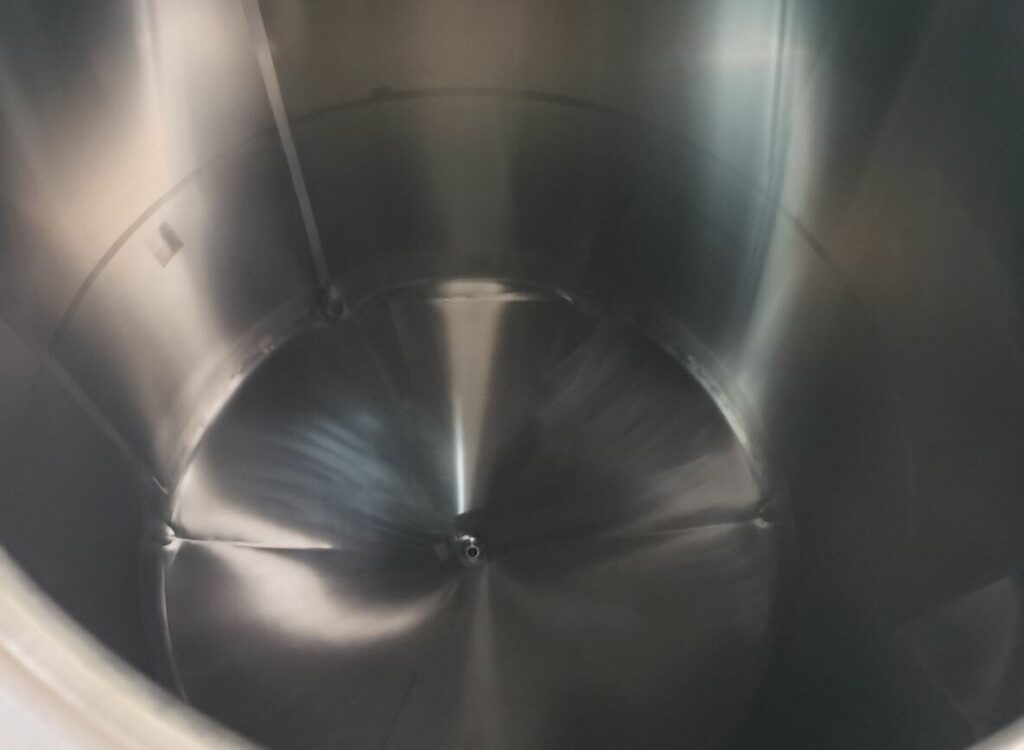

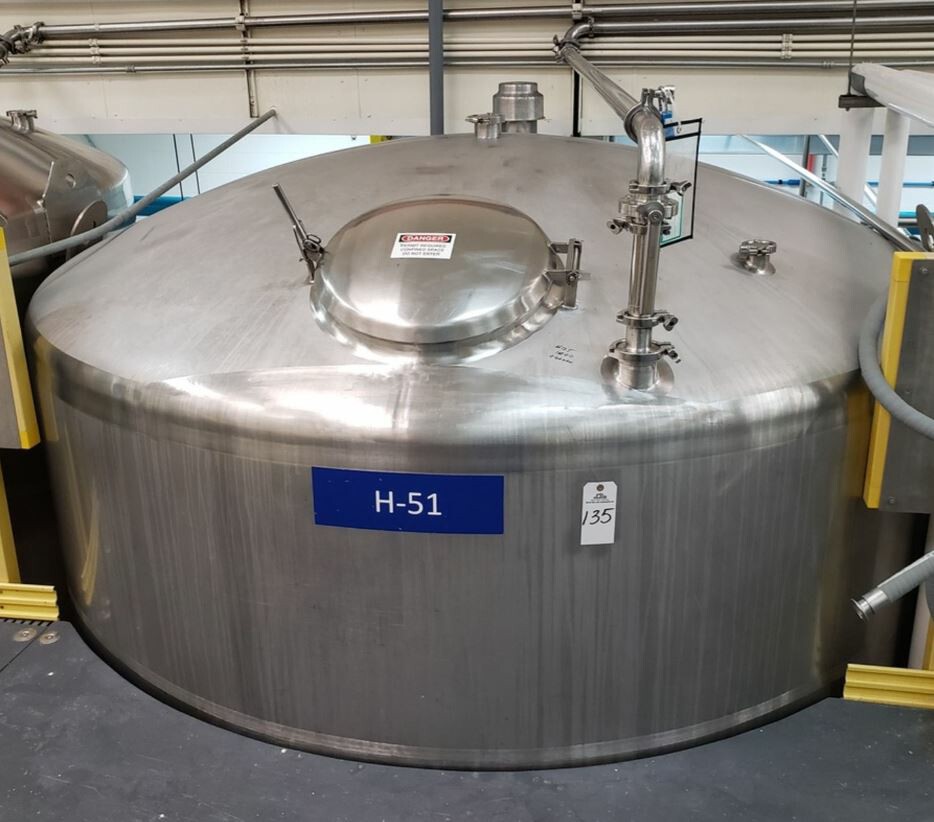

DCI Stainless, 5,000 Gallon, 316L stainless steel, single wall tank. Vessel Dimensions: 107" diameter x 166" deep with a 124" straight wall. Equipped with dome top, 3½"OD / 3"ID Tri-Clamp infeed, 6"OD vent, 18½" ID top latch down manway / 16" x 20" side bolt down manway and 3½"OD / 3"ID Tri-clamp fitting discharge with 18" ground clearance.

Top Access:
(1) 2"OD / 1½"ID Tri-clamp
(1) 2½"OD / 2"ID Tri-Clamp

OAD: 115"L x 115"W x 180"H
